Precision-manufactured from high-tensile Q235B/Q355B structural steel. Each system is engineered to satisfy FEM 10.2.02 and EN 15512 standards, custom-configured to your building geometry, pallet dimensions, and seismic risk zoning.
Heavy-Duty
Customized Heavy-Duty Steel Warehouse Industrial Racking Pallet Shelves
Custom Profiles
Q355B Steel
FEM Compliant
Modular Post
Heavy-Duty Steel Metal Logistic Stackable Storage Post Pallet Racks
Stackable 4-High
Galvanized/Coated
Bulk Cargo
2000kg Rating

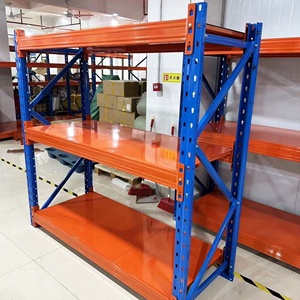

2000kg 5-Layer Selective Pallet Rack Boltless Heavy Duty Storage Shelves
Direct 100% Access
Lock-Pin Beams
Cold-Formed
3000kg Heavy
3000KG Heavy-Duty Pallet Rack Powder Coating Steel Racking Shelves Units
Heavy Machinery
Epoxy Powder
Box Beam
Mezzanine Platform

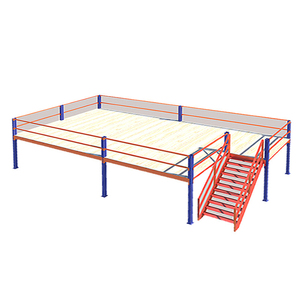

Heavy-Duty Storage Warehouse Racks Attic Loft Mezzanine Floor Platforms
2–4 Tiers Space
Integrated Picking
300-1000kg/m²
EURO Standard
Jracking EURO Standard Warehouse Heavy Duty Steel Pallet Racking System
EN 15620 Tolerance
Omega Uprights
Safety Factor 1.5
Bulk Logistics
Heavy Duty Pallet Racking Steel Industrial Storage Rack for Bulk Cargo
High-Density
Forklift Guided
Corrosion Proof
Enterprise Reliability & E-E-A-T Assurance
Why Global Tier-1 Logistics Trust Our Manufacturing Authority
Founded in 2001 in Guangzhou, HEDA Shelves operates a state-of-the-art 30,000 square meter facility engineered to eliminate structural variance, guarantee certified load ratings, and accelerate international project delivery.
25+
Years of Racking Engineering
Serving global distributors since 2001
30,000m²
Heavy Manufacturing Campus
Fully integrated cold-forming & coating
30,000t
Monthly Structural Steel Output
Continuous supply for mega distribution centers
120+
Export Sovereign Nations
Over 10,000+ completed installations
The 10-Step Quality Assurance Cycle
Every upright frame, support beam, and mezzanine column passes through ten automated inspection milestones before export container loading.
01
Raw Materials
Spectrometric verification of Q235B/Q355B coils for yield strength.
02
Precision Slitting
Automated optical slitters ensuring ±0.1mm strip width tolerances.
03
CNC Punching
Multi-station punching lines for 50mm/75mm universal pitch patterns.
04
Cold Bending
Multi-pass continuous roll-forming preserving residual core ductility.
05
Profile Forming
Cold-roll omega & box beam profiling tailored to load deflection targets.
06
Mechanical Polish
Burr elimination and weld seam leveling to prevent worker injuries.
07
Robotic Welding
Gas-shielded robotic arm welding of beam connectors and baseplates.
08
Phosphatization
8-stage chemical pickling bath removing micro-scale oxides for epoxy grip.
09
Powder Coating
Automatic electrostatic application cured at 200°C (60–90µm DFT).
10
QC & Shipping
Full batch deflection tests, steel banding, and sea-freight packing.
CE Certified: No. 2435-CPR-8605159
ISO 9001:2015: No. 18624Q00169R0M
RoHS Compliance: Heavy-Metal Free Resins
Strategic Market Intelligence
Future Pallet Shelving Procurement Trends (2025–2035)
Global supply chain disruptions, soaring logistics square-meter costs, and rapid warehouse automation are revolutionizing industrial racking procurement. Procurement directors must anticipate these architectural transformations.
Urban High-Bay & Multi-Tier Mezzanine Verticalization
Prime last-mile logistics industrial land rents across Asia-Pacific, North America, and Europe have increased significantly over the past five years. Buyers are abandoning low-density selective storage in favor of 12-meter clear height high-bay racking and rack-supported multi-tier platforms that triple cubic footprint utility without increasing ground lease expenditures.
Yields up to 280% volumetric efficiency gains
Hybrid Automation Readiness (AMR & Shuttle Interoperability)
Standard forklift-only warehouses are transitioning into hybrid automation hubs. Modern procurement tenders mandate structural pallet frames with tight beam tolerances (±1.0mm deflection under full dynamic loads) designed to accommodate 4-way autonomous radio shuttles, AGV guide rails, and automated carton flow pick faces alongside conventional lift equipment.
Eliminates forklift aisle travel by 70%
Regulatory Harmonization & Compulsory CE/FEM Directives
Institutional warehouse insurers and regional labor safety authorities no longer permit uncertified racking profiles. Tenders increasingly reject generic vendors without audited CE Execution Class markings (EN 1090-1 / EN 15512). Independent finite element analysis (FEA) reports verifying structural behavior during seismic displacement events have shifted from optional to mandatory.
Guaranteed compliance with OSHA and European standard inspections
Cold-Chain Infrastructure Expansion & Specialized Cryogenic Steel Metallurgy
The global surge in biologics, specialty pharmaceuticals, and frozen fresh supply chains is driving unprecedented capital allocation into automated blast freezers (-30°C). Ordinary commercial steel suffers acute brittle failure at low temperatures. Modern enterprise procurement specifies Q355D/E cold-grade micro-alloyed structural steels, combined with pre-treatment zinc-phosphating or full hot-dip galvanizing to BS EN ISO 1461, ensuring structural resilience in sub-zero and condensation-heavy environments without micro-fissuring.
Maintains Charpy V-notch impact toughness below -30°C
Engineering Whitepaper
Structural Steel Dynamics & Seismic Design Evolution
Modern warehouse pallet racking systems are hyper-optimized spatial frameworks governed by advanced elastoplastic beam-column interaction codes. Under EN 15512 and FEM 10.2.02, structural stability is no longer computed via obsolete elastic methods, but through second-order non-linear structural analysis (P-Delta effects) that directly models the flexural behavior of semi-rigid beam-to-column connectors.
Our engineering design team uses finite element simulation (FEA) to profile the mechanical stress concentration factors of our omega-section uprights. By strategically placing cold-punched perforations along low-shear neutral axes, our upright columns deliver higher moment of inertia and torsional resistance while utilizing lightweight, high-yield Q235B and Q355B cold-rolled strip profiles.
Seismic Energy Dissipation Mechanics
Custom heavy-gauge footplates with dual anchor channels designed for dynamic ductility in active seismic fault zones (PGA > 0.3g).
Deflection Limitation Ratios (L/200 vs L/300)
Engineered beam sections limiting vertical serviceability deflection to strict standards, protecting automated reach truck sensors.
Engineering Compliance Specs
Direct parameters tested at HEDA Shelves certified test bays in Guangzhou.
Structural Steel Grade
Q235B & Q355B High Yield
Manufacturing Standard
EN 15512:2020 / CE Mark
Upright Width Profiles
80 / 90 / 100 / 120 / 140 mm
Beam Connector Style
3/4/5 Claw Interlocking
Coating Adhesion Class
ISO 2409 Cross-Cut 0
Salt Spray Resistance
> 500 Hours (ASTM B117)
Warehouse Racking Architecture Comparison Matrix
Review core structural differences, pallet selectivity percentages, and capital expenditure tradeoffs to select the optimal layout.
| Racking Topology | Pallet Accessibility | Floor Area Utilization | Aisle Width Requirement | Structural Loading Class | Ideal Inventory Profile |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Immediate | 35% – 40% | 3.0m – 3.8m (Standard) | 500kg – 4,500kg / beam level | High-SKU, low-pallet-count retail & 3PL |
| Double Deep Pallet Racking | 50% Direct | 50% – 55% | 3.0m – 3.2m (Reach Truck) | 1,000kg – 3,000kg / beam level | Medium batch sizes, identical SKUs |
| Drive-In / Drive-Thru Racking | 15% – 20% (LIFO/FIFO) | 65% – 75% | Aisle-free entry bays | 1,000kg – 1,800kg / position | Cold storage, seasonal FMCG, bulk goods |
| Radio Shuttle System | High Density (Semi-Auto) | 75% – 85% | Single transfer interface aisle | 500kg – 2,000kg / shuttle carrier | High-throughput cold chain & raw materials |
| Rack-Supported Mezzanine | 100% Picking & Pallets | 150% – 250% (Multi-level) | Integrated cat-walk aisles | 300kg – 1,000kg / m² floor load | E-commerce fulfillment & auto spare parts |
Procurement Due Diligence
Comprehensive Warehouse Pallet Shelves Procurement FAQ
Engineered answers resolving critical technical questions regarding certifications, metallurgical safety, engineering loads, and international logistics.
What specific structural verification reports should a CE-certified racking manufacturer supply?
A reputable CE-certified manufacturer must provide the Declaration of Performance (DoP) under EN 1090-1 and EN 15512, certifying structural steel execution class EXC2. HEDA Shelves accompanies export orders with third-party verified mechanical mill test certificates (MTC 3.1) showing carbon equivalents, yield points (Reh), tensile strength (Rm), and beam-to-upright connection test curves.
How do Q235B and Q355B structural steel grades affect rack load capacity and weight?
Q235B has a minimum yield strength of 235 MPa, making it ideal for standard beams and low-height uprights. Q355B provides a minimum yield of 355 MPa (a 51% increase in load capacity). By selectively specifying Q355B for high-bay upright columns and bottom frames, our engineers can reduce total steel tonnage by up to 18% while maintaining standard EN 15512 safety factors (1.5 for beams, 1.65 for columns).
What engineering data is required to design seismic-resistant racking in active earthquake zones?
Our engineering team requires: Peak Ground Acceleration (PGA) values, soil foundation profile class (A through E), warehouse concrete slab thickness, and concrete compressive strength (e.g., C20/25 or C30/37). For projects in seismically active regions, we compute dynamic response spectra under EN 16681, specifying enlarged structural baseplates, heavy seismic portal bracing, and M16/M20 chemical resin anchors.
What surface preparation prevents steel oxidation in high-humidity and cold storage environments?
Raw cold-rolled steel requires comprehensive chemical pre-treatment before painting. HEDA Shelves utilizes an eight-stage bath system: alkaline degreasing, rinse, pickling (oxide removal), rinse, nano-ceramic conversion or zinc-phosphatization, double demineralized water rinse, and dry-off oven. For blast-freezer operations (-30°C) with high condensation, we offer hot-dip galvanizing to BS EN ISO 1461.
What dimensional tolerances must be maintained for Reach Truck and VNA interoperability?
Under EN 15620 (tolerances, deformations, and clearances), Very Narrow Aisle (VNA) systems require Class 300 tolerances: total upright plumbness within H/500 and beam level deflection less than L/300 under full rated design load. Standard counterbalance operations use Class 400 (plumbness H/350, deflection L/200). HEDA Shelves manufactures upright profiles using continuous optical laser positioning to maintain hole-pitch tolerances within ±0.15mm.
How do rack-supported mezzanine floors compare to structural steel mezzanines in cost and lead times?
Rack-supported mezzanines utilize high-capacity racking uprights as primary load-bearing structural columns. This typically reduces steel consumption and total project capital expenditure by 25% to 40% compared to heavy hot-rolled I-beam structural platforms. Installation times are typically 30% faster due to boltless interlocking components, making them ideal for high-density e-commerce fulfillment hubs.
How are long structural components bundled to prevent transit deformation during ocean freight?
Upright frames, beams, and horizontal trusses can suffer plastic deformation from vibration during multi-week ocean transit. HEDA Shelves uses steel-banded structural dunnage, protective foam edge protectors, moisture-barrier polymer wrap, and bespoke container-loading CAD schematics. This maximizes 40ft High Cube container volumetric capacity (up to 26–28 tons) while ensuring scratch-free arrival.
What routine inspection protocols and maintenance schedules are mandated under CE/EN standards?
Under EN 15635 (steel static storage systems - application and maintenance of storage equipment), facilities must maintain: (1) Immediate reporting of forklift impacts to column crash guards; (2) Weekly visual inspections by safety personnel for damaged beam lock pins or twisted frames; (3) Formal annual audits by a qualified structural engineer. HEDA Shelves provides comprehensive load warning signs, color-coded damage classification scales (Green, Amber, Red limits), and rapid-ship replacement components for international clients.
Engineered Spatial Planning
