CE Certified

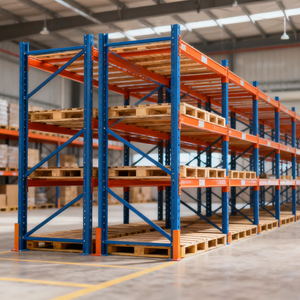

Wholesale Heavy Duty Steel Pallet Racking System Corrosion Protection CE Certified
Up to 5,000 kg/beam
Epoxy Powder Coated
EN 15512
Factory-Engineered Systems
Precision Structural Pallet Racking Portfolio
Constructed with cold-rolled high-tensile structural steel (Q235B & Q355B), multi-stage phosphate anti-corrosion coating, and full compliance with European CE standards (EN 15512, EN 15620, EN 15635).
Modular Stacking

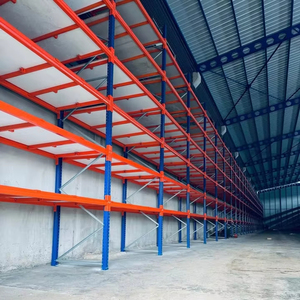

Peterack CE Certified Heavy Duty Stacking Shelf Racks Pallet Rack Multi Layer
1,000–2,500 kg/tier
Interlocking Design
Demountable
High Payload

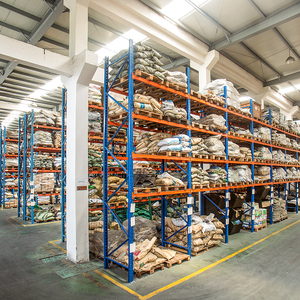

5 Layer Storage Cloth Heavy Duty Pallet Rack Storage For Fabrics 1000KG-3000KG
Textile & Roll Storage
Custom Bay Width
Heavy Duty
Narrow Aisle
Longspan Shelving High Bay Industrial Shelves Narrow Aisle Pallet Racking
High-Bay 12m+
100% Selectivity
VNA Compatible
Flexible Mesh

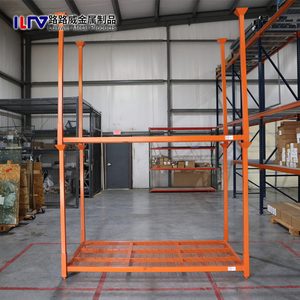

Warehouse Storage Steel Stackable Racks Portable Stacking with Mesh Pallet
Foldable Structure
Galvanized/Painted
Drop Prevention
Long Loads

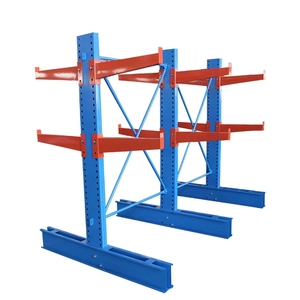

Factory Direct Cantilever Racking Heavy Duty Storage Rack For Pipe Lumber
3,000 kg/arm
No Front Column
Single/Double Sided
Dynamic FIFO

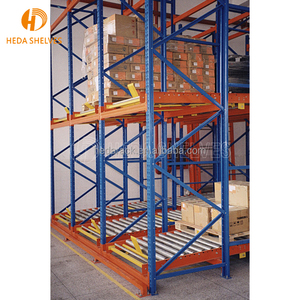

Factory Industrial Steel Gravity Flow Roller Systems Corrosion Resistant FIFO
Gravity Rollers
Automatic Rotation
Picking Efficiency
Heavy Logistic

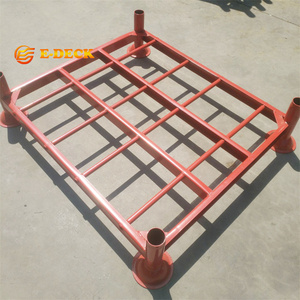

Heavy-duty Steel Metal Logistic Stackable Storage Post Pallet Racks
Bulk Storage
Removable Posts
High Stacking Safety
Guangzhou HEDA Shelves Co., Ltd.
25+ Years of Certified Heavy-Duty Manufacturing Excellence
Founded in 2001 in Guangzhou, China, Guangzhou HEDA Shelves Co., Ltd. has evolved into a global leader in the design, engineering, and precision fabrication of CE and ISO 9001:2015 certified industrial storage solutions. Spanning over 30,000 square meters of dedicated production space and driven by 300+ structural engineers, CAD specialists, and certified welders, HEDA provides complete end-to-end EPC (Engineering, Procurement, Construction) racking systems for intralogistics worldwide.
Unlike trading brokers, HEDA Shelves operates a fully integrated vertical manufacturing complex. We cold-form high-grade continuous coil steel, perform automated CNC column punching with proprietary hole geometries, apply robotic seam welding on box beams, and execute a stringent multi-stage pickling, phosphating, and electrostatic powder coating cycle that guarantees exceptional salt-spray and corrosion resistance across demanding ambient, coastal, and sub-zero cold-chain facilities.
The HEDA Engineering Difference: Every bay, upright column, and load beam is structurally calculated against localized seismic acceleration, soil bearing coefficients, and exact mechanical stress limits in strict conformance with European Standard EN 15512:2020, FEM 10.2.02, and American RMI MH16.1 codes.
2001EST.
Over 25 Years of Industrial Fabrication & Engineering R&D
30,000m²
Advanced CNC & Robotic Manufacturing Facility Floor Area
30,000Tons
Monthly Processing Capacity of Certified Structural Alloy Steel
120+Nations
Global Export Footprint with 10,000+ Completed Projects
Zero-Defect Quality Control
10-Step Precision Manufacturing & Surface Treatment Workflow
Consistent structural integrity begins with verified metallurgy and automated production. Every beam and upright passes our accredited 10-stage physical and chemical quality control cycle.
Raw Materials
Spectrometric alloy test & yield check.
Precision Slitting
High-tolerance laser and shear line cuts.
CNC Punching
Automated continuous hole pitch tooling.
Cold Bending
Multi-pass roll cold forming curves.
Profile Forming
Rigid omega & interlocking box profiles.
Shot Polishing
Complete slag removal & deburring.
Robotic Welding
Gas shielded automated seam joints.
Acid Phosphating
Chemical deep cleansing for adhesion.
Powder Coating
RoHS-compliant 180°C thermo-cured finish.
QC & Bundling
Container plan strapping & padding.
Strategic Market Intelligence
Emerging Procurement Trends & Next-Gen Storage Technology
The warehouse equipment procurement landscape is shifting rapidly. Supply chain directors are prioritizing modular automation readiness, sustainable materials, and rigorous life-cycle cost modeling.
1. High-Density Semi-Automation & Shuttle Integration
Procurement teams are shifting away from static low-density aisles toward hybrid configurations. Radio shuttle pallet runners, automated gravity roll tracks, and VNA (Very Narrow Aisle) architectures allow operators to expand storage capacity by up to 280% within existing building footprints, mitigating astronomical real estate leasing costs in logistics epicenters.
2. Turnkey "One-Stop EPC" Racking Contracts
Fragmented purchasing between structural racks, wire mesh decks, impact protectors, and installation crews is being replaced by single-source turnkey factory contracts. Suppliers who provide in-house structural PE stamping, BIM modeling, container cubing optimization, and on-site engineering supervision minimize execution variance and reduce project risk by up to 35%.
3. Rigorous Seismic & Climatic Durability Standards
With major logistics hubs located in active seismic corridors (e.g., the Pacific Rim) and corrosive tropical zones, international buyers require non-negotiable CE conformity declarations (EN 15512:2020), site-specific dynamic FEM finite-element structural validation, and hot-dip galvanization options for extreme humidity and sub-zero blast freezers.
Engineering Structural Parameters: System Configuration Matrix
Baseline engineering comparison for common industrial pallet racking topologies manufactured by HEDA Shelves:
| Racking Topology | Standard Beam Elevation | Max Bay Capacity | Selectivity | Aisle Width (AST) | Compliant Forklift Types |
|---|---|---|---|---|---|
| Selective Pallet Racking | Up to 12,000 mm | Up to 24,000 kg | 100% Direct Access | 3,200 – 3,800 mm | Counterbalance, Reach Truck |
| VNA (Very Narrow Aisle) | Up to 16,500 mm | Up to 28,000 kg | 100% Direct Access | 1,600 – 1,900 mm | VNA Turret Truck, Wire/Rail Guided |
| Drive-In / Drive-Through | Up to 11,000 mm | Bulk Lane Limited | LIFO or FIFO Bulk | Forklift Chassis Width | Standard Counterbalance / Reach |
| Radio Shuttle Automation | Up to 18,000 mm | Up to 32,000 kg/run | High-Density FIFO/LIFO | 2,600 – 3,000 mm | Standard Reach Truck + Shuttle Unit |
| Heavy Cantilever Racks | Up to 9,000 mm | 3,000 kg / Arm | 100% Unobstructed | Varies by Material | Side Loader, Multi-directional Forklift |
Verified Compliance
International Certifications & Structural Safety Integrity
In international B2B warehouse engineering, safety certification is the baseline of legal operation and structural insurability. HEDA Shelves guarantees every structural component manufactured in our Guangzhou complex conforms to verified international testing bodies.
- CE Certification No. 2435-CPR-8605159: Compliance with Construction Products Regulation (CPR) for steel structures and warehouse components.
- ISO 9001:2015 Registered (No. 18624Q00169R0M): Certified raw material traceability, continuous dimensional calibration, and defect quarantine.
- RoHS Coating Compliance: Environmentally safe powder resins without heavy metals, toxic volatilization, or off-gassing in food/pharmaceutical zones.
CE Marked
EN 15512 Racking
ISO 9001:2015
Quality Assurance
RoHS Certified
Eco Surface Finish
Expert Procurement Advisory
Frequently Asked Questions for Industrial Buyers
Critical technical answers prepared by our senior warehouse engineering division covering structural safety, lead times, anti-corrosion, and shipping container optimization.
What structural data is necessary to generate a free 3D CAD racking layout?
To provide an accurate structural schematic and pallet capacity calculation, our engineering team requires: (1) Architectural floor plan indicating building column spacing, clear ceiling height under roof trusses, and emergency egress corridors; (2) Pallet dimensions (Width x Depth x Height including cargo overhang) and maximum gross weight per unit; (3) Forklift model, maximum lifting elevation, and minimum aisle turning radius (AST); and (4) Facility environmental parameters such as seismic zone rating or cold storage temperatures.
How does CE certification (EN 15512) safeguard racking installations?
CE certification under standard EN 15512 dictates rigorous limit-state structural design principles for cold-formed steel racking. It mandates empirical testing of beam-end connectors for rotational stiffness, upright stub-column compressive strength, and frame bracing buckling stability. This ensures safety factors against progressive collapse under dynamic loading, impact accidental loads, and asymmetric rack utilization.
What surface treatments prevent corrosion in humid or cold storage environments?
For standard ambient distribution centers, HEDA applies a four-stage pre-treatment (degreasing, acid pickling, surface conditioning, and zinc-phosphate conversion) followed by an electrostatic thermo-hardened epoxy-polyester powder coat (60-80 microns). For high-humidity coastal climates, food-grade washdown rooms, or deep-freeze cold storage facilities down to -30°C, we supply full Hot-Dip Galvanized (HDG) components conforming to ISO 1461, providing decades of maintenance-free cathodic rust protection.
How does HEDA optimize container cubing and ocean freight costs?
Racking components are engineered for high-density nested packaging. Upright frames can be shipped fully bolted or knock-down (KD) for on-site bolting, tripling container weight utilization. Beams, frame braces, and decks are bundled using precision timber dunnage, high-tensile steel strapping, and protective plastic wrap to prevent transit scuffing. Our shipping department generates complete 3D container loading diagrams (AutoCAD/3D Max) for each 40ft HC container, ensuring maximum payload without exceeding local axle limits.
Can HEDA engineer custom OEM profile solutions for regional racking distributors?
Yes. Over 40% of our production volume supports private-label OEM and ODM distribution networks across Europe, North America, Southeast Asia, and the Middle East. We can engineer tooling dies for custom upright hole punch profiles (teardrop, hex, diamond, or keyhole), produce customized beam connector claw brackets, apply bespoke RAL color palettes, and private-label packaging and installation documentation with your corporate brand.
What is the standard production lead time and installation support provided?
Typical manufacturing cycles range from 15 to 25 business days depending on tonnage and coating requirements. Every shipment includes comprehensive 3D assembly guides, component piece-marks, and bolt torque specifications. For complex multi-tier mezzanine floors or radio shuttle installations, HEDA can dispatch senior site supervisors worldwide or coordinate with your local mechanical installation contractor via remote video engineering audit.
One-Stop Turnkey Procurement
Request Your Custom Warehouse Layout & Factory Quote
Connect directly with Guangzhou HEDA Shelves' senior structural engineering team. Receive a comprehensive CAD floor plan, 3D visualization render, pallet density analysis, and transparent direct-factory pricing within 24–48 hours.
