Featured Commercial Storage & Warehouse Racking Systems
Manufactured from premium cold-rolled Q235B and Q355B structural steel, our European standard compliant racking systems deliver maximum vertical cube utilization, structural stability, and rapid return on capital investment.
Heavy Duty Steel Pallet Beam Racking System
Versatile selective pallet rack delivering 100% pallet selectivity, custom beam pitch adjustments, and heavy payload capacity up to 5,000 kg per level.
Industrial Multi-Tier Mezzanine Rack Platform
Double or triple overhead storage space utilizing vertical warehouse volume with high-rigidity structural steel columns and modular floor deckings.

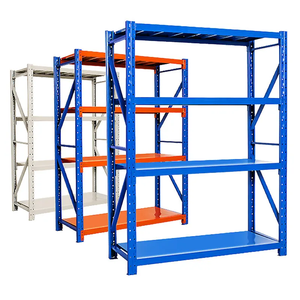

Custom Adjustable Heavy Duty Storage Shelving
Engineered for manual box handling, e-commerce fulfilment, and fast SKU retrieval with 50mm or 75mm flexible pitch levels and powder-coated steel panels.
Commercial Wall Shelf with Drainage Groove
Corrosion-proof hygienic wall-mount shelving designed specifically for food processing plants, cold processing rooms, cleanrooms, and chemical facilities.
Multi-Tier Anti-Rust Industrial Warehouse Rack
Carbon steel profile treated with advanced multi-stage chemical phosphating and electrostatic epoxy finish for high-humidity coastal and tropical environments.
Heavy-Duty Steel Storage Shelving Units
High-strength boltless racking units suitable for distribution centres, manufacturing maintenance shops, tool cribs, and automotive repair garages.
Industrial Portable Stacking Rack Storage
Flexible, demountable pallet nestainers enabling seasonal block-stacking without fixed uprights, dramatically shrinking floor space when collapsed empty.
Steel Grating Rack-Supported Mezzanine Deck
Dual-purpose engineering integrating lower-level pallet rack frames as structural load-bearing piers for upper catwalk levels and heavy grating walkways.
CE Certification, Finite Element Analysis & Structural Safety
In global supply chains, industrial storage is not merely steel carpentry; it is life-critical civil and structural infrastructure. Every upright, connector, and crossbeam manufactured in our facility is subjected to strict mechanical compliance protocols under European Norm EN 15512:2020.
European CE & ISO 9001:2015
Certified under CE Factory Production Control (No. 2435-CPR-8605159) and ISO 9001:2015 (Certificate No. 18624Q00169R0M). Compliance ensures material batch traceability from raw steel coils to cold-formed sections.
- EN 15512: Steel static racking design
- EN 15620: Tolerances, deflections and clearances
- FEM 10.2.02 and ANSI MH16.1 alignment
Finite Element Analysis (FEA)
Using advanced 3D numerical simulations, our engineers model extreme asymmetric loading, seismic peak acceleration, and beam-to-column connector rotational stiffness prior to physical fabrication.
- Dynamic seismic load calculations (P-Delta effects)
- Beam deflection capped to 1/200th span length
- Cyclic stress dissipation for rack longevity
Nanoceramic Surface Passivation
Our automated finishing lines incorporate multi-zone pickling, nanoceramic phosphating, and thermo-cured polyester powder coating compliant with RoHS non-toxicity standards for food logistics.
- ASTM B117 salt-spray test exceeded 1,000+ hrs
- Coating thickness guaranteed 60–90 microns
- Hot-dip galvanizing available for cold chain sites
Future Procurement Trends in Industrial Storage & Warehousing
Global warehouse real estate costs, supply chain near-shoring, and autonomous mobile robot (AMR) adoption are reshaping structural storage requirements. Learn how major logistics operators configure their procurement strategies.
1. Automation-Ready Engineering
Warehouses are shifting rapidly from static storage to AMR and ASRS integration. Racking must now support tighter aisle plumb tolerances (±1.5mm) and integrated sensor mounting channels to allow automated guided vehicles to navigate without friction.
2. Vertical High-Bay Density
Industrial urban rent in hubs like Singapore, London, Rotterdam, and Dubai has forced clear rack heights up to 18–30 metres. Procurement teams are specifying high-strength Q355B cold-rolled profiles to handle multi-tiered column compression without bulging.
3. Decarbonized Steel Sourcing
Enterprise tenders now mandate Scope 3 carbon tracking. Global exporters must document EPD (Environmental Product Declarations) and adopt scrap-recycled electric arc furnace (EAF) steel to reduce embodied carbon across warehouse infrastructure builds.
4. BIM Integration & Digital Twins
Standard architectural procurement now expects Revit/BIM 3D models of racking networks. Digital twins incorporate real-time pallet weight telemetry and load-cycle fatigue analysis to schedule predictive maintenance inspections automatically.
Commercial Racking System Comparison Matrix
A side-by-side engineering evaluation helping project managers balance floor density, selectivity, forklift compatibility, and investment expenditure.
| Storage System Type | Aisle Floor Utilization | Pallet Selectivity | Handling Machinery | Inventory Logic | Standard Load Limit | Ideal Industry Application |
|---|---|---|---|---|---|---|
| Selective Pallet Racking | 40% – 50% | 100% (Instant Access) | Counterbalance / Reach Truck | FIFO (First-In, First-Out) | 1,000 – 4,500 kg / Level | General 3PL, FMCG, E-Commerce Hubs |
| Drive-In / Drive-Through | 65% – 75% | 20% – 30% (Bulk Batches) | Narrow Counterbalance Truck | LIFO or FIFO | 1,500 kg / Pallet Position | Cold Storage, Beverage Bottling, Raw Materials |
| Radio Shuttle Automation | 75% – 85% | Semi-Selective (Per Channel) | Robotic Shuttle + Standard Lift | FIFO & LIFO Flexible | 2,000 kg / Pallet Position | Frozen Food Chains, Meat Processing, Chemical |
| Multi-Tier Mezzanine Platform | 150% – 250% (Floor Doubled) | 100% Piece/Carton Pick | Manual Carts, Conveyors, Lifts | Direct Pick Access | 300 – 1,000 kg / m² | Automotive Spare Parts, Apparel, Pharmaceutical |
| Heavy Duty Cantilever Rack | 50% – 60% | 100% Direct Frontal Access | Side Loader / Four-Way Forklift | FIFO Flexible | 500 – 3,000 kg / Arm | Steel Pipe, Aluminum Extrusions, Timber, Drywall |
Why Tier-1 Importers and General Contractors Trust Our Export Engine
Combining 25 years of structural engineering heritage with South China's maritime export logistics network, Guangzhou Heda Shelves Co., Ltd. delivers high-precision turnkey racking directly from our factory floor to project sites across Southeast Asia, South Asia, Central Asia, and the GCC.
In-House Cold-Forming Lines
Unlike trading intermediaries, our 30,000 m² factory controls every stage: precision coil slitting, multi-station automatic punching, cold roll-forming of omega upright columns, robotic beam welding, and surface coating. Unbroken in-house custody guarantees tolerance integrity below ±0.5mm across production batches.
Regional Seismic Customization
Asian and Pacific rim warehouses require strict seismic reinforcement. Our engineers review seismic zonal hazard maps across Indonesia, the Philippines, Japan, and Taiwan, scaling upright section gauges, adding seismic K-bracing, and detailing oversized anchor baseplates with structural calculations suitable for local municipal permit filings.
Container Space Optimization
Export shipping economics make or break warehouse ROI. Using custom loading simulation software, our logistics team packs 40ft high-cube containers to 98% cubic efficiency using steel strapping, protective edge boards, and moisture desiccants to prevent container-rain corrosion across humid sea lanes.
Frequently Asked Questions on Commercial Racking & Shelving
Expert answers addressing load safety factors, international import documentation, seismic certifications, surface coatings, and layout design parameters.
What documents and structural certificates accompany every export shipment?
How does your factory protect steel racking against corrosion in humid, tropical, and cold storage environments?
What critical technical parameters are required to generate a complimentary 2D CAD and 3D warehouse layout?
Can rack-supported mezzanine floors be expanded, modified, or relocated after initial commissioning?
What structural safety factor is calculated into your beams and upright columns?
How do you manage overseas installation, contractor training, and assembly guidance?
Optimize Your Warehouse Capacity with Certified Engineering
Request a custom proposal today. Our technical design team will analyze your warehouse floor layout, calculate load-bearing dynamics, and supply a comprehensive 2D CAD plan, 3D visualization, and FOB/CIF commercial quotation within 24 hours.
- Zero-Cost 2D & 3D CAD Layouts
- CE & ISO 9001:2015 Verified
- Factory-Direct Pricing (No Middlemen)
- Export Expertise to 120+ Countries
