Pallet Rack Steel Feet for Pallet Rack Pallet Racking Box Beam
Product Description
Product Overview & Specifications

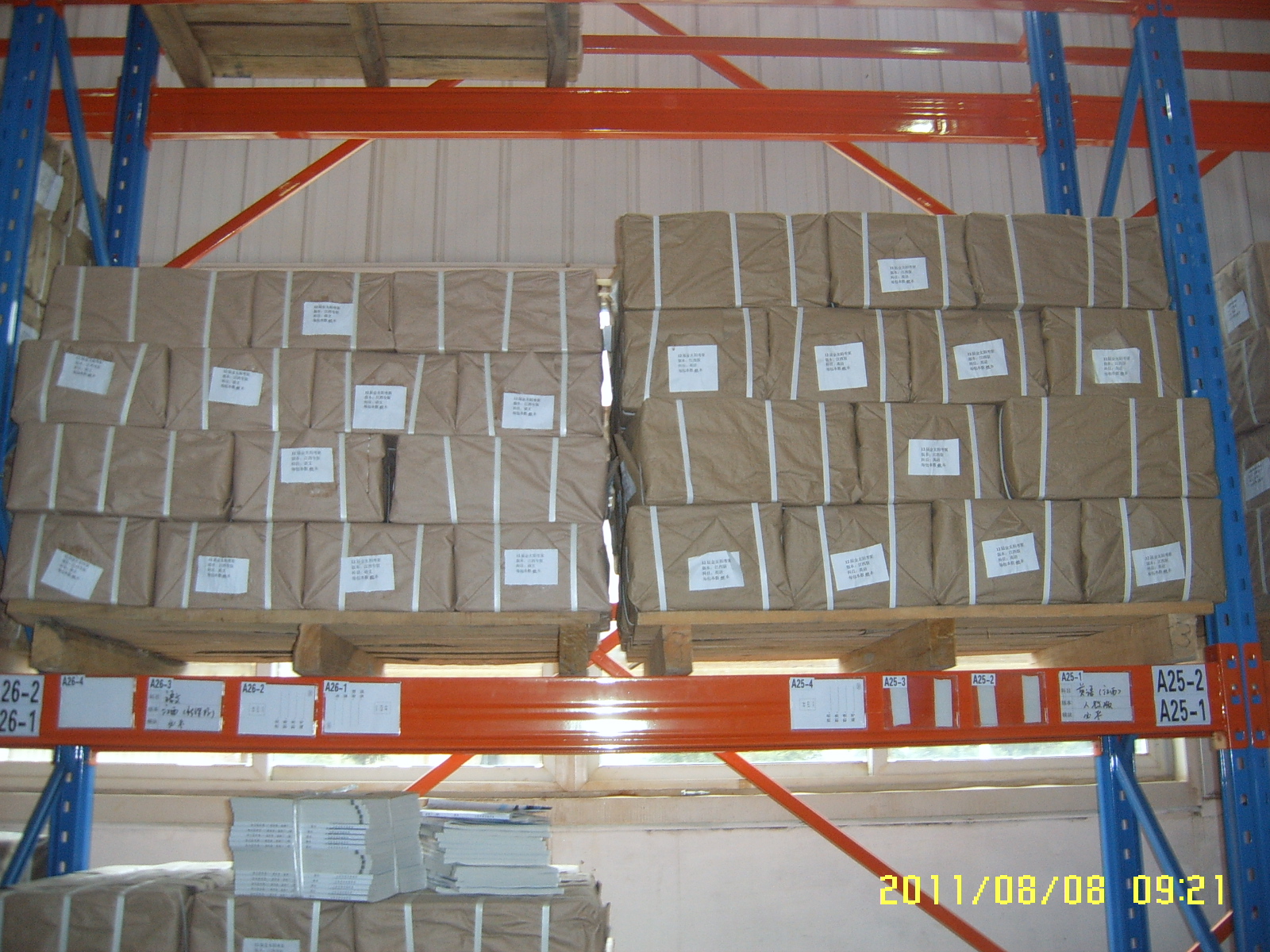

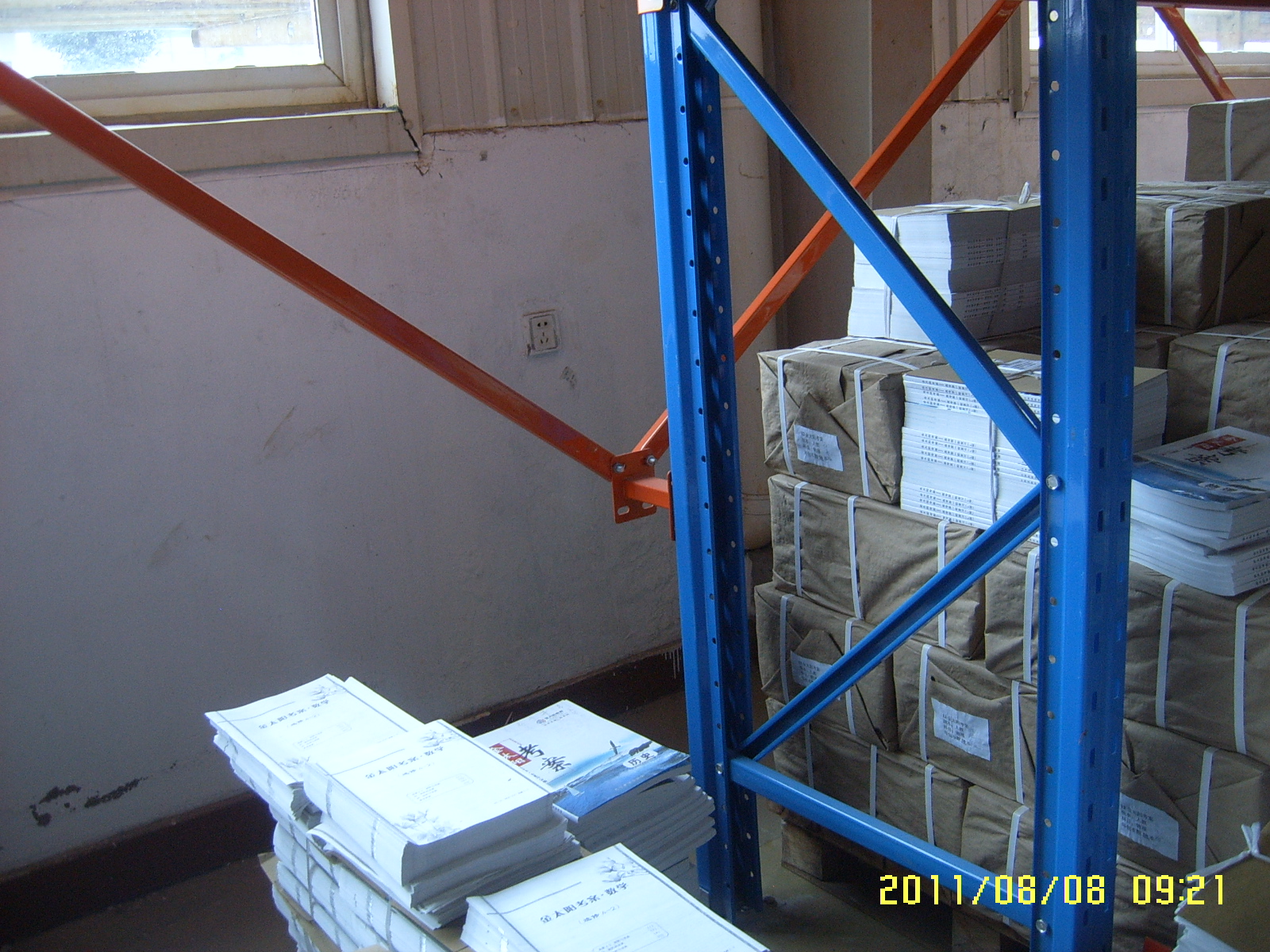

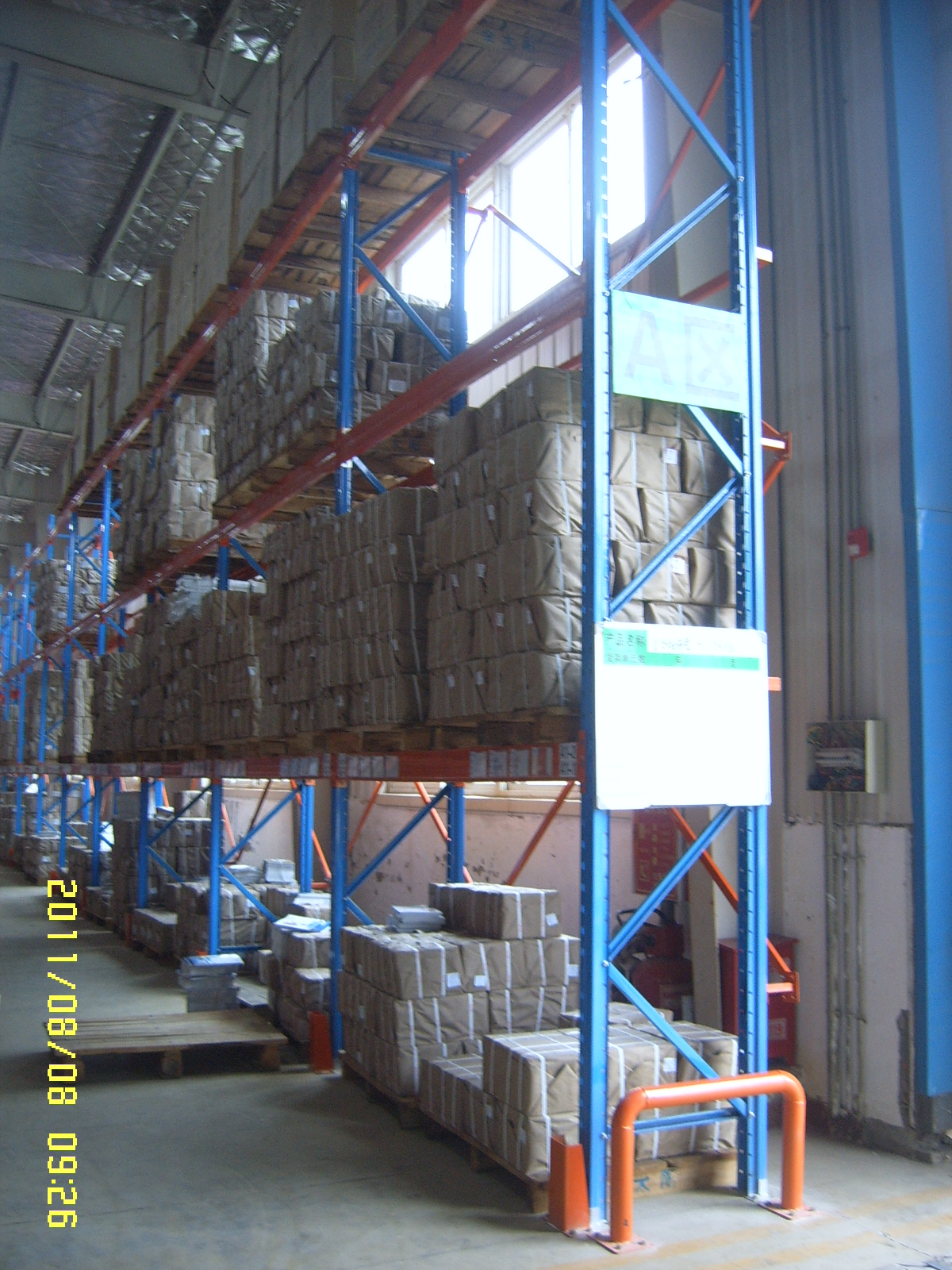

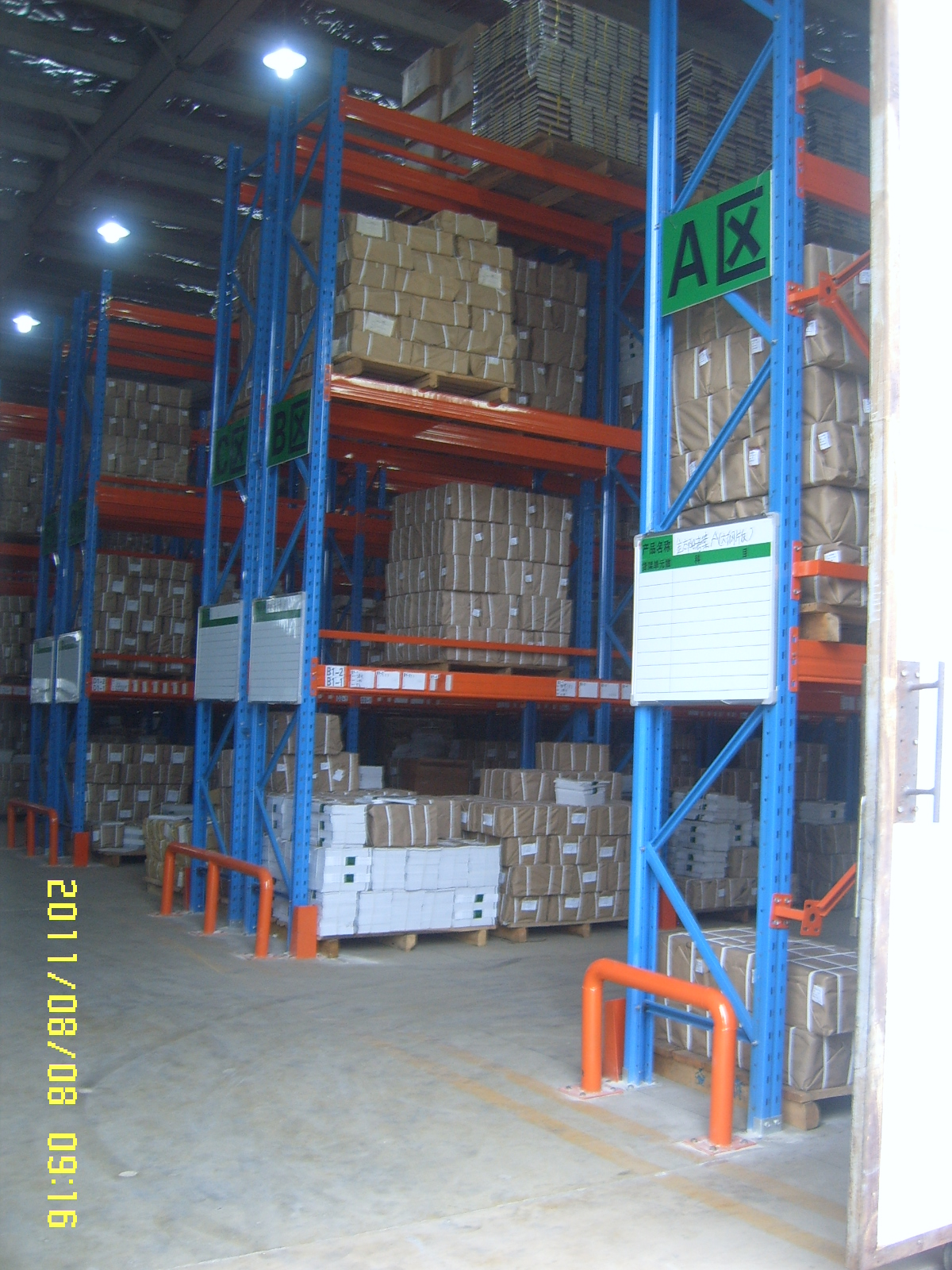

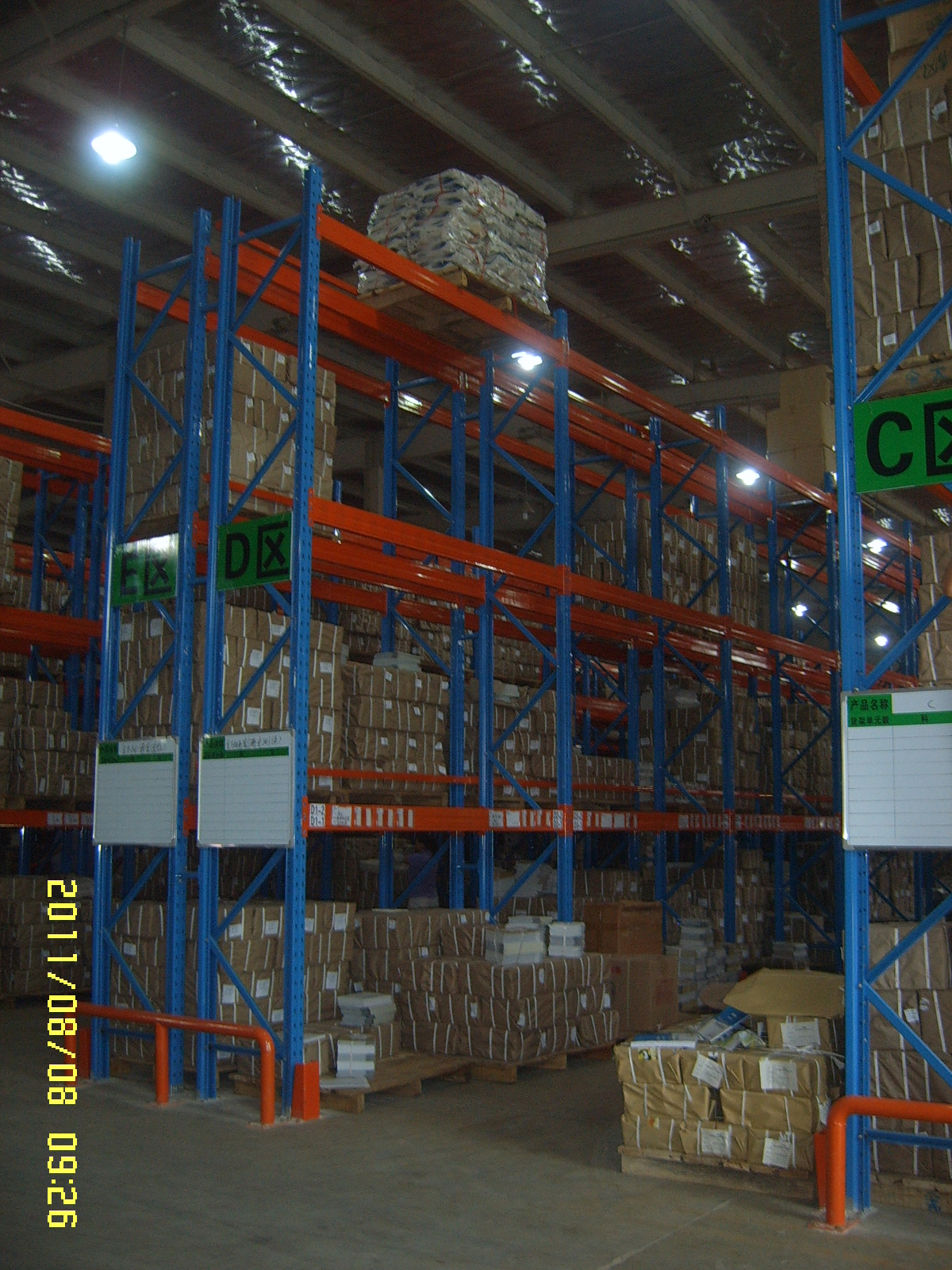

Brief Introduction: Heavy duty racking provides high-efficiency storage capacity and operates without limitation on the order of goods moving into and out of the warehouse. This racking system is highly adjustable and optimized for smooth forklift operation. Aisles can be planned as traditional types (approx. 3000 mm) or narrow types (approx. 1700 mm), with narrow aisles utilizing specialized narrow-aisle forklifts.
Key Characteristics & Advantages
-

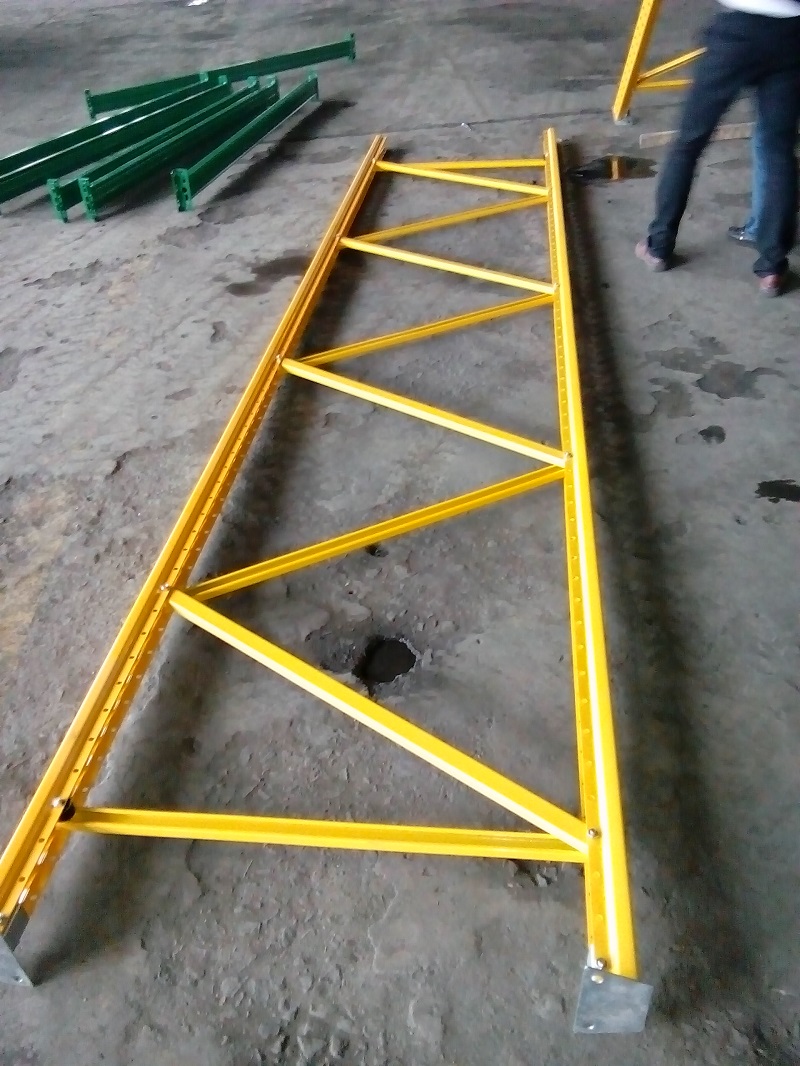

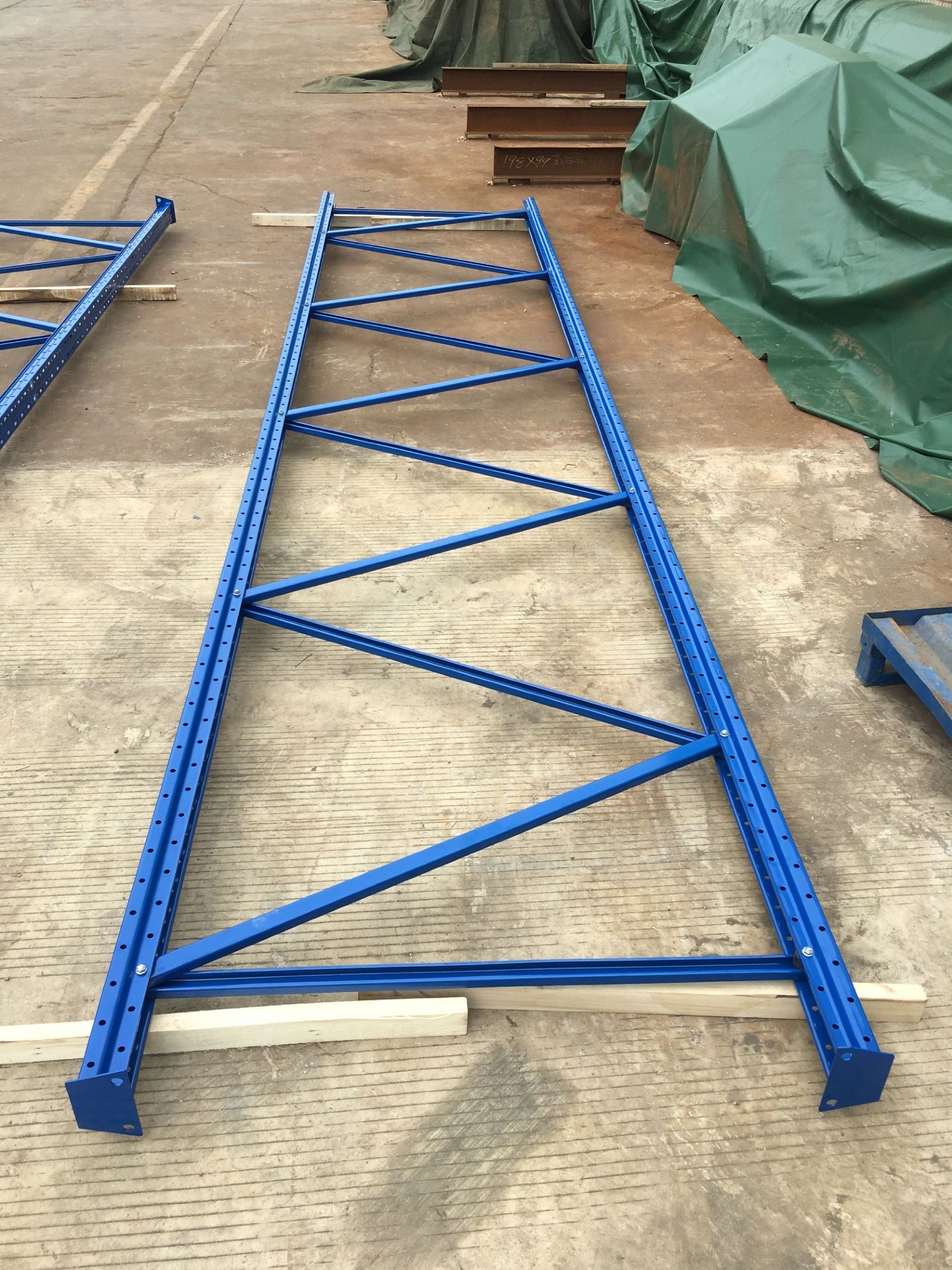

High-Strength Construction: Manufactured with specially shaped section posts, substantially enhancing structural stability and overall loading capacity.
-

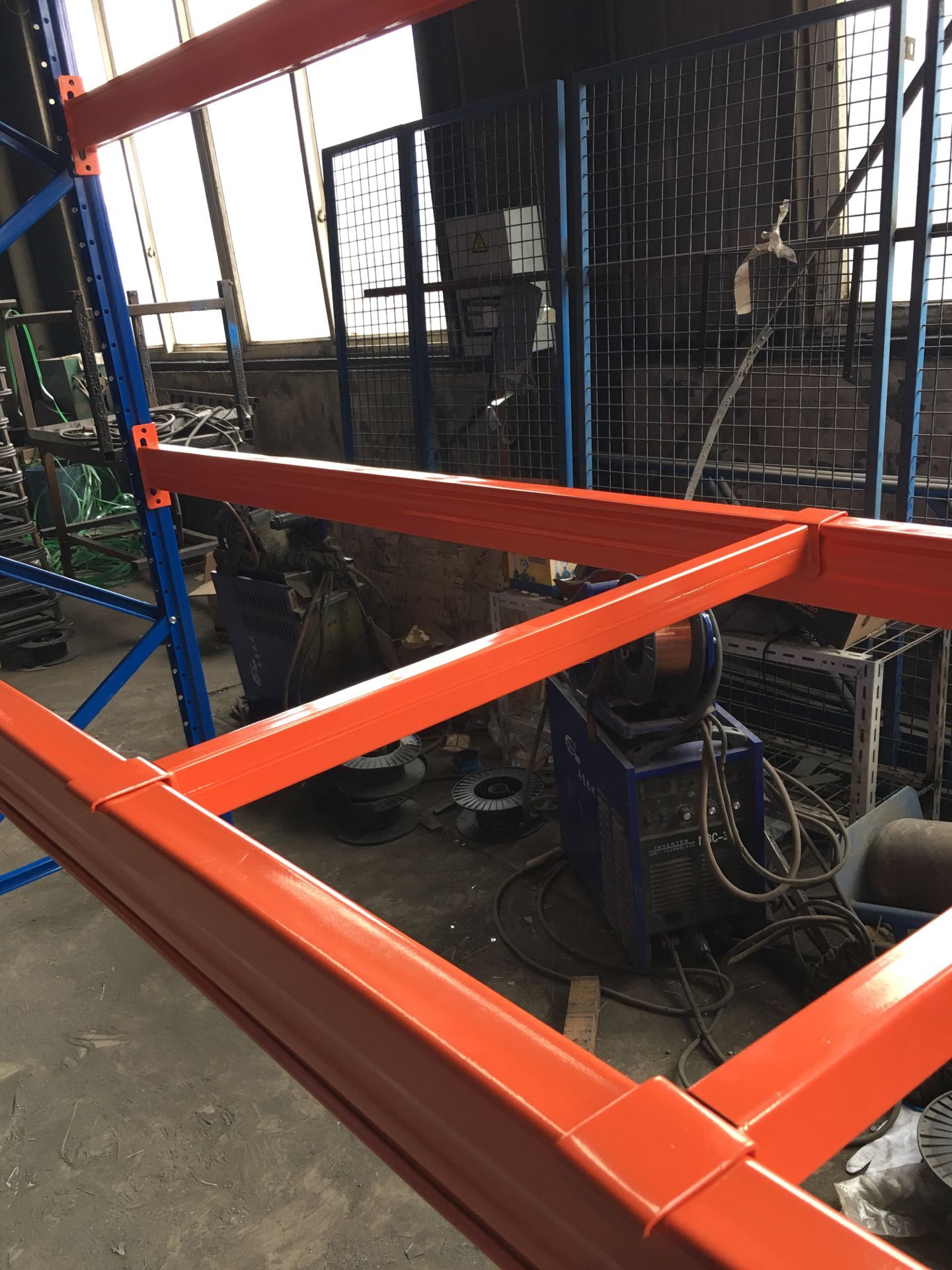

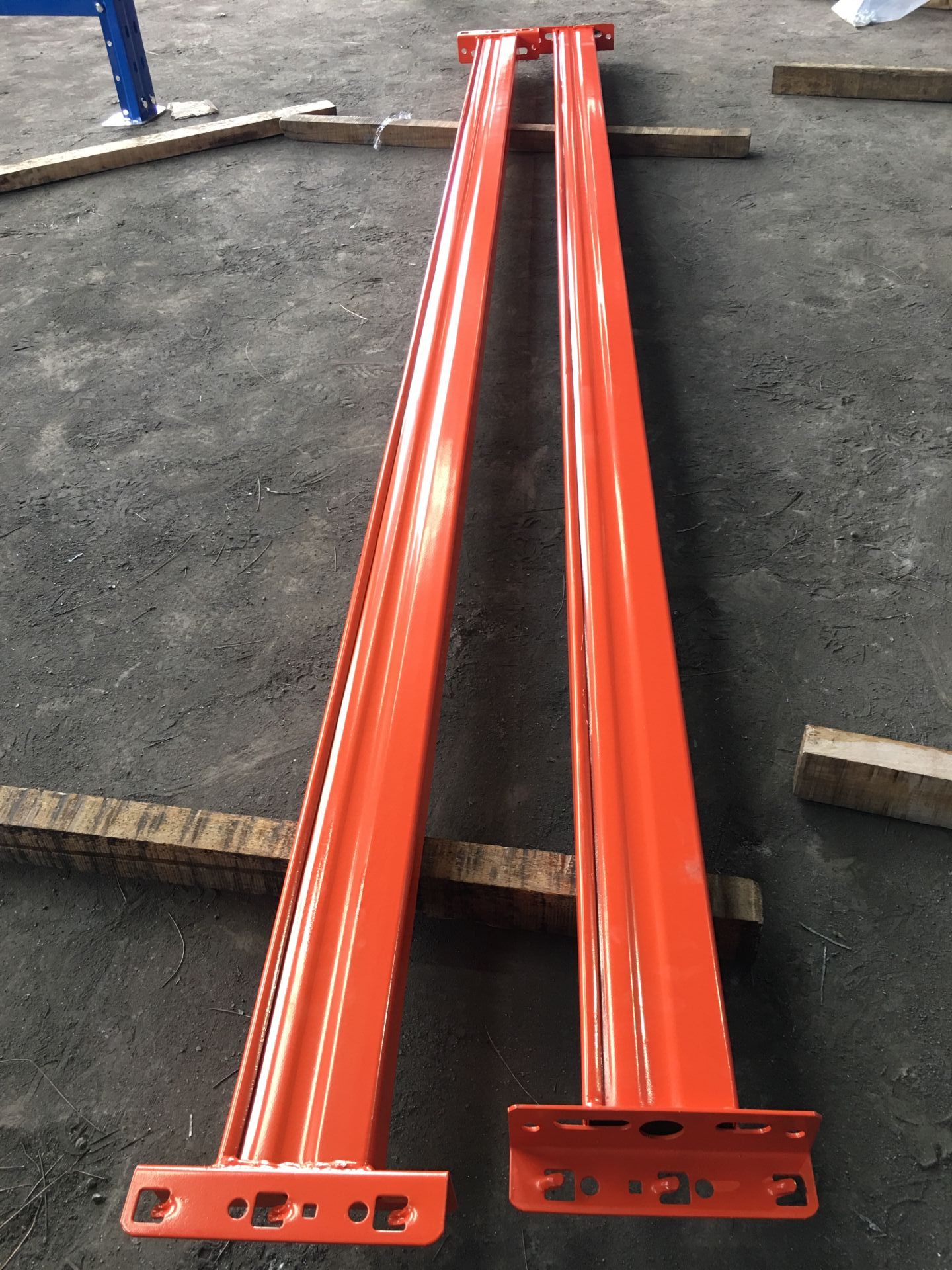

Flexible Adjustability: Box beams can be flexibly adjusted upward and downward at increments of 75 mm to accommodate changing cargo dimensions.
-

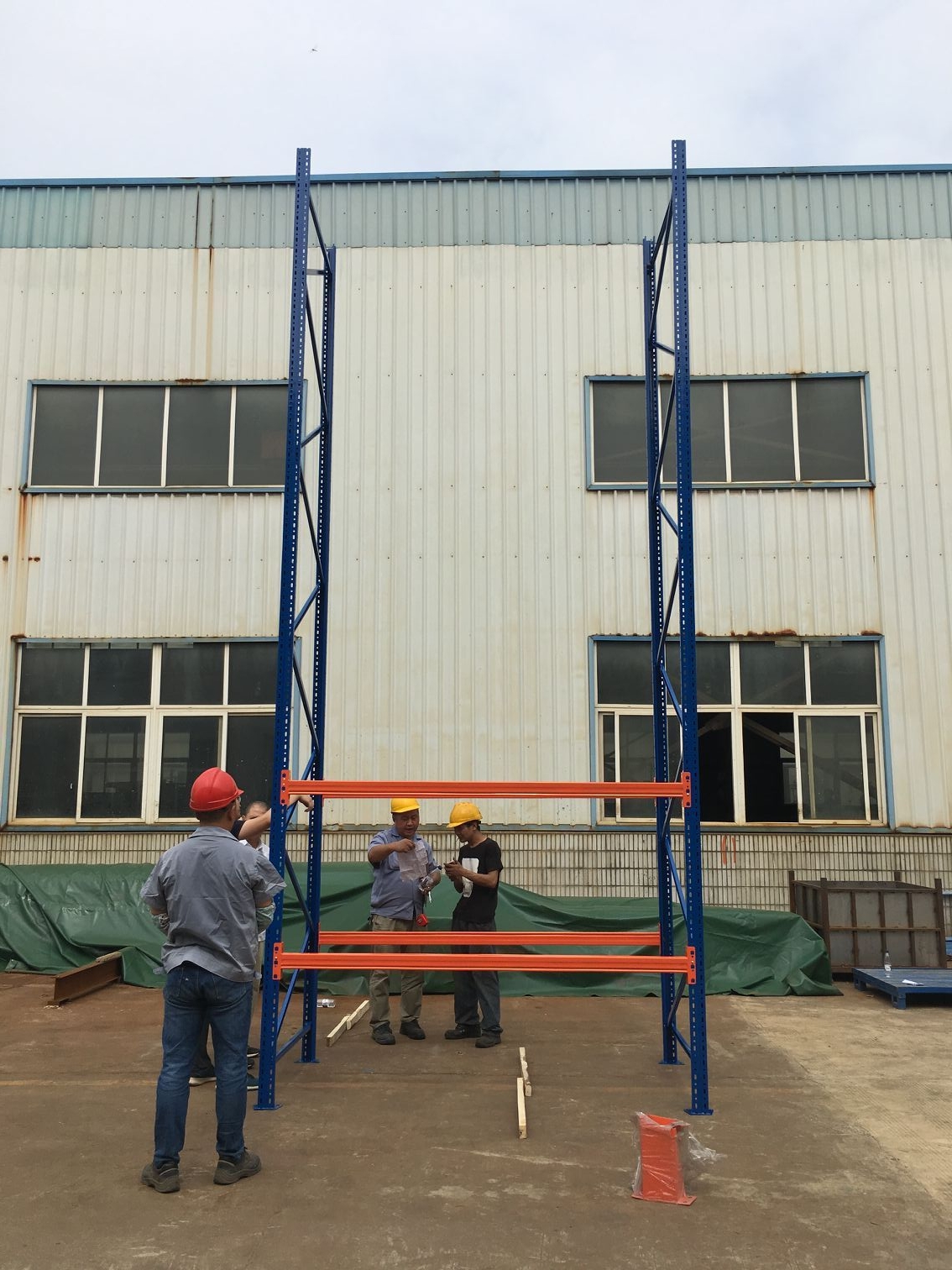

Modular Assembled Design: Assembled frame structure fitted with safety accessories allows effortless assembly, rapid disassembly, convenient maintenance, and quick spare parts replacement.
-
Durable Anti-Rust Finish: Finished with industrial-grade epoxy electrostatic powder coating, providing superior protection against rust and corrosion.
-

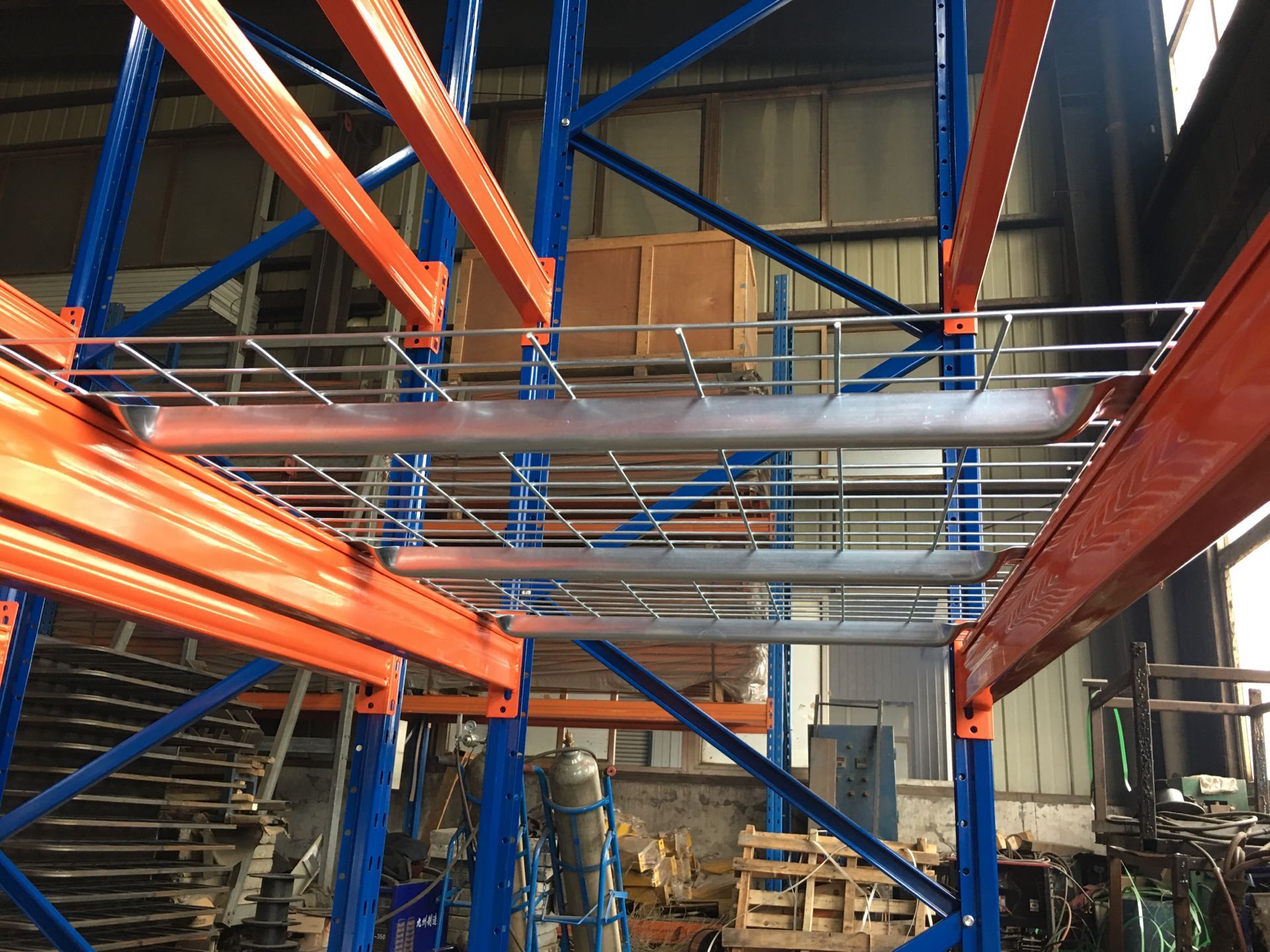

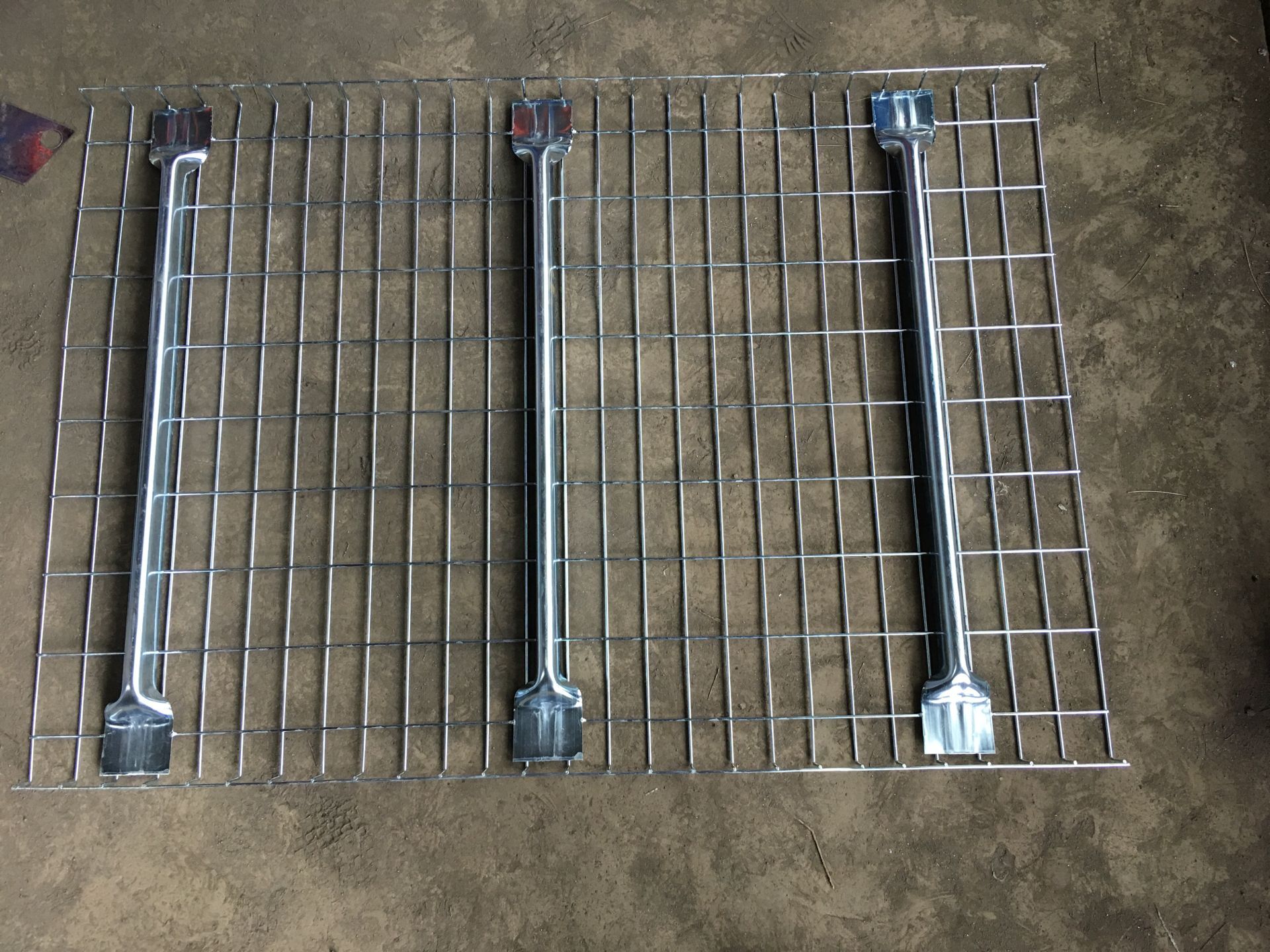

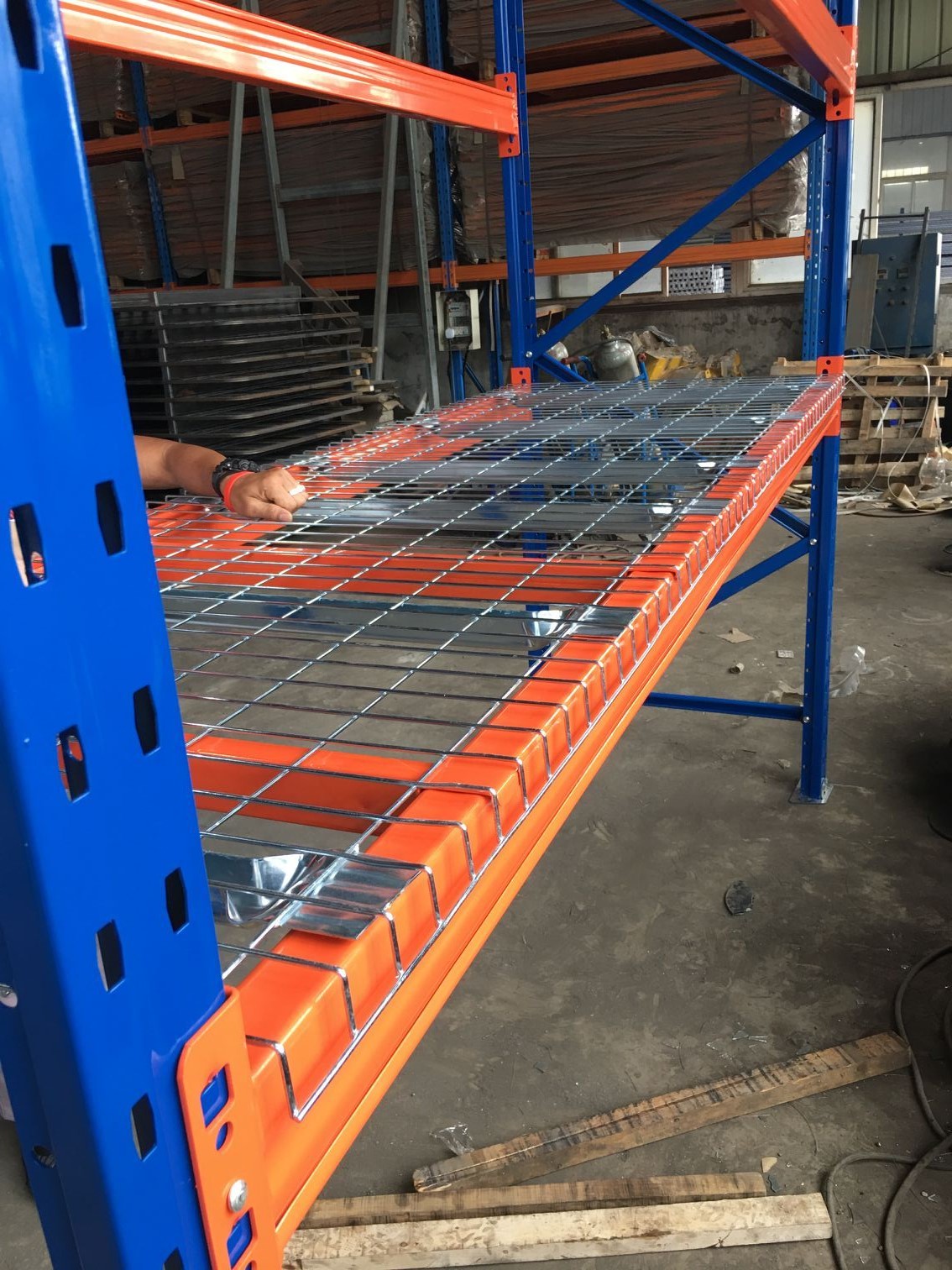

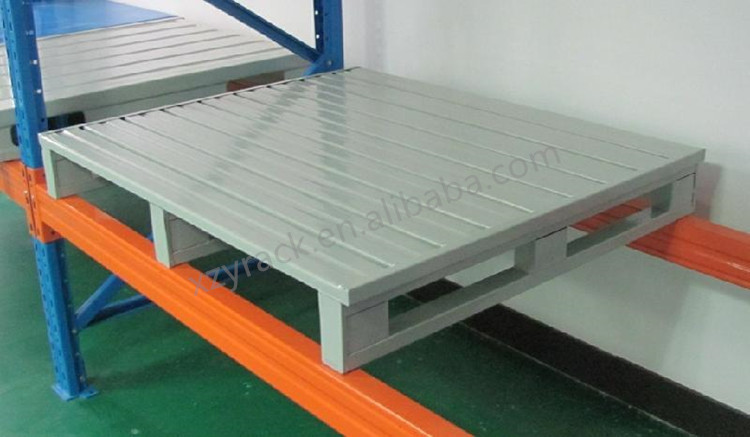

Customizable Configurations: Accessories such as braces, back spacers, steel panels, foot protectors, upright protectors, and back wire mesh can be seamlessly integrated.
Parts & Engineering Specifications

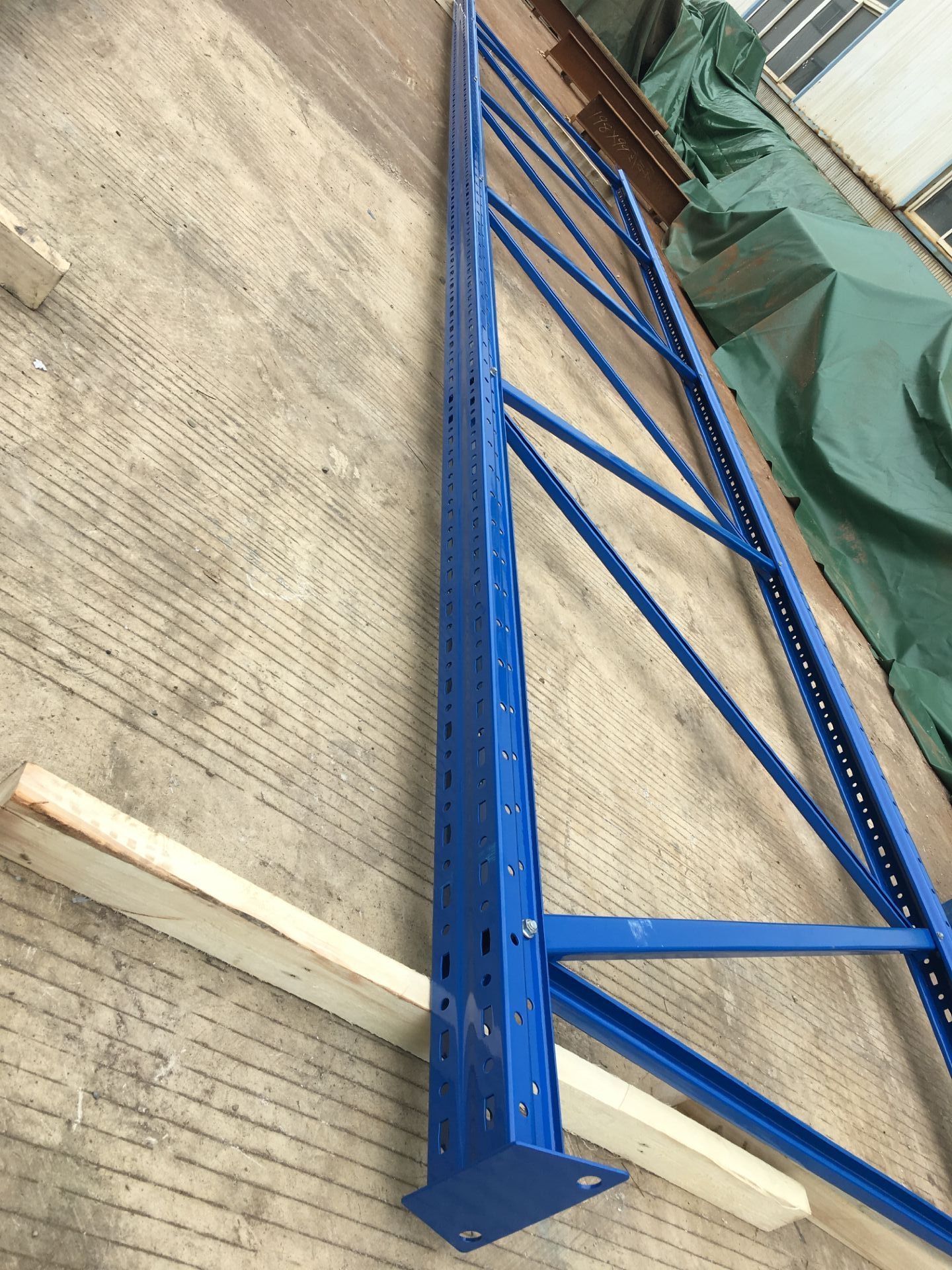

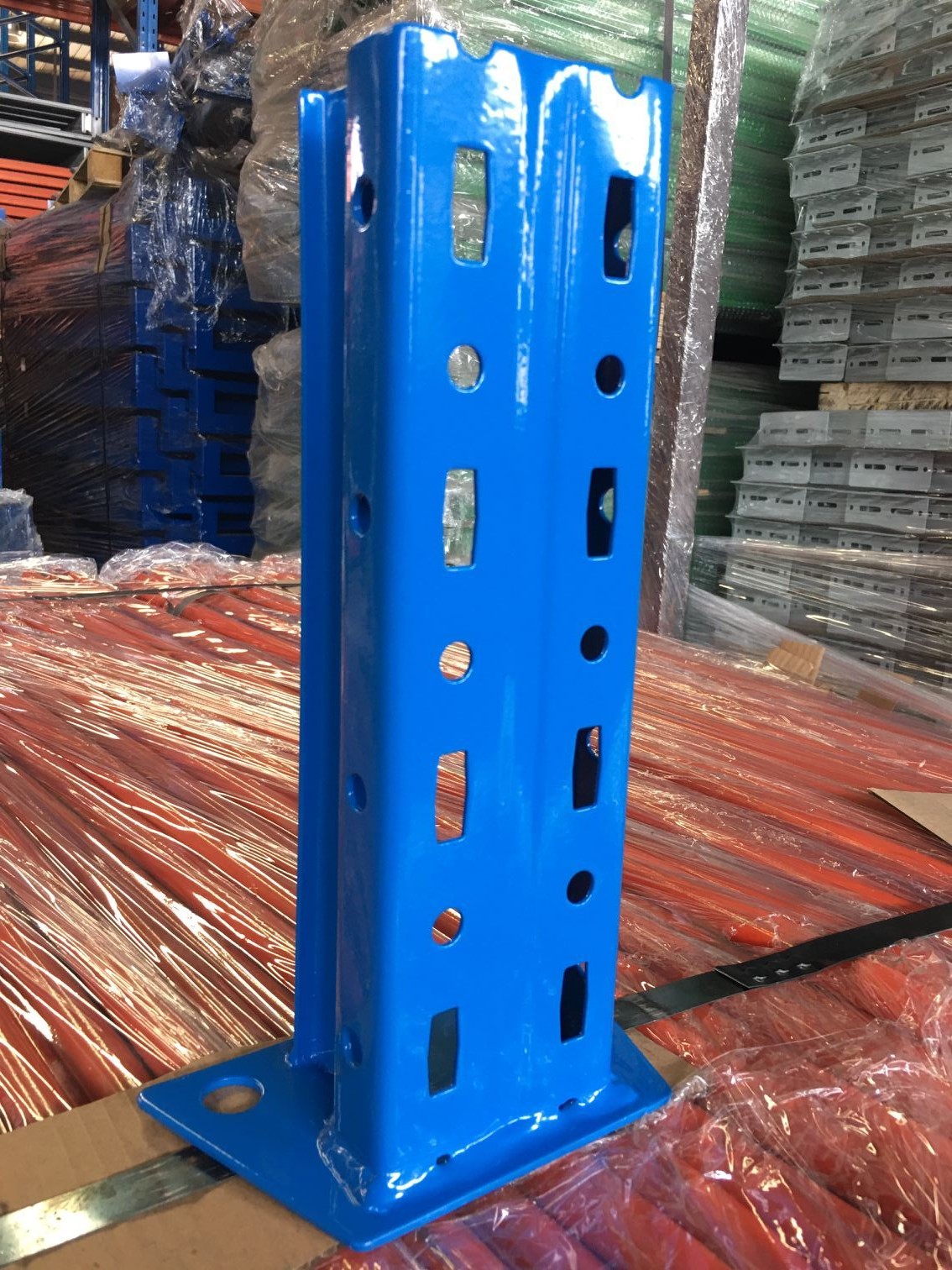

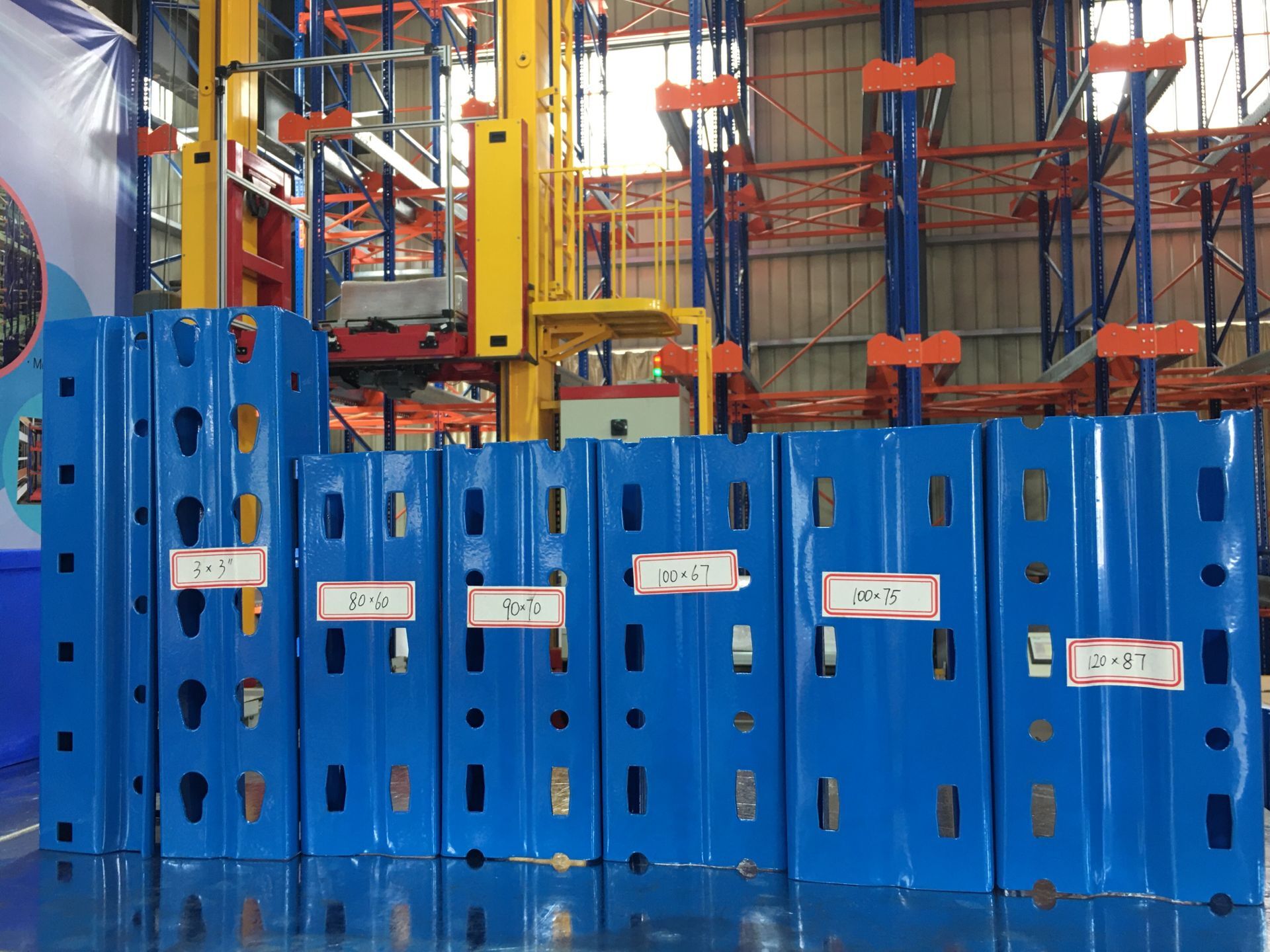

| Upright Post Profiles (mm) | 80*60*2.0, 90*75*2.0, 100*70*2.0, 120*75*2.0 |
|---|---|

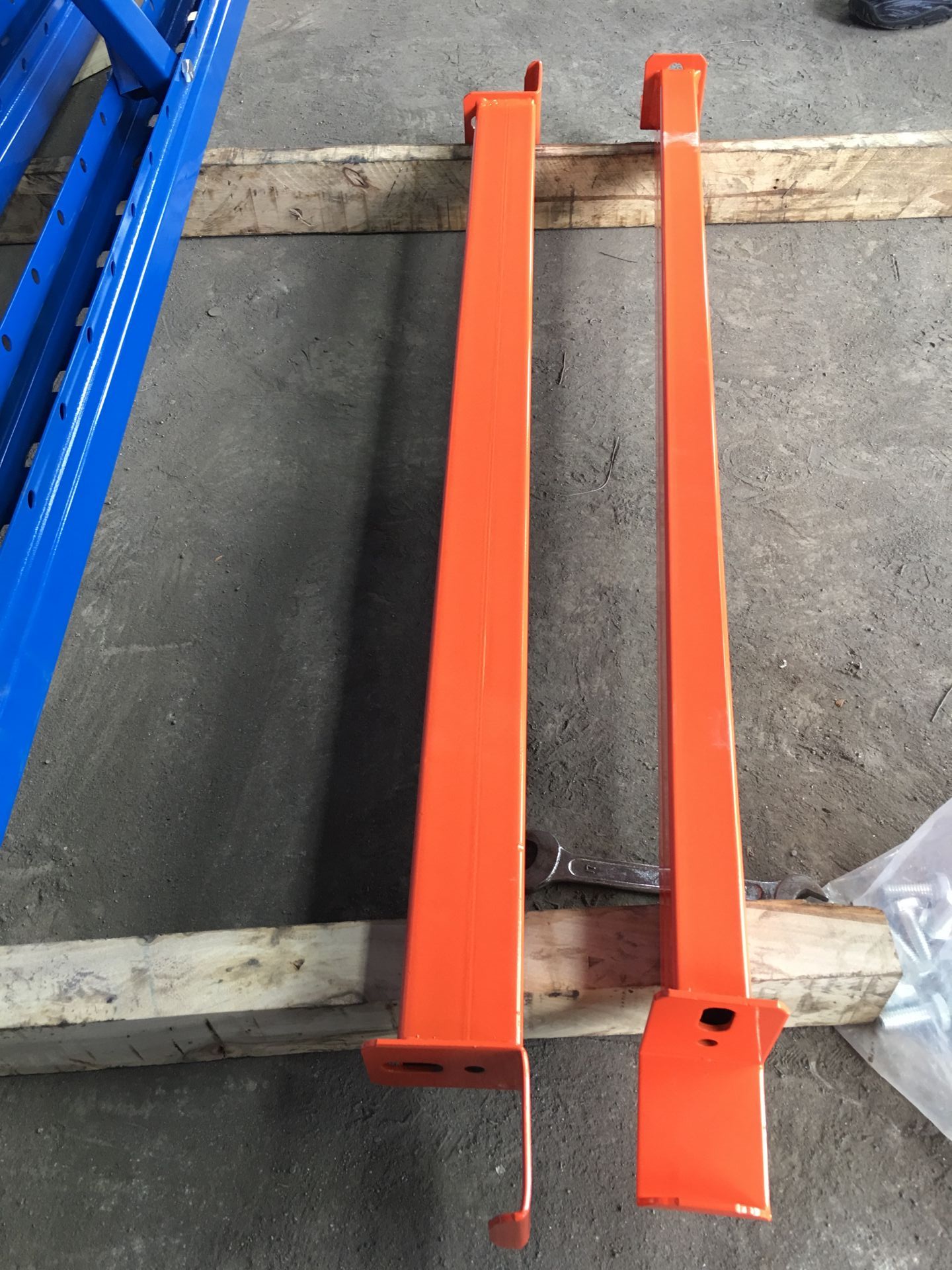

| Horizontal & Aslant Cross Braces (mm) | 40*24*1.3, 40*34*1.3 |

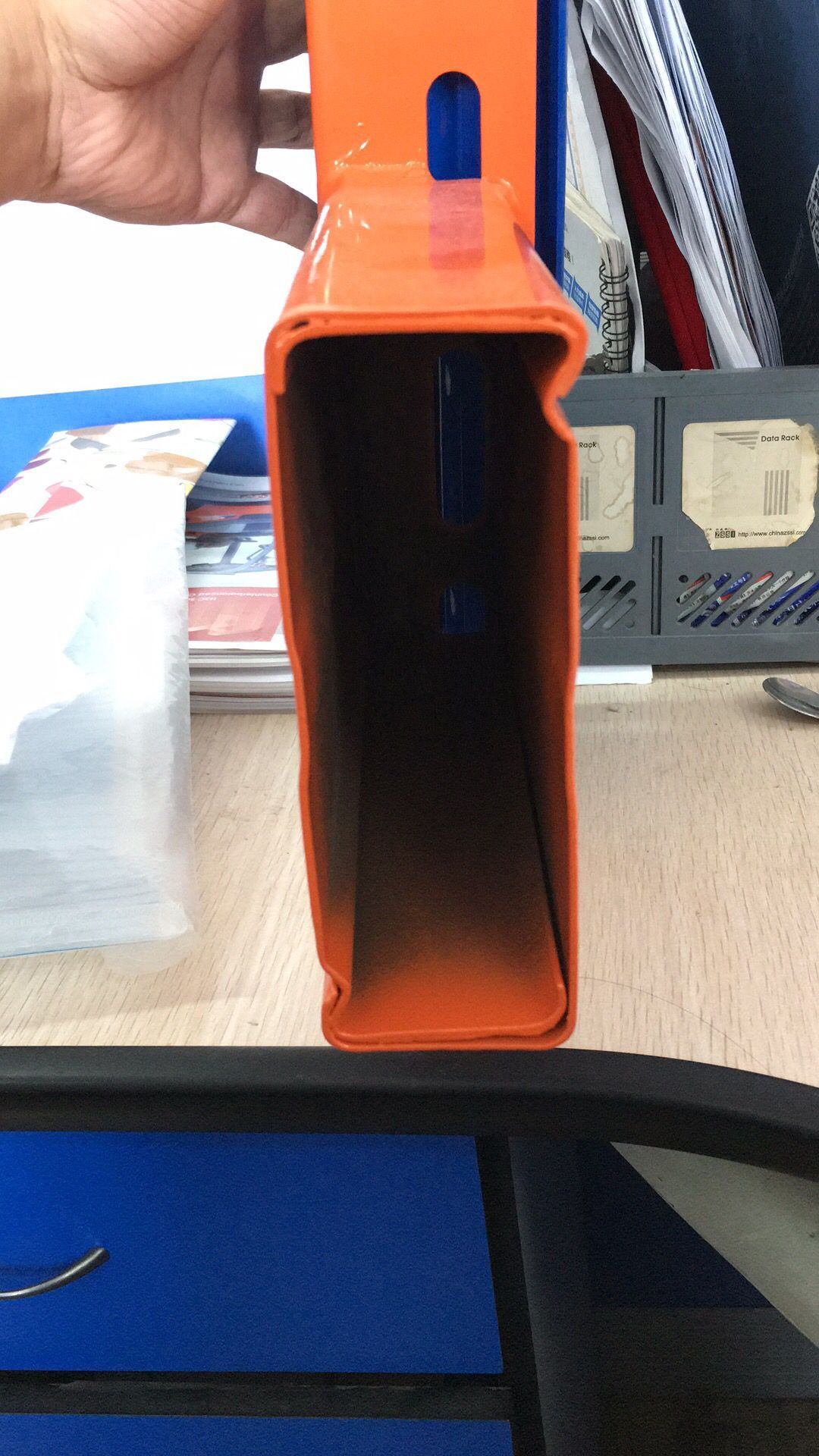

| Beam Profiles (mm) | 100*50*1.5, 110*50*1.5, 120*50*1.5, 130*50*1.5, 140*50*1.5, 160*50*1.5 |
| Level Load Capacity | Less than 4 Tons per beam level |
| Total Section Load Capacity | Up to 12 Tons per bay |

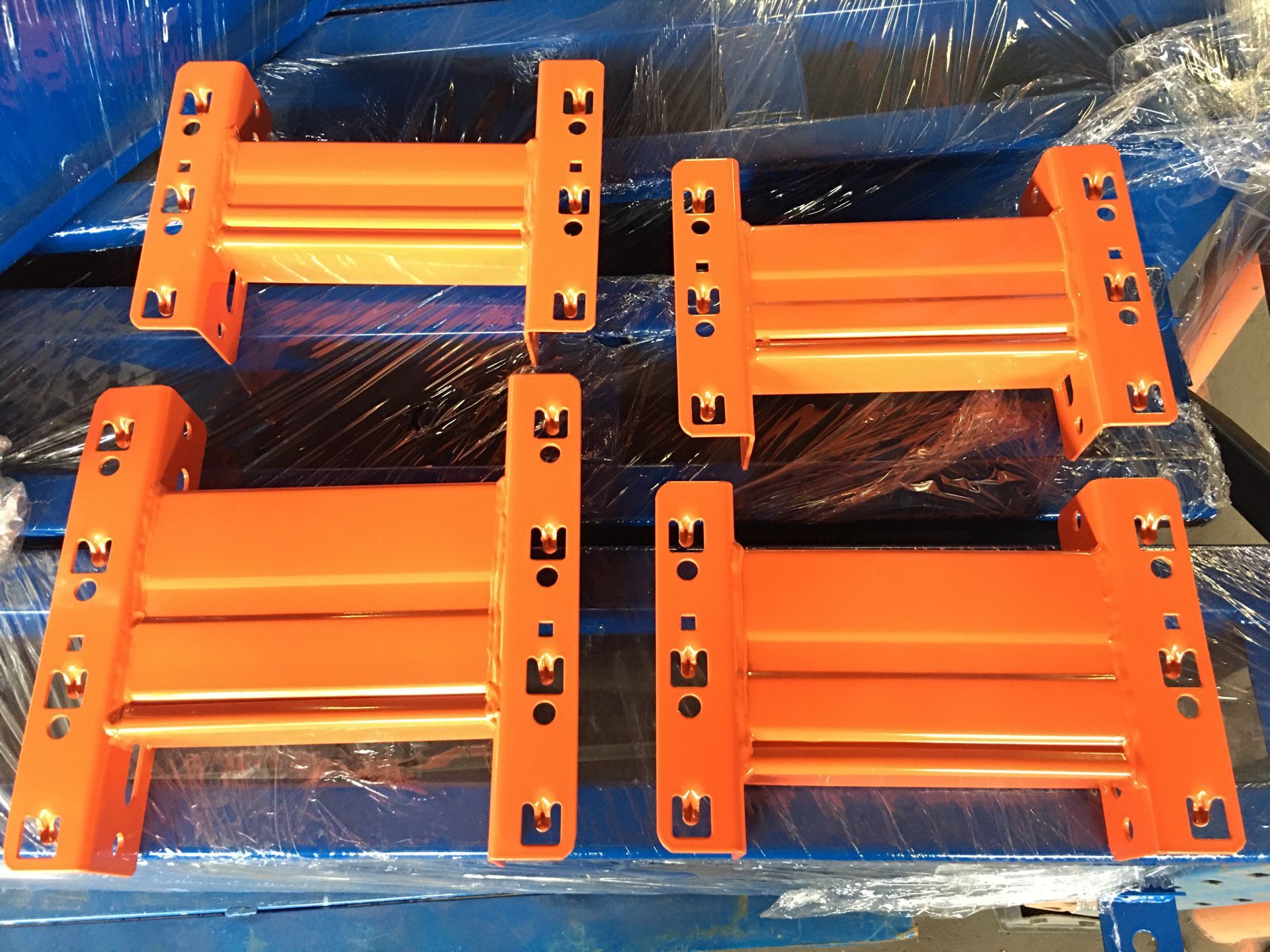

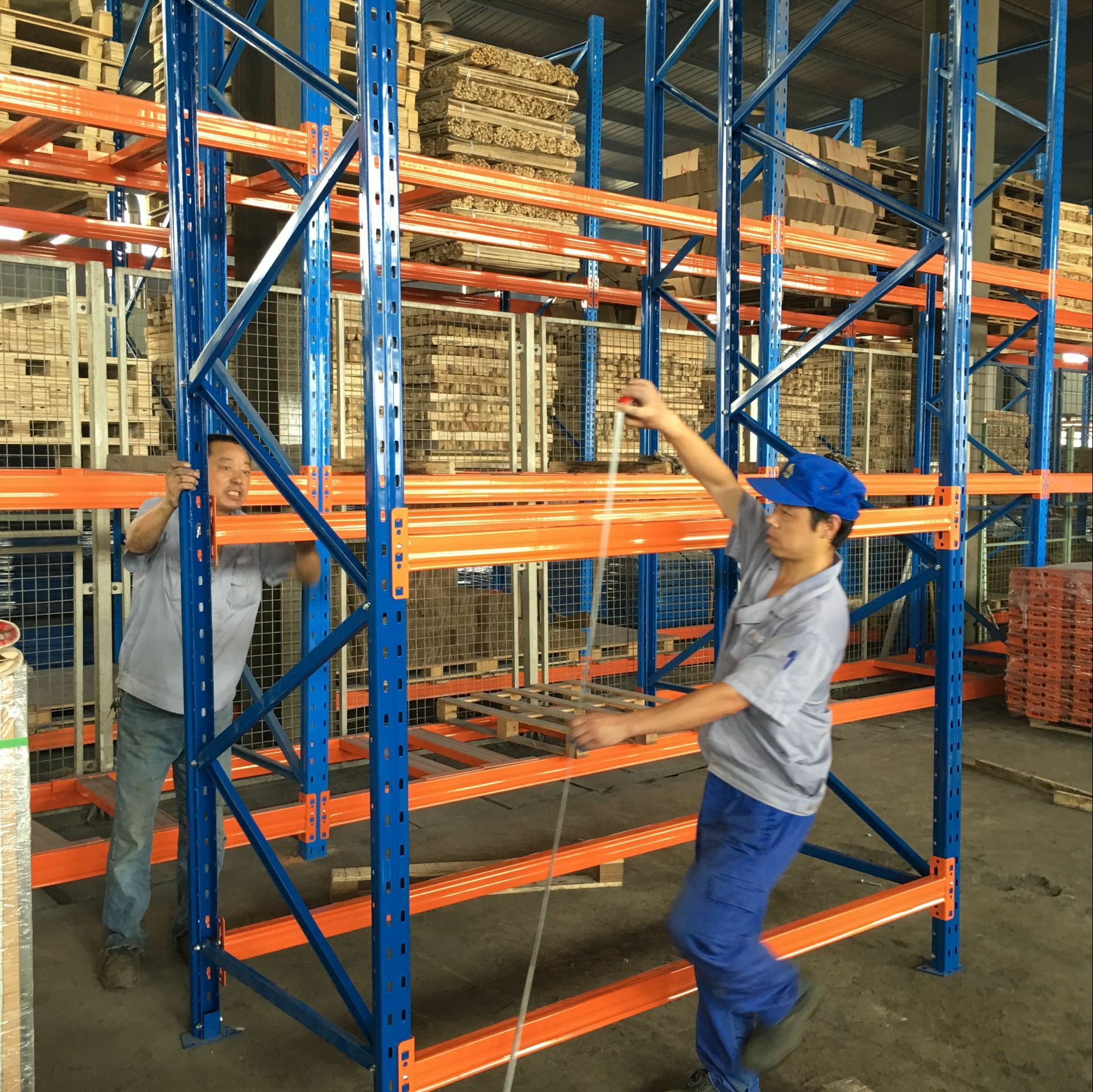

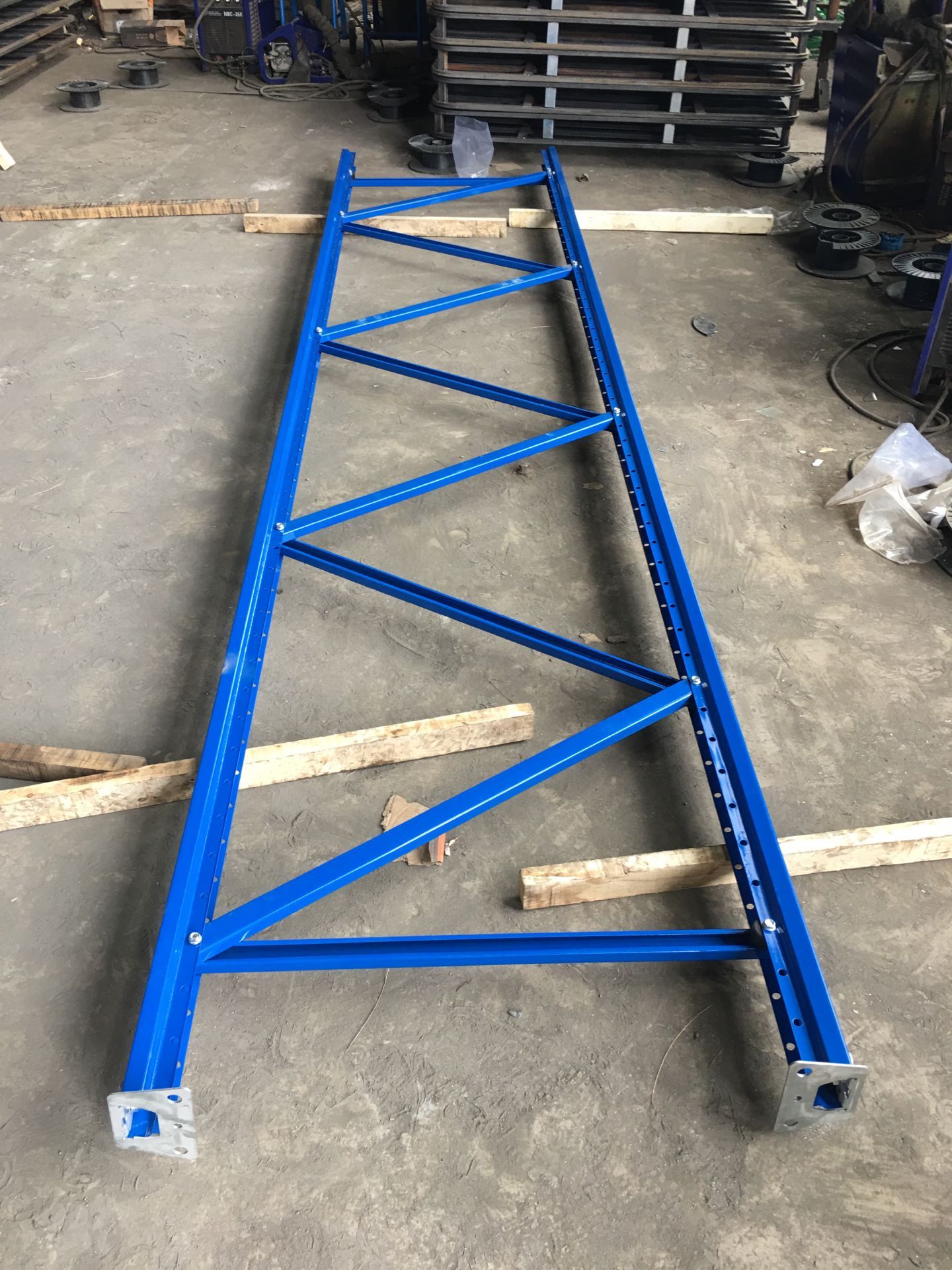

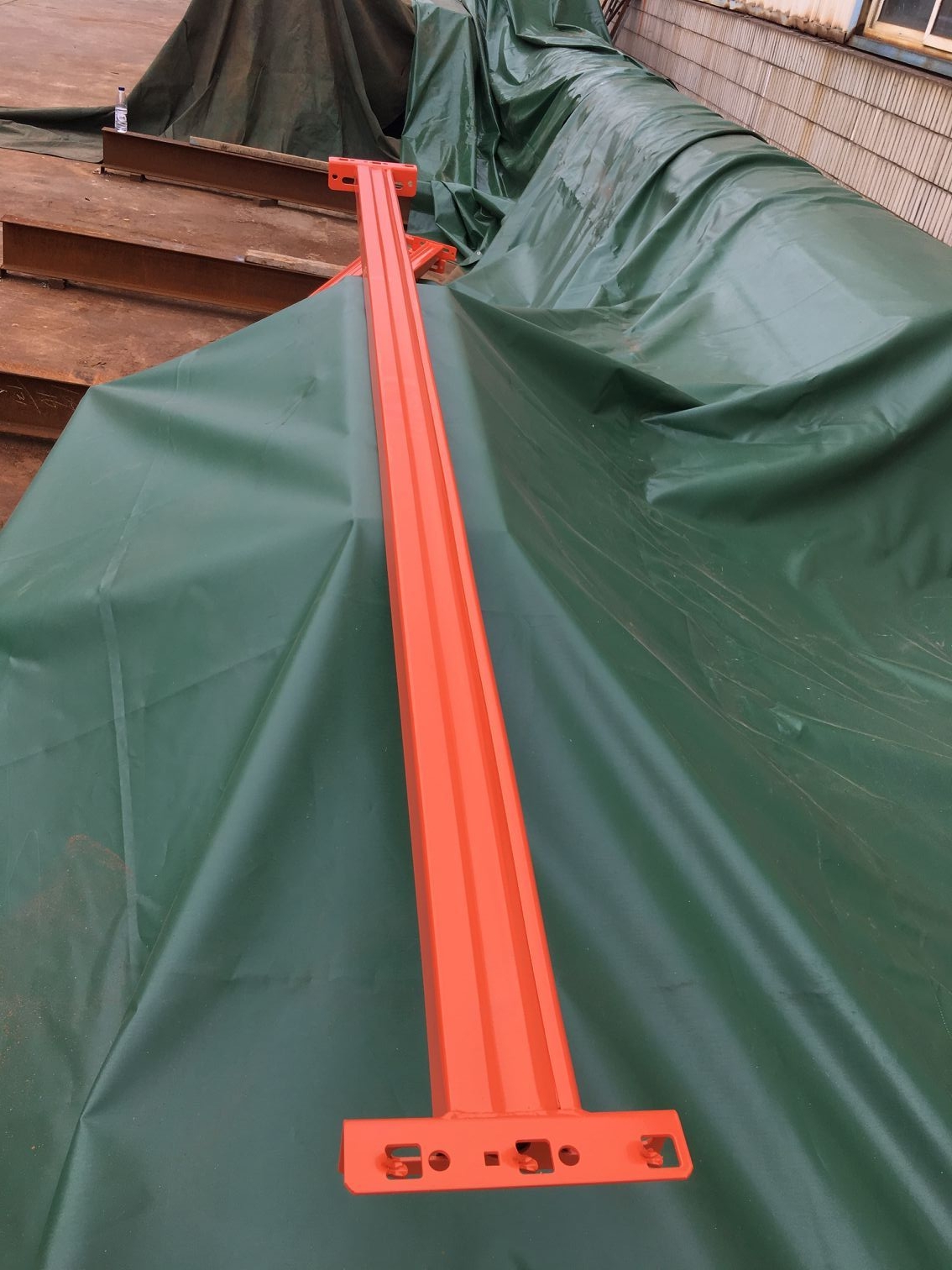

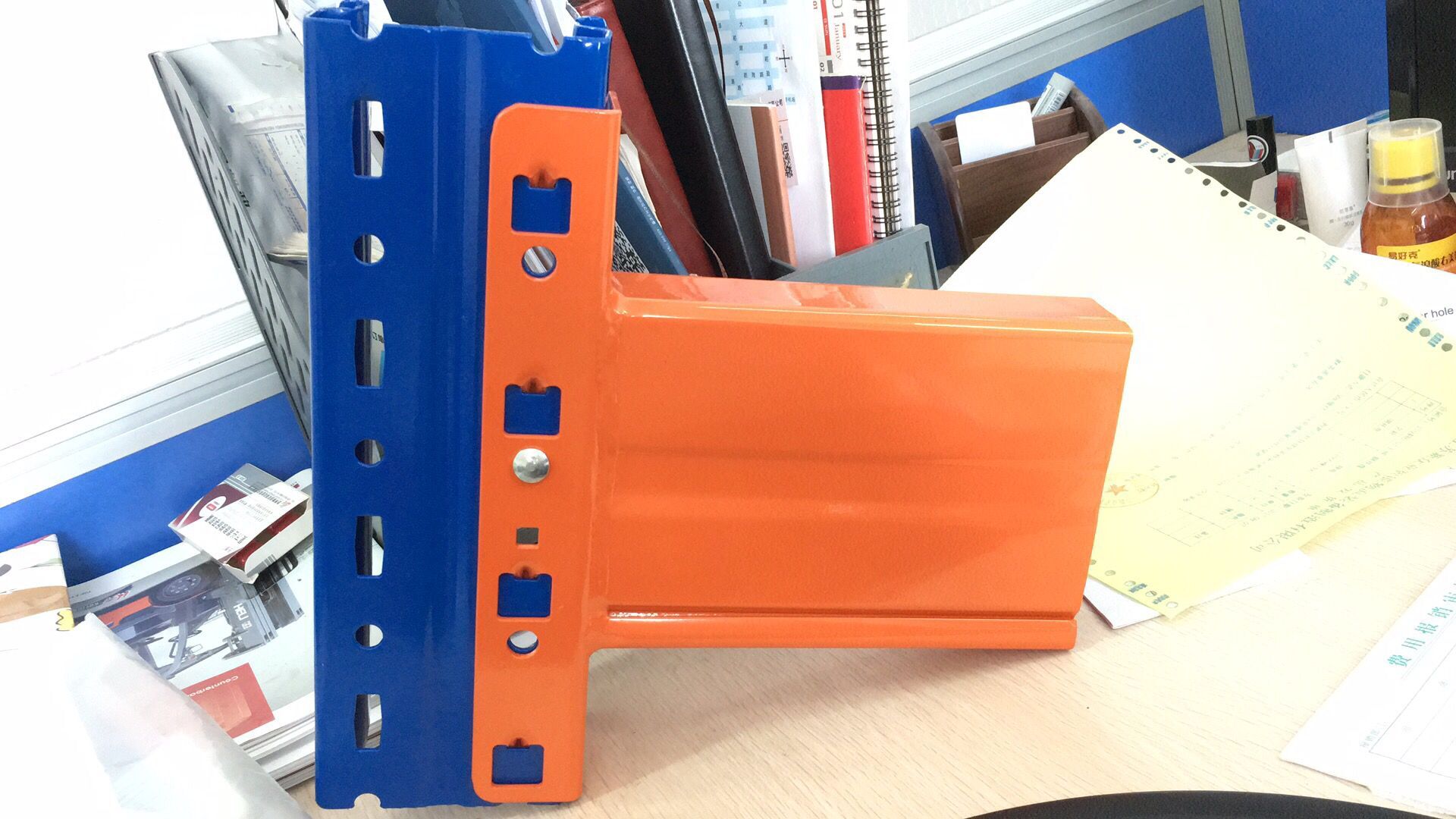

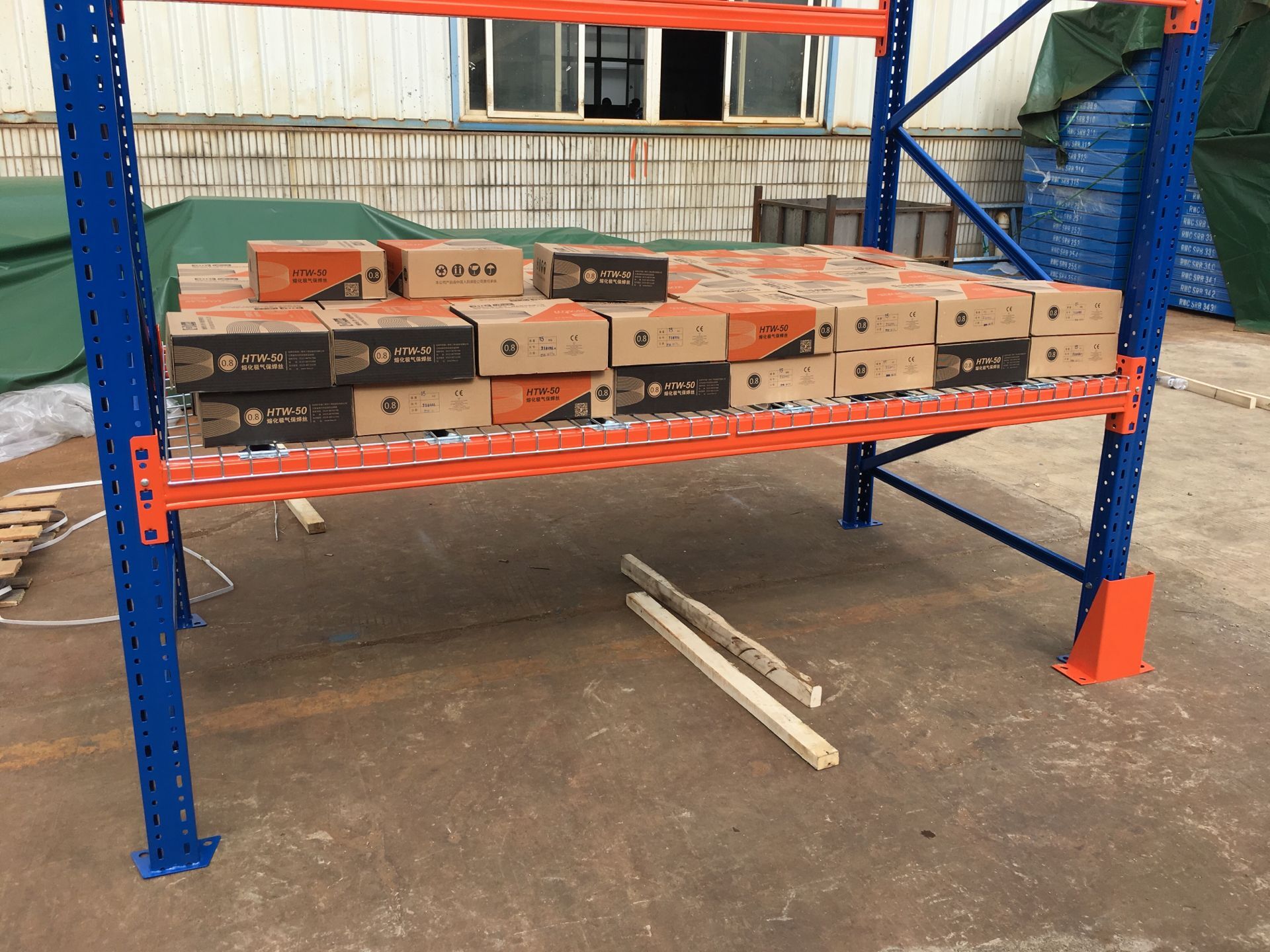

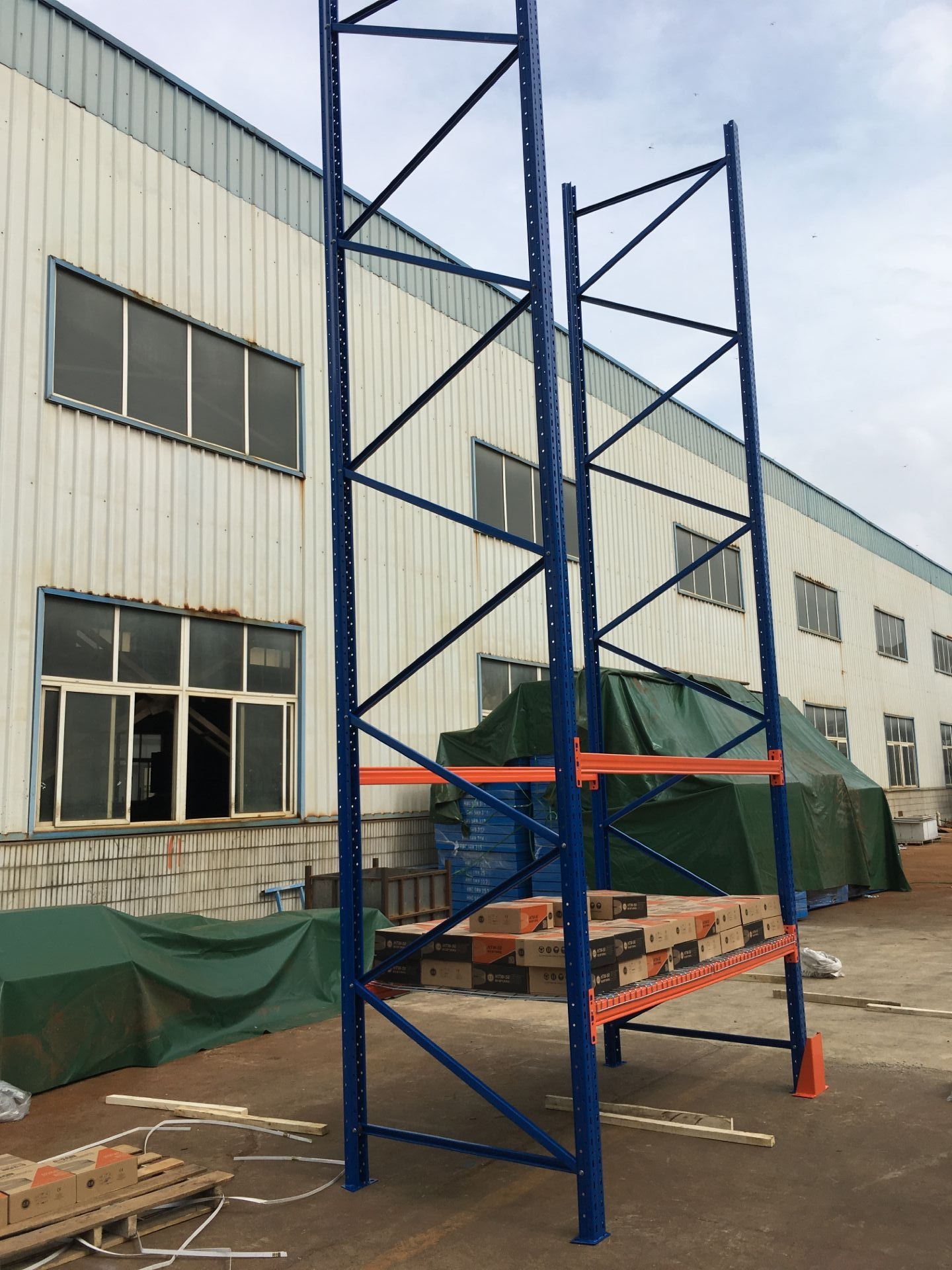

Product Billboard & Detailed Component Views

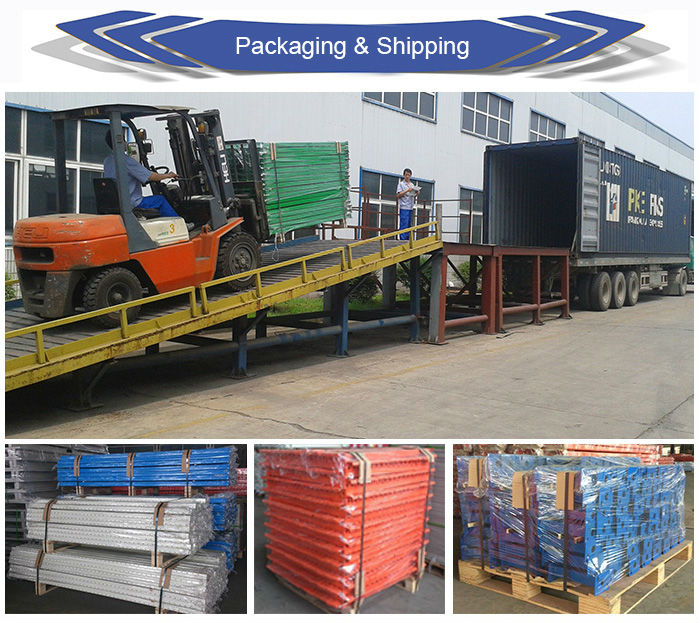

Packaging & Shipping
Services & Quality Commitment
We specialize in the design, manufacture, and installation of a diverse array of industrial storage racking systems, including drive-in racking, movable racking, and heavy duty racking. Our storage systems are extensively utilized across warehouses, supermarkets, enterprises, financial institutions, hospitals, libraries, and various industrial facilities.
Warranty & Service Assurance:
- Racking structural guarantee: 10–15 years
- Free-return policy provided within 1 year
- Quality is our eternal priority. Xinzhongya is committed to providing scientific layout designs and superior build quality.
Company Profile
Jiangsu Xinzhongya Racking Manufacturing Co., Ltd. (previously known as Nanjing Xinzhongya Racking Manufacturing Co., Ltd.) was founded in 1999. It stands as a premier brand within China's specialized storage racking manufacturing sector.

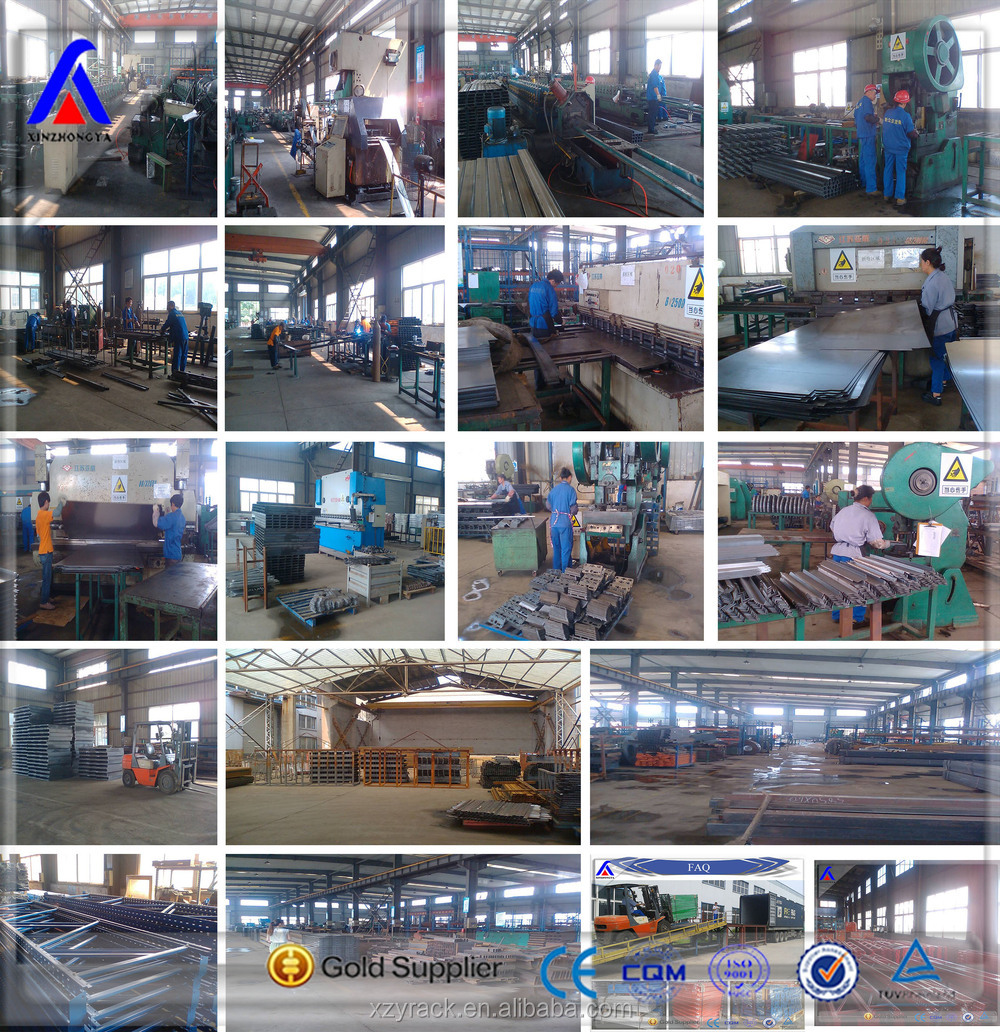

As a comprehensive manufacturer of advanced storage equipment and accessories, Xinzhongya utilizes full-process manufacturing technology, including roll forming, precise racking processing, acid-cleaning, phosphorous pre-treatment, varnish-baking, and electrostatic powder painting. All system installation and after-sales support operations are handled by experienced professionals.

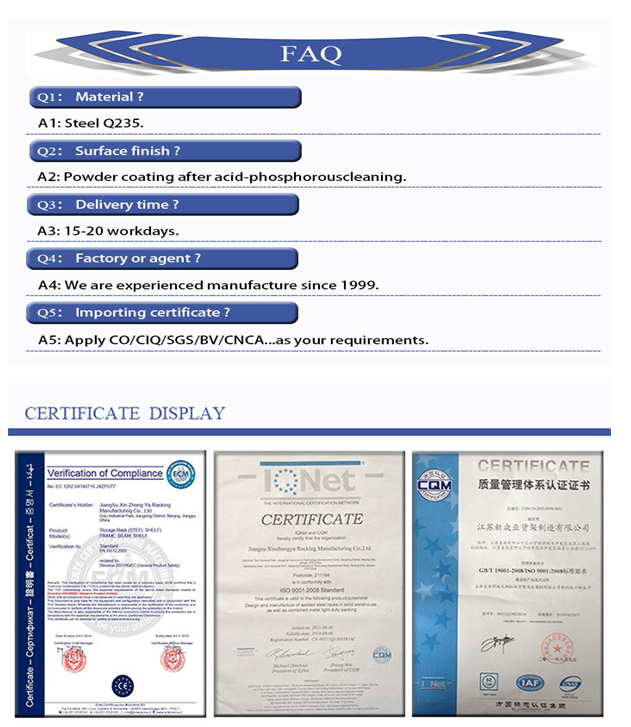

Frequently Asked Questions (FAQ)
What is the maximum loading capacity of this heavy-duty racking system?
Each beam level can support loads under 4 tons per level, and the total load capacity per racking section reaches up to 12 tons, depending on beam profile and post selection.
How adjustable are the beam levels?
The box beams can be conveniently adjusted up and down in modular increments of 75 mm, allowing flexible layout adaptation for varying palletized goods heights.
What type of surface finish is used for rust protection?
The system undergoes acid-cleaning and phosphorous chemical treatment followed by high-grade epoxy electrostatic powder coating and baking, ensuring exceptional rust and scratch resistance.

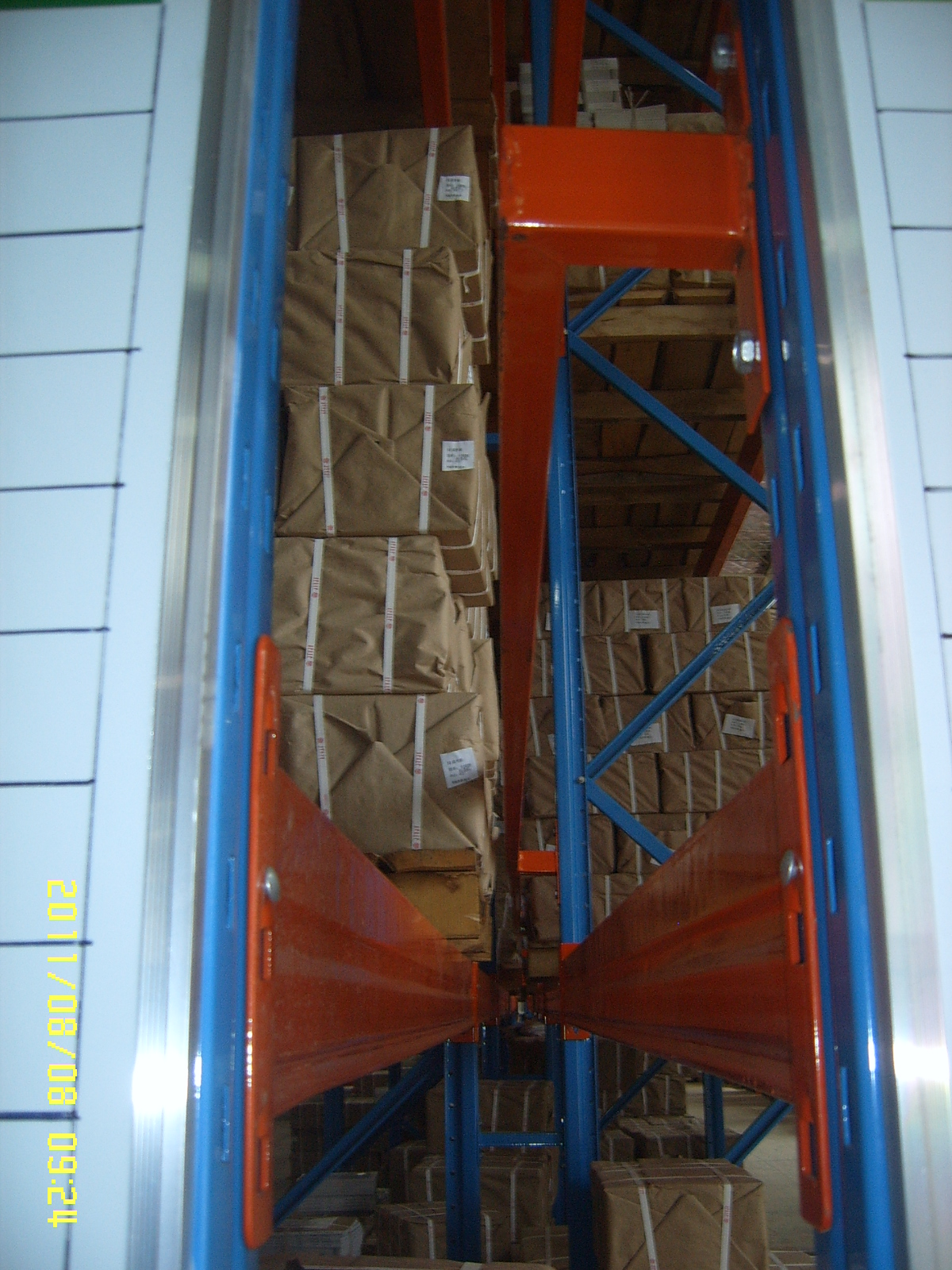

What aisle widths are supported for forklift operations?
The layout supports both conventional forklift aisles (approximately 3000 mm) and narrow aisle designs (approximately 1700 mm), which maximize space utilization when paired with narrow-aisle forklifts.
What optional safety and protection components are available?

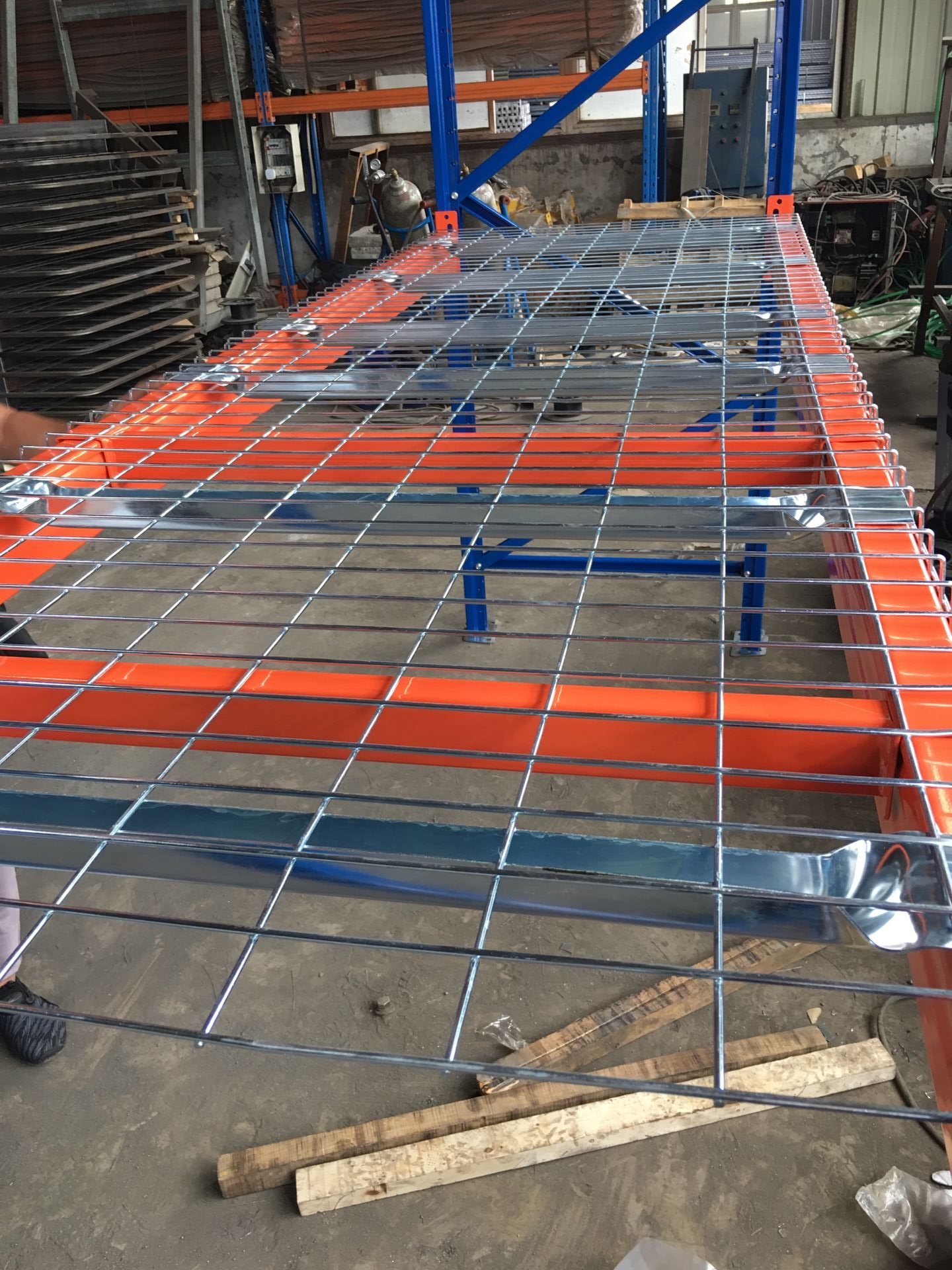

Optional accessories include upright frame protectors, steel foot protectors, back safety mesh, steel panels, horizontal/diagonal braces, and back spacers for enhanced safety.
What warranty and after-sales support are provided?
Our racking systems include a 10 to 15-year structural guarantee, accompanied by a 1-year free-return policy along with full spare parts and maintenance services.
