Steel Stacking Storage Detachable Industrial Fabric Roll Galvanized Pallet Racks
Product Description
Product Description

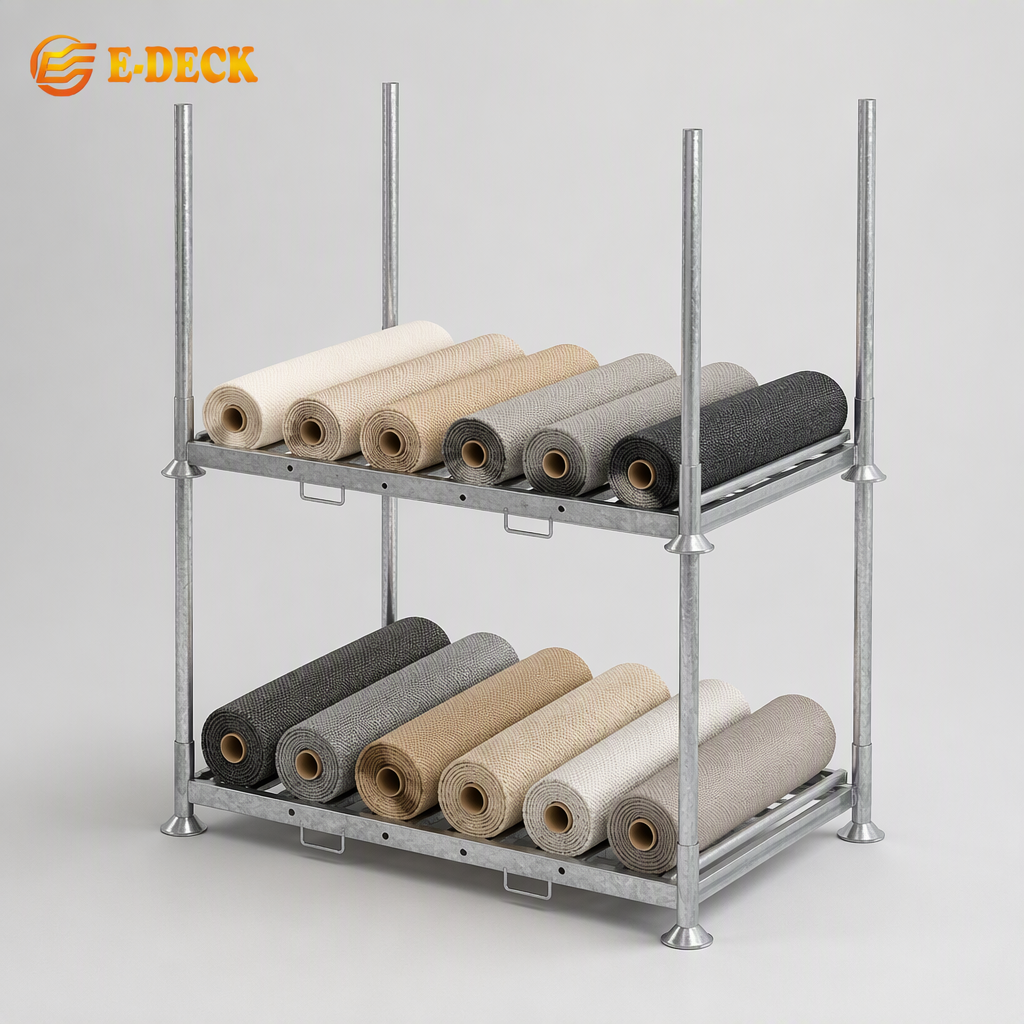

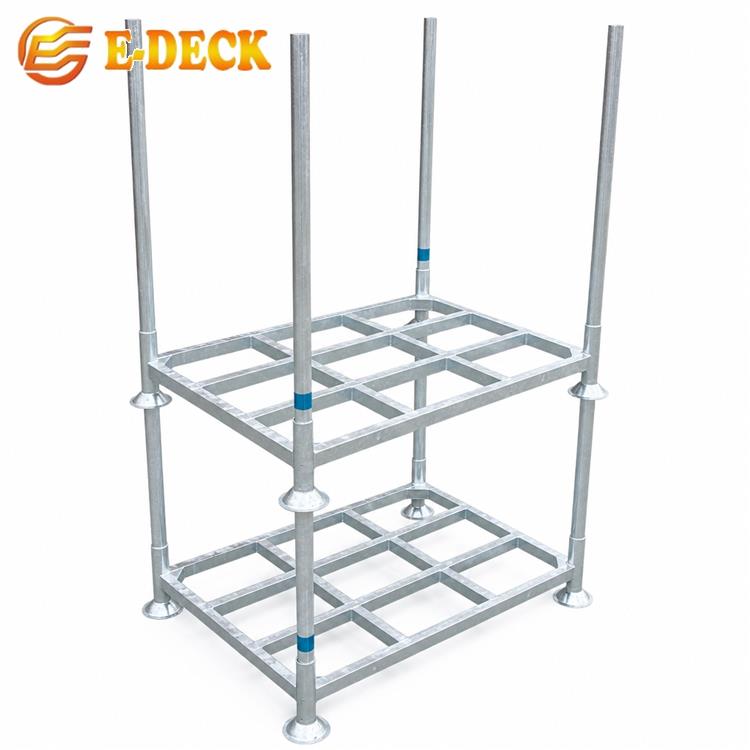

Steel Stacking Storage Detachable Industrial Fabric Roll Galvanized Pallet Racks
1 set = 1 base + 4 posts
1
Strong tubular steel: Stack up to 4 high safely.
2
Removable arms: Fully collapsible, save space, easy storage when not in use.
3
Cup feet: Engineered design for simple and steady stacking.
4
Hot-dip galvanized finish: Corrosion resistant, suitable for outdoor use.
Specification of Fabric Roll Galvanized Pallet Racks
| Model No. | Exterior Dimension | Loading Capacity | Finish | Quantities | Total Container |
|---|---|---|---|---|---|
| LxWxH (mm) | kg | - | sets | - | |
| EDT1-Base | 1395x1060x310 | 1500 | Zinc | 250 | 1x40'HQ |
| EDT1-Post | 1200x60x2.5 | Zinc | 1000 | - | |
| EDT2-Base | 1875x1060x310 | 2000 | Zinc | 150 | 1x40'HQ |
| EDT2-Post | 1200x60x2.5 | Zinc | 600 | - | |
| EDT4-Base | 1545x1050x310 | 1000 | Powder coating | 247 | 1x40'HQ |
| EDT4-Post | 1510x60x2.5 | Zinc | 988 | - | |
| EDT5-Base | 1200x1000x310 | 1500 | Zinc | 250 | 1x40'HQ |
| EDT5-Post | 2000x60x2.5 | Zinc | 1000 | - | |
| EDT6-Base | 950x950x310 | 1000 | Zinc | 160 | 1x40'HQ |
| EDT6-Post | 1200x60x2.5 | Zinc | 640 | - | |
| Material | Mild steel Q235 | ||||
| Application area | Warehouse, logistic, recycling, etc. | ||||
| Remark | Customized or OEM support | ||||
| Key Features |
1. Strong tubular steel - stack up to 4 high 2. Removable arms - fully collapsible, save space, easy storage when not in use 3. Cup feet - easy stacking 4. Hot-dip galvanized finish - corrosion resistant, suitable for outdoor use |
||||
Product Uses
Usage
It will enable you to transform areas which are usually free into storage spaces.
Packaging & Shipping
Packing
- 1. Plastic banding with wooden pallet
- 2. Stretch film wrapped
Delivery Time
30 days for Fabric Roll Galvanized Pallet Racks after receiving 30% deposit.
Payment Terms
- T/T: 3-5 Working Days to The Account
- Western Union: 1-24 Hours to The Account
- MoneyGram: 1-24 Hours to The Account
- PayPal: Immediately to The Account
Company Information
Main Products
If you have other needs, click here for more E-Deck product information
Our Services
Frequently Asked Questions (FAQ)
Q1
What is the material being used for Fabric Roll Galvanized Pallet Racks?
Mild steel Q235.
Q2
How is the goods being packed?
Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with a standard forklift truck or pallet jack.
Q3
What kind of finish do you provide for Fabric Roll Galvanized Pallet Racks?
A. Electro galvanized/Zinc plated: The zinc serves as a sacrificial anode (indoor storage).
B. Hot dip galvanized: It forms a coating of corrosion-resistant zinc (indoor/outdoor and cold storage).
C. Powder coating: A type of coating applied as a free-flowing, dry powder (indoor/outdoor storage).
B. Hot dip galvanized: It forms a coating of corrosion-resistant zinc (indoor/outdoor and cold storage).
C. Powder coating: A type of coating applied as a free-flowing, dry powder (indoor/outdoor storage).
Q4
What is the loading capacity?
In general, we have light duty (100~300kg) model, medium duty (400~800kg) model, and heavy duty (1000~1700kg) model available for your choice.
Q5
I like your design, but couldn't find the right model from the products list, is custom size available?
Yes, we do custom products and projects.
Q6
Do I get any guarantee from your company?
3~10 years warranty in the case that:
A) Proper handling during operation, correct forklift handling while stacking/unstacking.
B) Overloading is prohibited.
C) Environment request indoor, dry and not humid circumstance, do not contact with any corrosive chemical material (for zinc plated and powder coated products, no limitation for hot-dip galvanized).
A) Proper handling during operation, correct forklift handling while stacking/unstacking.
B) Overloading is prohibited.
C) Environment request indoor, dry and not humid circumstance, do not contact with any corrosive chemical material (for zinc plated and powder coated products, no limitation for hot-dip galvanized).
