Automated FIFO/LIFO
Warehouse High-Density Shuttle Rack System ASRS 4-Way Shuttle
Cold Storage -30°C
Automated Pallet Carrier
Direct Factory Inventory & Custom Fabrications
Featured Industrial Pallet Racking & Automated Systems
Engineered in our ISO 9001:2015 and CE-certified structural steel facilities, our heavy-duty storage configurations support multi-tier logistics hubs, cold storage distribution centers, and high-density industrial warehouses.
Q235 Certified
NOVA Customized Cold Rolled Steel Drive-In Pallet Racking
Batch Densification
Q235 Roll-Formed
Distribution Grade
Long Loads
Double Sided Cantilever Rack Adjustable Heavy Duty Racking
Pipe & Timber
Up to 3,000kg/Arm
Commercial Modular

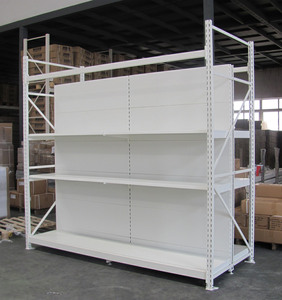

Hypermarket Display Shelving & Industrial Storage Integration
Heavy-Duty Front-End
Direct Base Loading
High Density VNA
Industrial Narrow Aisle Racking Movable Pallet Storage
1.6m-1.8m Aisles
Turret Truck Optimized
3000kg/Level Rating
Adjustable Storage Rack System 3000kg High Density Capacity
Direct Access
Adjustable 75mm Pitch
Multi-Tier Footprint
Industrial Heavy Duty Mezzanine Floor Platform Rack System
Overhead Picking
Structural Beam Grid
25+
Years Structural Steel Manufacturing Experience
30,000t
Monthly Cold-Formed Steel Capacity
10,000+
Global Industrial Facility Deployments
ISO & CE
RMI/ANSI MH16.1 & EN 15512 Compliance
Engineering Context & Supply Chain Infrastructure
Houston Industrial Corridors & The Economics of High-Density VNA Racking
As industrial real estate throughout Harris County, Southeast Houston, and the Houston Ship Channel faces tight inventory and increasing ground lease expenses, logistics operators are transitioning from standard selective pallet racks (12–14 ft aisles) to high-precision Very Narrow Aisle (VNA) systems (5.5–6 ft aisles).
Port of Houston & Ship Channel Logistics
With container volumes climbing at the Barbours Cut and Bayport Terminals, import transload centers require rapid vertical densification. Houston-area cross-docking facilities use VNA systems to hold 40% to 50% more pallet positions per square foot while maintaining 100% individual selective accessibility for fast freight clearance.
Energy, Oil & Gas Heavy Industrial Warehousing
From Spring to Pasadena, down through Pearland, the petrochemical and heavy-machinery corridors demand robust rack profiles. In VNA configurations, high-tensile Q235 and Q355 cold-rolled uprights carry high-capacity pallet loads containing valve assemblies, drill components, and auxiliary hardware within restricted aisle clearances.
Cold Storage Infrastructure (Hwy 290 & I-10 East)
Sub-zero environments require maximum cubic efficiency due to elevated thermal cooling costs. Combining VNA structural tolerance with refrigerated and frozen food distributions yields tighter cube utilization, direct integration with man-up guided order pickers, and optimized air circulation channels designed to avoid thermal traps.
Structural Whitepaper Insights
Engineering Parameters: Floor Tolerances, Guide Rails & Aisle Geometry
Installing a Very Narrow Aisle rack system requires strict adherence to physical engineering principles. Because turret trucks and articulating reach equipment operate with clearances as slim as 150mm on either side, facility parameters cannot be treated like conventional warehousing.
Superflat Floor Classes (ACI & DIN 15185)
Unlike wide-aisle systems operating on generic ASTM FF/FL floor flatness profiles, VNA applications operating above 35 feet require Superflat Concrete Slabs complying with DIN 15185 or F-min 75 to 100 ratings. Millimeter-scale floor variations magnify at high mast heights, causing static lean or vehicle impact without precision screeding and dynamic wheel track leveling.
Floor-Anchored Rail vs. Wire Guidance
Precision tracking along the bottom chord is achieved using either mechanical low-profile guide rails (structural angle steel 100x75x8mm anchored directly into the slab) or inductively energized floor-cut wire guidance. Mechanical steel guides provide robust side-barrier protection against steer wheel wander, while wire systems allow seamless pallet truck transitions across access points.
RMI MH16.1 & Anti-Collapse Engineering
Because VNA upright assemblies frequently reach 40 to 50+ feet, vertical structural bracing patterns must resist frame sway, torsional twist, and dynamic lift forces. Heavy-gauge column footplates, high-ductility anchor studs, and horizontal roof-tie structures ensure full compliance with IBC (International Building Code) and RMI rack engineering standards.
Continuous Roll-Forming Lines
Our automated high-speed roll forming machinery delivers high dimensional uniformity across our 80–140mm upright series, with precision 50mm/75mm drop hole configurations for structural safety locking pins.
Pre-Treatment Phosphating
Components undergo an automated chemical pickling, degreasing, and iron-phosphating bath cycle prior to powder deposition, preventing rust creep in humid environments like the Texas Gulf Coast.
Seismic Finite Element Analysis
Every engineering layout is checked using structural FEA calculation suites to ensure dead-load, live-load, seismic wind-load (IBC Spectral Acceleration SDS), and floor impact margins align with safety standards.
Regional Market Transformation
Houston's Warehousing Trends: Upward Cubic Maximization
An analysis of regional real estate economics, automated materials handling adoption, and the shifting dynamics of industrial real estate across the Greater Houston Metropolitan Area.
Escalating Triple Net (NNN) Lease Pressures
Historically characterized by low-cost land expanses, Greater Houston (including Northwest submarkets along US-290 and the Grand Parkway) has seen land valuations climb. Warehousing operations are moving from 24-foot clear height buildings to modern 36-to-40-foot clear distribution centers. VNA racking maximizes these higher ceilings, turning unused air rights into usable pallet locations without increasing the building footprint.
VNA & Automated Guided Vehicle (AGV) Synergy
Labor retention challenges in the Texas manufacturing and logistics sector have accelerated the adoption of automated turret trucks and driverless AGV reach forklifts. VNA racking serves as an ideal structural partner for automation: straight aisles, tight tolerances, and predictable guide systems provide reliable paths for robotic guided lift equipment.
Direct Import Supply Chain Routing
Shippers are increasingly bypassing West Coast bottlenecks by utilizing all-water Panama Canal routes directly to Port Houston. This volume shift drives a demand for transloading hubs capable of rapid sorting, pallet storage, and container turnaround. Our high-density VNA frames provide the high-load durability needed for fast-cycle container stripping.
Procurement Clarity & Compliance
Houston Warehousing & VNA Procurement FAQ
Practical answers to engineering, structural permitting, and equipment integration questions commonly raised by Houston-area warehouse directors and facility operators.
?
What are the exact aisle width requirements for VNA in Houston warehouses?
Standard VNA aisles typically measure between 5.5 ft and 6.5 ft (1,650mm to 1,980mm) depending on whether standard 40x48-inch GMA pallets are manipulated along their short or long dimension, and the specific clearance specs of your selected turret or swing-mast truck (e.g., Crown, Raymond, Jungheinrich). This contrasts sharply with standard selective setups requiring 11.5 ft to 13 ft clear channels.
?
Do VNA high-bay racking systems require City of Houston High Piled Combustible Storage permits?
Yes. Under the City of Houston Fire Code and IBC Chapter 32, any rack system holding combustible commodities where storage exceeds 12 feet (or 6 feet for high-hazard items such as group A plastics or flammable petrochemical derivatives) requires High Piled Storage Permitting. We supply full structural PE-stamped layout drawings, slab anchor stress calculations, and sprinkler flue space coordination documents for plan reviews.
?
How does Houston's humid, coastal Gulf environment impact steel finish choices?
Houston's elevated subtropical humidity and coastal proximity can lead to surface oxidation in unconditioned warehouses. Our factory provides an automated multi-stage pickling, iron phosphating, and electrostatic epoxy-polyester powder coating (RoHS compliant). For chemical facilities or non-climate-controlled spaces near the Ship Channel, we also supply hot-dip galvanized components.
?
How are concrete slab anchor requirements determined for tall VNA profiles?
Because VNA frames are narrow and tall, dynamic and seismic overturning moments are concentrated at the upright footplates. Baseplate sizing is expanded (typically minimum 10mm to 16mm thick steel) and paired with specialized expansion or screw-anchor systems embedded deep into the structural slab (minimum 4,000 PSI concrete recommended), verified by project-specific engineering calcs.
?
Can an existing selective rack layout in Houston be reconfigured into a VNA layout?
Yes, retrofits are common when operations need more storage density without relocating. The conversion requires verifying the slab's flatness and compressive capacity, narrowing aisle spacings, installing guide rails or cutting wire pathways, reconfiguring overhead sprinkler drop lines, and matching material handling equipment to turret or order-picker lift configurations.
?
What documentation and structural quality credentials accompany direct factory shipments?
Every direct factory order includes complete 2D CAD architectural plans, 3D structural connection details, steel mill material test reports (verifying tensile and yield performance of Q235/Q355 or ASTM equivalent steel), CE structural conformity certificates (No. 2435-CPR-8605159), ISO 9001:2015 tracking documentation, and step-by-step installation packages.
Direct Manufacturing Excellence
Why Logistics Leaders Partner Direct With Our Factories
With over 25 years of specialized experience in storage manufacturing, Guangzhou Heda Shelves Co., Ltd. pairs precision Chinese roll-forming engineering with comprehensive North American installation and compliance support.
Factory-Direct Economics
Eliminate middleman markups by purchasing directly from our 30,000 square meter, 300-employee manufacturing plant. Save 20% to 35% on high-density VNA frames, beams, and dynamic automated shuttle modules without compromising on steel gauge or engineering tolerances.
Free 3D Layout & Structural Planning
Provide your building column matrix, clear height dimensions, pallet weights, and forklift specifications, and our engineering team will produce 2D layout drawings, 3D structural models, and pallet capacity reports within 24 to 48 hours.
Port Houston Direct Container Routing
Optimized container packing plans are prepared to minimize ocean freight costs per pallet position. Orders are securely bundled and labeled for direct delivery to your jobsite in Houston, Baytown, Brookshire, or The Woodlands, ready for your installation team.
Maximize Your Houston Facility's Vertical Storage Capacity
Connect with our technical design team today for free CAD layouts, structural load assessments, and a competitive factory-direct quote on custom VNA racking systems.
