Engineered from structural steel (Q235B/Q355B equivalent to S235JR/S355JR under EN 10025). Designed to optimize Euro-pallet footprint (1200x800mm and 1200x1000mm) while maximizing warehouse cubic efficiency across Iberian fulfillment centers.
Heavy Duty Multi-Level
Custom Heavy Duty Industrial Steel 5 Multi-Level Stacking Storage Carpet Roll Display Warehouse Beam Pallet Racking Systems
Strict FIFO Flow
Factory Direct Steel Gravity Roller Racks Adjustable High Space Utilization Warehouse Gravity Flow Shelving Powder Coated
Retail & Cash-Carry
One-stop Supermarket Shelving Heavy Duty Display Racks Equipment Solution With Free 3D Design For Grocery Store
Long Load Storage
Adjustable Customized Heavy Duty Rack Warehouse Storage 4 Layers Cantilever Rack Steel Single Long Arm Support For Industrial
Compact Stacking
Factory's Heavy Duty 4-Layer Garage Stacking Rack Steel Frame 300kg Capacity Corrosion Protection
Industrial Profile Cold-Forming
Storage Pallet Rack Machine With Competitive Price
Urban Modular Unit
Self Storage Containers Units Business Modular Prefab Galvanized Steel Partition System Indoor Self Storage Unit
E-Commerce Longspan

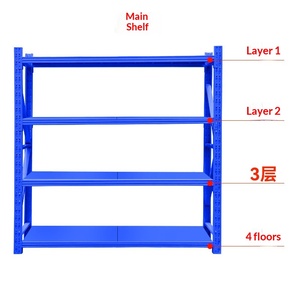

Factory Shelf 200KG Medium-sized Wholesale Warehouse Rack Adjustable Load-bearing Thickened Style Storage Floor-standing
Engineering High-Density Logistics Infrastructure in Spain
An authoritative operational guide for Spanish logistics directors, warehouse operators, and industrial engineering contractors managing high-throughput facilities under European structural and safety directives.
Land Scarcity & Prime Logistics Rents
Industrial real estate in Spain’s core logistical rings—most prominently the Corredor del Henares (Madrid-Guadalajara) and the First & Second Rings of Barcelona—has experienced record-low vacancy rates (under 2.5% in prime Barcelona zones). Escalating prime rents exceeding €6.50 to €8.00/m²/month make conventional selective racking uneconomical. Warehouses must transition from horizontal footprint thinking to high-density vertical cubic exploitation, often reaching clear heights between 12.0m and 15.5m without expanding ground slabs.
European & Spanish Safety Standards
Every industrial racking deployment in Spain is governed by strict technical directives: UNE-EN 15512:2020 (Steel static storage systems - Adjustable pallet racking systems - Principles for structural design), UNE-EN 15620 (Tolerances, deformations and clearances), and UNE-EN 15635 (Application and maintenance of storage equipment). In addition, facilities located in southern seismic-sensitive areas (such as Granada, Almería, and Murcia) must conform to Eurocode 8 and the Spanish NCSR-02 seismic standard, requiring rigorous dynamic calculation checks for upright frames and base anchoring.
Euro-Pallet Dimensional Standardization
Spanish supply chains revolve around standard EPAL 1 (1200 x 800 mm) pallets and Industrial Pallets / EPAL 2 (1200 x 1000 mm). High-density structures must balance beam clearance tolerances with precise bay configurations. A standard 2700mm bay carries three 800mm Euro-pallets with mandatory 75mm side and 100mm center safety gaps under UNE-EN 15620 Class 400. In high-density Radio Shuttle or Drive-In tunnels, entry guide rails and pallet stop-buffers require millimeter-grade alignment to avoid jamming during rapid forklift cycling.
High-Density Configuration Architecture for Iberian Logistics
Selecting the right pallet racking topology requires balancing stock turnover rates, SKU fragmentation, pallet accessibility, and structural capital outlay. Review the engineering performance parameters below.
| Storage Topology | Space Density | Stock Rotation | Direct Selectivity | Forklift Interaction | Optimal Spanish Market Applications |
|---|---|---|---|---|---|
| Radio Shuttle System | Very High (85–90%) | FIFO or LIFO | Medium (By Lane SKU) | External Isle Only (Zero Rack Entry) | Cold storage logistics, dairy processing (Castile and León), FMCG distribution in Madrid. |
| Drive-In / Drive-Through | High (70–80%) | Strict LIFO (Drive-In) / FIFO (Drive-Thru) | Low (Bulk Block SKUs) | Masts Enter Rack Lanes | Beverage bottling plants, seasonal agricultural canning in Navarra & Murcia. |
| Gravity Pallet Flow Rack | High (75–85%) | Strict Dynamic FIFO | Medium (1 SKU per lane) | Separate Inbound & Outbound Aisles | Fresh agricultural produce, pharmaceutical distribution hubs in Barcelona & Valencia. |
| Push-Back (Carts/Rollers) | Medium-High (65–75%) | Strict LIFO (Up to 6 Deep) | Medium-High (Per Channel) | Forklift Pushes Pallets along Rails | Medium-turnover multi-SKU buffers, automotive tier-1 supplier consolidation. |
| Very Narrow Aisle (VNA) | High (70–75%) | 100% Selective FIFO | 100% Immediate Access | Specialized Wire/Rail Guided Turret Trucks | E-commerce fulfillment centers in Corredor del Henares, third-party logistics (3PL). |
| Multi-Tier Mezzanine (Altillo) | Extreme Vertical (2–4 Tiers) | Manual Cart / Conveyor Flow | 100% Manual Hand Pick | Ground Floor Forklifts & Vertical Lifts | Urban delivery micro-hubs, footwear in Elche, apparel distribution in Zaragoza PLAZA. |
High-Density Racking Across Spain's Key Logistical Corridors
From Mediterranean agricultural export cold-chains to central multimodal dry-ports, storage infrastructure must accommodate unique regional operating parameters, product velocities, and local building typologies.
Madrid & Corredor del Henares
Encompassing Coslada, San Fernando, Torrejón, Alcalá de Henares, and Illescas (La Sagra axis). The epicenter of cross-docking, big-box national distribution, and omnichannel retail. Warehouses handle tens of thousands of SKUs daily under tight delivery SLAs.
Barcelona Logistics Arc
Covering Zona Franca, El Prat, Vallès Occidental, and Penedès. High industrial land scarcity necessitates ultra-dense racking footprints. Strong focus on pharmaceutical, automotive component supply chains, chemical clusters, and Port of Barcelona maritime freight.
Valencia & Mediterranean Arc
Including Riba-roja de Túria, Almussafes, and Castellón. Key intersection of maritime export container flows, heavy ceramic tile manufacturing, and agri-food logistics. Heavy point load tolerance and anti-corrosive powder coatings are paramount.
Zaragoza (PLAZA) & Andalusia
PLAZA serves as Europe’s largest dry port and textile distribution hub (Inditex rail cluster). In the south (Seville, Antequera, Algeciras, Almería), intensive horticulture demands temperature-controlled racking with seismic calculations per NCSR-02 / Eurocode 8.
Emerging Warehouse Trends in the Spanish Market (2025–2030)
How macroeconomic shifts, sustainability directives (ESG), and supply chain automation are transforming industrial storage procurement across Spain.
Energy-Driven Cold Chain Compaction
High electricity tariffs in Spain have made refrigerated and deep-freeze logistics (-18°C to -25°C) expensive to run with empty aisle volumes. 3PL cold stores in hubs like Mercamadrid, Mercabarna, and southern agro-export clusters are aggressively replacing standard selective racks with semi-automated Radio Shuttle and Drive-In systems. By packing up to 85% of refrigerated room volume with dense pallets, operators reduce cooling kilowatt-hours per stored metric ton by 35% to 50%.
Brownfield Modernization & Vertical Expansion
Because environmental zoning and municipal approvals for new greenfield warehouses around Barcelona, Madrid, and Bilbao can take up to 24 months, Spanish companies are upgrading existing legacy facilities. By utilizing high-load steel columns and rack-supported multi-tier platforms (altillos industriales sobre estanterías), logistics managers double or triple usable floor square meters within the existing building envelope without applying for expanded land permits.
Nearshoring & Re-industrialization in Northern Spain
Supply chain shocks have accelerated nearshoring back to Spain's industrial manufacturing corridors in the Basque Country, Navarre, and Valencia. Automotive tier-1 suppliers, renewable equipment manufacturers, and machinery builders require heavy-duty cantilever racking and custom roll-storage systems capable of handling non-standard raw steel rolls, piping, and oversized structural dies with safety factor margins up to 1.5 per European FEM regulations.
Why Logistics Leaders Partner with Guangzhou Heda Shelves
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. operates a premier 30,000 m² smart manufacturing plant with over 300 engineering and production specialists, serving more than 10,000 warehouse projects across 120 countries.
30,000 m² Factory Direct
Eliminate intermediary trading margins. Every upright, beam, baseplate, and bracing component is formed and fabricated directly in our factory, delivering unmatched pricing and strict dimensional tolerances for European orders.
CE & ISO 9001 Certified
Certified under CE Certification No. 2435-CPR-8605159, ISO 9001:2015 No. 18624Q00169R0M, and RoHS compliant powder coatings. Complete mechanical test reports are provided for Spanish municipal and safety audits.
Free 2D CAD & 3D Modeling
Our structural design engineering team creates complete 2D warehouse layout schematics, 3D spatial simulations, and finite-element structural load calculations within 24 to 48 hours to streamline your capital expenditure approvals.
Seamless Spanish Sea Logistics
Direct containerized shipments from South China deep-water ports directly to Port of Valencia, Port of Barcelona, Port of Algeciras, or Port of Bilbao with tailored loading configurations designed to maximize container cube and reduce landed unit freight.
In-House 10-Step Production & Quality Assurance Workflow
Every structural component passes through a calibrated 10-step industrial fabrication cycle to guarantee structural stability under maximum static load.
Raw Material Check
Chemical analysis and yield strength testing of Q235B/Q355B coils.
Precision Cutting
High-speed automated coil slitting and laser length-cutting lines.
CNC Column Punching
Automated continuous pitch punching for tear-drop / 50mm diamond slots.
Cold Profile Forming
Multi-roller forming lines shaping upright profiles with up to 13 bend planes.
Beam Profile Forming
Continuous twin-C seam welding producing high-torsion box beams.
Surface Polishing
Shot blasting and micro-deburring removing welding slag and surface oils.
Robotic Welding
Automated robotic arm welding connecting beam connectors and baseplates.
Pickling & Phosphating
7-stage chemical dip ensuring rust removal and phosphate surface bonding.
Electrostatic Coating
Automated epoxy powder electrostatic spray cured at 200°C for durability.
QC & Export Stacking
Strict tolerance verification, load test checks, and export seaworthy bundling.
Frequently Asked Questions by Spanish Logistics Buyers
Direct answers addressing engineering compliance, shipping customs, European structural standards, and installation management across Spain.
Do your racking systems comply with Spanish and European EN standards?
Yes. All structural calculations and steel tolerances comply with UNE-EN 15512 (Principles for structural design of adjustable pallet racking), UNE-EN 15620 (Tolerances, deformations and clearances), and UNE-EN 15635 (Steel static storage systems maintenance). Our manufacturing processes are CE certified under CPR No. 2435-CPR-8605159 and ISO 9001:2015. Certified calculation notes are provided for local safety audits.
How do you handle shipping, customs clearance (DUA), and transit times to Spain?
We routinely export directly to major Spanish commercial container ports, including Valencia, Barcelona, Algeciras, and Bilbao. Transit time from South China to Spanish ports is typically 28 to 35 days. We provide complete export documentation—commercial invoices, packing lists with container optimization diagrams, and Certificates of Origin—allowing your Spanish freight forwarder or customs broker to clear the Documento Único Administrativo (DUA) without friction.
Can you provide seismic engineering calculations for Southern Spain?
Yes. Southern Spanish provinces such as Granada, Almería, Murcia, and parts of Alicante carry elevated seismic risk under the Spanish seismic code NCSR-02 and Eurocode 8 (EN 1998). For projects in these regions, our structural engineering team custom-sizes upright profiles, specifies high-tensile anchor bolts, adds horizontal/vertical cross-bracing towers, and increases baseplate surface contact dimensions to satisfy local permit regulations.
How are the systems installed on site in Madrid, Barcelona, or Valencia?
Every shipment is packaged with detailed 3D step-by-step assembly drawings, structural component marking tags, anchor torque specifications, and bolt positioning guides. Clients can utilize their own local maintenance teams or qualified industrial montage contractors (montadores de estanterías). For large-scale installations, we can also provide remote video engineering supervision or dispatch on-site project directors.
What specific details are required to receive a free 2D/3D warehouse layout?
Simply provide your warehouse architectural CAD plan or dimensional sketch (specifying clear height under roof truss, column grid spacing, floor slab thickness, and dock door locations), pallet dimensions and weight (e.g. 1200x800mm Euro-pallets at 1,000kg), forklift model and maximum mast lift reach, and your target operational throughput. Our team returns a fully optimized 2D layout and 3D rendering within 24 to 48 hours.
Can you provide hot-dip galvanized finishes for humid or coastal locations?
Yes. While our standard industrial finishing is an advanced electrostatic epoxy-polyester powder coat (baked at 200°C for exceptional impact and scratch resistance), we also supply hot-dip galvanized upright frames and components conforming to ISO 1461. This finish is ideal for outdoor yards, harsh coastal humidity near Valencia or Barcelona, and sub-zero cold-storage facilities subject to frequent condensation.
Optimize Your Spanish Warehouse Footprint Today
Contact Guangzhou Heda Shelves Co., Ltd. for factory-direct engineering pricing, customized high-density spatial layouts, and comprehensive European structural documentation for your facility in Madrid, Barcelona, Valencia, Zaragoza, or Seville.
