Industrial Pallet Racking & High-Density Storage Solutions
Factory-direct warehouse racking systems manufactured under ISO 9001:2015 and CE certifications, fully optimized for Uruguayan logistics operations, bonded distribution depots, and agricultural facilities.
Single & Double Sided Cantilever Rack Heavy Duty Industrial Arm Storage System
Product Details →
Top Selling Heavy Duty Teardrop Steel Pallet Racking Corrosion Protection
Product Details →
Automated Adjustable Durable Heavy Duty High Density Gravity Roller Flow Racking
Product Details →
High Quality Industrial Rolling Shelves Stainless Steel Carton Flow Rack
Product Details →
Stacking Long Span Shelving Storage Metal Shelf Assembly for Warehouse Heavy Duty
Product Details →
Industrial Heavy Duty Drive-in Rack High Density Storage System for Warehouse
Product Details →
NSF & ISO Certified Chrome Plated Six Layers Mobile Garage Wire Shelving
Product Details →

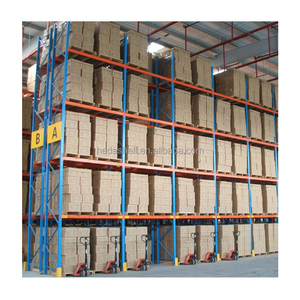

Heavy Duty Metal Pallet Storage Racking 1000kg to 3000kg Per Layer Capacity
Product Details →Engineering Architecture of Teardrop Racking Systems
Why the boltless teardrop profile serves as an adaptable, robust structural standard for multinational logistics and regional transshipment centers.
Inverted Teardrop Geometry & Connection Integrity
The system utilizes punch-hole geometry tapered at a 2-inch vertical pitch. The connector pins on the horizontal beam lock into the narrowing slot of the upright column. As gravitational load increases from loaded pallets, the wedge action between the beam bracket pin and column aperture tightens mechanically.
- Eliminates lateral sway without requiring through-bolts.
- Enables beam elevation adjustment in 50.8mm increments.
- Integrates spring-loaded safety locks preventing forklift dislodgement.
Structural Steel Grades & Roll-Forming Tolerances
Fabricated using certified high-tensile hot-rolled and cold-rolled coil steel (Q235B and Q355B equivalents conforming to ASTM A1011 standards). Upright profiles are cold-formed through continuous multi-station rolling lines to avoid internal residual stresses along bending radiuses.
- Column thickness options: 1.5mm, 1.8mm, 2.0mm, and 2.5mm.
- Box-beam and step-beam profiles with continuous robotic seam welds.
- Calculated safely in compliance with ANSI MH16.1 RMI standards.
Pre-Treatment & Anti-Corrosive Electrostatic Finishing
Coastal and maritime environments throughout the Río de la Plata estuary demand strict corrosion mitigation. Steel components undergo a continuous chemical pre-treatment cycle comprising hot alkaline degreasing, acid pickling, zinc phosphating, and demineralized rinses before coating.
- Thermosetting TGIC-free polyester powder applied electrostatically.
- Cured at 180°C–200°C for uniform 60–90 micron film thickness.
- Optional hot-dip galvanizing to ASTM A123 for cold storage applications.
Localized Application Scenarios Across Uruguay
Uruguay’s strategic status as the South Atlantic logistics doorway requires purpose-built racking engineered for specialized Free Trade Zones, agricultural processing, and cross-border distribution.
Free Trade Zones & Bonded Logistics Hubs
Platforms operating within Zonamerica, Parque de las Ciencias, and the Port of Montevideo Free Port zone rely on high inventory turnover, tax-sheltered cross-docking, and dynamic SKU consolidation destined for Argentina, Brazil, and Paraguay.
Configured Design: High-bay selective teardrop frameworks integrated with heavy-duty wire mesh decks and pallet support bars. Enables immediate selective accessibility for pharmaceuticals, high-tech components, and consumer goods without custom beam adjustments.
Cold Chain Storage: Beef, Dairy & Agro-Export
As one of the world's premier exporters of premium beef and dairy derivatives, Uruguay's cold storage infrastructure across Canelones, San José, and Montevideo requires maximum thermal volumetric efficiency to reduce energy expenses per cubic meter.
Configured Design: High-density Drive-in and Radio Shuttle teardrop systems fabricated with low-temperature cold-resistant steel grades. Minimizes operating aisles, maximizes refrigerated footprint, and provides robust performance down to -30°C.
Pulp, Forestry & Heavy Industrial Spares
With massive pulp production infrastructure (UPM and Montes del Plata) driving inland logistics corridors along the Río Negro basin, industrial supply chains demand heavy structural storage for spare parts, heavy machinery rolls, and process chemicals.
Configured Design: Structural teardrop upright frames equipped with heavy-gauge footplates, reinforced base anchors, and cantilever arm extensions engineered to handle irregular, dense mechanical components up to 3,000 kg per level.
Industrial Storage & Warehousing Trends in Uruguay
Analyzing economic drivers, regulatory shifts, and technical advancements shaping material handling infrastructure throughout the Uruguayan logistics market.
Mercosur Hub Expansion
Uruguay's Free Port Law (Ley de Puerto Libre) and Free Trade Zone regulations (Ley de Zonas Francas) continue to attract international distribution centers that utilize Montevideo as an offshore consolidation point for southern South America.
Vertical Real Estate Optimization
Escalating land values along the Ruta 101 and Ruta 8 logistics corridors near Carrasco International Airport have prompted warehouse developers to build vertical configurations from 10m to 14m clear height, increasing demand for rigid high-bay upright configurations.
Universal Component Compatibility
Uruguayan logistics operators increasingly migrate toward teardrop hole patterns because of their backward compatibility with standard American-type beam connectors, avoiding locked-in proprietary profiles when expanding facilities.
Traceability & FIFO Compliance
Stricter sanitary traceability for European and North American beef/dairy export quotas demands automated gravity flow and push-back racking configurations that enforce strict first-in, first-out stock movement.
Manufacturing Authority, Global Scale & Engineering Rigor
Operating from our 30,000 m² factory in Guangzhou, China, Guangzhou Heda Shelves Co., Ltd. provides factory-direct heavy-duty racking solutions with complete technical oversight from raw coil processing to site erection.
25+ Years of Manufacturing Integrity
Founded in 2001, HEDA Shelves maintains a staff of 300+ technicians and structural engineers. With a monthly production output of 30,000 tons, we supply warehouse infrastructure to contractors, distributors, and logistics enterprises in more than 120 countries.
Our completely integrated manufacturing lines handle automatic column punching, roll profiling, CNC cutting, submerged arc/robotic welding, and specialized electrostatic coating under unified quality control.
Free 2D CAD & 3D Static Load Modeling
Before metal is rolled, our in-house engineering team converts warehouse architectural drawings into optimized floor plans, verifying forklift turning radius aisles, egress passages, column locations, and fire sprinkler clearance requirements.
We provide full structural calculation packages, displacement analysis under uniform distribution, dynamic load simulations, and full 3D visual renderings delivered within 24 to 48 hours.
International Certification Compliance
Structural reliability is confirmed through independent international standards. HEDA Shelves holds valid CE Certification (Certificate No. 2435-CPR-8605159), ISO 9001:2015 Quality Management Certification (Certificate No. 18624Q00169R0M), and strict RoHS coating compliance.
Certified steel mill test sheets (MTC) and destructive load testing certificates are furnished with export documentation to satisfy municipal building inspectorates and insurance compliance auditors.
Frequently Asked Questions: Purchasing Racking in Uruguay
Technical, logistical, and commercial inquiries answered by our structural engineering and Latin American export trade department.
What pallet dimensions are standard in Uruguay, and can teardrop systems accommodate them?
Uruguayan warehouses predominantly utilize both standard Mercosur/ARLOG pallets (1000mm x 1200mm) and ISO/Euro pallets (800mm x 1200mm). Our teardrop racking systems are engineered with customized beam lengths (such as 2300mm for two Mercosur pallets or 2700mm for three Euro pallets) combined with heavy-gauge wire decking or drop-in cross-bars to support mixed pallet footprints safely on the same beam level.
How does ocean freight logistics work from Guangzhou to Montevideo?
Shipments depart directly from major South China ports (Nansha, Huangpu, or Shenzhen) to the Port of Montevideo via major liner services (such as Maersk, MSC, or Cosco) with typical transit times ranging from 35 to 45 days. We provide comprehensive container stuffing schemes that bundle upright frames and nested beams to maximize 40ft HQ cube utilization and minimize sea freight costs per pallet location.
Are import duties applicable when shipping to Free Trade Zones (Zonamerica, etc.)?
Under Uruguay's Free Zone regime (Ley N° 15.921), capital goods, equipment, and structural racking imported directly into declared Free Zones or under the Free Port regime in Montevideo are exempt from import tariffs, VAT, and internal taxes. Our export team coordinates with your designated Uruguayan customs despachante de aduanas, supplying complete Bill of Lading, Commercial Invoices, Packing Lists, and Certificates of Origin.
Are seismic engineering calculations required for racking installations in Uruguay?
Uruguay is situated on a stable intraplate cratonic zone with very low seismic hazard (Zona de baja sismicidad). While high-magnitude seismic design is not as critical as along the Pacific rim (Chile or Peru), structural design must still verify horizontal wind loadings on external wall-tied configurations, floor slab anchor capacity, column base-plate shear, and static deflections under full rated live load.
Can teardrop components be color-customized to match corporate standards?
Yes. We offer electrostatic powder coating in any standard RAL color profile. Common color schemes include International Orange (RAL 2004) or Signal Blue (RAL 5005) for beams and uprights, or safety color coding matching specific brand identities. All coatings utilize durable epoxy-polyester formulas that resist scratching from regular forklift fork impact.
How are assembly and erection handled on-site in Uruguay?
Every shipment is accompanied by detailed CAD assembly drawings, piece-marked component maps, frame bracing layouts, and anchoring instructions. Because the teardrop connection is completely boltless and slip-fit, local installation contractors can assemble bays rapidly using basic tools (rubber mallets, levels, and hammer drills for anchors), significantly lowering installation costs compared to structural bolt-together systems.
Plan Your Warehouse Racking Infrastructure with HEDA Engineers
Send us your warehouse layout sketch, ceiling clear height, pallet dimensions, and forklift specifications. Our engineering team will supply an optimized 2D CAD floor plan, 3D structural visual rendering, and an itemized factory-direct quote within 24 hours.
