Heavy-Duty Warehouse Racking Systems
Cold-formed structural steel systems manufactured under ISO 9001:2015 and CE EN 15512 standards, engineered for extreme load parameters and heavy pallet throughput across the UAE.
1000KG-3000KG Per Levels Heavy Duty Selective Racking System Industrial Pallet Storage Rack
Automated Warehouse Radio Shuttle Pallet Racking System Adjustable Heavy Duty Pallet Rack High-Density Storage Shuttle Rack CE

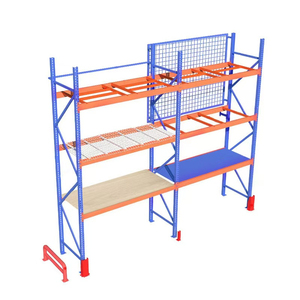

High Shelf Warehouse Racking System Strong Load-bearing Steel Pallet Rack Shelves For Factory Storage Support Customised
Conventional Single Row Pallet Racking
Steel Rack System Heavy Duty Pallet Racking 4000kg Warehouse Storage Rack System 5-Tier Adjustable Industrial Racks
FIFO Automatic Warehouse Pallet Racking System Storage Shelf Stacking Racks Shelves Radio Shuttle Racking for Cold Storage Room
Pallet Racking Warehouse Storage Heavy Duty Industrial Pallet Shelf Narrow Aisle Selective Warehouse Racking System
Custom Injection Molded Plastic Parts Reinforced PP Pallet Feet For Warehouse Automatic Logistics Transport Rack Parts
Engineering Racking Infrastructure for the UAE’s High-Density Logistics Ecosystem
As the United Arab Emirates cements its status as the preeminent transshipment powerhouse connecting Asia, Europe, and Africa, industrial warehousing has shifted from standard floor stacking to complex, vertical structural systems designed to withstand local environmental and regulatory constraints.
Free Zone Cubic Footprint Optimization
With land rental values in prime industrial corridors such as JAFZA (Jebel Ali Free Zone), Dubai South Logistics District, and KEZAD (Khalifa Economic Zones Abu Dhabi) reaching premium baselines, supply chain operators cannot afford horizontal sprawl. Our long span and high-bay selective pallet racking systems utilize clear building eaves up to 16 meters, converting dead volumetric air space into functional pallet positions.
Operation 300bn & In-Country Value (ICV)
The UAE's national industrial strategy, Operation 300bn, coupled with stringent In-Country Value mandates, requires local manufacturing and logistics operations to maximize capital efficiency. By sourcing racking directly from our certified Guangzhou production facilities, UAE contractors bypass multiple layers of regional distributor markups, cutting steel infrastructure procurement expenses by 22% to 35%.
Omnichannel E-Commerce & 3PL Velocity
Driven by major regional fulfillment operations (Amazon MENA, Noon, Landmark Group), rapid SKU picking cycles demand high-deflection-resistant long span beams paired with selective bottom levels. Our beam connectors feature four-point teardrop locking hooks with secondary safety pins, preventing beam dislodgment during rapid reach-truck pallet retrieval in high-throughput distribution hubs.
DCD Fire Safety, Seismic Resilience & Climatic Engineering
Installing industrial racking in the UAE requires strict adherence to localized municipal mandates, seismic building codes, and material science solutions for severe ambient heat and saline humidity.
Dubai Civil Defense (DCD) Fire Code Compliance
Racking configurations across Dubai, Abu Dhabi, and Sharjah must strictly comply with the UAE Fire and Life Safety Code of Practice. A primary failure during municipality inspections is the lack of proper flue space for Early Suppression Fast Response (ESFR) in-rack sprinkler systems. Our CAD layouts incorporate mandatory longitudinal flue spaces (minimum 75mm–150mm) and transverse flue spaces between double-deep racks. Furthermore, wire mesh decking is engineered with a minimum 70% open aperture ratio to allow unhindered sprinkler water penetration through multi-tier levels.
- Pre-calculated flue apertures verified against NFPA 13 & DCD standards
- Aisle clearance engineering: Minimum 3.0m–3.5m for counterbalance trucks; 1.6m for VNA
- Escape corridor widths compliant with maximum exit travel distance mandates
Seismic Design (Zone 2A) & Floor Anchorage
Under the UAE Uniform Building Code (UBC 97) and International Building Code (IBC) regulations, the Northern Emirates and Dubai fall within Seismic Zone 2A parameters. Racking cannot simply rest on standard baseplates. We engineer heavy-duty ductile steel baseplates (160mm x 140mm x 10mm) secured via dual M12/M16 Hilti-grade mechanical wedge anchors with certified embedment depths into 250mm reinforced concrete slabs (C30/C37). Finite Element Analysis (FEA) is performed on all upright profiles to ensure structural integrity under dynamic horizontal ground acceleration.
- Omega-section cold-formed upright profiles featuring 11–13 folding stiffeners
- K-bracing and portal cross-bracing frameworks engineered for lateral shear stability
- Calculated deflection limits held below 1/200th of the span under full static loading
Thermal Cycle & Coastal Saline Corrosion Protection (50°C+ Ambient Resilience)
Coastal logistics hubs near Jebel Ali Port, Hamriyah Free Zone, and Khalifa Port endure severe environmental conditions: ambient summer temperatures exceeding 50°C combined with up to 90% relative humidity containing active chloride salts. Non-treated or poorly painted steel experiences rapid delamination and sub-surface oxidation. Our manufacturing workflow employs a 10-step surface treatment process including acidic pickling, high-density zinc phosphating, and electrostatic powder coating cured at 200°C. This forms a cross-linked polyester-epoxy barrier with a thickness of 60–90 microns, passing 500-hour ASTM B117 salt spray tests. For sub-zero cold chain facilities or open shed yards, hot-dip galvanizing with 80+ micron zinc bath depth is provided.
Industrial Racking Specifications for UAE Facilities
Select the correct structural racking topology based on floor load capacity, required SKU selectivity, and material handling equipment.
| Racking Topology | Load Rating (Per Tier) | Max Usable Height | SKU Selectivity | MHE Requirement | Compliance Standards | Typical UAE Application |
|---|---|---|---|---|---|---|
| Selective Pallet Racking | 1,000 kg – 4,500 kg | Up to 12.5 meters | 100% Immediate | Reach Truck / Counterbalance | CE / EN 15512 | FMCG, 3PL Distribution, Retail DCs |
| Very Narrow Aisle (VNA) | 1,000 kg – 2,500 kg | Up to 16.5 meters | 100% Immediate | VNA Turret Truck / Rail Guided | ISO 9001 / DCD | High-rent Free Zones (JAFZA, DWC) |
| Radio Shuttle Automation | 500 kg – 1,800 kg | Up to 14.0 meters | Lane-Dependent (FIFO/LIFO) | Standard Forklift + Shuttle | CE / RoHS | Cold Storage (-25°C), Beverage Plants |
| Drive-In Racking System | 800 kg – 2,000 kg | Up to 11.0 meters | Bulk Batch (LIFO) | Counterbalance into bays | EN 15512 | Seasonal Agricultural, Raw Materials |
| Heavy Long Span Shelving | 300 kg – 1,000 kg | Up to 5.0 meters | 100% Manual Hand-Pick | Manual / Order Picker | CE Verified | Automotive Parts, E-Commerce Totes |
Tailored Racking Implementations Across UAE Emirates
Every industrial district across Abu Dhabi, Dubai, Sharjah, and the Northern Emirates presents distinct commercial requirements. Our systems are engineered around specific local supply chain profiles.
Dubai South & JAFZA
High-velocity cross-docking and bonded air-sea transit hubs. Our systems integrate heavy-duty selective racking with dynamic pallet flow lanes to support same-day dispatch and automated manifests across the DWC aerospace and maritime corridor.
KEZAD & ICAD Abu Dhabi
Supporting heavy downstream manufacturing, aluminum processing, and petrochemical engineering. Racking columns feature reinforced S235/Q355 hot-rolled structural inserts and heavy cantilever arms designed for rebar, structural tubing, and bulky equipment loads.
Sharjah & Sajaa Industrial
High concentration of regional automotive replacement components, construction hardware, and building material distribution. We combine multi-tier rack-supported mezzanines with long span shelving to segregate fast-moving small parts from heavy boxed assemblies.
Dubai Food Park & Ras Al Khor
Sub-zero cold chain logistics dedicated to dairy, meat, and pharmaceutical security. Our semi-automated radio shuttle racking systems eliminate fork truck operating lanes within temperature-controlled -25°C zones, drastically reducing refrigeration energy loss.
Direct-From-Manufacturer Authority & Engineering Quality
Since 2001, Guangzhou Heda Shelves Co., Ltd. has stood as a specialized industrial steel fabrication leader, delivering full-spectrum storage infrastructure to clients across 120 countries.
Certified Structural Integrity
HEDA operates under strict quality management frameworks holding European CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Certification (No. 18624Q00169R0M), and environmental RoHS compliance. All cold-rolled steel coils are sourced from tier-one steel mills with certified mill test certificates (MTC), guaranteeing high yield strength and chemical composition compliance.
Free 2D/3D BIM Warehouse Layouts
Our senior warehouse structural engineers generate custom 2D AutoCAD and 3D architectural models within 24 to 48 hours of initial review. We analyze column grids, building clear heights, MHE turning radii, and fire suppression drops to provide optimized pallet counts and structural calculation reports before procurement commitments are finalized.
Direct South China Maritime Logistics to Jebel Ali
Located in Guangzhou adjacent to Nansha and Shenzhen container terminals, our project operations team executes standardized container loading plans using specialized nesting brackets. Direct sea transit to Jebel Ali Port or Khalifa Port averages 14–18 days, minimizing shipping time and avoiding intermediate damage risks.
Frequently Asked Questions for UAE Logistics Directors
Direct answers addressing municipal permitting, slab engineering, anti-corrosion specifications, and commercial execution.
What documentation do you provide for Dubai Civil Defense (DCD) and Municipality permits? +
We supply comprehensive engineering submission packages required by UAE local engineering consultants and Civil Defense authorities. This includes 2D CAD architectural plans detailing aisle escape clearances and flue space apertures, complete structural load calculation sheets, material test reports verifying Q235B/Q355B yield strength, CE conformity certificates (EN 15512), and electrostatic coating non-toxicity documentation. These documents allow local EPC contractors and installation partners to secure building and fire safety compliance stamps without technical delays.
How does HEDA protect steel components from coastal saline humidity in UAE port zones? +
Warehouses located in Jebel Ali, Hamriyah, or Mina Zayed experience elevated airborne salt and moisture levels. Our production features an automated continuous 10-stage pre-treatment line: high-pressure degreasing, hot water rinsing, acidic pickling to eliminate scale, dual water neutralizing baths, micro-crystalline zinc phosphating, and deionized rinses. Components then receive high-adhesion electrostatic thermoset epoxy-polyester powder coating cured at 200°C. For extreme open environments or uninsulated sheds, full hot-dip galvanization according to ISO 1461 standards is available, providing sacrificial zinc barrier protection exceeding 20 years.
What concrete floor slab specifications are required for heavy-duty long span and high-bay racking? +
For installations reaching heights of 6 to 12 meters with bay loads exceeding 10,000 kg, the concrete foundation should be a minimum of 200mm to 250mm reinforced concrete with a characteristic compressive cylinder strength of at least 30 N/mm² (C30 or C35). The slab must be structurally sound, crack-free, and comply with DIN 18202 or TR34 flat floor classifications (specifically FM2 or DM2 for narrow aisle configurations) to avoid upright lean and mast tilt when operating high-reach equipment.
Can your systems accommodate both European Euro-pallets and GMA/ISO Industrial pallets? +
Yes. The UAE logistics sector commonly handles two primary pallet standards: the Euro-pallet (1200mm x 800mm) and the standard Industrial/GCC pallet (1200mm x 1000mm), along with standard chemical CP-1 to CP-9 units. We engineer custom frame depths—typically 1000mm depth for Euro-pallets and 1100mm depth for Industrial pallets—allowing the pallet boards to safely overhang the front and rear load beams by 50mm as mandated by European safety guidelines. For mixed operations, heavy-duty drop-in wire mesh decks or pallet cross-bars are integrated to prevent misaligned pallets from falling.
What is the standard shipping lead time from your factory to UAE ports (Jebel Ali / Khalifa)? +
Fabrication lead times for customized warehouse racking typically range from 15 to 25 days depending on total tonnage. Containerized shipping from Guangzhou (Nansha/Huangpu) to Jebel Ali Port or Khalifa Port takes approximately 14 to 18 days on direct maritime loops. Total delivery time from engineering sign-off to port arrival is approximately 35 to 45 days. We also coordinate with local installation teams across Dubai, Abu Dhabi, and Sharjah to ensure unloading and erection proceed sequentially according to layout drawings.
How do Radio Shuttle and Automated High-Density racks operate under cold room conditions? +
Our cold storage radio shuttle systems are engineered specifically for continuous operation at temperatures as low as -30°C. Standard lithium-ion batteries fail in sub-zero environments; therefore, we incorporate high-rate lithium-iron phosphate (LiFePO4) battery packs equipped with internal thermal heating circuits and condensation-resistant IP65-sealed electronic controllers. Upright and beam steels are selected to maintain notch toughness without brittle fracture risks under extreme low temperatures.
Request Your Free UAE Warehouse 2D/3D Layout & Engineering Estimate
Send our senior engineering team your warehouse architectural floor plan, clear ceiling height, pallet dimensions, and target capacity. Receive a professional 2D CAD layout, 3D structural model, and detailed factory-direct quotation within 24 to 48 hours.
