Heavy-Duty & Stackable Pallet Racks Portfolio
Explore structural steel selective racks, cold room double deep layouts, heavy teardrop modular framing, and high-load longspan platforms engineered in our Guangzhou plant for worldwide export.
Double Deep
Heavy Duty Double Deep Pallet Racking, Universal Steel Storage Shelves
Engineered for high-volume storage in cold stores and dry workshops. Accommodates two-pallet-deep access via pantograph pantograph-reach trucks to double storage capacity without widening footprints.
5000KG Load

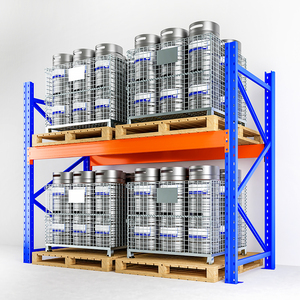

Industrial Steel Pallet Storage Shelves Stacking Units 5000KG Load-Bearing
Certified to CE EN 15512 safety protocols. Incorporates heavy-gauge 12-fold omega profile columns and structural bracing designed to absorb repeated forklift impact and 5-ton tier weights.
Anti-Freeze

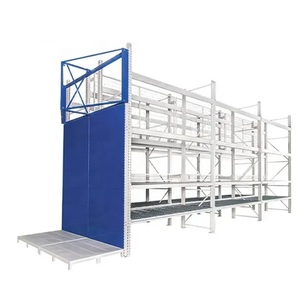

Warehouse Heavy Duty Pallet Storage Shelving Refrigerator Rack
Thermal stress calibrated for blast-freezers, refrigerated food handling, and pharmaceutical deep cold chains. Resists micro-fracturing and structural brittle transition down to sub-zero temperatures.
Multi-Tier

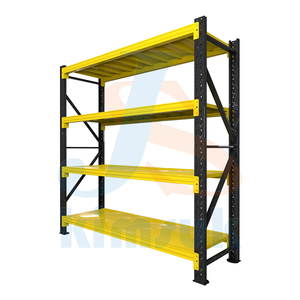

Customized Warehouse Multi-Level Mezzanine Racking System
Transforms underutilized vertical overhead air-space into multi-floor picking modules. Engineered with structural stairwells, safety pallet drop gates, and solid galvanized steel decking.
RMI Standard

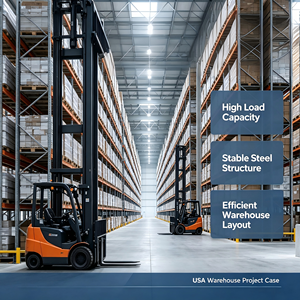

North America Storage Customized Teardrop Pallet Rack Heavy Duty System
Directly compatible with major North American interchange specifications. Precision punched teardrop slots with automatic gravity-lock pins allow fast reconfiguring of beam levels without unbolting.
3000KG Tier
Wholesale Heavy Duty Pallet Rack 3000kg 4 Layer Metal Shelves Longspan
High-tensile steel roll-formed beams support continuous loads up to 3,000 kg per shelf tier. Designed for wholesale distribution hubs handling irregular cartons and palletized raw commodities.
100% Selective

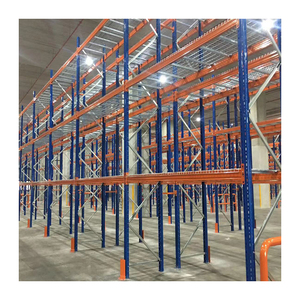

Heavy Duty Industrial Warehouse Selective Pallet Racking Shelves
The foundational standard for high-mix logistics centers. Delivers uncompromised 100% direct access to every SKU, compatible with counterbalanced, reach, and VNA turret trucks across standard aisle layouts.
Duplex Coated

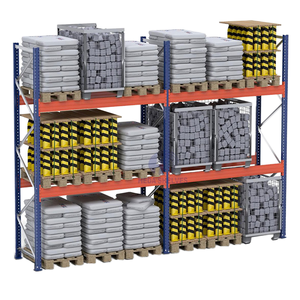

Peterack PT-HD Heavy Duty Corrosion Protected Cold Rolled Steel Rack
Constructed with cold-rolled profiled steel treated with immersion phosphating followed by thermosetting electrostatic powder resin. Engineered for coastal logistics and humid monsoon ports.
Factory-Direct Engineering from Guangzhou Heda Shelves Co., Ltd.
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has established itself as an authoritative benchmark for heavy-duty storage racking, stackable industrial frames, and custom mezzanine structures. Spanning a 30,000 square meter intelligent facility with over 300 structural engineers and fabrication specialists, our engineering operations integrate every phase under one roof: from steel metallurgical verification to automated profile cold bending and non-destructive weld testing.
Unlike regional trading intermediaries, our factory delivers verified calculation reports for local building approvals, seismic safety compliance (RMI/EN standard), and complimentary 2D CAD and 3D architectural renders within 24 to 48 hours of intake.
10-Step Precision Manufacturing & Structural Quality Assurance
Every stackable rack, beam connector, and load-bearing column passes through a standardized, traceable manufacturing pipeline to eliminate structural micro-defects and guarantee weld integrity.
Raw Steel Intake
Spectrometric tensile analysis of certified Q235B and Q355B coils.
Laser CNC Slicing
High-tolerance automated shearing to prevent post-weld warping.
Continuous Punching
Punched pitch indexing (50mm/75mm) with zero drift variance.
Cold Bending
Multi-roller progressive bending for maximum structural moment.
Omega Roll Forming
Reinforced 12-facet column geometry guaranteeing axial strength.
Edge Polishing
Automated deburring to remove micro-stress riser zones.
Robotic Welds
Shielded gas continuous seams on connector claw hooks.
Chemical Wash
Pickling and immersion phosphating for superior resin bonding.
Powder Bake
RoHS electrostatic resin baked at 180°C for corrosion proofing.
Load QA & Pack
Deflection load proof testing and optimized container framing.
Technological Evolution & Future Procurement Trends in Stackable Racking
Modern industrial distribution networks are undergoing a structural transition. Facility operators no longer treat stackable racks as static hardware; racks are now critical, dynamic, and compliant engineering assets.
Finite Element Analysis & Seismic Dynamics
Legacy procurement relied on generic static load charts. Contemporary international building codes (including IBC, Eurocode 3, and AS 4084) require three-dimensional Finite Element Analysis (FEA) under static, live, and seismic acceleration loads.
- Seismic Base Anchoring: Specialized ductility baseplates with high-expansion anchor studs dissipate cyclic earthquake vibrations.
- Second-Order P-Delta Analysis: Dynamic computation prevents cumulative horizontal drift from inducing frame buckling under full loads.
- Cold-Formed Section Optimization: Multi-flanged omega shapes deliver higher section moduli with 12% lower gross steel mass.
Modular Nesting & High-Density Stacking
Industrial space utilization has become the primary metric in enterprise warehouse profitability. Stackable post racks and modular tier cradles must deliver rapid field flexibility without sacrificing vertical stability.
- Nesting Ratio Efficiency: Modern stacking frames achieve up to 4:1 volumetric reduction when disassembled, minimizing return freight costs.
- Interlocking Socket Precision: CNC-formed flared cup feet eliminate stacking alignment errors, mitigating dangerous tilting risks.
- Hybrid Adaptability: Dual-purpose base frames interface directly with wooden Euro/US GMA pallets, metal bins, or cylindrical goods.
Duplex Metallurgical Corrosion Resistance
Cold chain logistics and high-humidity equatorial distribution centers place extreme corrosive stress on steel storage infrastructure. Standard spray painting is obsolete for aggressive operating conditions.
- Duplex Surface Protection: Continuous hot-dip galvanization combined with thermosetting resin prevents micro-underfilm rust spread.
- Sub-Zero Resilience: Cryogenic structural steel grades prevent ductile-to-brittle impact failure in refrigerated rooms down to -30°C.
- Salt Spray Compliance: Multi-stage chemical phosphating ensures coatings withstand over 500 hours of continuous ASTM B117 salt fog testing.
2026–2030 Global Warehouse Sourcing & Procurement Shifts
A strategic comparison detailing how international supply chains are evolving from low-cost regional bidding toward total-cost-of-ownership (TCO) and certified factory partnerships.
| Procurement Factor | Conventional Racking Procurement | Next-Generation Factory Direct Model (HEDA) | Strategic Operational Impact |
|---|---|---|---|
| Engineering Verification | Generic nominal load ratings without certified engineering calculation sheets. | FEA computer simulation, seismic load reports, and free 3D CAD modeling per site. | Guarantees building code approval and prevents hazardous catastrophic warehouse collapse. |
| Steel Sourcing Integrity | Secondary market commercial steel with fluctuating tensile limits. | Direct mill-certified Q235B / Q355B structural coil with batch spectrometer testing. | Maintains yield strength consistency, preventing premature beam sagging and deflection. |
| Logistics & Packing Density | Loose bulk loading resulting in container damage and high freight per position. | Custom nested loading plans developed via CAD container space optimization algorithms. | Lowers ocean freight expenditure per pallet storage position by 28% to 35%. |
| Automation Interface | Manual forklift handling only; high tolerance variance across levels. | Tight structural millimeter tolerances compatible with AGV, AMR, and shuttle racking. | Ensures future-proof compatibility with semi-automated and robotic warehouse workflows. |
| Compliance Documentation | Unverified mill certificates without third-party laboratory oversight. | CE Certification (2435-CPR-8605159), ISO 9001:2015, and full RoHS eco-coating audits. | Protects logistics operators from regulatory penalties and lowers insurance liability premiums. |
Frequently Asked Questions for Industrial Buyers & Contractors
Direct answers from our structural engineers regarding structural safety margins, lead-times, installation tolerances, and custom configurations.
What structural data is required to calculate the correct pallet rack load capacity?
How does Guangzhou Heda Shelves ensure quality across large volume international orders?
Can stackable pallet racks be engineered for seismic zones in Southeast Asia and the Pacific Rim?
What is the standard production lead-time and container shipping arrangement?
What coating finishes are recommended for sub-zero cold rooms versus coastal storage facilities?
Do you supply OEM/ODM manufacturing for regional racking distributors and systems integrators?
Request a Complete Engineering & Layout Proposal
Collaborate directly with our Guangzhou structural engineering office. Send us your building dimensions, pallet specifications, and forklift parameters to receive a complimentary 2D CAD layout, 3D render, and structural feasibility review.
