Featured Industrial Storage Racks & Dynamic Flow Systems
Every heavy-duty storage profile is fabricated in our 30,000 m² facility with certified high-tensile structural steel, multi-bend upright geometry, and automated robotic welding to guarantee structural integrity.
FIFO Order Picking
FIFO Order Picking Warehouse Shelf Gravity Carton Flow Rack
500kg / Layer

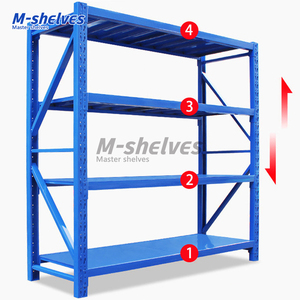

Boltless Adjustable 4-Layer Heavy Duty Steel Storage Racking
Long Goods Storage
Heavy Duty Industrial Steel Cantilever Rack for Bulky Goods
Modular Stacking
Long Span Metal Shelf Stackable Storage Rack for Bulk Cargo
Mobile Gravity Flow

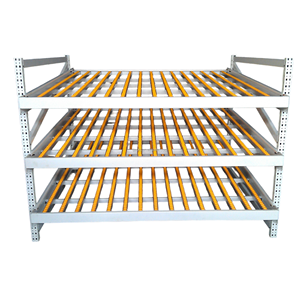

Powder Coated Collapsible Mobile Gravity Pallet Roller Steel Rack
4,000kg Rating

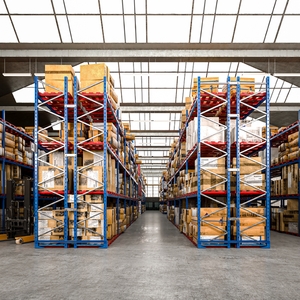

Heavy Duty 5-Tier Adjustable Steel Warehouse Pallet Racking
Selective Master

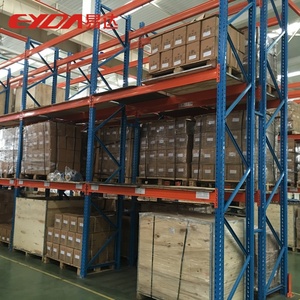

Industrial Pallet Storage Racking for High-Turnover Logistics
VNA High-Density

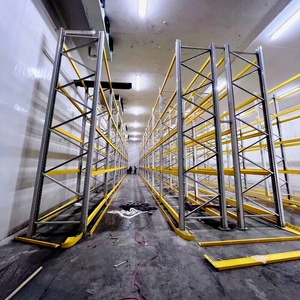

Adjustable Very Narrow Aisle (VNA) Heavy Duty Metal Storage Rack
Guangzhou HEDA Shelves: A Global Manufacturing Engine Since 2001
Headquartered in Guangzhou, China, Guangzhou Heda Shelves Co., Ltd. operates a vertically integrated industrial racking complex exceeding 30,000 square meters. For over a quarter of a century, our engineering teams have designed, manufactured, and exported certified storage racks to more than 120 countries across ASEAN, the Middle East, Europe, and the Americas.
Structural Metallurgy, Cold-Forming Geometry & Yield Strength Engineering
In the domain of heavy-duty industrial storage racks, structural integrity begins at the microscopic metallurgical level. HEDA Shelves utilizes prime cold-rolled and hot-rolled structural steel coils exclusively, specifying Q235B (yield point ≥ 235 MPa) and high-strength Q355B (yield point ≥ 355 MPa / ASTM A572 Grade 50 equivalent). These carbon steel alloys provide the optimal balance between high tensile yield and sufficient elongation ductility, preventing sudden brittle fractures under heavy impact loads or seismic stress vibrations.
Unlike light commercial shelving produced with simple 90-degree fold breaks, our heavy-duty upright frames are engineered with multi-bend cold-formed profiles featuring up to 13 continuous structural bends across an open-omega cross section. These complex return flanges substantially enhance the profile's section modulus (Wx, Wy) and moment of inertia (Ix, Iy), dramatically resisting torsional-flexural buckling under continuous vertical compressive loading. Upright columns undergo precision automated punching with 50mm or 75mm pitch increments, ensuring seamless beam connector claw engagement and uniform shear force distribution across all locking teeth.
Our box-welded and step beams are formed by welding two custom C-channels together through automated dual-torch submerged arc robotic seam welding. Beam end-connectors are laser-cut from high-strength 3.5mm to 4.5mm thick steel plates, stamped with 3 to 5 claw hooks, and secured with spring-loaded carbon-steel safety lock pins. Under full rated design load, our deflection limits strictly observe the international FEM 10.2.02 and EN 15512 standard of L/200, meaning a 2,700mm beam level will not deflect beyond 13.5mm under its maximum 4,000kg rated uniform pallet load.
Vertically Integrated 10-Step In-House Manufacturing Process
From raw coil spectrometer verification to final robotic packaging, every pallet rack component is manufactured and checked under one roof.
Raw Materials
Spectrometric & tensile verification of certified steel.
Precision Cutting
CNC slitting lines cut coils to precise cross widths.
Column Punching
High-speed automated dies punch 50/75mm drop pitch.
Cold Bending
Progressive roll forming mills create multi-flange bends.
Profile Forming
Precision sizing rolls calibrate tolerances within ±0.3mm.
Deburr & Polish
Automatic chamfering removes sharp edges and scale.
Robotic Welding
Dual-torch OTC robots produce deep-penetration weld seams.
Phosphatization
Chemical pickling removes oil/rust for maximum adhesion.
Powder Coating
Automated Swiss Gema guns bake 70-90µm polyester resin.
QC & Bundling
Load tests, thickness meters, and maritime steel strapping.
Future Procurement Trends in Industrial Storage Racks (2025–2030)
Warehouse real estate inflation, labor shortages, and climate disruptions are transforming how global logistics operators source industrial racking. Our engineering directorate analyzes the four structural procurement shifts dominating modern warehouse RFP criteria.
1. Transition from Static to Semi-Automated Shuttle Systems
With warehouse space costs up 35% in key logistics hubs like Singapore, Dubai, and Rotterdam, operations are replacing standard wide-aisle selective racking with Radio Shuttle and 4D pallet runner systems. By eliminating access aisles, shuttle systems increase floor cubic space utilization from 40% to over 85%, cutting forklift travel distance while keeping SKU selectivity intact.
2. Rigorous Seismic-Resistant Engineering Criteria
Building authorities in the Pacific Ring of Fire (Indonesia, Philippines, Japan, West Coast Americas) now reject generic rack designs. Modern tenders mandate project-specific non-linear structural calculations (FEM 10.2.08 / RMI MH16.1), heavy-duty seismic base plates, oversized chemical anchors, and diagonal cross-aisle bracing capable of absorbing high ground acceleration (PGA > 0.4g).
3. Hybrid Micro-Fulfillment & Multi-Tier Mezzanine Platforms
Rapid urban e-commerce growth demands high SKU density near city cores. Instead of moving to outer rings, retailers are procuring multi-tier rack-supported mezzanines (2 to 4 levels) integrating carton flow tracks, spiral gravity chutes, and automated conveyor loops. This architecture quadruples picking facings per square meter without incurring new land acquisition costs.
4. TCO Analysis vs. Cheap Initial Procurement Pitfalls
Procurement directors are calculating Total Cost of Ownership over 15-year cycles rather than evaluating initial purchase price alone. Low-cost uncertified racks produced from re-rolled scrap steel suffer from high failure rates, micro-cracking at beam welds, and poor powder coating adhesion that flakes under forklift scraping. Investing in certified Q235B/Q355B steel reduces maintenance downtime by up to 80%.
Engineering Matrix: Selecting the Optimum Industrial Storage Rack Architecture
Match your inventory SKU dynamics, throughput velocity, and floor slab load capacity with the ideal structural racking topology.
| Racking Topology | Pallet Density | SKU Selectivity | Inventory Flow | Forklift Requirement | Best Suited Application |
|---|---|---|---|---|---|
| Selective Pallet Racking | Standard (40-50%) | 100% Direct Access | FIFO / LIFO | Standard Counterbalance / Reach | General logistics, 3PLs, multi-SKU distribution |
| Drive-In / Drive-Thru | Very High (75-85%) | Low (Lane-dependent) | LIFO (Drive-In) / FIFO | Narrow Counterbalance / Reach | Cold storage, beverage bottling, bulk single SKUs |
| Radio Shuttle System | Maximum (85-90%) | Medium-High (By Lane) | FIFO & LIFO Automated | Standard Reach / Counterbalance | High-throughput cold chain, FMCG fulfillment |
| Heavy Duty Cantilever | Optimized for Length | 100% Clear Access | Flexible | Side Loader / Multi-directional | Steel pipes, timber, PVC conduit, sheet metal |
| Gravity Carton / Pallet Flow | High (70-80%) | Strict FIFO Enforced | Automated FIFO Roll | Separated Loading & Picking Trucks | Food expiry control, pharmaceutical distribution |
| Very Narrow Aisle (VNA) | High (65-75%) | 100% Direct Access | FIFO / LIFO | Articulated / VNA Man-Up Turret | High-bay warehouses with ceiling heights > 12m |
Built to Withstand Severe Climate Extremes & Tectonic Stress
From tropical monsoon humidity across Southeast Asia to sub-zero blast freezers in modern pharmaceutical distribution centers, HEDA Shelves engineers surface metallurgy and structural bracing to prevent degradation.
Monsoon & Salt Spray Resistance
For coastal warehouses in Vietnam, Malaysia, Indonesia, and the Caribbean, standard steel coatings succumb to rust within 24 months. We apply multi-stage degreasing, acid pickling, nano-ceramic conversion, and 80µm electro-statically applied pure polyester outdoor-grade powder coat with 500-hour ASTM B117 salt spray endurance.
Cold Storage (-30°C) Metallurgy
At ultra-low freezing temperatures, conventional mild steel undergoes ductile-to-brittle transition, causing uprights to crack upon minor pallet impact. We formulate cold-chain steel with controlled carbon equivalents and Charpy V-notch impact toughness certified down to -30°C, supplemented by hot-dip galvanized finishes.
Seismic Bracing & Base Anchoring
In high-risk earthquake regions such as Japan, Taiwan, Chile, and the Philippines, standard base plates can sheer off slabs. We calculate structural ductility reduction factors (R-values), install oversized 12mm-16mm base plates with dual Hilti chemical resin anchors, and incorporate portal cross-ties that absorb lateral kinetic shock.
Maritime Export Protection
Long ocean voyages through high-humidity equatorial trade routes expose steel bundles to white oxidation rust. We bundle racking using non-hygroscopic plastic edge corner protectors, corrugated buffer wraps, vapor corrosion inhibitor (VCI) films, and heavy-gauge high-tensile steel banding configured for 40ft High Cube container de-stuffing.
Frequently Asked Technical Questions by Global Buyers
Detailed engineering clarity directly from our design office to address common structural, logistics, and compliance questions prior to tender submissions.
Request Your Free Warehouse 3D Layout & Factory-Direct Quotation
Collaborate directly with our senior intralogistics structural engineers. Share your warehouse floor dimensions, pallet load parameters, and throughput targets to receive an optimized layout design, structural load calculation report, and container shipping budget.
