Direct Access 100%
Precision Structural Portfolio
Industrial Warehouse Storage Systems
Explore our core engineering-grade pallet racking configurations and structural accessories. Fabricated from certified high-tensile Q235B/Q355B cold-rolled steel coils, custom-engineered for distribution centers, manufacturing plants, and high-density intralogistics hubs.

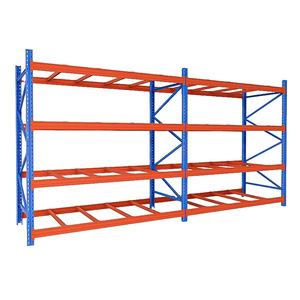

Direct Access 100%
Semi-Automated ASRS
Max Volume Utilization
High-Bay Heavy Duty
Structural Accessory
Manual Picking & Pallet
Certified Industrial Standard
Long Load Specialists
25 Years of Heavy-Industry Manufacturing Excellence
Guangzhou HEDA Shelves: Enterprise Authority & Capacity
Established in 2001, Guangzhou Heda Shelves Co., Ltd. has developed into a premier industrial manufacturing powerhouse. Operating from our dedicated 30,000 square meter plant, we provide engineering-led intralogistics supply, OEM/ODM private labeling, and structural steel storage solutions delivered directly to logistics hubs across 120+ countries.
2001
Founding Year
30,000m²
Modern Production Base
30,000t
Monthly Steel Output
10,000+
Global Turnkey Projects
Rigorous Structural Certifications
Our engineering and production workflows are governed by internationally acknowledged certifications, including CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management System (No. 18624Q00169R0M), and certified RoHS-compliant powder coatings. Complete mill test reports (MTR) and structural calculation packages accompany every export shipment.
In-House Closed-Loop Fabrication
Unlike assemblers or traders, HEDA executes 100% of the manufacturing life cycle under a single roof. From high-speed automated progressive cold-rolling mills and CNC multi-punch lines to robotic carbon-dioxide shielded beam welding, each upright frame and load beam conforms strictly to 0.1mm dimensional tolerances.
Free Turnkey 2D/3D CAD Engineering
Our staff of 30+ licensed intralogistics structural engineers reviews your specific building columns, slab capacity, clear heights, and forklift turn radii to produce parametric 2D floor plans, 3D realistic renderings, and load tables within 24 to 48 hours without engineering fees.
Engineering Whitepaper & Metallurgy
Structural Integrity, Metallurgy & Safety Factors
Modern warehouse racking is not generic shelving; it is a critical, heavy load-bearing structural steel framework subject to static loads, dynamic impact forces, and seismic accelerations. Understanding the engineering parameters ensures structural resilience and long-term asset security.
| Racking Architecture | Typical Beam Load (UDL) | Floor Space Utilization | SKU Selectivity Ratio | Standard Compliance | Primary Industrial Application |
|---|---|---|---|---|---|

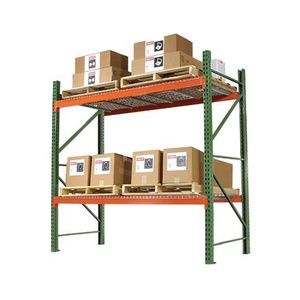

| Selective Pallet Racking | 1,000 – 4,500 kg / level | 40% – 50% | 100% (Direct Access) | FEM 10.2.02 / RMI MH16.1 | Fast-moving retail, 3PL logistics, multi-SKU hubs |
| Drive-In / Drive-Through | 1,000 – 2,000 kg / pallet | 70% – 85% | 20% – 30% (Batched LIFO) | EN 15512 / AS 4084 | Cold storage, beverage bottling, bulk raw materials |
| 4-Way Radio Shuttle (ASRS) | 500 – 1,800 kg / pallet | 85% – 92% | High (Automated LIFO/FIFO) | ISO 9001 / CE Machine Dir. | High-throughput FMCG, pharmaceutical buffers |
| Heavy Duty Cantilever | 500 – 3,500 kg / arm | 55% – 65% | 100% for long goods | AISC 360 / Eurocode 3 | Steel pipes, extrusions, timber packs, sheet stock |
| Structural Steel Mezzanine | 300 – 1,200 kg / m² | 180% – 300% (Multi-Tier) | Custom Layout Dependent | IBC 2024 / OSHA 1910 | E-commerce sortation, pick modules, assembly platforms |
High-Yield Cold-Formed Steel Coils
HEDA utilizes primary modified Q235B (yield strength $f_y \ge 235\text{ MPa}$, tensile strength $R_m$ up to $470\text{ MPa}$) and high-strength Q355B low-alloy steel. Structural cold-rolling produces multi-ribbed omega-profile upright sections ($\Omega$-column) that provide exceptional torsional rigidity and mitigate localized buckling under ultimate compressive limit states.
Deflection Limits & Safety Multipliers
Every load beam is engineered to respect strict vertical deflection limits, strictly maintaining maximum deflection $\delta \le L/200$ (where $L$ is the clear beam span) under full nominal Uniformly Distributed Load (UDL). Beam-end connectors feature 3-claw or 4-claw cold-stamped interlocking lugs with safety pins that prevent accidental upward dislodgement during forklift extraction operations.
Seismic Dissipation & Baseplates
For warehouses located in earthquake-prone belts (including Southeast Asia, the Pacific Rim, and the Middle East), our civil design team conducts Finite Element Analysis (FEA) to determine baseplate surface distribution, anchor bolt embedment depths ($h_{ef} \ge 100\text{–}150\text{mm}$), and horizontal cross-bracing configurations that dissipate lateral ground shear forces.
Precision Process Engineering
10-Stage Industrial Production & Surface Passivation
Durability in industrial environments demands thorough metallurgy and chemical surface passivation. Explore HEDA's standardized 10-step fabrication and corrosion mitigation workflow.
STEP 01
Raw Material Inspection
Spectrometric steel verification, coil thickness gauging, and tensile coupon testing.
STEP 02
Laser & Rotary Slitting
High-precision longitudinal shearing of master coils into structural strip widths.
STEP 03
Automated CNC Punching
Continuous automated multi-die punching for pitch-accurate 50mm/75mm upright slot patterns.
STEP 04
Cold Roll-Forming
Multi-station continuous roll-forming creating rigid multi-bend closed-beam profiles.
STEP 05
Precision Sizing & Cut
Flying hydraulic cutoff systems maintaining strict length tolerances within $\pm 0.5\text{mm}$.
STEP 06
Surface Deburring & Polish
Mechanical edge rounding and deburring to eliminate micro-cracking and operator injury points.
STEP 07
Robotic Beam Welding
CO₂/Argon gas-shielded automated robotic arm welding for consistent connector-to-beam joints.
STEP 08
Acid Pickling & Phosphating
Full 8-tank chemical wash, degreasing, rust stripping, and zinc phosphate conversion bath.
STEP 09
Electrostatic Powder Coating
Automated reciprocating powder guns apply thermosetting TGIC-free polyester powder, cured at 180°C–200°C for superior adhesion, impact resistance, and scratch protection.
STEP 10
Quality Inspection & Palletized Packaging
Dry-film thickness (DFT) verification ($\ge 60\text{–}80\mu\text{m}$), cross-hatch cross-cut adhesion tests, load deflection benchmarking, and seaworthy bundled steel pallet packing.
Procurement Intelligence 2025–2030
Global Procurement Trends & Intralogistics Transformation
Modern enterprise procurement teams evaluate warehouse infrastructure beyond initial capital expenditure (CapEx). Discover the strategic variables shaping warehouse equipment buying decisions across the globe.
1. Shift from Static to Semi-Automated High Density
Skyrocketing industrial real estate land costs in regional distribution centers (Singapore, Dubai, Riyadh, Bangkok) make wide-aisle static selective racking cost-inefficient. Procurement leaders increasingly transition toward Radio Shuttle Racking and ASRS 4-Way Shuttle Systems, quadrupling cubic space utilization while reducing forklift travel distances by up to 60%.
2. AMR & AGV-Interfacing Tolerances
The adoption of Autonomous Mobile Robots (AMRs) and Automated Guided Vehicles (AGVs) requires tighter structural tolerances. Modern rack purchases require sub-millimeter precision in baseplate alignment, guide rail flatness, and beam deflection control to ensure robotic optical and laser guidance systems experience zero collision risks.
3. Total Cost of Ownership (TCO) & Lifecycle Analysis
Savvy supply chain directors analyze TCO rather than raw steel weight quotes. Superior TGIC-free electrostatic coatings and hot-dip galvanized (HDG) treatments mitigate corrosion-induced structural failure in high-humidity tropical monsoons and deep-freeze cold storage facilities (-30°C), significantly reducing lifetime maintenance costs.
4. Clad-Rack & Rack-Supported Buildings
In mega-distribution logistics, rack-supported buildings (where the racking framework acts as the primary structural skeleton supporting the building's roof and external walls) reduce civil construction timelines by 30% to 45%. This architectural trend reduces dual structural expenditure and optimizes vertical clear heights over 24 meters.
5. Decarbonization & Circular Steel Sourcing
Corporate ESG frameworks mandate verified sustainability metrics from global supply chain partners. HEDA supports net-zero initiatives by utilizing low-carbon scrap-electric arc furnace (EAF) steel coils, zero-VOC powder coating chemistries, and optimized nested container packing designs that cut ocean shipping fuel emissions.
6. Modular Reconfigurability for Rapid Scalability
Omni-channel fulfillment centers demand quick reconfiguration when SKU dimensions evolve. Boltless teardrop or diamond slot upright patterns, combined with boltless clip-in row spacers and adjustable pallet backstops, provide the operational agility needed to pivot between manual box picking and bulk pallet logistics.
Technical Procurement Due Diligence
Frequently Asked Technical & Purchasing Questions
Clear, direct engineering answers addressing structural integrity, civil permitting, material compliance, and overseas shipping logistics.
What technical data is required to generate a preliminary CAD layout and structural quotation?
To provide an accurate structural configuration and competitive estimate, our engineers require: (1) Warehouse architectural drawings (CAD or dimensioned PDF) displaying column grids, fire exit doors, docks, and overhead obstructions; (2) Clear ceiling height to the lowest obstacle (sprinkler heads or lighting trusses); (3) Pallet footprint dimensions (Width × Depth × Total Height including goods) and maximum unit load weight; (4) Forklift specifications, including mast type, maximum lift height, and minimum right-angle aisle stacking width ($A_{st}$); (5) Environmental operating conditions (ambient temperature, humidity, cold storage, or seismic requirements).
How does HEDA guarantee racking safety under seismic loading conditions?
For projects in seismic zones (e.g., Japan, Philippines, Indonesia, New Zealand, Turkey, Central Asia), our structural calculations follow AS 4084, EN 15512, and RMI standards. We perform modal analysis and response-spectrum evaluations to verify the frame's dynamic behavior. Upright steel gauges are upsized, footplates are widened with dual high-shear anchor bolts, and dedicated vertical and horizontal K-bracing or X-bracing panels are engineered into spine corridors to control inter-story drift and prevent structural collapse.
What are the differences between electrostatic powder coating and hot-dip galvanizing?
Thermosetting electrostatic powder coating (standard 60–80 microns) offers an attractive, abrasion-resistant, and cost-effective finish ideal for indoor temperature-controlled commercial warehouses, retail backrooms, and automotive distribution centers. Conversely, Hot-Dip Galvanizing (HDG according to ISO 1461) immerses the steel components in molten zinc at 450°C, forming an iron-zinc alloy layer over 85 microns thick. HDG is specifically specified for harsh outdoor environments, dock facilities, coastal distribution hubs with high salinity, and sub-zero blast freezers where condensation causes accelerated oxidation.
How do row spacers and flue space configurations impact warehouse fire protection compliance?
NFPA 13 and related regional fire protection codes mandate clear longitudinal and transverse flue spaces (typically 150mm to 300mm / 6 to 12 inches) between back-to-back racking runs. This allows vertical heat detection to trigger ceiling sprinklers rapidly and enables unhindered water penetration down to bottom pallet tiers. HEDA's structural steel row spacers physically bolt back-to-back upright frames at uniform centers, maintaining certified flue spaces and improving the overall stability of parallel rack rows.
Can our local contractors install HEDA racking systems, and what documentation is provided?
Yes. Every export shipment includes a detailed installation package comprising: (1) 2D structural assembly blueprints with piece-marked callouts; (2) Detailed connection schematics for baseplates, splices, bracing, and beam clips; (3) Anchor torque tables and shimming guidelines for slab irregularities; (4) Step-by-step assembly guides and 3D exploded view diagrams. We can also dispatch project managers or arrange live remote video support for complex multi-tier mezzanine and automated shuttle projects.
How are shipping volumes optimized to minimize international container freight costs?
Industrial steel racking is dense and can cube-out or weigh-out shipping containers prematurely if packed inefficiently. HEDA uses 3D container loading software to plan each 20GP, 40GP, or 40HQ container. Upright frames are shipped knocked-down (KD) for field bolting, nested beams are bundled with steel strapping and corner protectors, and small hardware components are crated. This approach maximizes both cubic volume and metric tonnage, reducing maritime freight costs per pallet location.
