Navigating the Modern China Storage Racking Manufacturing Landscape
Over 70% of structural pallet racking, heavy-duty shelving, and automated warehouse steel substrates utilized across global supply hubs originate in China. For international procurement managers, system integrators, and third-party logistics (3PL) operators, distinguishing a direct tier-one original equipment manufacturer (OEM) from intermediate trading brokers is essential. Direct factory engagement guarantees structural yield strength integrity (Q235B vs. Q355B steel), mill test certified materials, precise European FEM 10.2.02 and American RMI MH16.1 compliance, anti-corrosive multi-stage pre-treatments, and lower total landed equipment cost.
Featured Industrial Warehouse Racking & Shelving Portfolio
Explore our top 8 engineered storage and material handling systems, fabricated under strict CE (No. 2435-CPR-8605159) and ISO 9001:2015 quality standards with custom load calculations and layout engineering.
Heavy-Duty

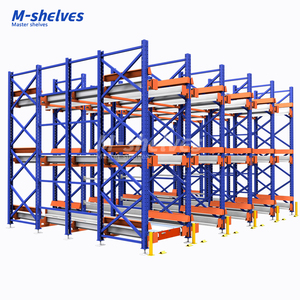

Semi-Automated
Dynamic Gravity
Smart Logistics
Long Goods
Boltless Medium
Zero-Aisle Motor
ASRS / High-Bay
Structural Standards & Load Parameters Comparison
Understanding the mechanical differentiation between racking architectures allows plant managers to optimize storage density against equipment and crane operational costs.
| Storage System Type | Typical Beam Span | Unit Pallet Capacity | Floor Space Utilization | Forklift / MHE Access | Primary Industrial Use-Case |
|---|---|---|---|---|---|
| Selective Pallet Racking | 2300 – 3900 mm | 1000 – 4000 kg / level | 40% – 45% (Aisle-Heavy) | 100% Direct Accessibility | FMCG, 3PL Distribution, General Retail Hubs |
| Automated Radio Shuttle | Up to 40m Deep Lanes | 500 – 2000 kg / pallet | 75% – 85% (High Density) | Semi-automated Carrier | Cold Storage (-25°C), Beverage Bottlers, Seasonal Goods |
| Cantilever Racking System | 1000 – 2000 mm Arms | 300 – 3000 kg / arm | 50% – 60% Linear Footprint | Side-loader or Counterbalance | Extruded Aluminum, PVC/Steel Pipes, Timber Packs |
| Drive-In / Drive-Through | Variable Lane Depths | 1000 – 1500 kg / pallet | 65% – 75% Floor Occupancy | Forklift Enters Rack Channel | Uniform SKU Warehousing, Bulk Non-Perishable Goods |
| ASRS High-Bay Racking | High-Tolerance Uprights | Up to 1500 kg / station | 85% – 92% Cube Optimization | Automated Stacker Crane / Shuttle | Pharma Logistics, Automated E-Commerce Micro-Hubs |
| Heavy Duty Mezzanines | Custom Beam Grids | 300 – 1000 kg / m² | +100% (Vertical Doubling) | Pallet Gates, Lifts, Pick Carts | Automotive Parts Picking, Modular Offices, Kitting |
Why Guangzhou HEDA Shelves Sets the Benchmark for Asian & Global Exports
Founded in 2001 in Guangzhou, HEDA Shelves integrates architectural structural engineering with state-of-the-art cold-roll forming, robotic continuous welding, and eco-friendly electrostatic powder surface treatments.
Direct Mill Steel Sourcing
We source cold-rolled certified Q235B and Q355B coils directly from Baosteel and Shougang. Every production lot is delivered with 3.1 Mill Test Certificates verifying tensile strength, elongation, and yield stress parameters.
24-48h Custom CAD/3D Layouts
Our dedicated team of structural civil and mechanical engineers transforms raw architectural blueprints into detailed 2D CAD floorings, 3D BIM models, aisle turnover simulations, and load stress calculation sheets at zero cost.
Automated Precision Forming
16-pass CNC continuous cold-roll forming lines deliver upright column hole pitch accuracy down to ±0.1mm. High punch precision eliminates mechanical binding during beam installation and ensures tight connector wedging.
Tropical C3–C5 Anti-Corrosion
Featuring a full 6-stage surface immersion pre-treatment (degreasing, acid pickling, zinc phosphating, deionized rinsing) followed by electrostatic polyester powder baking at 200°C for superior adhesion in high humidity.
The HEDA Rigorous Quality Assurance Workflow
Future Procurement Trends in Warehouse Storage Systems (2026–2035)
Global supply chain disruptions, soaring logistics real estate rents, and environmental compliance are driving profound paradigm shifts in material handling procurement.
Migration from Static Pallet Racks to AMR/ASRS Hybrid Structures
Pure static selective racking is losing ground to hybrid configurations. Buyers now specify structural channels capable of handling high-speed Autonomous Mobile Robots (AMRs) and automated four-way shuttles. Racking factories must satisfy microscopic upright deflection limits (<1/500) and strict floor anchor shear criteria to prevent vibration propagation throughout high-density automated grids.
Hyper-Resilient Anti-Corrosion for Southeast Asian Monsoon & Cold Chains
As cold chain infrastructure accelerates across Southeast Asia and the Middle East, standard powder coats fail due to rapid temperature cycling and condensing humidity. Sourcing trends prioritize pre-galvanized sheet stamping, hot-dip zinc galvanization conforming to ISO 1461 (65–85µm), and anti-microbial epoxy coatings designed specifically to inhibit microbial biofilm growth in cold food logistics.
Scope 3 Carbon Tracking & Modular Demountable Systems
Multinational enterprise buyers mandate verified Environmental Product Declarations (EPDs). Sourcing departments now demand modular boltless designs and structural beam clips that withstand multiple cycles of warehouse re-profiling and relocation without material fatigue, minimizing capital depreciation and lowering embedded manufacturing carbon footprints.
Technological Innovations in High-Yield Racking Manufacturing
The gap between leading Chinese storage manufacturers and historical Western tier-one brands has closed through extensive metallurgy and structural dynamic engineering.
Advanced High-Strength Cold-Formed Steels
Traditional racking relied heavily on heavy hot-rolled sections. Modern manufacturing employs thin-gauge, high-yield cold-formed profiles (yielding up to 355–420 MPa). Through finite element analysis (FEA) and optimized profile folding (up to 12 distinct bending corners on a single upright column), manufacturers maximize radius of gyration, dramatically cutting raw steel tonnage while increasing buckling load limits.
Seismic Dynamic Testing
Nonlinear Dynamic Earthquake Simulations
Warehouses operating along the Pacific Ring of Fire (Philippines, Indonesia, Japan, New Zealand) require specialized seismic engineering. Modern Chinese factories provide complete nonlinear seismic modeling, supplying enlarged footplates, high-ductility anchor bolts, and specialized top horizontal X-bracing networks capable of dissipating lateral seismic acceleration without catastrophic collapse.
Surface Science
Solvent-Free Triboelectric Powder Application
Moving beyond basic spray painting, top tier manufacturing plants utilize computerized reciprocator powder booths equipped with 24-gun automated arrays. Triboelectric charging ensures total powder envelopment around intricate laser-cut connector hooks and inside column channels, providing 500+ hours of ASTM B117 salt spray resistance.
How to Vet a Chinese Racking Manufacturer: Factory Audit Protocol
Avoid common international procurement pitfalls such as steel gauge substitution, undersized beam connectors, or uninspected subcontracting by applying this five-point factory audit checklist.
1. Raw Coil Thickness Tolerances
Unscrupulous intermediaries may quote based on nominal steel thickness (e.g., 2.0mm) but deliver commercial negative tolerance coil (1.75mm), drastically decreasing beam safety margins. Always require factory digital micrometer verification on stripped raw steel before forming.
2. Robotic Beam Connector Welds
The connector-to-beam weld joint is the single highest shear point in a pallet racking network. Ensure your vendor utilizes automated continuous robotic seam welders rather than spot manual welding to eliminate slag inclusions and weld porosity.
3. Immersion Pre-Treatment Tanks
True structural longevity requires steel degreasing and zinc phosphating prior to coating. Many small workshops skip phosphating, spraying directly over oily steel, which leads to blistered paint and deep rust within 18 months of commissioning.
4. Container Stacking & Sea Packing
Uprights and beams must be packed with timber dunnage separators, corrugated cardboard layers, and high-tensile steel banding. Unprotected loose shipping results in deformed upright hooks and scratched paint during transoceanic transit.
Frequently Asked Questions by Industrial Sourcing Teams
Engineering clarity regarding certifications, international logistics, load testing, and layout customization.
Accelerate Your Warehouse Capacity with Direct Factory Engineering
Collaborate with Guangzhou HEDA Shelves Co., Ltd. for turnkey project solutions. Receive a complete 2D CAD layout, 3D rendering, seismic evaluation, and detailed bill of materials (BOM) within 24 to 48 hours.
