Stacking pallet racks (modular steel post stillages and demountable pallet nests) bridge the operational divide between fixed structural racking and bulk floor stacking. Sourcing from certified Chinese manufacturers requires evaluating steel yield strengths, dynamic seismic calculations, robotic seam weld integrity, and automated cold-formed tolerances.
In modern multi-tiered logistics facilities, stacking pallet racks must bear extreme static stresses while maintaining dynamic stability under high-frequency forklift engagement. Unlike fixed selective racking systems that anchor permanently to the reinforced concrete slab via expansion or chemical wedge anchors, stacking racks rely strictly on their interlocking post cups, conical base guides, and welded tubular frame columns.
Structural integrity is dictated by steel metallurgy. Guangzhou Heda Shelves utilizes certified Q235B and Q355B low-carbon high-strength structural steel coils (tensile strength: 375–500 MPa and yield point: ≥235 to ≥355 MPa). Under finite element analysis (FEA) modeling, structural cold-formed circular or square hollow sections (SHS: 50×50 mm to 90×90 mm with wall thicknesses spanning 2.0 mm to 3.5 mm) withstand vertical stacking compressive loads reaching up to 4,000 kg per tier across configurations stacked 4 to 6 units high.
| System Classification | Standard Load (kg/unit) | Stacking Tier Safety | Steel Specification | Surface Treatment Standard | Primary Use Environment |
|---|---|---|---|---|---|
| Galvanized Post Pallet Stillage | 1,000 – 2,500 kg | 1 + 3 to 1 + 5 Tiers | Q235B / Q355B Welded SHS | Hot-Dip Galvanized (ISO 1461, ≥65μm) | Cold rooms (-30°C), maritime docks, yards |
| Heavy-Duty Selective Pallet Rack | 1,000 – 4,500 kg/beam | Multi-level up to 12m | Cold-formed 50Mn / Q235B Omega Upright | Thermoset Polyester Powder (60-90μm) | High-throughput 3PL, FMCG & e-commerce DCs |
| Electric Mobile Pallet Racking | 1,500 – 3,000 kg/pos | Floor-guided motor rails | High-torque structural I-beam & upright | Anti-corrosive multi-stage epoxy finish | Cold chain & ultra-dense pharmaceutical vaults |
| Radio Shuttle Stacking Array | 1,000 – 2,000 kg | Deep-lane up to 40m | Q355B Cold-bent Galv Guiding Rails | Pre-galvanized + electrostatic polyester | Seasonal food batch, buffer warehousing |
| Portable Mesh Stacking Pallet | 800 – 1,500 kg | 1 + 3 Foldable | Steel wire mesh 50×50 + tube frame | Acid-pickled & baked hybrid coating | Automotive stamping, sub-assembly picking |
When evaluating dynamic deflection tolerances under EN 15512:2020 and RMI MH16.1 specifications, permissible horizontal beam deflection must not exceed 1/200th of the clear entry span (L/200) under full design working load. For self-stacking stillages, vertical plumbness deviation between stacked corner stanchions must remain below 0.5% (1:200) under combined deadweight and working live loads, ensuring catastrophic progressive collapse scenarios are systematically prevented.
Review Guangzhou Heda Shelves' precision-manufactured storage equipment. Sized, cold-rolled, and finished to client structural footprints without intermediate supplier markups.
Custom-engineered industrial stacking frames featuring reinforced corner nesting sockets, dual-seam robotic post welding, and modular 3 to 4-tier vertical stacking efficiency.
High-density motorized mobile bases eliminating fixed operating aisles. Slashes refrigeration volume by up to 45% in sub-zero food and pharmaceutical cold chain vaults.
Anti-corrosive demountable stillages featuring removable vertical posts for long materials, extruded pipes, and outdoor raw material marshalling yards.

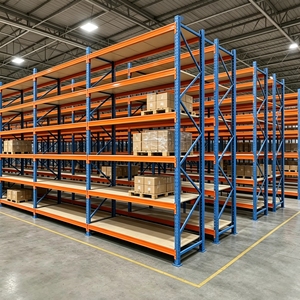

Industrial selective shelving with boltless beam connectors, integrated load lock pins, and multi-tier picking deck extensions for fast-moving distribution centers.
Versatile collapsible steel stillage with reinforced wire mesh decking. Folds flat when empty, saving 75% returned freight volume in reverse logistics loops.
The foundational warehouse standard for multi-SKU storage. Fully customizable upright columns with interlocking twin-claw connector brackets engineered to absorb side impacts.
Heavy gauge tube stacking cradles tailored for chemical drums, agricultural bulk bags, and industrial cast components. Precision guide cups ensure stable crane/fork positioning.
High-density semi-automated lane system with independent pallet runner shuttles. Eliminates forklift rack collision risks while maximizing lane depth up to 40 pallets.
Founded in 2001 in Guangzhou, China, HEDA Shelves operates a vertically integrated 30,000 square meter manufacturing base delivering precision roll-forming, continuous punching, robotic welding, and powder coating lines under one roof.
Fully certified under European CE (No. 2435-CPR-8605159) and ISO 9001:2015 Quality Management Systems (No. 18624Q00169R0M). Every project includes structural calculation reports conforming to EN 15512 and FEM 10.2.02.
Our dedicated in-house logistics engineering department prepares custom AutoCAD drawings, load distribution simulations, and detailed 3D warehouse renderings within 24 to 48 hours based on your site architectural blueprints.
Components undergo an 8-stage surface treatment including hot alkaline degreasing, ultrasonic acid pickling, zinc phosphating, and automated electrostatic polyester powder baking (60–90 μm) compliant with RoHS non-toxicity standards.
Direct container staging and transport out of Guangzhou (Nansha/Huangpu) and Shenzhen ports ensures competitive freight economics, optimal container packing cubes, and minimized ocean transit lead times to ASEAN, GCC, EU, and the Americas.
Spectrographic steel coil verification (Q235B/Q355B), CNC roll-slit edge truing, and automated multi-stage column hole punching.
18-pass progressive cold roll-forming lines producing torsion-resistant upright profiles, followed by multi-axis robotic seam welding.
Immersion degreasing, phosphoric passivation, and automated electrostatic powder spray curing at 200°C for optimum adhesion.
Full destructive deflection testing, cross-cut coating adhesion checks, protective film bundle wrapping, and container load sequencing.
The industrial storage manufacturing sector is pivoting away from static steel structures toward dynamic, digitized, and low-carbon modular warehousing assets. Enterprise buyers must anticipate four macro shifts:
Autonomous mobile robots (AMRs) require millimeter-exact rack base tolerances. Modern post pallets are now designed with conical chamfered feet and optical laser-reflective alignment plates that allow robot underrun and pin-lifting operations without manual intervention.
International supply chain compliance mandates verified carbon accounting. Chinese manufacturers are rapidly shifting to Electric Arc Furnace (EAF) recycled scrap steel coils, accompanied by third-party Environmental Product Declarations (EPDs) to satisfy European CBAM tariffs.
Facilities located along the Pacific Rim (Indonesia, Philippines, Japan, West Coast Americas) increasingly specify seismic-damping base attachments. Racking columns utilize thickened baseplates (12–20 mm) with high-ductility anchor studs calculated to resist high lateral G-forces.
Industrial stillages deployed in closed-loop retail or automotive supply chains now incorporate integrated recesses for long-range Bluetooth Low Energy (BLE) and passive UHF RFID transponders, enabling real-time yard inventory visibility and predictive maintenance alerts.
Actionable engineering and logistics answers to common technical, commercial, and operational questions asked by warehouse operators and EPC contractors.
Connect directly with Guangzhou Heda Shelves Co., Ltd.'s engineering division. Obtain factory-direct FOB/CIF pricing, full product technical sheets, and a complimentary 2D AutoCAD and 3D layout simulation tailored to your pallet load specs.
