Engineered Warehouse Shelving & Pallet Racking Systems
Precision-manufactured from Q235B and Q355B structural steel, our storage configurations undergo automated continuous cold roll-forming, laser multi-hole punching, and electrostatic powder coating to ensure certified load capacity compliance.

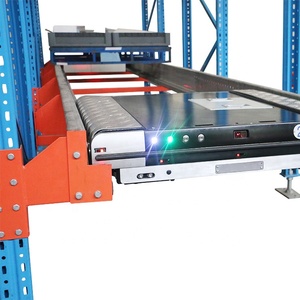

Automated Warehouse Pallet Radio Shuttle Racking System
- Capacity: 500 – 1,500 kg / pallet
- Shuttle Speed: 0.8 - 1.1 m/s (Loaded)
- Control: WMS Integrated / RF Remote

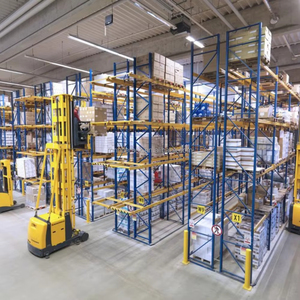

Custom Euro Very Narrow Aisle (VNA) Galvanized Racking
- Aisle Clearance: 1,600 – 1,850 mm
- Vertical Lift Limit: Up to 15,000 mm
- Finish: Hot-Dip Galvanized / Epoxidized
Display Racks & Modular Stacking Storage Shelves
- Load Rating: 80 – 250 kg / Tier
- Assembly: Boltless Interlocking Pitch
- Aesthetics: Matte Powder / Custom RAL
Prefab Steel Structure Warehouse Workshop with Racking
- Structural Framing: H-Section Welded Steel
- Clear Span: 12 – 48 meters barrier-free
- Seismic Rating: Zone 8+ Seismic Dampening
Industrial Steel Cantilever Racking (Pipe & Lumber)
- Arm Rating: 500 – 1,800 kg / cantilever arm
- Orientation: Single / Double Sided Columns
- Upright Profile: C305 to C450 Heavy Section
Intensive Gravity Flow Roller Pallet Racking System
- Lane Gradient: 3% - 4% self-braking pitch
- Roller Mechanism: Galvanized Brake Rollers
- Throughput: Pallet separation separator gear
Smart Fabric & Textile Roll High-Density Racking
- Compartment: Anti-collapse roll cradles
- Material Protection: Non-burr rounded beams
- Handling: AGV / Stacker Crane compatible

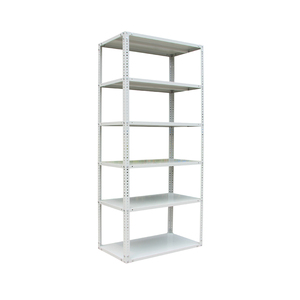

Slotted Angle Rivet Metal Warehouse Storage Shelving
- Capacity: 50 – 150 kg / Tier Uniform
- Erection: Zero Bolt Rivet Pin Design
- Decking: Steel Sheet / MDF / Wire Mesh
Why Top Global Intralogistics Contractors Partner with HEDA Shelves
Established in Guangzhou in 2001, Guangzhou Heda Shelves Co., Ltd. operates as a vertically integrated manufacturer specializing in heavy-duty pallet racking, automated storage retrieval structures, and structural mezzanines. Our engineering facility bridges the gap between raw metallurgy and turnkey logistics infrastructure.
Stringent Multi-Standard Compliance
Every upright, beam, and connector is engineered to exceed European standard EN 15512:2020, American RMI ANSI MH16.1, and AS 4084 specifications. We hold official CE Certificate No. 2435-CPR-8605159 and ISO 9001:2015 registration No. 18624Q00169R0M.
Parametric Finite Element Analysis (FEA)
Our 30+ senior structural engineers simulate dead loads, live loads, seismic accelerations, and forklift impact forces in ANSYS before manufacturing begins. We furnish certified load calculation reports and 2D/3D CAD models within 24 to 48 hours for rapid municipal permitting.
South China Intermodal Logistics Access
Strategically situated in Guangzhou with immediate proximity to Nansha, Huangpu, and Shenzhen container hubs. Our dedicated logistics team creates digital 3D container loading diagrams (40HQ) to maximize volume utilization up to 98% and avoid transit freight damage.
Macro Trends Transforming Global Warehouse Shelving Procurement
International logistics operators, 3PL distributors, and cold chain conglomerates are shifting procurement methodologies. Navigating capital expenditure (CapEx) against operational agility requires deep technical awareness of five structural trends.
1. Convergence of High-Density & Semi-Automation
Traditional static drive-in systems are rapidly losing market share to Radio Pallet Shuttle systems. Modern supply chain managers favor semi-automated shuttle systems because they reduce forklift dwell times by 65%, virtually eliminate upright collision damage, and flexibly convert between FIFO and FILO modes without restructuring physical aisles.
2. High-Yield Metallurgy & Cold-Form Profiling
Global raw material volatility necessitates intelligent structural optimization. Leading procurement departments specify certified high-yield Q355B (equivalent to S355JR / ASTM A572 Gr 50) cold-rolled steel. This allows down-gauging section profiles without compromising load performance, decreasing overall structural dead weight and ocean freight expenses per container.
3. Decarbonization & Low-VOC Powder Finishes
Cross-border sustainability mandates (such as the EU Carbon Border Adjustment Mechanism and RoHS protocols) dictate that steel suppliers verify carbon origins and coating chemistries. The transition toward non-heavy metal phosphating, heavy-duty lead-free electrostatic epoxy powders, and zero-effluent automated wash systems is now an essential vendor qualification criterion.
4. Seismic Hardening in High-Risk Zones
Facilities across the Pacific Rim, Middle East, and Mediterranean are shifting toward dynamic seismic structural engineering. Rather than generic catalog selections, buyers require certified baseplate dimensioning, extended anchor embeds, and stiffened upright-to-beam connection moments designed around local Peak Ground Acceleration (PGA) seismic data.
5. Clad-Rack & Rack-Supported Mega Mezzanines
Industrial real estate lease premiums in urban logistics hubs (such as Singapore, Hong Kong, Rotterdam, and Dubai) have triggered a surge in vertical spatial integration. Rack-supported mezzanine structures consolidate primary structural building columns and high-density picking tiers into a single turnkey asset, shortening project build cycles by up to 40%.
6. Intermodal Packaging Standardization
Structural exporters are held to rigorous ocean container packaging standards. Automated bundle nesting, corner edge-protector shielding, and desiccated anti-humidity wraps guarantee that precision cold-formed sections arrive at equatorial or coastal ports free of white rust, surface abrasion, or dimensional distortion during rough transshipments.
Industrial Racking Structural Specification Guide
System selection directly dictates volumetric utilization, floor slab point loading, operating aisle widths, and material handling equipment (MHE) capital costs. Review the engineering benchmark data below.
| Storage Architecture | Floor Space Efficiency | Pallet Accessibility | Typical Aisle Width (mm) | Standard Safe Working Load | Optimal Industry Application |
|---|---|---|---|---|---|
| Selective Pallet Racking | 40% - 50% | 100% Direct Access | 3,000 – 3,500 (Counterbalance) | 1,000 – 4,500 kg / level | Multi-SKU Distribution, 3PL Warehousing, Retail FMCG |
| Very Narrow Aisle (VNA) | 65% - 75% | 100% Direct Access | 1,600 – 1,850 (Turret Truck) | 1,000 – 3,000 kg / level | High-Ceiling DCs, High-Cost Urban Hubs, E-commerce |
| Radio Shuttle System | 80% - 85% | Batch Selective (FIFO/FILO) | 2,800 – 3,200 (Dock Aisle) | 500 – 1,500 kg / pallet | Cold Storage (-30°C), Food Processing, Beverage Plants |
| Gravity Pallet Flow | 75% - 85% | Strict FIFO Rotation | 3,000 – 3,200 (Load / Unload) | 500 – 1,200 kg / pallet | Perishable Groceries, Pharmaceutical Central Hubs |
| Structural Steel Mezzanine | 150% - 200% Floor Expansion | Modular Floor Grid | Custom Clear Span | 300 – 1,000 kg / m² | Automotive Parts, Assembly Lines, Manual Pick Towers |
| Heavy Duty Cantilever | 60% - 70% | 100% Unobstructed Longitudinal | Variable / Side Loader | 500 – 1,800 kg / arm | Steel Piping, Timber Lumber, Aluminum Extrusions |
10-Step Quality Assurance & Fabrication Chain
At HEDA Shelves, complete operational control ensures strict physical tolerances and coating adhesion across every component batch.
Spectrometric Steel Audit
Mill test certificates (MTC) and spectral validation of carbon, manganese, and silicon content on all Q235B/Q355B coils.
Precision CNC Slitting
Automated uncoiling and high-speed longitudinal slitting maintain exact strip edge tolerances (+/-0.1mm).
Continuous Punching
Multi-station mechanical press punch dies stamp 50mm / 75mm pitch teardrop or diamond slot patterns with zero taper.
Progressive Cold Rolling
24-stage roll forming stands gradually shape complex omega uprights and interlocking box-beam profiles.
Robotic Laser Welding
Multi-axis Panasonic industrial welding robots join beam end connectors with continuous, uniform weld beads.
Shot Blasting & Degreasing
Automated centrifugal wheel shot blasting removes all thermal scale and oxides to Sa 2.5 cleanliness standards.
Pickling & Phosphating
Multi-stage immersion cleaning provides micro-crystalline zinc-phosphate conversion for exceptional anti-corrosive anchoring.
Electrostatic Coating
GEMA automatic reciprocator spray guns coat parts with 60–80 micron high-adhesion polyester resin powder.
Thermoset Curing
200°C convection baking tunnel creates high-molecular cross-linking for superior impact and scratch resistance.
FOB/CIF Staging Audit
Ultrasonic thickness verification, cross-hatch adhesion testing, and steel strapping onto specialized transport pallets.
Frequently Asked Engineering & Procurement Questions
Objective, engineering-backed answers address key structural, logistical, and commercial inquiries commonly raised by international importers, general contractors, and logistics directors.
What beam deflection limits and safety factors do you enforce?
Under European Standard EN 15512 and American RMI standards, the maximum allowable vertical beam deflection under design load must not exceed L/200 (where L is the clear horizontal distance between upright column faces). For automated shuttle and VNA systems, HEDA tightens this deflection threshold to L/300 to guarantee robotic sensor clearances. Our engineering designs carry a structural safety factor of 1.5 to 1.65 against steel yield strength.
How do you verify civil slab capacity before anchoring heavy racks?
Industrial pallet racking distributes significant concentrated point loads through baseplates into the concrete slab. Our engineering team requires the concrete compressive strength ($f'_c$, typically $\ge 25\text{–}30\text{ MPa}$), slab thickness, rebar mesh layout, and subgrade modulus. Using this data, our engineers calculate baseplate footprints and specify mechanical wedge or chemical expansion anchors (e.g., M12 to M16 grade 8.8 steel) to prevent concrete punch-through.
What surface treatments protect steel in sub-zero and coastal regions?
For standard distribution facilities, we apply an automated electrostatic epoxy-polyester powder coat with a nominal 60–80 micron dry film thickness (DFT). For deep-freeze facilities (-25°C to -30°C), specialized low-temperature polyurethane powders prevent cold brittleness. For high-humidity coastal ports, we offer hot-dip galvanizing per ISO 1461 (minimum 55–85 micron zinc thickness), offering 25+ years of active barrier protection against rust.
Can HEDA Shelves adapt designs to local seismic building codes?
Yes. We routinely calculate and supply seismic-resistant configurations for clients in seismic zones like Japan, the Philippines, Indonesia, and Chile. We adjust the upright profile cross-section (e.g., using 100mm, 120mm, or 140mm omega widths), upgrade brace web dimensions, utilize oversized double-anchor baseplates, and install top-tie aisle bracing to resist seismic inertial forces according to Eurocode 8 or IBC criteria.
How does HEDA Shelves optimize ocean container stuffing efficiency?
Because structural racking components are heavy yet voluminous, improper loading leads to unused space or damage. Our engineers generate 3D container packing layouts for 40ft High Cube (40HQ) containers. Upright frames are nested in structural bundles strapped with plastic corner protectors, while beams are paired and stacked horizontally on dunnage for rapid forklift unloading at destination ports.
What is the typical production timeline and engineering lead time?
Upon receipt of your architectural DWG warehouse layout, our design team produces initial 2D layout drawings, 3D visualizations, and quotation matrices within 24–48 hours. Upon order signoff and CAD approval, fabrication lead times generally range between 15 to 25 business days for standard racking orders (5 to 15 containers). Custom mezzanine fabrications or hot-dip galvanized lines run on a 30-day timeline.
Initiate Your Engineering Consultation & Space Planning
Send our senior engineering team your warehouse CAD drawings, ceiling clearance profiles, pallet dimensions, and operational throughput targets. We deliver an optimized layout drawing, load capacity calculation, and detailed CIF export quote within 24 hours.
