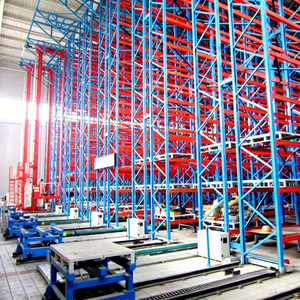

Customized Stacker Crane ASRS Automated Vertical Warehouse System
Foldable Backdoor Component Transport Cart with Heavy-Duty Castors

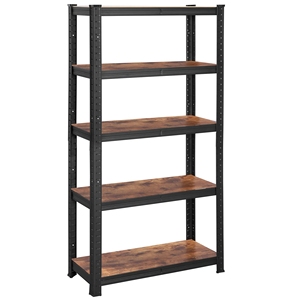

5-Tier Boltless Industrial Longspan Storage Shelving with Steel/MDF Decks
HEDA High-Density Double Deep Pallet Runner Shuttle Racking System

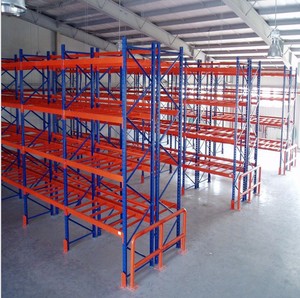

HD-SR-02 Radio Shuttle Cold Chain Deep Lane Pallet Storage System
Adjustable Arm Cantilever Rack for Timber, Tubing & Structural Profiles
Modular Inverted Post Metal Pallet Stacking Stillage Nesting Rack
Industrial FIFO Flow Shuttle Runner Dynamic Racking Infrastructure
1. Industrial Definition: The Mechanics of Medium Duty Racking
Within global intralogistics engineering, Medium Duty Racking (conventionally classified as Longspan Shelving or Wide-Span Shelving Type B) bridges the operational divide between light-duty slotted angle boltless shelving (<150 kg per level) and structural selective pallet racking (>1,000 kg to 4,000 kg per level). Engineered strictly for manual carton picking, bulk tote buffering, and light assembly lines, a compliant medium-duty system must support Uniformly Distributed Loads (UDL) ranging from 200 kg to 800 kg per shelf tier with an engineering safety factor of at least 1.5 to 1.65.
The core structural morphology relies on cold roll-formed upright omega (Ω) columns punched with 50mm or 75mm standard pitches. At Guangzhou HEDA Shelves Co., Ltd., our medium-duty profiles utilize hot-rolled structural strip steel slitted and precision cold-formed into continuous 55×47mm or 60×50mm upright frames with multiple structural stiffening ribs. These ribs mitigate secondary torsional-flexural buckling under axial compression loads, ensuring compliance with European FEM 10.2.02 and American ANSI/RMI MH16.1 specifications.
| Structural Parameter | Medium Duty Racking (Type B Longspan) | Light Slotted Angle Shelving | Heavy Duty Pallet Racking |
|---|---|---|---|
| Load Capacity (UDL per tier) | 200 kg – 800 kg / level | 50 kg – 150 kg / level | 1,000 kg – 4,500 kg / level |
| Standard Upright Section | 55×47mm / 60×50mm Ω-Profile | 38×38mm / 40×40mm L-Angle | 80×60mm – 120×95mm C/Ω-Profile |
| Steel Grades (Standard) | Q235B / SPCC Cold Rolled | Q195 Carbon Steel | Q235B / Q355B High Tensile |
| Beam Geometry | P-Type Step Beam / 50×30 Tube Beam | Formed Angle Flange | Twin C-Interlocking Box Beam |
| Pitch Adjustability | 50 mm Pitch (Butterfly / Teardrop) | 25 mm / 50 mm Bolt Holes | 50 mm / 75 mm / 76.2 mm |
| Deflection Criterion (Max) | L / 200 (under maximum rated load) | L / 150 | L / 250 (FEM Standard) |
| Handling Method | Manual Carton / Tote / Bin Access | Manual Light Picking | Reach Truck / Counterbalance Forklift |
A critical engineering failure in low-quality market alternatives is localized beam shear and deflection under concentrated center-point loading. HEDA Shelves addresses this by incorporating cold-drawn 3-claw or 4-claw stamped connector brackets seamlessly welded to specialized P-shaped step beams. The step accommodates galvanized drop-in steel panels, wire mesh decks, or high-density laminated MDF boards flush with the top beam flange. This flush-seating architecture completely eliminates snagging hazards during rapid manual item picking.
Guangzhou HEDA Shelves: 25 Years of Factory-Direct Precision
Established in 2001 in Guangzhou, China, our 30,000 m² facility delivers comprehensive in-house mechanical processing, eliminating third-party sub-contracting variances for tier-1 supply chain contractors worldwide.
Certified Metallurgical Integrity
We source exclusively from Tier-1 domestic steel mills (such as Baosteel and Shougang). Raw coils undergo strict tensile yield tests verifying minimum yield strengths (≥235 MPa for Q235B), backed by EN 10204 3.1 chemical inspection certificates.
Seismic Calculation & Engineering
For seismic-prone regions (Japan, Philippines, Indonesia, New Zealand), our structural engineering division computes anchor shear forces, base plate thicknesses (up to 8mm), and cross-aisle portal bracing according to IBC and Eurocode 8 requirements.
10-Stage Surface Pre-Treatment
Components undergo continuous degreasing, ultrasonic cleaning, acid pickling, zinc-phosphating, and automated electrostatic thermoset powder coating (60-90μm thickness). Survives 500+ hours ASTM B117 salt spray tests in humid coastal climates.
Global Export & Free 3D Layout
Strategic export proximity to South China deepwater ports (Huangpu, Nansha, Yantian) minimizes transit cost. We provide free 2D CAD layouts, 3D BIM-compatible models, and comprehensive static loading calculations within 24–48 hours.
Future Procurement Trends: Where Medium Duty Storage is Heading
Procurement directors are shifting from static hardware purchasing to agile, automation-ready infrastructure. Discover the technological convergences transforming medium-duty warehouse investments.
AMR & Cobot Integration Ready
Modern distribution facilities are abandoning isolated manual picking. Uprights are now pre-engineered with precise clear aisle tolerances, fiducial floor-marker clearances, and reflective QR targets to accommodate Autonomous Mobile Robots (AMRs) operating in shared-aisle goods-to-person configurations.
Multi-Tier Shelving Mezzanine Hybridization
With urban industrial real estate costs escalating in logistics hubs like Singapore, Hong Kong, and Dubai, medium duty racking is universally expanding vertically. Uprights double as structural load-bearing columns for 2-to-4 tier catwalk mezzanine platforms, multiplying floor surface area by up to 300% without new civil construction.
Decarbonized EPD & Green Steel Mandates
European and North American buyers are increasingly enforcing Carbon Border Adjustment Mechanism (CBAM) benchmarks. Forward-looking manufacturers must deliver full Environmental Product Declarations (EPD), utilizing zero-VOC powder formulations and Electric Arc Furnace (EAF) low-carbon recycled scrap coils.
100% Toolless Knock-Down Optimization
Volatile international ocean freight rates demand optimal shipping cube efficiency. Next-generation medium-duty systems eliminate all perimeter frame welding, deploying bolted bracing trusses and snap-in beam claw pins that double the packaging density inside 40-foot High Cube (40HQ) ocean shipping containers.
2. Global Sourcing Optimization: Ocean Freight & Landed Cost Engineering
For overseas EPC contractors, 3PL managers, and racking distributors, the Factory-Gate Price (EXW) represents merely 60% to 70% of the true Total Landed Cost (TLC). The dominant cost driver in cross-border medium-duty steel purchases lies in sea freight cubic volume inefficiencies. Because assembled upright frames contain substantial dead air, HEDA Shelves executes advanced nesting calculation models before production.
- Demountable Upright Knockdown Delivery: Uprights, horizontal bracing, and diagonal struts are bundled flat. A 40HQ container loaded with knock-down medium duty racking achieves a payload volume utilization exceeding 92% (approx. 26 to 28 metric tons of steel), compared to barely 14 metric tons when shipping pre-welded frames.
- Bundle Nesting & Interlocking Steel Strapping: Beams are bundled with opposing claw locks to prevent powder abrasion. High-density wooden dunnage blocks and non-stretch polymer edge protectors allow local unloading teams to utilize conventional 3-ton counterbalance forklifts without damaging finished surfaces.
- Documentation for Expedited Customs Clearance: Complete commercial documentation packs include mill test certificates (MTC), Form E / Certificate of Origin (COO) for preferential tariff access under ASEAN-China FTA, and pre-labeled piece-by-piece packing lists cross-referenced to installation blueprints.
