Top China HD Pallet Racking Manufacturers & Engineering Factories

A technical procurement white paper, structural design manual, and OEM export index for logistics operators, supply chain directors, and warehouse contractors across Asia-Pacific and the GCC.

Factory-Direct Heavy-Duty Systems

Precision-Engineered Pallet Racking Portfolio

Manufactured from premium certified Q235B and Q355B structural steel coil, roll-formed to international structural tolerances, and coated with electrostatically applied epoxy powders for lasting durability.

25+
Years Engineering Expertise (Est. 2001)
30,000m²
Modern Guangzhou Production Facility
30,000Tons
Monthly Cold-Formed Steel Capacity
120+
Global Export Sovereign Jurisdictions
Global Supply Chain Intelligence

Future Procurement Trends in Industrial Storage Systems

The strategic framework for enterprise logistics procurement is shifting from raw price-per-kilogram calculations toward lifecycle structural resiliency, regional logistics compliance, and automated material handling compatibility.

⚙

1. Seismic Dynamic Modeling (FEM)

Global procurement teams across earthquake-prone corridors (the Pacific Rim, Indonesia, Philippines, Japan, and the Mediterranean) no longer accept static nominal load tables. Procurement contracts now demand Finite Element Analysis (FEA) compliant with EN 15512 and RMI MH16.1. High-yield Q355B alloys with specialized torsional ductilities and reinforced heavy-gauge baseplates are essential to dissipate horizontal seismic shock waves.

❄

2. Cold Chain High-Cube Energy Optimization

With sub-zero energy expenditures escalating globally, logistics planners are replacing conventional wide-aisle configurations with semi-automated Radio Shuttle racks and dense drive-in systems. Maximizing pallet density within temperature-controlled volumes (-25°C to -30°C) cuts refrigeration cubic volume loss by over 45%, delivering aggressive long-term operational savings.

🛡

3. Advanced Anti-Corrosion Nanotechnology

Standard dip-paint systems fail rapidly under the harsh conditions of coastal warehouses in Southeast Asia and chemical fulfillment hubs in the Middle East. Strategic specifications now dictate an eight-stage pre-treatment cycle with full pickling and zinc phosphating, topped by thermoplastic electrostatic polymer powders or Hot-Dip Galvanizing (ISO 1461) to guarantee 15+ years of zero-oxidation performance.

Industry 4.0 & Materials Engineering

Technological Vector: Next-Generation Racking Architectures

How Chinese industrial manufacturing centers have advanced beyond manual steel rolling toward robotic precision lines, structural sensor telematics, and hybrid micro-fulfillment designs.

🤖

Robotic Continuous Cold Roll-Forming

Modern Chinese tier-one plants employ computerized 24-station rolling profiles that bend strip steel without micro-fracturing outer structural flanges. This maintains consistent cross-sectional thickness and accurate interlocking tolerances, keeping upright hole pitches within ±0.1mm tolerances along a 12-meter column.

📡

Integrated Structural Deflection Sensors

High-bay distribution centers are adopting real-time load telemetry. Upright frames can now be outfitted with strain gauges and laser sensors that identify overload events, forklift impacts, and unapproved beam adjustments before catastrophic elastic failure occurs.

⚡

Hybrid Pick-Tower Mezzanines

Driven by rapid e-commerce expansion, structural steel platform mezzanines are merging directly into heavy-duty pallet framework. These multi-tiered configurations provide upper-level manual carton picking while maintaining bulk pallet drop storage on ground decks.

Racking Architecture Structural Standard Typical Bay Capacity Space Utilization Stock Rotation Logic Optimum Deployment Scenario

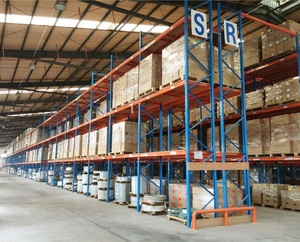

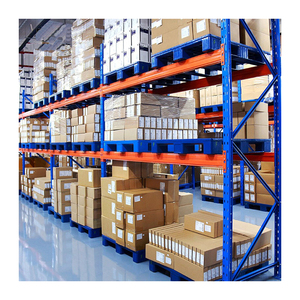

Selective Pallet Racking EN 15512 / RMI MH16.1 1,000 – 5,000 kg / Level 40% – 50% 100% Direct Access (FIFO) Multi-SKU Distribution, 3PL Facilities, Retail Hubs
Drive-In / Drive-Through FEM 10.2.07 / CE 1,000 – 2,500 kg / Level 65% – 75% LIFO / Strict FIFO Cold Storage Facilities, Beverage Manufacturing, Bulk Raw Stock
Semi-Automated Radio Shuttle AS4084 / CE CPR 500 – 2,000 kg / Unit 80% – 88% Automated FIFO / LIFO Sub-Zero Freezers, Fast-Moving Consumer Goods (FMCG)

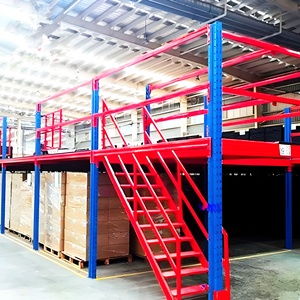

Rack-Supported Mezzanines AISC 360 / EN 1993 300 – 1,200 kg / m² Up to 200% Volumetric Gain Multi-Tier Picking Cross-Border E-Commerce, Spare Parts Fulfilment Centers
Factory Excellence Since 2001

Enterprise Advantages: Guangzhou Heda Shelves Co., Ltd.

Direct manufacturer accountability from steel strip uncoiling to on-site commissioning across Southeast Asia, South Asia, Central Asia, and GCC markets.

25+ Years Industrial Heritage

Founded in 2001 in Guangzhou, Heda Shelves has delivered over 10,000 comprehensive warehouse projects worldwide, helping engineering teams navigate diverse building codes and unique site constraints.

30,000 m² In-House Production

Our expansive production facility houses continuous punching systems, robotic welding rigs, and automated powder-coating lines, delivering up to 30,000 tons of structural steel components each month.

Free 2D/3D CAD & Structural Review

Receive comprehensive 2D CAD floor plans, dynamic 3D visualizations, and FEA-validated engineering calculation reports within 24–48 hours to confirm pallet layouts prior to production.

International Compliance Assured

Every structural profile conforms to CE Construction Products Regulation (No. 2435-CPR-8605159), ISO 9001:2015 quality workflows, and RoHS non-toxic powder finish standards.

Standard 10-Step Production & Quality Control Pipeline

01

Coil Inbound

Mill test certificates (MTC) verification for yield stress and elasticity.

02

Slitting & Cut

High-speed slitting lines ensuring consistent edge widths.

03

Punching

CNC progression die punching guaranteeing ±0.1mm pitch accuracy.

04

Cold Forming

Multi-roller forming stations shaping rigid omega upright profiles.

05

Interlock Roll

Continuous twin-C seam profile fabrication for high-moment box beams.

06

Laser & Deburr

Surface finishing to remove burrs, sharp edges, and rolling slag.

07

Robotic Weld

Submerged shielded welding fusing beam connectors and safety catches.

08

Phosphating

Multi-bath acid clean, phosphate immersion, and dry-off cycles.

09

Epoxy Powder

Electrostatic powder application cured in an automated 200°C tunnel.

10

Packaging & QC

Steel strap bundling and protective wrapping ready for marine transport.

Which Chinese steel grades are used, and how do they map internationally?
Our factory primarily uses prime structural steel coils certified to standard GB/T 700 Q235B and GB/T 1591 Q355B. Q235B provides a nominal minimum yield strength of 235 MPa, functioning as a reliable structural equivalent to European EN 10025 S235JR and American ASTM A36. For high-bay, heavy-capacity racking installations, we utilize Q355B (yield strength ≥ 355 MPa), which parallels European S355JR and American ASTM A572 Grade 50. Every production run is backed by authentic Mill Test Certificates (MTC) detailing carbon equivalency and tensile break parameters.
How are seismic zone calculations and site permits handled for export?
For projects in active seismic zones (such as Indonesia, the Philippines, Japan, or New Zealand), our structural team reviews local building codes (e.g., ASCE 7, Eurocode 8, or NZS 4219). We adjust the upright profile dimensions, flange gauges, base plate surface areas, and bracing configurations. We can also provide complete FEA modeling data and structural design reports to support permits with municipal authorities.
What steps are taken to prevent steel corrosion during ocean shipping and tropical storage?
Structural members complete an intensive 8-stage surface treatment process, including pickling to clear surface scale, alkaline degreasing, and zinc phosphating. They then receive an electrostatic epoxy thermosetting powder coat cured at 200°C, producing a dense 60–90 micron barrier that protects steel in humid environments. For external yards, chemical plants, or blast freezers, Hot-Dip Galvanizing (HDG) per ISO 1461 is available to provide robust cathodic protection.
What site details are needed to generate an optimized CAD layout?
To deliver an accurate 2D CAD plan and 3D visualization within 24 to 48 hours, our engineers review:
  • Architectural CAD floor plan showing wall boundaries, dock gates, and structural column locations.
  • Clear building height underneath roof trusses, lighting, and fire sprinkler systems.
  • Pallet dimensions (Width x Depth x Height including cargo overhang) and maximum gross weight.
  • Forklift specifications: brand, model, turning radius, and maximum reach height.
  • Operating temperature: ambient dry warehouse, air-conditioned space, or cold freezer.
How are products packed to optimize container volume and prevent transit damage?
Upright frames are stacked with protective dunnage strips and banded with heavy-gauge polyester straps. Beams are bundled together with protective spacers to safeguard critical connector clips. Every shipping container (40ft High Cube) is packed according to an engineered 3D container plan to maximize weight allowances, keep components secure during sea transit, and ensure straightforward unloading at destination docks.

Start Planning Your Warehouse Layout with Factory Engineers

Connect with our technical design team in Guangzhou. Share your warehouse dimensions to receive a comprehensive CAD layout, 3D visualization, and detailed Bill of Materials within 48 hours.
