Electrostatic Coating
Heavy-duty modular post-pallet system featuring high-adhesion phosphating anti-corrosion layer and reinforced structural bottom beams.
Enterprise Solutions
Engineered Single Pallet Racking & High-Density Storage Lineup
Precision-formed structural rack assemblies engineered to European EN 15512 and FEM standard specifications, custom-tailored for maximum volumetric utilization and warehouse throughput.
Material Handling Integration
Compact electric mast stacker built to operate seamlessly inside narrow-aisle single deep pallet racking layouts with maximum safety.

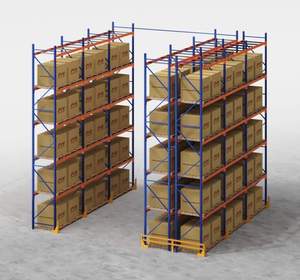

100% Selective Access
The industry benchmark for flexible logistics hubs, offering unhindered SKU accessibility, adjustable load levels, and seismic upright anchoring.
Automated ASRS Matrix
Ultra-precise racking columns engineered for automated cranes, eliminating manual picking bottlenecks and maximizing vertical cubic storage.
Single Deep Configuration
Heavy-duty rolled profile steel framework customized for factory inventories, maintenance workshops, and high-turnover production zones.
OEM / ODM Custom
Integrated mezzanine racking layout designed to support heavy robotic cranes and automated shuttle carts across complex distribution centers.
Epoxy Anti-Corrosion
Certified Q235B cold-bent steel uprights treated with electrostatic powder bake, engineered for high-humidity and cold room storage facilities.
Long Loads & Oversized SKUs
Specialized single and double-sided cantilever systems designed for non-standard, long, or bulky materials with modular arm height adjustment.
Industry Whitepaper Analysis
What Defines a World-Class Single Pallet Racking System?
In high-throughput warehousing, Single Pallet Racking (also known as Single Deep Selective Racking) remains the global benchmark for inventory velocity, achieving true 100% immediate selectivity without repositioning honeycombed stock.
Unrestricted SKU Accessibility
Unlike drive-in or push-back arrays that operate under strict LIFO (Last-In, First-Out) constraints, single pallet racking enables direct mechanical reach to every single pallet bay. This eliminates double-handling labor costs, reduces forklift dwell time, and supports high-velocity order fulfillment architectures required by omni-channel retailers and multi-client 3PL providers.
Structural Modularity & Beam Adaptability
Formed from continuous high-grade structural Q235B steel coils, upright columns feature laser-punched 50mm or 75mm pitch diamond hole patterns. This allows warehouse managers to adjust beam levels in minutes without welding or structural re-engineering as carton dimensions, container sizes, or pallet profiles change over product lifecycles.
Seismic Engineering & Impact Hardening
Modern international safety standards (including European EN 15512, RMI, and FEM 10.2.02) mandate dynamic seismic resilience. High-quality single pallet racks feature heavy-duty floor base plates, oversized chemical expansion anchors, and frame column protectors capable of absorbing localized low-speed forklift collisions without cascading beam collapses.
Future Procurement Trends
Strategic Warehouse Procurement Outlook: 2026–2030
As warehouse operational overheads escalate and labor dynamics shift globally, procurement executives must look beyond initial fabrication costs to long-term lifecycle metrics and automation readiness.
1. Convergence of Single Racks with AMR & AGVs
The standard single pallet rack is rapidly transforming into a digitized node. Autonomous Mobile Robots (AMRs) and automated narrow-aisle stacker cranes require tighter manufacturing tolerances (±1.5mm tolerance limits) than traditional counterbalanced forklifts. Procurement tenders increasingly specify ground flatness (TR34 standards) paired with high-precision cold-formed racking columns equipped with RFID integration brackets and optical barcode guidance tracks.
2. Total Cost of Ownership (TCO) Over Spot Steel Pricing
Savvy global sourcing directors now prioritize TCO calculations over low upfront bidding quotes. A single warehouse rack collapse triggered by inferior steel grades or substandard spot welding can cause millions in damages, business interruption, and liability. Demanding verified EN 10204 3.1 steel mill test certificates, CE mark verification (No. 2435-CPR-8605159), and certified finite element structural calculation reports has become the universal procurement baseline.
3. Modular Multi-Tier Upgrades & Mezzanines
With industrial land prices surging across Tier-1 logistics hubs (e.g., Singapore, Bangkok, Dubai, Frankfurt, Dallas), future-proof installations integrate single pallet racking uprights directly with mezzanine walkways and overhead carton picking platforms. This hybrid approach enables logistics facilities to capture both unit-pallet bulk storage and micro-fulfillment e-commerce picking within an identical footprint.
Factory-Direct Structural Manufacturing Authority
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has spent over 25 years engineering, manufacturing, and supplying industrial-grade storage racking and mezzanine platform systems worldwide. Operating from our fully equipped 30,000 m² smart fabrication base with a monthly output exceeding 30,000 tons, we eliminate intermediary trading markups, ensuring full control over raw steel quality, robotic welding integrity, and shipping schedules.
ISO 9001:2015 Quality Certified
CE Certificate #2435-CPR-8605159
RoHS Compliant Powder Coating
Complete OEM & ODM Capabilities
Free 2D CAD & 3D Modeling (24–48h)
Our 10-Step In-House Production Process
- Raw Materials: Q235B Prime coil steel with metallurgical inspection
- Precision Cutting: CNC automated sizing lines with micron tolerance
- Upright Punching: High-speed hydraulic diamond hole perforating
- Roll Forming: Continuous multi-station roll-forming profile mill
- Robotic Welding: Dual-torch CO₂ shielded beam-connector welding
- Surface Polishing: Automated mechanical shot-blasting scale removal
- Pickling & Phosphating: 7-stage chemical dip for zero-rust adhesion
- Powder Coating: GEMA electrostatic spray booth with high-bake oven
- Strict QC Testing: Deflection, load stress, and salt spray exposure tests
- Export Container Packaging: Steel banding and protective foam wrap
Technical FAQ
Frequently Asked Questions by Industrial Racking Buyers
Clear, engineering-backed answers addressing the most common technical, logistical, and structural questions encountered during commercial single pallet racking procurement.
What is the standard load capacity of a single pallet racking beam level?
Standard heavy-duty single pallet racking beams are cold-rolled into double C-sections (box beams) designed to safely support uniformly distributed loads (UDL) ranging from 1,000 kg (2,200 lbs) up to 4,500 kg (10,000 lbs) per pair of beams, with an engineered safety deflection factor of L/200 or L/250 in strict compliance with FEM standards.
How do you calculate clear aisle width for forklift maneuvering?
Aisle width depends directly on the forklift model. Standard counterbalance forklifts require 3,500mm to 3,800mm clear aisle width. Reach trucks require 2,700mm to 3,000mm, while Very Narrow Aisle (VNA) turret trucks operate within 1,600mm to 1,900mm with wire or rail guidance. Our engineering department verifies truck turning radii on your CAD floor plans prior to production.
How does your factory protect steel racking against corrosion in humid or coastal climates?
Prior to electrostatic painting, all steel parts undergo an automated 7-stage chemical pre-treatment comprising immersion degreasing, acid pickling, water rinsing, and zinc phosphating. This guarantees deep surface bonding for our high-grade epoxy-polyester powder coat. For cold storage (-30°C) or outdoor coastal sites, hot-dip galvanized steel components are manufactured upon request.
Can your racking systems be certified for local earthquake and building permits?
Yes. Guangzhou Heda Shelves Co., Ltd. regularly designs seismic-compliant racking for earthquake-prone zones across Japan, the Philippines, Indonesia, and the Western United States. We calculate base plate surface dimensions, column wall thickness (up to 2.5mm+), and supplemental cross-bracing, providing comprehensive finite element load calculation reports for local municipal permitting.
What core data must a buyer provide to receive a free 3D CAD layout?
To prepare an accurate structural layout within 24 to 48 hours, our engineers require: (1) Warehouse architectural drawings showing columns and clear ceiling height, (2) Pallet dimensions including maximum load overhang and weight, (3) Forklift model and maximum lifting reach, and (4) Daily throughput target (SKU rotation requirements).
What is the factory lead time and international shipping logistics plan?
Standard custom fabrication lead time ranges from 15 to 25 working days depending on order tonnage. Shipments depart directly from South China deepwater ports (Guangzhou / Shenzhen / Nansha). Each project includes an optimized 3D container packing schematic, clearly marked bundle labels, and comprehensive 3D step-by-step installation blueprints for seamless local contractor erection.
Ready to Optimize Your Warehouse Storage Footprint?
Speak directly with our senior logistics structural engineers. Get a complimentary warehouse space audit, CAD floor plan, and factory-direct quotation tailored to your exact operational parameters.
