Modular Span

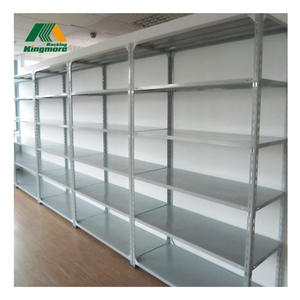

Custom Warehouse Metal Boltless Shelving Light Duty Long Span Rack
- Light-Duty Modular
- Cold-Rolled Steel
- Boltless Drop-In
Direct Manufacturing Line
Featured Heavy & Medium-Duty Longspan Shelving Configurations
Factory-direct, modular industrial longspan shelving systems engineered for seamless manual picking, SKU consolidation, and high-density warehouse storage across demanding distribution hubs.
Modular Span
Adjustable Rivet

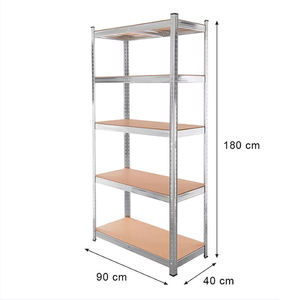

Multi-Tier Boltless Rivet Easy Assemble Adjustable Garage Storage Shelf
- 4-5 Adjustable Tiers
- Corrosion-Proof
- Tool-Free Joint
Hybrid Retail

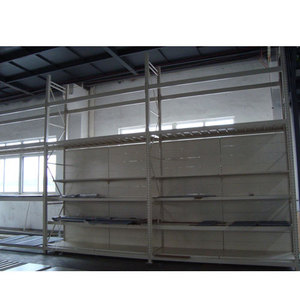

Integrated Heavy Duty Metal Shelving for Commercial Hypermarket Racking
- High Aesthetic Finish
- Integrated Base
- High Capacity
Q235 Certified
200kg/Layer Boltless Longspan Shelving Steel Q235 Light Duty Rack
- 200kg UDL/Level
- Phosphated Finish
- Certified Steel
200-500kg Load
Medium Heavy Duty Boltless Storage Racks 200KG-500KG Corrosion Resistant
- Up to 500kg/Layer
- Epoxy Coated
- Anti-Buckling Beam
Industrial Hybrid

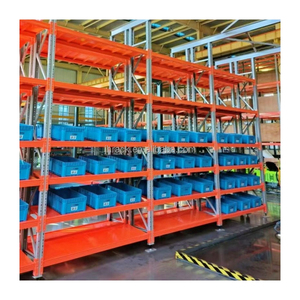

Two-Tone Industrial Metal Pallet & Long Span Hybrid Storage Racks
- Heavy Dual Framing
- Bolted Uprights
- Pallet Integration
Multi-Tier Pick

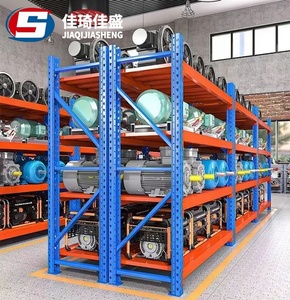

Multi-Level Long Span Boltless Rack 500kg High Capacity Steel Shelving
- 500kg Capacity/Level
- Multi-Tier Compatible
- Dynamic Bracing
Linear Geometry

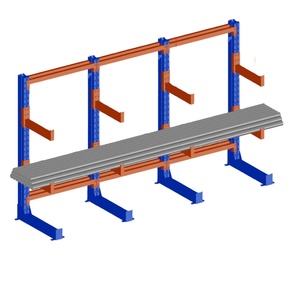

Robust Longspan Cantilever Heavy-Duty Column Unit for Long Goods Storage
- Obstruction-Free Front
- Cold-Bending Steel
- Custom Arm Load
Engineering Whitepaper & Methodology
Global Sourcing Analysis: Selecting Tier-1 Longspan Shelving Manufacturers
Modern supply chain infrastructure demands structural integrity that goes beyond basic sheet-metal stamping. When industrial procurement specialists and plant operations executives evaluate the Top 10 Shelving Longspan Factory & Suppliers, standard catalog dimensions are insufficient. Modern intralogistics ecosystems require rigorous cross-examination of cold-formed structural steel parameters, electrostatic powder-deposition micron ratings, and uniform distributed load (UDL) deflection ratios governed by international mandates including FEM 10.2.06 and ANSI MH28.2.
30,000+
Square Meter Facility
30,000 t
Monthly Mill Output
L/200
Deflection Standard
100%
Q235B In-Line Certified
Longspan shelving serves as the operational bridge between conventional light-duty slotted angle shelving and pallet racking. Engineered specifically for high-variety, medium-density SKU manual retrieval, longspan systems eliminate the horizontal structural interruptions common in traditional low-capacity units. By deploying uninterrupted clear-entry beam spans spanning from 1,200 mm to over 2,700 mm, enterprise distribution centers drastically improve warehouse cube utilization and throughput velocity.
Comparative Engineering Matrix: Standard Commodity vs. Certified Heavy-Duty Longspan
| Evaluation Parameter | Tier-3 Commodity Fabricators | Certified Tier-1 Manufacturers (HEDA Standard) | Engineering Impact on Distribution Operations |
|---|---|---|---|
| Steel Grade & Tensile Strength | Uncertified Scrap/Q195 (Yield < 195 MPa) | Certified Prime Q235B Cold-Rolled Carbon Steel | Prevents permanent beam bowing under heavy sustained pallet-level loads. |
| Pre-Treatment Chemical Process | Manual solvent wipe or bare dip | Multi-stage automatic pickling, phosphating & passivation | Precludes under-film corrosion and blister creep in humid tropical distribution facilities. |
| Upright Forming Accuracy | Manual brake press with variable punch pitch | Continuous multi-roll roll-forming line (tolerance ±0.2mm) | Guarantees perfect vertical column alignment in multi-tier mezzanine tiers. |
| Safety Pin Connector Factor | Friction tab or missing mechanical locks | Integral spring-steel mechanical drop pins with positive lock | Eliminates accidental beam detachment caused by upward forklift or order picker bumps. |
| Deflection Ratio Ceiling | Exceeds L/100 under localized load | Guaranteed ≤ L/200 complying with FEM 10.2.06 specifications | Ensures high-level picking ergonomics without bin binding or steel fatigue failure. |
A primary failure mode documented across international logistics audits involves structural eccentricities created by substandard gauge steel. When suppliers utilize re-rolled low-grade scrap steel, micro-fracturing along cold-formed bends can cause progressive catastrophic failure under dynamic bin loading. Enterprise facilities must mandate factory certifiable mill-test reports confirming minimum yield strengths of 235 N/mm² and elongation percentages surpassing 25% prior to approving procurement contracts.
Strategic Sourcing Intelligence
Future Procurement Trends Shaping Industrial Longspan Shelving
The procurement profile for warehouse static infrastructure has shifted radically due to omni-channel e-commerce fulfillment, rising square-meter real estate leases across metropolitan transit corridors, and rapid warehouse automation. Sourcing heads must calibrate their capital expenditure against three evolving technological trajectories.
1. Shelving-Supported Multi-Tier Mezzanine Conversion
With industrial urban floor leases hitting historic premiums in trade gateways, facilities are phasing out standalone single-tier longspan configurations. Tier-1 manufacturers are now engineering upright structural columns with engineered vertical load safety reserves exceeding 300%. This allows facilities to seamlessly transform floor-level shelving into 2, 3, or 4-tier elevated cat-walk picking platforms without needing independent primary structural building steel.
2. AMR & Goods-to-Person (G2P) Structural Interfacing
Autonomous Mobile Robots (AMRs) demand millimeter-accurate dimensional clearance along shelf access perimeters. Modern procurement contracts now mandate laser-cut indexing holes, ultra-rigid flush decking options (galvanized mesh or fire-code-compliant perforated steel panels), and magnetic boundary strip integration directly into longspan footplates to facilitate co-bot picking without clearance obstruction.
3. Environmental Sustainability & VOC Compliance
Corporate ESG procurement mandates are rapidly rendering solvent-based liquid dipping obsolete. Leading longspan factories employ closed-loop electrostatic powder coating booths utilizing RoHS-compliant thermosetting epoxy-polyester formulations. These processes yield zero Volatile Organic Compounds (VOCs), reclaim up to 98% of overspray, and resist ASTM B117 salt spray corrosive conditions across tropical ocean routes.
Enterprise Reliability & Authority
Guangzhou HEDA Shelves: 25 Years of Factory Direct Engineering
Established in 2001, Guangzhou HEDA Shelves Co., Ltd. operates as one of the premier racking and industrial longspan shelving manufacturers globally. Operating from our state-of-the-art 30,000 square-meter production complex supported by 300+ seasoned fabrication engineers and technicians, we maintain full lifecycle control over every process — from certified steel coil slit inspection to robotic beam welding, continuous roll-forming, phosphating, and powder deposition.
25+ Years Industrial R&D
Over two decades of structural engineering experience delivering customized storage systems for 10,000+ completed installations across 120+ sovereign nations.
30,000-Ton Monthly Output
Our continuous automated roll-forming and CNC punching lines process upwards of 30,000 metric tons of prime structural steel monthly to secure global supply lines.
CE & ISO 9001:2015 Accredited
Certified under CE Certification (No. 2435-CPR-8605159) and ISO 9001:2015 (No. 18624Q00169R0M) ensuring every load table holds documented safety factor margins.
Rapid Free 3D & CAD Design
Dedicated logistical structural engineers provide turnkey 2D layouts, complete bill of materials (BOM), and dynamic 3D warehouse renderings within 24–48 hours.
Procurement Due Diligence
Frequently Asked Questions by Industrial Sourcing Teams
Direct technical answers addressing critical parameters in commercial longspan shelving procurement, load calculation, and cross-border installation.
What is the practical difference between Uniform Distributed Load (UDL) and Point Load?
UDL assumes the merchandise mass is dispersed evenly across the entirety of the decking or beam pairs. Point load measures concentrated weight over a localized footprint (e.g., steel machinery feet). Longspan shelf levels rated at 500kg UDL cannot sustain a 500kg point load without localized steel deformation; heavy point loads require integrated underside stiffeners.
How does HEDA protect steel against high relative humidity and coastal sea air?
Prior to coating, steel components pass through an automated 7-stage immersion cycle including alkaline degreasing, acid pickling, zinc-iron phosphating, and deionized water rinsing. This creates an impermeable conversion layer ensuring electrostatic thermoset powder achieves superior adhesion and exceeds 500-hour salt spray corrosion resistance standards.
Can HEDA longspan shelving be engineered to comply with regional seismic building codes?
Yes. In active seismic regions (such as the Pacific Rim and Middle Eastern fault lines), our structural engineering department recalculates dynamic horizontal seismic forces, specifying expanded footplate thicknesses, chemical base-plate anchors, reinforced diagonal bracing profiles, and top-tie beam layouts to satisfy local building structural permits.
Which decking option is recommended: Steel Shelves, Wire Mesh, or Plywood/MDF?
Steel drop-in decking panels provide the highest durability, washability, and structural rigidity. Galvanized wire mesh decking is mandated wherever local fire codes require ceiling fire sprinklers to penetrate unobstructed through lower storage tiers. Plywood or high-density chipboard serves as a cost-effective alternative for dry, climate-controlled carton picking facilities.
Ready to Engineer Your Facility's Ideal Longspan Storage Layout?
Connect with our technical design team today. Provide your facility floor dimensions, clear ceiling heights, and loading requirements to receive a complete 2D/3D layout design and transparent factory-direct pricing proposal.
