Verified Pallet Racking & Heavy-Duty Storage Configurations
Factory-direct industrial shelving and structural pallet solutions manufactured to FEM 10.2.02, RMI, and EN 15512 compliance standards. Built with precision cold-formed Q235B/Q355B steel.
Powder Coated Warehouse Storage Pallet Shelving Beam-Type Racking Bolted High Bay Pallet Rack
Standard high-bay selective pallet racking engineered for rapid SKU accessibility. Features heavy-duty interlocking bolted upright profiles and epoxy powder-coat finishes.
Double Deep Reach Selective Pallet Rack System High Density Industrial Storage Rack
Reduces operating aisles by storing pallets two-deep. Increases volumetric storage utilization up to 60% compared to standard layouts while utilizing pantograph deep-reach trucks.
Good Price Heavy Duty Shuttle Racking System Industrial FIFO Pallet Shuttle Racking
Radio-controlled deep-lane pallet cart system eliminates forklift travel within channels. Optimizes throughput dynamics and reduces chassis impact damage in heavy cold-storage environments.

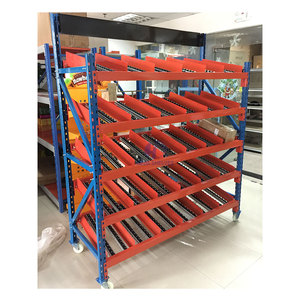

Customized Warehouse Storage Rack Pallet Flow Rack Shelving Lineside Gravity Carton Flow
Gravity-driven dynamic roller bed tracks providing auto-replenishment along assembly and fulfillment picking faces. Ideal for fast-moving consumer goods and production lines.
Factory Customized Industrial Aluminum Profile Flow Rack Mobile FIFO Cart With Casters
Engineered for agile manufacturing cells and kanban picking circuits. Built with rigid structural aluminum extrusions, modular plastic slide rollers, and directional brake casters.
Heda Shelves Four Way Shuttle Rack Automatic 4-Way Shuttle Pallet Racking System
Next-generation 3D automated warehousing matrix utilizing omnidirectional robotic carriers across cross-aisle rail grids. Delivers high density with zero internal personnel requirements.

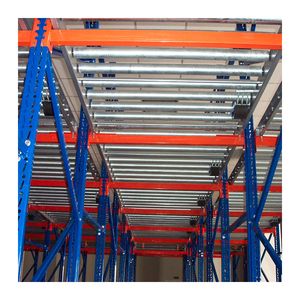

Pallet Flow Rack High Quality FIFO Warehouse Storage Racks Gravity Pallet Flow Racking
Heavy-duty pallet gravity roller systems fitted with magnetic speed retarders, separation stops, and end-stop buffers to ensure safe, controlled flow of heavy unit loads.
Steel Metal Heavy Duty Shelving Single Deep Industrial Pallet Rack Shelving System
Heavy-load racking system configured with high-gauge roll-formed columns, welded 3- or 4-hook beam connectors, and integrated wire mesh or steel deck panel options.
Engineering Analysis: Evaluating Industrial Shelves & Warehouse Racking Exporters
Procuring heavy-duty warehouse racking at enterprise scale involves rigorous evaluation beyond per-kilogram steel prices. The structural performance of high-bay pallet racking is governed by cold-formed thin-walled steel mechanics, complex beam-to-column semi-rigid joint behavior, and geometric imperfections under full live-load deflection. Working with established global exporters requires verifying that raw material sourcing matches specified yield points, that cold-forming roll geometry maintains uniform cross-sectional thickness, and that weld seams across connector pins withstand dynamic seismic moments.
Leading international engineering standards—such as European EN 15512 (Steel static storage systems), American RMI ANSI MH16.1 (Specification for Industrial Steel Storage Racks), and Australian AS 4084—mandate strict verification of sway stiffness, torsional warping, and beam deflection limits (typically constrained to L/200 or L/300 under full load). Exporters without in-house finite element modeling (FEM) capabilities frequently fail to account for perforational yield reductions along the column profile, increasing the risk of progressive catastrophic collapse under localized forklift impact.
Key Takeaway for Procurement Directors: Steel Grade Authenticity
Ensure your exporter supplies mill test certificates (MTC) proving the tensile yield strength of structural uprights. Standard cold-rolled Q235B steel offers a minimum yield strength of 235 MPa, while deep-bay, high-elevation, or seismic-zone installations require high-tensile Q355B (355 MPa) or hot-rolled structural steel to prevent plastic deformation under cyclical pallet loading.
Structural Comparison: Industrial Warehouse Storage Architectures
Selecting an appropriate racking topology depends on an operational trade-off between selectivity (immediate direct access to any individual SKU) and storage cube density (maximizing pallet count per cubic meter of leased or owned facility space). Below is an engineering comparison matrix designed to guide warehouse architects and 3PL procurement boards:
| Storage Architecture Type | Space Utilization | SKU Selectivity | Forklift Cycle Time | Typical Applications |
|---|---|---|---|---|
| Selective Pallet Racking | Baseline (35%–40%) | 100% (Instant Direct) | Fast (Standard Reach) | FMCG, 3PL Distribution, High-SKU Retail |
| Double-Deep Pallet System | High (50%–60%) | 50% (Two-Deep FILO) | Moderate (Pantograph Extension) | Dry Goods, Same-SKU Buffer Storage |
| Drive-In / Drive-Through | Very High (65%–75%) | Low (Last-In-First-Out) | Slow (Truck Enters Structure) | Cold Storage, Seasonal Stock, Beverage |
| Pallet Flow (Gravity Roller) | Exceptional (70%–80%) | Lane Selective (Strict FIFO) | Fast (Dedicated Load/Unload) | Perishables, Pharmaceuticals, Food Processing |
| Radio Shuttle System | Maximum (80%–85%) | Deep-Lane FIFO / LIFO | Fast (Autonomous In-Lane Drive) | Cold Chain Logistics, Raw Materials |
| 4-Way Automated Shuttle | Ultra-Dense (85%–92%) | Automated Matrix Selectivity | Continuous System Throughput | ASRS Smart Warehousing, High-Cost Real Estate |
Technical Manufacturing Pipeline: Guaranteeing Dimensional Tolerances
Guangzhou Heda Shelves Co., Ltd. operates a vertically integrated 10-step production protocol that controls structural tolerances from raw coil decoiling through surface chemical stabilization. Minor deviations in hole-punch pitch or cold-roll profile angles can cause cumulative vertical racking out-of-plumb deviations, violating the EN 15635 maximum operational tolerance threshold of 1/500th of upright height.
Coil Slitting & Punching
Automated CNC multi-die lines punch beam-adjustment connector slots at exact 50mm or 75mm increments without creating stress micro-fractures.
Cold Roll-Forming
Continuous multi-pass roll-forming stands gradually shape omega and closed-box profiles to preserve structural yield strength and minimize residual stress.
Robotic MIG Welding
Computerized multi-axis robotic welders join beam end connectors to horizontal steel tubes, ensuring full penetration across structural welds.
Pre-Treatment & Coating
High-efficiency pickling, phosphating, and electrostatic powder application cured at 200°C creates high resistance to abrasion, chipping, and rust.
Future Procurement Trends: Transforming Intralogistics & Racking Supply Chains
Industrial logistics infrastructure is undergoing a technological transformation driven by urban land scarcity, labor cost inflation, and rapid growth in omnichannel fulfillment. Procurement officers can no longer evaluate racking systems purely as static steel frameworks; racking now serves as the structural foundation for autonomous mechanical ecosystems. Forward-looking facility planners evaluate their storage investments across three major macro trends:
1. Hardware Integration with ASRS & AMRs
Modern racking columns are increasingly designed to host Autonomous Mobile Robot (AMR) top-running guides, vertical reciprocating conveyors (VRC), and continuous busbar power systems. Beam deflection calculations must now account for dynamic braking torque, acceleration forces, and sensor-guided positional repeatability.
2. Climate-Resilient & Anti-Corrosion Finishes
With major logistics expansion across tropical coastal zones and controlled cold-chain hubs, exporters must provide robust anti-corrosive treatments. Standard electrostatic powder coating is supplemented with hot-dip galvanizing (HDG) per ISO 1461, delivering multi-decade rust immunity in sub-zero humidity or aggressive saline environments.
3. Dynamic Seismic Engineering Verification
Warehousing corridors in seismically active regions (such as the Pacific Rim, Southeast Asia, and the Mediterranean) require site-specific structural design. Certified exporters provide full finite element modal analyses, heavy baseplates, and ductile bracing systems engineered to dissipate seismic energy safely during ground accelerations.
Enterprise Advantage: Certified Engineering & Global Export Credibility
Guangzhou Heda Shelves Co., Ltd., founded in 2001, has delivered reliable storage solutions through more than 10,000 installations globally. From our primary 30,000-square-meter facility in Guangzhou, China, our 300+ structural engineers, precision machinists, and international project managers deliver tailor-made intralogistics systems worldwide.
Verified Quality Certifications
Complete international regulatory compliance backed by accredited third-party certification: CE Certification No. 2435-CPR-8605159, ISO 9001:2015 Quality Management Certificate No. 18624Q00169R0M, and full RoHS-compliant coating formulations.
Free 2D/3D Engineering Layouts
Send your architectural CAD files to receive an engineering layout within 24 to 48 hours. Our team provides structural load calculations, forklift turning radius checks, flue space layouts, and photorealistic 3D warehouse renderings before production starts.
Optimized Export Packaging & Freight
Located near major South China container ports (Guangzhou, Shenzhen, Hong Kong), we develop computerized container stuffing diagrams that maximize container cubic capacity while preventing shipping abrasion through protective strapping and corner armor.
Frequently Asked Questions by Industrial Storage Buyers
Technical, financial, and logistical details to assist project engineers, supply chain managers, and procurement teams.
What core building and operational data are required to design an accurate warehouse racking system?
How does HEDA ensure upright load-bearing capacity under seismic or wind shear conditions?
What anti-corrosion coating options are recommended for cold storage and tropical climates?
Can customized beam lengths and frame configurations be fabricated without excessive lead times?
How are container loading and maritime shipping handled to minimize transport damage?
What on-site installation guidance does HEDA Shelves provide for overseas projects?
Request Your Custom Engineering Layout & Production Quote
Send our structural design team your warehouse floor plan, ceiling heights, pallet specs, and forklift models. We deliver a complete 2D layout, 3D rendering, and structural load check within 24–48 hours.
