Engineering Audit: Top 10 Selective Rack Factory & Exporters Comparative Analysis
Selective pallet racking represents the foundational architecture of contemporary materials handling. Characterized by 100% immediate selectivity to every pallet position and full compatibility with counterbalanced, reach, and VNA (Very Narrow Aisle) forklifts, selective rack structures account for more than 68% of installed industrial pallet racking globally. However, evaluating global selective rack factories and direct exporters requires scrutiny extending far beyond gross steel tonnage. Modern logistics facilities operating under severe dynamic cyclic loads demand verification of yield strength, cold-roll-forming profile section modului ($W_x, W_y$), torsional rigidity, European EN 15512 or American RMI MH16.1 compliance, and surface pre-treatment chemistries.
This technical whitepaper analyzes the manufacturing methodologies, metallurgical standards, dynamic structural engineering tolerances, and export supply chain performance of the top 10 selective rack factories and exporters worldwide, benchmarked against rigorous FEM (Fédération Européenne de la Manutention) 10.2.02 and ASTM standards.
| Manufacturer / Exporter | Primary Production Hub | Certified Standards | Steel Grade Spec | Surface Treatment Chem | Export Lead Time | Custom 3D CAD / FEA |
|---|---|---|---|---|---|---|
| HEDA Shelves (Guangzhou) Factory Direct | Guangzhou, South China (30,000 m²) | CE (2435-CPR-8605159), ISO 9001, RoHS | Q235B / Q355B Cold Rolled | Acid Pickling + Phosphating + Powder (60-80μm) | 15–25 Days to ASEAN/ME | Complimentary 24-48h CAD/3D |
| SSI Schaefer | Neunkirchen, Germany | EN 15512, FEM 10.2.02, ISO 9001 | S235JR / S355MC Structural | Automated Electrostatic Powder Coating | 8–14 Weeks (Global Hubs) | Proprietary Project Engineering |
| Mecalux S.A. | Barcelona, Spain / Chicago, USA | RMI MH16.1, EN 15512, ISO 14001 | High-Yield Micro-Alloy Steel | Cataphoretic Electrodeposition Priming | 7–12 Weeks | Integrated Easy WMS Engineering |
| Dexion Storage Solutions | Laubach, Germany / Malaysia | EN 15512, AS 4084 (Australasia) | High Tensile Structural Grade | Pre-Galvanized & High-Durability Powder | 6–10 Weeks | Comprehensive Engineering Data |
| Stow Group | Spiere-Helkijn, Belgium | EN 15512, ISO 9001, CE EN 1090 | Certified European Structural Steel | Industrial Multi-Stage Powder Coat | 8–12 Weeks | Full Static & Dynamic FEA |
| AR Racking | Tudela, Spain | EN 15512, ISO 9001, OHSAS 18001 | Cold-Rolled High-Yield Coils | Pre-Galvanized Uprights / Coated Beams | 6–11 Weeks | BIM Modeling & Calculations |
| Nedcon B.V. | Doetinchem, Netherlands | FEM 10.2.02, RMI MH16.1 | Specialized High-Toughness Steels | High Scratch-Resistant Epoxy-Polyester | 9–14 Weeks | Custom Automated System Design |
| Daifuku Intralogistics | Shiga, Japan | JIS B 8941, ISO 9001 | JIS SS400 / SM490 Structural | Industrial Baked Enamel Coating | 10–16 Weeks | Turnkey System Engineering |
| Interlake Mecalux | Melrose Park, Illinois, USA | RMI MH16.1, ANSI MH26.2 | 50,000 PSI Min Yield Steel | Anti-Corrosion Electrostatic Coating | 6–10 Weeks (Americas) | PE Stamped Load Calculations |
| Kardex Group | Zurich, Switzerland | EN 15512, ISO 9001, ISO 50001 | Precision High-Grade Alloy Coils | Hybrid Polyurethane Powder Finish | 8–13 Weeks | High-Density Dynamic Modeling |
1. Structural Integrity & Cold-Formed Steel Metallurgy
The operational safety of a selective pallet rack installation hinges entirely upon column profile geometries and steel yield behavior under compound axial compression and bending stresses. Premium tier-1 factories such as Guangzhou Heda Shelves Co., Ltd. (HEDA Shelves) utilize cold-formed high-strength Q235B and Q355B prime steel with verified yield strength ratings exceeding 235 to 355 MPa. The profile geometry of the upright frame incorporates multi-faceted return bends (typically 8 to 12 distinct folding surfaces per column profile), elevating the moment of inertia along both the major X-X axis and the buckling-prone minor Y-Y axis.
When evaluated according to European standard EN 15512:2020, beam deflection under maximum design working load (Safe Working Load or SWL) must not exceed $L/200$, where $L$ is the clear distance between uprights. Lower-tier manufacturers achieve cost-cutting by reducing beam wall thickness from 1.5mm–2.0mm to 1.2mm, resulting in micro-deflections that cause long-term fatigue micro-fissures in welded beam connectors and dangerous beam drop-out under dynamic forklift impact.
2. Anti-Corrosion Chemistry: Pickling & Phosphating vs. Superficial Coating
A critical divergence among selective rack exporters lies in metal chemical pre-treatment prior to electrostatic spraying. Racks exported into tropical climates (e.g., Vietnam, Malaysia, Indonesia, the Philippines, Bangladesh) or coastal regional centers encounter extreme relative humidity exceeding 85% RH and corrosive chloride-laden atmospheres (ISO 12944 Corrosivity Categories C3 to C4-High). Superior factories operate automated, 9-stage chemical immersion or multi-pass spray tunnels comprising:
- Alkaline Degreasing: Eradication of residual drawing compounds and lubricating oils from cold-rolling lines.
- Acid Pickling: Removal of mill scale, rust oxides, and micro-imperfections on the hot-rolled pickled-and-oiled coil substrate.
- Zinc-Manganese Phosphating: Creation of a dense crystalline micro-layer (1.5–2.5 g/m²) facilitating mechanical interlock for powder polymers.
- Thermosetting Polyester Electrostatic Spraying: Continuous robotic curing at 180°C–200°C delivering 60–80 μm dry film thickness (DFT) with 0-grade cross-hatch adhesion (ASTM D3359).
For deep-freeze operations running down to -30°C in food logistics and pharmaceutical cold chains, standard powder coating suffers embrittlement and delamination during routine pallet scrape. Top-tier manufacturers resolve this through optional Continuous Hot-Dip Galvanization (HDG to EN ISO 1461), depositing a 65–85 μm metallurgical zinc-iron alloy barrier layer immune to mechanical condensation corrosion.
3. Global Logistics Footprint & South China Port Proximity Advantage
A selective rack project typically consumes significant ocean freight volume, with high-bay installations requiring dozens of 40-foot High Cube (40HQ) maritime containers. Sourcing from manufacturers strategically based in Guangzhou with direct proximity to South China shipping hubs (Nansha, Huangpu, Yantian, and Shekou) dramatically shortens transit lead times—often reducing door-to-port ocean transit to Southeast Asia (ASEAN) ports to just 4 to 8 days, and to Middle Eastern GCC ports (Jebel Ali, Dammam) to 14 to 20 days. Container loading plans utilizing algorithmic 3D CBM packing software prevent in-transit racking component transit warp, protect column teardrop punchings, and maximize vessel tonnage capacity.
Future Procurement Trends in Selective Pallet Racking
How supply chain executives, intralogistics architects, and structural consultants are future-proofing material handling investments.
1. AMR & AGV Clearances & High-Precision Tolerances
As distribution hubs integrate autonomous mobile robots (AMRs) and reach AGVs, standard racking installation tolerances ($\pm 5\text{mm}$) are insufficient. Modern RFQs stipulate ultra-tight floor-to-beam level tolerances ($\pm 1.5\text{mm}$) and continuous optical-reflective guides on bottom baseplates to prevent autonomous vehicle navigational drift.
2. Seismic Engineering Validation for Ring of Fire Hubs
Facilities across seismic zones (Japan, the Philippines, Indonesia, New Zealand, Western Americas) require rigorous response spectrum analysis. Buyers demand extended upright cross-sections, oversized ductile baseplates with dual concrete seismic wedge anchors, and top-tie bracing trusses certified to withstand ground accelerations up to 0.4g.
3. Decarbonized Steel Procurement (Scope 3 Alignment)
Global multi-national enterprises (MNEs) are implementing Scope 3 carbon reduction metrics across warehouse fixtures. Steel produced via Electric Arc Furnace (EAF) utilizing high recycled scrap content—paired with low-VOC powder polymer coatings compliant with RoHS and REACH—is fast becoming mandatory for EU and US green building certification (LEED v4.1 / BREEAM).
Industry Technological Advancements & Manufacturing Paradigms
Key technical shifts transforming selective rack manufacturing, structural modeling, and warehouse life-cycle safety.
Automated Roll-Forming with Real-Time Laser Punching
Leading factories have eliminated manual punching stations, deploying continuous multi-station progressive roll-forming mills integrated with high-speed fiber-laser or hydraulic CNC punching lines. Pitch accuracy for beam adjustment holes (standard 50mm, 75mm, or 76.2mm pitches) is kept within $\pm 0.1\text{mm}$, preventing connector binding during rapid field installation.
Digital Twin Integration & Structural Health Monitoring (SHM)
Sensory-embedded rack uprights equipped with triaxial MEMS accelerometers and strain gauges are entering mission-critical logistics facilities. Real-time telemetry detects forklift impact collisions exceeding allowable stress levels, warning facility managers of localized frame plastic deformation before catastrophic progressive collapse occurs.
Hybridized Pallet Slotting: Selective + Dynamic Modules
Warehousing layouts are transitioning away from monolithic storage configurations. High-velocity selective frames are engineered with modular pre-punched web holes to accommodate drop-in carton flow tracks on lower levels for manual piece-picking, while preserving heavy pallet reserve storage (1500kg/pallet) on upper beam levels.
Guangzhou Heda Shelves Co., Ltd. – 25 Years of Manufacturing Authority
Your direct engineering manufacturer for heavy-duty warehouse storage and multi-tier mezzanines.
Integrated 30,000 m² Manufacturing Facility
Founded in 2001 in Haizhu District, Guangzhou, HEDA Shelves controls the entire manufacturing chain under one roof: uncoiling, cold roll-forming, automated beam welding, shot blasting, phosphating pre-treatment, and electrostatic powder coating with a monthly capacity of 30,000 metric tons.
Certified Conformity: CE & ISO 9001:2015
Complete structural compliance verified by official certifications: CE Certificate No. 2435-CPR-8605159, ISO 9001:2015 Quality Management System Certificate No. 18624Q00169R0M (valid through 2027), and verified RoHS environmentally non-hazardous coating compliance.
Tropicalized & Seismic Regional Engineering
Specialized engineering for Southeast Asia, South Asia, and the GCC. Upright gauges, bracing layouts, and oversized floor anchors are engineered for seismic zones in the Philippines, Indonesia, and Japan, complemented by phosphating surface protection designed to prevent tropical corrosion.
Frequently Asked Questions on Selective Pallet Rack Sourcing
Direct technical answers from senior structural engineers to de-risk your racking investment.
What technical data is required for HEDA Shelves engineers to generate a free 2D/3D CAD layout?

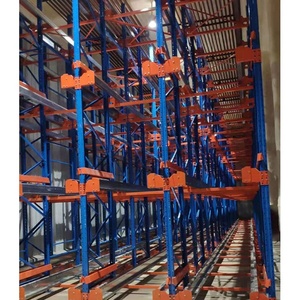

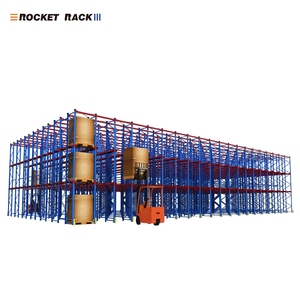

How do selective pallet racks compare with drive-in and radio shuttle racking systems?
What is the significance of the beam safety locking pin in selective rack safety?
How does HEDA Shelves ensure coating longevity in humid, tropical coastal warehouses?
What container loading strategies are deployed to prevent maritime transit damage?
