Factory-direct warehouse storage configurations engineered with certified Q235B/Q355B structural steel, high-durability electrostatic powder coating, and precision roll-formed upright profiles.
Engineered for extreme sub-zero (-30°C) environments with anti-corrosion galvanized roller tracks, dual braking controllers, and high-density gravity flow logic.

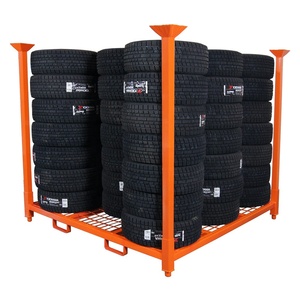

Heavy-duty portable post pallets designed for commercial vehicle tires and automotive spares with 4-way forklift entry and space-saving demountable uprights.

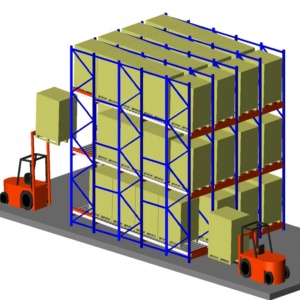

Full hot-dip galvanized frame structure fitted with continuous roller conveyors and separation separators for strict FIFO inventory rotation in FMCG distribution.
Single and double-sided structural columns with adjustable bolted arms, engineered for timber bundles, steel rebar, PVC pipes, and irregular industrial architectural stock.
Completely interchangeable North American teardrop pattern with 2-inch pitch adjustability, automatic safety plunger pin locking, and reinforced roll-formed step beams.
Deep-lane dynamic roller equipment designed with gentle gradient decline tracks, heavy-duty end stops, and anti-jam safety rollers for uninterrupted throughput velocity.
Boltless interlocking steel shelving units offering versatile height adjustability, corrosion-resistant electrostatic finish, and rapid assembly for multi-category picking.
High-strength 4-layer industrial shelving format with a rated 400 kg UDL per tier, custom stepped beams, and recessed steel panels for heavy manual item picking.
Choosing the optimal racking topology requires balancing volumetric storage density, forklift accessibility (selectivity), capital expenditure per pallet position, and throughput velocity.
| Racking Topology | Direct Selectivity | Space Utilization | Inventory Logic | Aisle Width (AST) | Typical Load Rating | Ideal Industry Use-Case |
|---|---|---|---|---|---|---|
| Selective Pallet Racking | 100% (Instant Access) | 40% – 50% | FIFO / LIFO Flexible | 3.0m – 3.8m (Counterbalance) | 1,000 – 4,500 kg / beam tier | High-SKU 3PL, Retail Distribution, Spare Parts |
| Very Narrow Aisle (VNA) | 100% (Instant Access) | 65% – 75% | Strict FIFO | 1.6m – 1.9m (Turret Truck) | 1,000 – 3,500 kg / beam tier | High land-cost hubs, E-commerce, Pharma |
| Drive-In / Drive-Through | 15% – 20% (Bulk Only) | 70% – 85% | LIFO (Drive-In) / FIFO | 3.0m – 3.2m (Lane Entry) | 1,000 – 1,800 kg / pallet slot | Cold Storage, Seasonal Stock, Raw Ingredients |
| Pallet Flow (Gravity Live) | Lane Face Only | 75% – 85% | Strict FIFO | 3.2m (Loading & Discharge) | 500 – 1,500 kg / pallet | Fast-Moving Food & Beverage, Perishables |
| Push-Back (Cart/Roller) | Per-Lane Face | 65% – 75% | LIFO | 3.0m – 3.4m | 800 – 1,400 kg / position | Medium batch manufacturing, staging docks |
| Radio Shuttle System | High Density Semi-Auto | 80% – 90% | Programmable FIFO / LIFO | 3.0m (Transfer aisles only) | 1,000 – 2,000 kg / position | Automated cold stores, FMCG buffers, Meat plants |
| Heavy Duty Cantilever | 100% Linear Face | Variable (Linear) | Direct Crane / Forklift | 3.5m – 4.5m | 500 – 3,000 kg / arm | Steel pipes, extrusions, timber, drywall panels |
| Rack-Supported Mezzanine | 100% Floor & Rack | 150% – 250% (Multi-Tier) | Multi-Level Access | Stairways / Chutes / Lifts | 300 – 1,000 kg / m² deck | Small-part picking, garment sorting, B2C DCs |
Engineering Note: Structural beam deflection calculations are governed by FEM 10.2.02 and EN 15512 in European and international jurisdictions, requiring maximum beam deflection under safe working load (SWL) not to exceed L/200 (or L/300 for automated shuttle runs). In North American facilities compliant with ANSI MH16.1, allowable deflection is calibrated to L/180.
Warehouse racking is transitioning from static steel fixtures into dynamic, cyber-physical logistics infrastructure engineered for robotic convergence, automated tracking, and high-tensile material efficiency.
Modern racking configurations are precision-engineered with tight tolerances (±1.0mm) to accommodate Autonomous Mobile Robots (AMRs), Automated Guided Vehicles (AGVs), and high-bay AS/RS cranes without mechanical jam points.
Automation CompatibilityTransition from standard carbon steel to high-strength, low-alloy (HSLA) micro-alloyed steels reduces structural frame self-weight by 12–18% while simultaneously increasing upright buckling limits and dynamic seismic performance.
Material OptimizationNext-generation installations incorporate fiber-optic or piezo strain gauges mounted inside critical upright bases. These provide real-time telemetry on beam deflection, seismic oscillation, and forklift collision damage directly into WMS/ERP dashboards.
Smart TelemetryHeavy zinc-nickel and non-toxic chromate-free phosphating pre-treatments guarantee over 1,000 hours of continuous ASTM B117 salt-spray resistance, ensuring critical corrosion survival in humid Southeast Asian and coastal marine warehouses.
Extreme LongevityProcurement heads are revising capital allocation strategies to focus on modular scalability, cross-standard interchangeability, seismic compliance verification, and landed Total Cost of Ownership (TCO).
Smart buyers evaluate the 10-year lifecycle cost rather than bare FOB steel rates. High-grade electrostatic finishes, rolled safety flanges, and impact-resistant upright base boot protectors drastically lower operational downtime and maintenance cost.
Lifecycle StrategyProcurement teams demand cross-compatible profile geometry (such as teardrop punch profiles for North America and 50mm/75mm Euro-patterns for EMEA and APAC), guaranteeing rapid expansion capability without vendor lock-in.
Interchangeable ToolingIncreasing natural disaster volatility in Japan, the Philippines, Indonesia, and the US West Coast makes verified PE (Professional Engineer) structural calculations (EN 16681 / AS 4084 / IBC 2024) a prerequisite for project tenders and municipal permits.
Regulatory ComplianceFactory-engineered 3D container packing simulations maximize freight volume inside 40ft High Cube containers. Nesting upright frames and bundle-packed boxed step beams cuts landed logistics cost per pallet by up to 26%.
Optimized LogisticsFounded in Guangzhou in 2001, Guangzhou Heda Shelves Co., Ltd. has grown into one of Asia's preeminent direct manufacturers of heavy-duty industrial pallet racking, automated shuttle warehouses, and multi-tier structural mezzanine floors.
Over two decades of precision roll-forming, structural design, and international warehouse logistics turnkey delivery.
Integrated Guangzhou factory housing automated continuous punching lines, CNC roll formers, and robotic welding cells.
Massive raw steel coil processing volume guaranteeing on-time fulfillment of large-scale logistics hub development contracts.
Trusted supplier across Southeast Asia (Vietnam, Thailand, Malaysia, Indonesia), GCC Middle East, Europe, and the Americas.
Every component is fabricated under strict ISO 9001:2015 protocol with end-to-end traceability from coil receipt to dispatch.
Compliance is verified through third-party mechanical stress test reports, finite element load analysis, and accredited global manufacturing certifications.
Certificate No. 2435-CPR-8605159 for factory production control and structural steel stability.
Certificate No. 18624Q00169R0M verifying end-to-end quality assurance across fabrication lines.
Eco-friendly, heavy-metal-free electrostatic powder coatings compliant with EU directives.
Physical yield strength, stub-column buckling, and weld seam tensile testing reports.
Direct, highly technical answers covering structural engineering parameters, international building code compliance, seismic engineering, and global logistics execution.
To deliver an actionable layout and capacity calculation within 24 to 48 hours, our structural engineering team requires: (1) Architectural DWG/CAD floor plan detailing internal building column grids, dock positions, and egress paths; (2) Clear internal warehouse height to the lowest overhead obstruction (sprinkler headers or roof joists); (3) Pallet specifications including overall dimensions (W × D × H including cargo overhang) and maximum gross weight per pallet; (4) Material Handling Equipment (MHE) specifics, primarily forklift model, maximum mast lift elevation, and Minimum Right-Angle Stacking Aisle Width (Ast); and (5) Expected daily operational throughput and SKU velocity (FIFO vs. LIFO requirements).
For seismic regions classified under IBC (International Building Code) Seismic Design Categories D, E, or F, and Eurocode 8 / EN 16681, we run advanced dynamic response spectrum analyses. Modifications include: increasing steel section thickness (upgrading from 1.5mm/1.8mm to 2.0mm–2.5mm Q355B high-tensile steel), widening column profiles from 90mm to 120mm, engineering oversized heavy-gauge baseplates with dual concrete expansion or chemical capsule anchor bolts (Hilti/Fischer), and reconfiguring diagonal/horizontal spine-frame bracing arrays to dissipate lateral kinetic earthquake loads safely into the foundation slab.
All structural members are fabricated using certified hot-rolled coil structural carbon steels complying with Q235B (yield strength ≥ 235 MPa, equivalent to ASTM A36) and Q355B (yield strength ≥ 355 MPa, equivalent to ASTM A572 Grade 50). Structural safety factors strictly adhere to FEM 10.2.02 and ANSI MH16.1 standards, providing a minimum 1.5 to 1.65 factor of safety against yield stress under full uniform distributed loads (UDL). Physical tensile test certificates and mill metallurgical heat numbers accompany every export batch.
For standard ambient warehouses, components undergo an 8-stage automated pre-treatment (degreasing, acid pickling, zinc phosphating) followed by thermosetting polyester powder coating baked at 180°C–200°C (DFT 60–90 μm). For blast freezers and cold storage down to -30°C where moisture condensation and steel embrittlement are severe, as well as marine coastal sites, we supply full Hot-Dip Galvanizing (HDG) to EN ISO 1461, yielding a 55–85 μm metallurgical zinc alloy barrier that prevents rust propagation even when scratched by forklift tines.
Selective Racking offers the lowest initial CapEx per pallet ($45–$70/position) and 100% immediate selectivity, but consumes up to 60% of floor space in forklift aisles. Drive-In racking slashes aisle space and increases density by 75% at a moderate CapEx ($80–$110/position), but suffers higher forklift collision damage and slower cycle times. Radio Shuttle racking incurs higher initial investment ($150–$240/position including shuttle carriers), but delivers maximum density (85%+ floor footprint use), zero forklift in-rack damage, accelerated throughput, and significant energy savings in cold rooms by reducing total chilled cubic airspace.
Yes. As a primary manufacturer with in-house CNC tooling and cold roll-forming design capabilities, we routinely execute OEM/ODM contracts for international system integrators and distributors. We can roll-form proprietary upright slot geometries (including 50mm, 75mm, 76.2mm, and North American teardrop configurations), engineer matching beam end connectors (3-claw, 4-claw, or safety pin designs), match custom corporate RAL powder colors, and apply private-label silk screening or laser-cut branding onto upright face plates.
Every international shipment is accompanied by comprehensive, project-specific 3D assembly shop drawings, component color-coded maps, anchor bolt torque charts, and permissible plum-line installation tolerances (±L/500 total column verticality according to EN 15635). For turnkey mega-projects across Southeast Asia, Central Asia, and the GCC Middle East, HEDA can dispatch senior bilingual site installation supervisors or deploy fully equipped local contractor teams to oversee leveling, plumb alignment, torque verification, and safety load sign-off.
Standard production lead times range from 15 to 25 business days depending on tonnage and coating requirements. We utilize computerized 3D container packing software to engineer load distribution for 40ft High Cube containers. Upright frames are nested with protective corrugated separators and steel strapping; beams are timber-dunnaged in strapped bundles; and hardware/baseplates are crated in export wooden pallets. Strategically situated in Guangzhou, shipments sail directly from Nansha or Huangpu ports, achieving rapid 5–10 day transit times to ASEAN ports and 15–22 days to the Middle East and Europe.
Submit your warehouse layout drawings or storage capacity targets. Our senior structural engineers will generate a complimentary 2D CAD architectural floor plan, 3D photorealistic rendering, and complete structural steel load calculation within 24 to 48 hours.
