Small-Footprint Industrial Racking Systems
Manufactured from high-tensile Q235B/Q355B structural steel, our compact footprint racking systems deliver up to 180% volumetric storage increases in facilities ranging from 200 m² to 5,000 m².

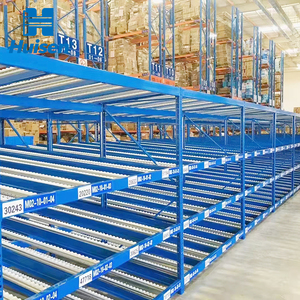

Dynamic FIFO
Utilizes inclined roller beds and speed controllers for automatic pallet progression. Perfect for high-density buffer storage in small food, pharmaceutical, and cold chain distribution centers.

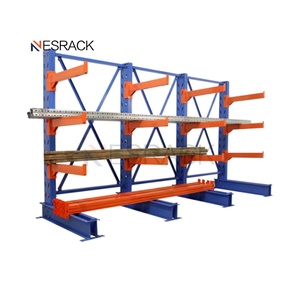

Long Goods
Eliminates front column constraints to store timber, PVC extrusions, steel tubing, and sheet materials within compact workshop footprints and industrial supply shops.

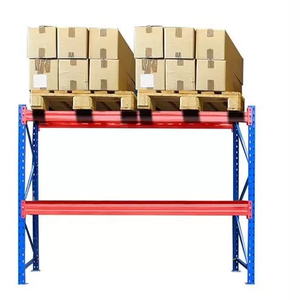

100% Selectivity
The gold standard for multi-SKU inventory in fast-moving small warehouses. Provides instantaneous direct pallet access without secondary movement handling penalties.

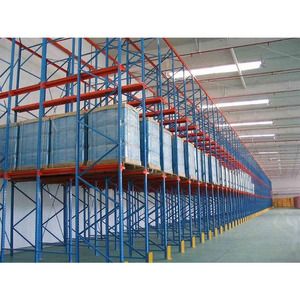

High Density FILO
Eliminates interior operating aisles by allowing lift trucks to drive directly into pallet lanes. Minimizes expensive refrigerated cubic volume consumption in micro cold rooms.

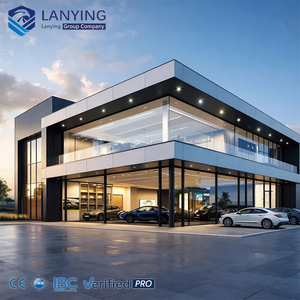

Prefab Structure
Modular, pre-engineered portal steel frames designed for fast on-site erection. An all-in-one building envelope solution for workshop additions, depot storage, and equipment garages.

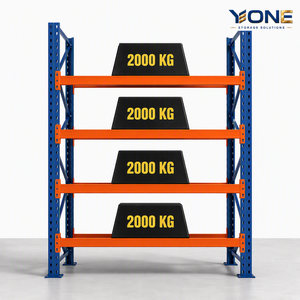

Modular Boltless
Interlocking beam connectors with integrated safety pins ensure zero-tool height adjustments. Designed for growing factory storage requiring ongoing bay reconfiguration.
Automated Micro-ASRS
High-precision racking designed for automated shuttle cranes and robotic picking arms. Maximizes ceiling height in compact electronics, pharma, and hardware kitting depots.
Manual Longspan
Heavy duty hand-loaded shelving with powder coated finishes. Engineered for carton picking, tool storage, and intermediate maintenance inventories in regional branches.
Why Global System Integrators Source OEM/ODM Racking From HEDA
For over two decades, Guangzhou HEDA Shelves Co., Ltd. has bridged the gap between heavy structural engineering precision and flexible custom manufacturing. We supply private-label racking distributors, engineering contractors, and multi-national supply chain operators worldwide.
Continuous Automated Roll-Forming
Equipped with 36 automated rolling profile lines, CNC multi-head punches, and automated robotic CO2 shield welders. We form upright posts up to 12 meters with zero longitudinal seam deviation, maintaining hole pitch tolerances within ±0.1mm for perfect field boltless assembly.
Dual International Certification
Full conformance to European standard EN 15512:2020, American RMI MH16.1, and Australian AS4084-2023. We hold verified factory CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management Accreditation, and RoHS-compliant heavy-metal-free thermoset powder coatings.
10-Stage Surface Treatment
Unlike budget fabricators that skip vital chemical prep, every HEDA component undergoes hot alkaline degreasing, twin acid pickling, zinc phosphate crystallization, and reverse-osmosis passivation before electrostatic polyester powder application. Cured at 200°C for superior corrosion and impact resistance.
Free 24–48h CAD & 3D Engineering
Our 30+ senior structural engineers analyze your clear roof heights, architectural column grids, floor slab concrete psi ratings, and forklift turning radiuses. Receive comprehensive 2D CAD floor configurations, 3D photorealistic renderings, and weight loading calculations at zero cost.
Precision Export Container Packing
Exporting to 120+ nations demands specialized shipping packing logic. We build customized heavy-duty steel cradles, nested beam bundling, waterproof anti-scratch poly-wrapping, and strict 3D container loading simulation software that cuts ocean transit damage rates below 0.02%.
Turnkey OEM/ODM Private Labeling
We empower regional material handling equipment dealers with bespoke column punch profiles (standard 50mm, 75mm, or 76.2mm teardrop), custom RAL powder coating colors, stamped distributor branding on beam connectors, and neutral multi-lingual installation manuals.
The Small Warehouse Paradox: Engineering Volumetric Cube Density
Urban real estate constraints force modern supply chains into smaller peripheral footprints. Here is how structural engineering resolves the tension between compact floor space and multi-SKU velocity.
| Racking Architecture | Floor Space Efficiency | SKU Selectivity Ratio | Aisle Clear Width Req. | Optimal Handling Unit | Small Facility Payback |
|---|---|---|---|---|---|
| Selective Pallet Racking | 40% – 50% | 100% (Instant Direct Access) | 3.0m – 3.5m (Reach / Counterbalance) | Multi-SKU Palletized Goods | 6 – 12 Months |
| Double-Deep Selective | 60% – 65% | 50% (Two-Deep FILO Access) | 2.8m – 3.2m (Pantograph Reach) | Medium Rotation SKUs (2–4 Pallets/Type) | 10 – 14 Months |
| Drive-In / Drive-Thru | 75% – 85% | 15% – 20% (Strict FILO/FIFO Lane) | 3.2m (Direct Bay Ingress) | Bulk Identical SKUs, Cold Chain | 12 – 18 Months |
| Radio Shuttle System | 80% – 88% | Channel Selective (Automated) | 2.6m – 2.8m (Shuttle Host Level) | High-Volume Seasonal / FMCG | 14 – 20 Months |
| Rack-Supported Mezzanine | 150% – 200% (Usable) | 100% (Multi-Tier Floor Levels) | 1.0m – 1.8m (Pedestrian / Trolley) | E-commerce Piece Picking, Bins, Totes | 8 – 15 Months |
| Mini-Load ASRS System | 85% – 92% | 100% (Robotic Crane Extractor) | 1.1m – 1.4m (Dedicated Crane Track) | Micro-Components, High-Value Pharma | 18 – 28 Months |
1. Structural Steel Metallurgy & Cold-Forming Integrity
Small warehouses frequently push structural racking to maximum permissible slenderness ratios ($L/r$) because building columns and doorways limit upright placement. At HEDA Shelves, uprights are profiled from high-tensile hot-rolled strip steel, cold-formed into omega or multi-rib profiles with a minimum yield point ($\sigma_s$) of 235 to 355 MPa.
Continuous CNC laser alignment governs upright multi-stage roll tooling. This ensures upright web-flange angles do not experience localized micro-fissures during cold deformation. In accordance with EN 15512 safety limit state analysis, beam-connector stub calculations incorporate partial load factor coefficients ($\gamma_M \ge 1.4$), delivering safe operation even under accidental mast impacts from small counterbalance forklifts operating in narrow aisles.
2. Floor Loading, Soil Mechanics & Baseplate Distribution
Small commercial industrial units often feature slab-on-grade concrete foundations with unknown reinforcement or thicknesses ranging from only 120mm to 180mm. Concentrated point loads from tall, narrow upright frames can exceed the punch shearing capacity of non-reinforced industrial slabs.
Our engineering services include baseplate load distribution calculations. By increasing baseplate dimensions from standard $100 \times 100 \times 4\text{mm}$ plates up to $180 \times 200 \times 10\text{mm}$ stiffened configurations and specifying high-performance chemical capsule anchors (M12 to M16) with controlled embedment depths, we guarantee concrete point stresses remain safely below 20–25 MPa compressive strength thresholds.
Future Procurement Trends in Small Warehouse Storage (2025–2030)
How progressive procurement directors and third-party logistics (3PL) operators are future-proofing space-constrained distribution centers against rising urban land premiums.
1. Convergence of AMR Fleets with Static Racking
Autonomous Mobile Robots (AMRs) are rapidly displacing traditional reach trucks in spaces under 3,000 m². Forward-thinking buyers are procuring rack configurations featuring extra-low bottom clearance beams, recessed upright baseplate fixings, and floor-level magnetic navigation lanes that allow sorting robots to travel beneath pallet positions.
2. Rack-Supported Mezzanine Floors Over Greenfield Builds
Rising land lease rates in inner-city industrial rings have caused a shift away from leasing larger buildings toward double or triple-tier rack-supported mezzanines. By utilizing upper structural steel members to carry timber or galvanized open-mesh flooring, operations achieve a 200% floor expansion without civil planning permits.
3. Extreme Climate & Coastal Corrosion Resistance
Micro-fulfillment hubs across Southeast Asia, the Pacific, and the Middle East face high heat and coastal humidity. Procurement mandates have shifted from standard decorative paints to heavy-duty pre-treatments. HEDA’s dual pickling and phosphating lines offer 500+ hour salt-spray test endurance for damp environments.
4. Modular Reconfigurable "Lego-Style" Frameworks
E-commerce order volatility requires flexible shelving that can shift between pallet storage, carton flow beds, and bin shelving without burning steel or cutting columns. Modern small warehouse operators specify teardrop and diamond-slot modular uprights capable of 50mm incremental reconfigurations.
5. Full Seismic Certification Verification
Building codes in earthquake-prone countries such as New Zealand, Japan, the Philippines, and Chile now enforce strict seismic reviews for free-standing industrial racking over 2.5 meters. Importers demand certified load calculations, cross-aisle portal bracing, and seismic footplates that pass municipal permits.
6. Factory Direct OEM Sourcing with Zero Middleman Markup
Supply chain shocks have pushed engineering buyers to bypass regional trading distributors and engage directly with original equipment manufacturers. By sourcing direct from HEDA in Guangzhou, buyers save 20% to 35% on equipment costs while retaining direct control over steel grade certifications.
Small Warehouse Racking Procurement FAQ
Clear technical answers addressing load calculations, installation logistics, international certifications, and custom manufacturing terms.
What precise structural data do your engineers require to create a free warehouse layout?
- Building Footprint: Architectural CAD drawing or dimensioned sketch indicating outer walls, clear ceiling height to the lowest obstruction (sprinklers, HVAC ducts, lighting), column grid positions, and overhead roll-up doors.
- Pallet Specification: Width, depth, total laden height including cargo, and maximum gross pallet weight.
- Material Handling Equipment: Forklift make, model, mast collapsed height, maximum lift height, and turning radius (Ast).
- Floor Slab Condition: Concrete slab thickness (mm), approximate compressive strength (e.g., C20/25, 3000 psi), and flatness tolerance.
How does HEDA prevent upright racking from toppling in narrow small warehouse aisles?
- Top-Tie Portal Beams: Heavy-gauge structural box sections bridging across operating aisles to bind opposing rows into a rigid cross-braced unit.
- Extended Seismic Baseplates: Heavy gauge baseplates ($150 \times 200 \times 8\text{mm}$ to $12\text{mm}$) double-anchored with mechanical torque-controlled expansion or chemical anchor studs.
- Row Spacers with Diagonal Bracing: Back-to-back rack runs are linked with solid steel row spacers at every frame node, resisting both lateral overturning and transverse sway moments.
What steel grades are used, and can you supply verified mill test certificates (MTC)?
How does your factory protect against scratching, bending, and moisture corrosion during ocean transit?
- Upright Frames: Nested in custom heavy-duty steel cradles, separated by corrugated cushioning and strapped with steel bands to prevent transit shift.
- Beams: Bundled in counts of 20 to 50 using protective corner edge-boards, wrapped in heavy-duty polyethylene stretch film to prevent water contact.
- Small Hardware: High-tensile grade 8.8 bolts, safety pins, and shims are sealed in moisture-proof cartons and palletized.
- Desiccant Deployment: High-absorption calcium chloride desiccant bags are distributed across every 20GP or 40HQ container to eliminate condensation rust.
Can you produce private-label custom racking components matching our existing system?
What is the standard production lead time and typical ocean transit for regional markets?
- Southeast Asia (Singapore, Port Klang, Manila, Bangkok, Ho Chi Minh): 4 to 9 Days
- Middle East & Gulf (Dubai Jebel Ali, Dammam, Doha): 14 to 20 Days
- Europe & UK (Rotterdam, Hamburg, Felixstowe): 28 to 35 Days
- North America (Los Angeles, Long Beach, Vancouver): 14 to 18 Days
- Australia & New Zealand (Sydney, Melbourne, Auckland): 12 to 18 Days
Request Your Custom Warehouse Layout & Engineering Quote
Send our Guangzhou engineering team your warehouse dimensions, ceiling heights, and pallet parameters. Receive an optimized 2D CAD floor plan, 3D structural model, and detailed price breakdown within 24 hours.
