Single deep selective pallet racking represents the foundational backbone of contemporary global supply chain operations. Offering unhindered 100% immediate accessibility to every stored Stock Keeping Unit (SKU), it serves as the universal baseline against which all automated and high-density intralogistics systems are benchmarked. As an established OEM/ODM manufacturer with over two decades of metallurgical and roll-forming mastery, Guangzhou Heda Shelves Co., Ltd. approaches single deep racking not merely as assembled structural steel, but as a critical civil and mechanical structural subsystem subject to dynamic stress vectors, Eulerian buckling thresholds, and seismic harmonic oscillations.

1. Metallurgical Formulations and Cold-Formed Structural Profiles

The structural efficacy of industrial pallet racking begins at the steel coil level. HEDA standardizes on prime certified hot-rolled and cold-rolled structural sheet steels, predominantly Q235B and high-tensile Q355B (equivalent to European S235JR and S355JR / ASTM A572 Grade 50). Using multi-stage computer numerical controlled (CNC) continuous roll-forming lines, our upright columns undergo precise cold working, inducing strain hardening that substantially elevates the yield strength beyond nominal raw mill values.

Upright column cross-sections utilize an optimized Omega profile featuring multi-bend stiffeners along the web and flanges. This multi-faceted closed-geometry profile dramatically inhibits torsional-flexural buckling under combined axial compressive gravity loads and eccentric lateral loads. Upright perforations (available in teardrop, hexagonal, or diamond pitch variants at 50mm, 75mm, or 76.2mm spacing) are cold-punched prior to profile roll-forming to ensure absolute pitch uniformity and zero micro-fracturing along load-bearing connector seats.

2. Connection Dynamics and Moment-Resisting Beam Hooks

In selective single deep racking, systemic frame stability relies upon the beam-to-column semi-rigid connection. Rather than pinned joints, HEDA utilizes robotic precision-welded connector brackets stamped from heavy-gauge alloy plates (3.0mm to 4.5mm thickness) configured with 3, 4, or 5 precision-tapered claws. As downward vertical loads increase, the tapered engagement induces a wedging moment that stiffens the frame against longitudinal sway.

Box beams and step beams are formed via dual interlocking C-channels continuously seam-welded utilizing automated robotic CO2 shielded arc welding. Every connection is secured with electro-galvanized spring safety lock pins engineered to withstand an upward unseating shear force exceeding 5,000 N, preventing accidental beam dislodgement during rapid forklift mast maneuvering.

Comparative Performance Matrix: Warehouse Racking Modalities

The manufacturing of single deep selective pallet racking has evolved from labor-intensive mechanical stamping to automated cyber-physical production environments. Guangzhou Heda Shelves Co., Ltd. continuously invests in frontline industrial metalworking machinery, setting industry benchmarks for dimensional accuracy and structural consistency.

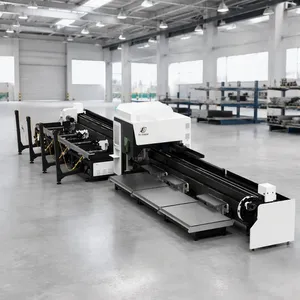

12,000-Watt Zero-Remnant Heavy-Duty Tube Laser Cutting

Traditional mechanical sawing and punch presses inevitably introduce localized stress concentrations, micro-burrs, and dimensional drift along beam endplates and bracing interfaces. HEDA utilizes advanced 12,000W zero-remnant three-chuck automatic crawler laser cutting systems. This heavy-duty tube laser profiles structural hollow sections (SHS/RHS) and open cold-formed sections with positional tolerances under ±0.1mm. Chamfers, weld-prep bevels, interlocking slots, and fastener apertures are executed in a single automated chuck setup, achieving 100% metallurgical repeatability across thousands of metric tons.

10-Step Automated Chemical Surface Preparation & Electrostatic Powder Coating

Coating delamination, pinholing, and subsurface oxidation represent devastating threats to warehouse asset longevity. Our in-house surface treatment eliminates human error via an enclosed continuous 10-step process line:

• Step 01–03 (Degreasing & Rinsing): High-pressure alkaline washing completely extracts rolling oils and protective greases from raw steel coils.
• Step 04–05 (Pickling & Acid Cleanse): Controlled acid immersion dissolves mill scale and surface oxides down to base substrate.
• Step 06–07 (Phosphating & Surface Passivation): A micro-crystalline zinc-iron phosphate conversion coating is deposited, establishing an impervious barrier layer and optimal molecular anchor profile.
• Step 08–09 (Electrostatic Powder Application): Environmentally certified, non-toxic, lead-free polyester powders (RoHS compliant) are applied using automated multi-gun reciprocating spray booths. Film thickness is uniform across complex upright profiles (60–90 μm).
• Step 10 (High-Bake Polymerization Curing): Components traverse a 200°C convective curing tunnel, cross-linking the polymer into an impact-resistant, scratch-proof, highly resilient industrial finish.
