Featured Industrial Storage & Pallet Racking Roster
Standardized modular components and fully custom roll-formed profiles manufactured from high-tensile Q235B and Q355B carbon steel. Rigorously tested under EN 15512 and RMI standards to ensure warehouse structural integrity.
Heavy Duty Warehouse Steel Pallet Racking System
- Bay Capacity: Up to 5,000 kg/tier
- Beam Profiles: 80–160mm Box Beams
- Finish: Thermoset Epoxy Powder (60-80μm)
Automatic Radio Shuttle Warehouse Storage Racking
- Throughput: 0.8–1.2 m/s travel speed
- Config: FIFO & LIFO High-Density
- Battery: Lithium LiFePO4, 8-10hr Shift
5-Layer Heavy Duty Industrial Beam Shelving Rack
- Shelf Load: 500–1,200 kg/tier uniform
- Pitch Adjustment: 50mm / 75mm slotted
- Decking: Galvanized steel / wire mesh
Light Duty Industrial Wire Shelving Rack System
- Payload: 150–250 kg per wire deck tier
- Airflow & Light: 72% open area for ESFR
- Surface: Chrome-plated / Zinc epoxy

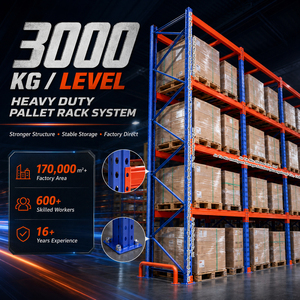

4-Level 3000KG Heavy Duty Warehouse Pallet Rack
- Safe Working Load: 3,000 kg per level
- Safety Factor: 1.5 Safety Factor (FEM/RMI)
- Locking: 5-Pin automatic safety pin
Long Span Industrial Metal Storage Shelving Racks
- Span Width: 1,500mm – 2,700mm
- Loading: 200–800 kg per shelf level
- Assembly: Boltless interlocking teardrop
Modular Mezzanine Floor Platform Rack System
- Floor Loading: 300–1,200 kg/m²
- Tiers: 2, 3, or 4 Levels Multi-Tier
- Decking: Perforated steel / B-Decking
High-Density Drive-In Racking for Chemical Warehousing
- Space Utilization: Up to 85% footprint saving
- Structural Guard: Heavy floor-mounted guide rails
- Corrosion: Hot-Dip Galvanized / Chemical Epoxy
Structural Metallurgy, Tolerances, and Roll-Forming Physics
How Guangzhou Heda Shelves Co., Ltd. eliminates systemic failure risks in high-bay logistics facilities through stringent metallurgical selection, finite element load simulation, and automated multi-station profiling.
Certified Metallurgy: Q235B vs. Q355B
Unlike low-grade commercial hot-rolled sheet, all structural uprights and load beams manufactured at our Guangzhou production hub utilize premier cold-rolled prime coil steel (conforming to GB/T 700-2006, equivalent to ASTM A36 and EN 10025 S235JR/S355JR). Steel sheets exhibit guaranteed yield strengths ($R_{eH} \ge 235 \text{ MPa}$ for Q235B, and $R_{eH} \ge 355 \text{ MPa}$ for Q355B heavy frames), providing fracture toughness against cyclic forklift impact shock loads.
- Continuous mill certificate traceability (MTR per EN 10204 3.1)
- Carbon equivalent (CEV) below 0.38% for superior weld ductility
Deflection Limits & Structural Safety Factors
Per EN 15512 (European Racking Code) and RMI Specification MH16.1, horizontal cross-beam deflection under maximum working uniform load is engineered not to exceed $L/200$ (where $L$ is horizontal beam span clear distance). For automated AS/RS and Radio Shuttle channels, this deflection threshold is engineered to $L/300$ or $L/400$ to avoid automated carrier wheel bind.
- Global structural safety factor calibrated at $\gamma_F = 1.4 \sim 1.5$
- Integrated auto-locking safety spring pins prevent dislodgement
Pre-Treatment & Anti-Corrosion Chemistry
Standard warehouse paint failures stem from substandard surface degreasing. HEDA enforces an industrial 8-stage pre-treatment line featuring ultrasonic degreasing, acid pickling, zinc-iron phosphating, and deionized water rinsing prior to electrostatic powder coating. This ensures molecular chemical cross-linking of the polyester epoxy thermoset powder.
- Surpasses 500-hour ASTM B117 neutral salt spray standards
- Hot-Dip Galvanizing (ISO 1461, 85μm+) for marine / cold store
| Storage Racking Category | Typical Payload / Level | Clear Bay Span Range | Floor Footprint Utilization | Access Selectivity | Compatible Standards |
|---|---|---|---|---|---|
| Selective Pallet Racking | 1,000 kg – 4,500 kg | 1,300 mm – 3,900 mm | 40% – 50% | 100% Immediate (Direct) | EN 15512, RMI, AS 4084 |
| Radio Shuttle System | 500 kg – 2,000 kg/pallet | Deep channel up to 60m | 80% – 88% | Batch FIFO / LIFO | CE Machinery Directive, ISO 9001 |
| Drive-In / Drive-Through | 800 kg – 1,800 kg/pallet | Custom pallet width + 150mm | 75% – 85% | LIFO (Drive-In) / FIFO (Drive-Thru) | FEM 10.2.02, OSHA Guidelines |
| Multi-Tier Mezzanine | 300 kg – 1,200 kg / m² | Beam grid 3.0m × 6.0m | 200% – 300% (Vertical Duplication) | 100% Walk-Up Pick | AISC 360, EN 1993 Eurocode 3 |
| Industrial Longspan Shelving | 200 kg – 800 kg / shelf | 900 mm – 2,400 mm | 55% – 65% | 100% Hand Pick | ANSI MH28.2, CE Certified |
Every customized OEM/ODM industrial racking order is routed through our internal structural calculation module. Upright perforations produce non-uniform stress concentrations under eccentric forklift loads. Using ANSYS non-linear static buckling models, we calculate the effective cross-sectional moment of inertia ($I_x, I_y$) and verify upright frame stability under local seismic coefficient zones ($S_s, S_1$), preventing localized column buckling before roll-forming starts.
Why EPC Contractors & Global Brands Partner with HEDA
Founded in 2001 in Guangzhou, China, Guangzhou Heda Shelves Co., Ltd. has grown from an automated roll-forming shop into an international storage manufacturing facility spanning 30,000 square meters.
25+ Years Industrial Heritage
Over two decades of production mastery. We have weathered market supply-chain cycles and delivered over 10,000+ completed logistics projects across 120+ countries, maintaining client retention among regional distributors.
30,000 m² Integrated Facility
Consolidated manufacturing campus housing 18 automated cold roll-forming lines, 6-axis robotic welding cells, continuous CNC column punching presses, and dual automated electrostatic powder coating loops.
30,000-Ton Monthly Output
Industrial throughput capable of processing high-volume steel orders for 50,000-square-meter fulfillment centers without lead-time degradation. Guaranteed ship schedules directly from South China shipping ports.
Turnkey OEM/ODM Capability
We provide complete white-label manufacturing: bespoke roll dies, proprietary upright punch geometries (50mm, 75mm, 76.2mm teardrop), specialized RAL color matching, and container packing optimization.
Year Established in Guangzhou
Heavy Production Facility Footprint
Monthly Processing Capacity
Export Sovereign Jurisdictions
10-Step In-House Production & Dimensional Quality Control
From raw hot-rolled carbon steel coil inspection to containerized sea-freight packing, every component undergoes strict dimensional tolerance verification.
Raw Materials Coil QA
Precision Slitting
CNC Column Punching
Cold Roll-Forming
Profile Calibration
Deburring & Polishing
Robotic Shielded Welding
Acid Pickling & Phosphating
Electrostatic Powder Cure
Final QA & Palletizing
Fully Verified for Global Structural Compliance
International tenders demand third-party validation. HEDA maintains up-to-date compliance certificates to streamline customs clearance, municipal fire approvals, and civil structural building permits across North America, Europe, Australia, and the Middle East.
- CE Certification: Construction Products Regulation No. 2435-CPR-8605159
- ISO 9001:2015: Quality Management System Certificate No. 18624Q00169R0M
- RoHS Compliance: Non-toxic, heavy-metal-free industrial coatings
Future Procurement Trends in Industrial Storage (2025–2030)
Navigating the convergence of robotics, volatile steel pricing, strict environmental mandates, and land cost inflation in major global distribution nodes.
1. Hybridization with Autonomous Mobile Robots (AMR) & Shuttles
Procurement is pivoting away from static wide-aisle pallet systems toward hybrid automated configurations. 4-Way Radio Shuttle carriers running on roll-formed profiles and AMR-compatible floor layouts are overtaking traditional reach-truck lanes. Procurement engineers must specify tight millimetric track levelness tolerances (within $\pm 1.5 \text{ mm}$ per 10m run) to support laser-guided autonomous navigation.
2. Heightened Seismic Performance & Ductile Connections
Recent revisions to regional seismic codes (e.g., Eurocode 8, ASCE 7-22, New Zealand NZS 3404) demand dynamic spectral acceleration assessments. Future procurement frameworks mandate that upright bases feature ductile energy-dissipating base plates, anchor embedment calculations (ACI 318 Chapter 17), and heavy spine-bracing nodes to mitigate progressive warehouse collapse.
3. Decarbonization, Low-VOC Coatings & Recycled Scrap Ratio
Scope 3 supply-chain emissions reporting has entered warehousing RFP evaluations. Fortune 500 logistics operators now demand Environmental Product Declarations (EPDs). HEDA is advancing low-temperature powder-curing technology (reducing oven thermal consumption by 24%) and sourcing steel coil feedstock containing traceable electric arc furnace (EAF) scrap fractions.
Strategic Comparison: Traditional Procurement vs. Next-Generation OEM/ODM Partnerships
Historically, racking procurement treated storage steel as a static commodity bought from intermediary catalogs. Modern enterprise procurement establishes direct-to-mill technical relationships with manufacturers capable of modular customization, rapid CAD iterations, and structural warranty backing.
| Procurement Metric | Traditional Local Distributor Model | Direct HEDA OEM/ODM Factory Partnership |
|---|---|---|
| Unit Tonnage Cost | High (includes 25-45% intermediary markups) | Direct mill-parity factory pricing with volume tier discounts |
| Custom Engineering Flexibility | Restricted to fixed catalog dimensions | Bespoke beam lengths, upright gages (1.5mm–3.0mm), custom punch pitch |
| Engineering Verification | Generic table lookups; static capacity charts | Site-specific ANSYS FEA calculation reports & PE stamped calculations |
| Production Scalability | Limited to regional stockholding buffer | 30,000 m² plant churning 30,000 tons/month; rapid container drop-ships |
| Packaging & Sea Freight | Standard broken-bundle crates; wasted cube | Software-optimized container pack schemes minimizing shipping volume |
Industrial Shelving Procurement: Frequently Asked Questions
Addressing the structural, logistical, and commercial inquiries routinely raised by international procurement managers and project engineers.
What essential dimensional data is required to generate a preliminary 2D CAD layout and load matrix?
- Architectural Building Plan: Clear internal height (underside of haunch or sprinkler lines), building column grid spacing, floor slab expansion joints, and ingress/egress roll-up door positions.
- Unit Load Parameters: Pallet dimension ($W \times D \times H$), including cargo overhang, maximum gross pallet weight, bottom skid design (Euro two-way, ISO perimeter base, or non-standard).
- Material Handling Equipment (MHE): Forklift model, maximum lifting mast height, collapsed mast height, and minimum right-angle aisle stacking width requirements ($A_{st}$).
- Environmental Conditions: Seismic zone acceleration, ambient temperatures (e.g., -28°C cold chain vs. ambient 45°C humid), and concrete floor slab thickness/compressive strength ($f'_c$).
How do you guarantee corrosion protection for coastal or tropical high-humidity installations?
Standard High-Durability: 8-stage phosphating pre-treatment followed by an electrostatic TGIC-free polyester thermosetting powder coat (film thickness 60–90 microns).
Enhanced Epoxy-Polyurethane Dual Layer: A zinc-rich primer coat followed by an architectural exterior polyurethane topcoat for aggressive coastal atmospheres.
Hot-Dip Galvanizing (HDG): In conformance with ISO 1461 / ASTM A123, components are submerged in molten zinc ($450^\circ\text{C}$), producing an iron-zinc alloy layer exceeding 85 microns in thickness. This provides self-healing sacrificial galvanic protection for walk-in cold rooms and open-air lumber sheds.
What are the structural differences between roll-formed teardrop and slotted structural racking?
Slotted / Hook-In Style (European & International): Utilizes multi-tang wrap-around connectors engaging with 50mm, 75mm, or 76.2mm upright column punchings. Delivers high torsional rigidity and superior resistance to beam-end rotational shear.
As a custom OEM/ODM manufacturer, HEDA operates dedicated roll-punch tooling for both standards, allowing regional distributors to purchase proprietary profiles compatible with their domestic fleet.
How is container loading calculated to prevent freight damage and maximize ocean shipping efficiency?
Beams are palletized in modular tiered packs interleaved with anti-abrasion foam sheets to prevent powder coat friction peeling during open-sea transit. Every shipment includes a detailed container loading manifest and center-of-gravity diagram to ensure rapid, damage-free unloading via forklift ramps.
Can HEDA racking interface with ESFR fire sprinkler requirements and NFPA 13 codes?
We manufacture welded wire mesh decking with open apertures exceeding 70% open area, drop-in back-to-back row spacers with integrated pipe clearance clamps, and flue-space stop bars that physically prevent forklift drivers from over-pushing pallets into code-mandated chimney corridors.
What is the standard warranty period and replacement protocol for defective components?
Do you support private-label OEM branding for regional equipment dealers and racking installers?
What structural safety accessories are recommended to prevent forklift impact failure?
Accelerate Your Warehouse Racking Procurement
Connect directly with our Guangzhou manufacturing engineers. Send your warehouse floor drawing and pallet dimensions to receive a comprehensive CAD layout, 3D visualization, and detailed structural quote within 24 to 48 hours.
