High Rack Storage Portfolio for Scalable Logistics Hubs
Engineered with Q235B/Q355B structural steel, rigorous Finite Element Method (FEM) simulation, and customizable upright profiles to balance footprint utilization and pallet accessibility.

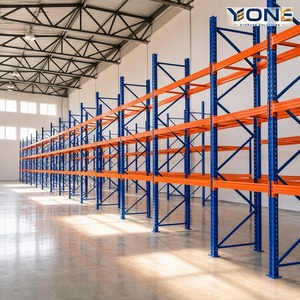

Heavy Duty Steel Pallet Selective High Racking System

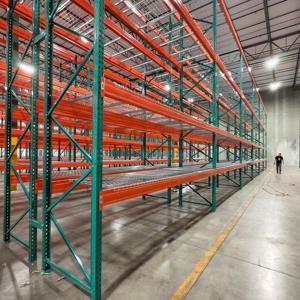

Heavy Duty Teardrop Pallet Racking for Logistics Hubs
High-Capacity Drive-In & Drive-Thru Pallet Racking

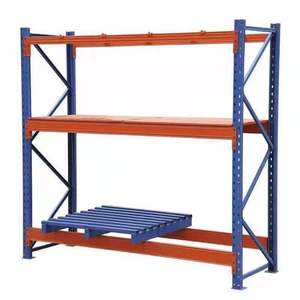

Adjustable Beam Pallet Racks & Heavy Duty Shelving

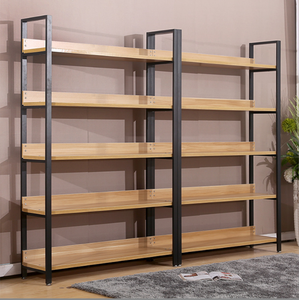

Modular High Stacking Racks & Commercial Shelving Units

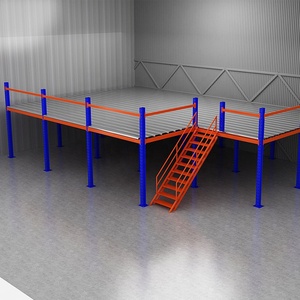

Rack-Supported Industrial Mezzanine Platform Systems

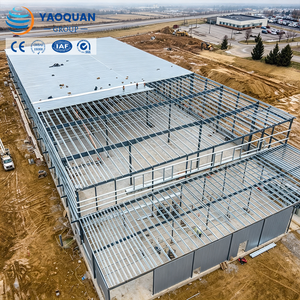

Prefab Cold Chain High Racking & Clad-Rack Systems
Electric Mobile Wide-Span High Rack Base Units
OEM/ODM Manufacturing Authority for High Rack Infrastructure
Operating out of Guangzhou since 2001, Guangzhou Heda Shelves Co., Ltd. delivers direct-to-site engineering precision, verified structural steel integrity, and compliance with worldwide seismic building codes.
Structural Integrity & Seismic Mechanics in High Rack Design
Modern high rack warehouse systems extending beyond 12 meters in height experience non-linear deflection, dynamic torsional stresses, and localized buckling under fluctuating pallet loadings. Structural safety mandates far more than nominal steel thickness; it requires precision cold-roll-formed profiles designed with finite element analysis to control Euler buckling and P-Delta moments.
Our OEM/ODM engineering protocol strictly employs prime Q235B and high-yield Q355B cold-rolled structural coils sourced from certified tier-one steel mills. Continuous roll-forming lines with multi-station progressive tooling form our upright omega sections with multiple stiffening ribs, yielding a critical strength-to-weight ratio superior to generic warehouse racking.
- Seismic Resilient Anchoring: Enlarged footplates with dual-point chemical resin anchors engineered specifically to dissipate seismic acceleration waves (designed for Pacific Rim and Middle Eastern codes).
- Pre-Punching Hole Precision: In-line computerized punch presses maintain a ±0.1mm tolerance across entire 14-meter continuous upright profiles, guaranteeing zero lock-pin jamming during assembly.
- Surface Chemistry Passivation: Automated acid pickling and immersion phosphating remove microscopic mill scales prior to thermosetting electrostatic polyester powder curing at 180°C.
High Rack Technological Breakthroughs Transforming Modern Logistics
Procurement directors and 3PL infrastructure architects must factor in next-generation structural automation when planning capital investments for 2025–2030.
AS/RS Automated Integration
Transitioning from traditional forklift access to fully automated high-bay crane and radio shuttle systems. High-tolerance beam deflection ratios (L/200 down to L/300) are engineered to prevent optical sensor misreads by robotic retrieval shuttles.
Anti-Corrosive Nanotechnology
For coastal humidity, pharmaceutical clean rooms, and sub-zero cold chains (-30°C), traditional wet paints fail. Nano-ceramic phosphate conversion layers coupled with thermosetting zinc-rich primers deliver 1,000+ salt-spray hour ratings without zinc flaking.
Modular Rack-Supported Architecture
Clad-rack structures where the high storage racking itself forms the primary structural skeleton supporting building roofs, side insulated sandwich panels, and exterior cladding, cutting commercial construction timelines by up to 40%.
High Rack Procurement Trends: What Global Supply Chains Demand
Strategic insights for procurement heads balancing carbon footprint reductions, SKU volatility, and escalating urban square-meter costs across Asia-Pacific, North America, and Europe.
Total Cost of Ownership (TCO) Shift
Enterprise buyers are transitioning away from upfront lowest-bid purchases toward total lifespan cost models. High-yield steel formulations, collision-mitigating corner guards, and modular beam interlocks reduce long-term operational maintenance and insurance risk premiums.
Supply Chain Regionalization & Modular OEM
Supply chain shocks require racking systems that can be swiftly reconfigured. Tier-1 buyers demand standardized European teardrop or ISO connector interfaces, enabling seamless integration of components across regional hubs in Singapore, Vietnam, UAE, and the Americas.
Carbon-Neutral Green Steel Sourcing
ESG compliance is now mandatory in European and American warehouse tenders. Importers increasingly verify mill test certificates (MTC) to quantify scrap metal content, EAF (Electric Arc Furnace) production origins, and volatile organic compound (VOC) levels in powder coating lines.
The 10-Step OEM/ODM High Rack Quality Lifecycle
From prime cold coil uncoiling to final seaworthy palletizing, our Guangzhou factory enforces 10 strict checkpoints to ensure zero structural deviations arrive at your construction site.
Raw Material QA
Spectrometric steel coil tensile testing & thickness gauge audit.
Laser CNC Cut
High-speed laser slitting with burr-free microscopic edges.
Column Punching
Synchronous automated punching maintaining pitch tolerance.
Cold Bending
Continuous 22-roller cold deformation of upright Omega channels.
Beam Seaming
Continuous robotic interlocking seam forming for box beams.
Deburring Polish
Mechanical blast cleaning and weld bead micro-polishing.
Robotic Welding
Dual-torch CO2 shielded robotic connector-to-beam joining.
Phosphating
Chemical degreasing, pickling & rust-inhibitive phosphating.
Powder Coating
Automated electrostatic spray booth with 180°C curing tunnel.
Container Stacking
Shockproof bundling, corner protectors & seaworthy strapping.
Frequently Asked Questions on High Rack Warehouses
Technical guidance direct from our lead structural engineering office addressing load limits, seismic certifications, maritime shipping, and OEM customizations.
What structural calculations are used to determine high rack load ratings?
Our engineering division employs Finite Element Method (FEM) software compliant with EN 15512 (European Specification for Racking), RMI ANSI MH16.1 (USA), and AS 4084 (Australia). Structural calculations analyze static gravity loads, dead weights, uniform distributed load (UDL) per pair of beams, dynamic forklift placement impact factors (typically 25% nominal allowance), and horizontal wind/seismic shear forces.
We calculate maximum permissible beam deflection limited to L/200 for standard manual operations and L/300 for narrow aisle (VNA) or automated AS/RS systems to safeguard electronic guide lasers and optical position sensors.
How does HEDA handle international seismic code approvals for local building permits?
For installations in active earthquake zones across Southeast Asia (the Philippines, Indonesia), East Asia (Japan, Taiwan), and the Pacific Rim, we produce project-specific stamped engineering calculation packs. Our design adapts column thicknesses (up to 2.5mm or 3.0mm profiles), reinforces rear and horizontal X-bracing geometries, enlarges floor baseplate surface contacts, and utilizes specialized seismic expansion wedge anchors tested in cracked concrete conditions.
Can you provide custom OEM hole pitch and private label branding for racking distributors?
Yes. Over 40% of our monthly tonnage is dedicated to OEM contract manufacturing for international material handling distributors. We offer custom punch dies for teardrop, diamond, hexagonal, and 50mm/75mm Euro pitch standards. In addition, we apply your brand logos onto safety load plaques, beam end caps, and protective upright guards, along with custom RAL powder coating color palettes matching your corporate identity.
How are high-volume upright profiles and beams packaged to prevent sea freight transit damage?
To withstand multi-week oceanic transit through humid maritime environments, every bundle is stabilized with wooden skids, corrugated edge wraps, heavy-gauge steel strapping, and waterproof stretch plastic film. Smaller accessories such as base plates, bolts, safety pins, and shim plates are packed into heavy-duty fumigated wooden crates or steel cage pallets with internal moisture-absorbing silica gel bags.
What is the standard production lead time for full container load (FCL) orders?
Standard lead times for 1–5 Forty-Foot High Cube (40HQ) containers of standard selective pallet racking typically average 15 to 20 working days following final CAD sign-off and deposit receipt. Complex semi-automated systems (such as Radio Shuttle lanes or multi-tier mezzanine floors requiring custom structural engineering) generally range between 25 and 35 working days. Priority emergency production slots are available for fast-track project rollouts.
Ready to Optimize Your Warehouse Height & Cubic Capacity?
Send our senior engineering team your architectural warehouse layout (DWG/PDF), clear internal building heights, forklift models, and pallet specifications. We deliver complete 2D layout drafts, 3D structural renderings, and comprehensive Bill of Materials (BOM) load calculations within 24 to 48 hours.
- Complimentary 2D CAD floor plans & isometric 3D visuals
- Seismic code structural calculation report for local permit approvals
Connect with an Engineer
Instant consultation for project estimating, engineering specifications, or OEM dealership distribution terms.
