High-Performance Warehouse Storage Systems
Explore our certified cold-formed and structural steel storage solutions. Every system is fabricated using high-yield Q235B/Q355B structural steel, CNC punched, and finished with impact-resistant electrostatic epoxy powder coating.
Factory Supply Heavy-Duty Industrial Warehouse Storage Rack Quality 5-Layer Shelves

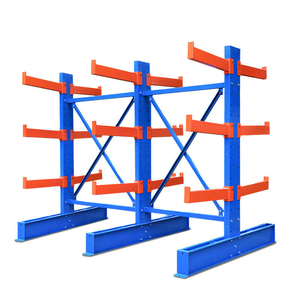

Industrial Steel Cantilever Storage Rack for Long & Irregular Materials
Light Duty Adjustable Boltless Metal Shelves & Commercial Storage System
OEM Modular Heavy Loading Beam Type Pallet Racking for Workshop Warehouses
Drive-In & Drive-Through Racking System for High-Density Cold Storage
Teardrop Warehouse Pallet Rack Boltless Steel Frame with Step Safety Beams
Warehouse Modular High-Bay Pallet Shelving & Industrial Storage Cabinet System
Medium-Duty Boltless Steel Shelves System for Spare Parts & Manual Logistics
Integrated Racking Manufacturing Powerhouse
Operating from our modern 30,000 square meter facility in Guangzhou, China, we combine metallurgical engineering, robotic fabrication, and structural simulation to provide custom OEM/ODM racking for distributors, logistics integrators, and Fortune 500 distribution centers worldwide.
Certified Structural Compliance
Every beam, upright column, and footplate is rigorously verified in accordance with European EN 15512, American RMI MH16.1, and Australian AS 4084-2012 codes. Full structural finite element analysis (FEA) reports are provided for building permit applications.
Custom OEM/ODM Engineering
We tailor beam connection geometries, teardrop vs diamond hole punches, post dimensions, and steel gauges. Full private labeling, customized protective packaging, and bespoke RAL powder color matching are offered directly to brand distributors.
Automated Precision Tooling
Our workshops feature continuous CNC continuous-piercing rolling lines, robotic twin-wire shielded arc welding cells, and automated sheet folding lines. This eliminates manual dimensional variance and guarantees micro-millimeter tolerance across high-bay runs.
Fast South China Sea Logistics
Situated in Guangzhou near major international container ports (Nansha, Huangpu, Shenzhen), we generate container-optimized loading calculations using 3D palletization software, preventing in-transit damage while reducing freight costs per pallet position.
The 10-Stage Industrial Quality Control Protocol
From initial hot-rolled slit coil analysis to export sea-worthy containerization, our comprehensive production lifecycle ensures structural longevity in harsh seismic and humid industrial environments.
Raw Steel Spectrometry
Chemical composition analysis & yield tensile testing of Baosteel/Shougang Q235B/Q355B coils.
Precision Slitting
High-speed longitudinal slitting ensuring uniform edge conditions without thermal hardening.
CNC Column Punching
Automated servo punching maintaining precise 50mm, 75mm, or 2-inch center-pitch tolerances.
Multi-Roll Cold Forming
Multi-stand profiling rollers gently shaping high-load upright profiles without internal stress cracks.
Box-Beam Interlocking
Double-C section continuous seam forming creating high-torsion box beam configurations.
Robotic MIG Welding
Multi-axis Panasonic robotic stations ensuring deep weld penetration on connector beam endplates.
Automated Shot Blasting
Complete scale, oxide, and grease removal reaching Swedish SA2.5 surface cleanliness standard.
Zinc Phosphating
Multi-stage chemical pre-treatment dipping bath creating crystalline corrosion barrier layers.
Electrostatic Coating
GEMA automatic powder gun deposition cured at 200°C for superior impact, scratch, and chemical resistance.
Static Proof Loading
Batch sampling destructive testing, cross-hatch adhesion evaluation, and container loading security.
Technical System Selection & Load Architecture
Selecting the optimal racking typology is a balancing act between SKU selectivity, volumetric cubic storage density, materials handling equipment (MHE) aisle clearances, and seismic ground accelerations.
Selective Pallet Racking
100% SKU Accessibility- Floor Area Utilization: 35% – 45%
- Access Speed / Selectivity: 100% Direct Pick
- Typical Aisle Width (Counterbalance): 3.2m – 3.8m
- Aisle Width (Reach Truck): 2.6m – 2.9m
- Maximum Top Tie Height: Up to 12.0m
Recommended for third-party logistics (3PL) providers, retail hubs, and consumer goods distribution centers handling diverse FMCG inventories where direct, unobstructed access to every single pallet position is non-negotiable.
Drive-In / Drive-Through
Maximum Volumetric Density- Floor Area Utilization: 65% – 80%
- Access Principle: LIFO (Drive-In) / FIFO
- Working Aisle Width: Eliminated Storage Aisles
- Pallet Lane Depth: Up to 10 Pallets Deep
- Temperature Compatibility: -30°C Cold Room Ready
Ideal for high-volume, low-SKU manufacturing warehouses, beverage bottling plants, and refrigerated cold-chain facilities where refrigerated air cubic meterage costs demand ultra-dense bulk storage footprints.
Semi-Automated Radio Shuttle
Safe Deep-Lane Throughput- Floor Area Utilization: 70% – 85%
- Access Principle: Hybrid FIFO / LIFO
- Forklift In-Rack Travel: Zero (Carrier Enters Bay)
- Lane Depth Capacity: Up to 40 Pallets Deep
- MHE Impact Risk: Extremely Low
An optimal stepping stone between conventional racking and high-investment automated storage and retrieval systems (AS/RS). The self-powered shuttle robot moves pallets across internal guide rails, eliminating forklift structural collisions.
Heavy Cantilever Racks
Long & Unbroken Items- Structural Column Section: H-Beam or Cold-Formed
- Arm Load Capacity: 500 kg to 3,000 kg / Arm
- Clear Entry Profile: No Front Column Posts
- Adjustable Arm Pitch: 100mm / 140mm Increments
- Outdoor Weather Finish: Hot-Dip Galvanized (HDG)
Engineered for aluminum extrusions, steel piping, structural timber, drywall sheets, and bulky automotive body assemblies. Allows side fork-truck access without front column obstructions.
Very Narrow Aisle (VNA)
Vertical Maximization- Floor Area Utilization: 50% – 60%
- Selectivity: 100% Direct Access
- Aisle Width Constraint: 1.5m – 1.8m
- System Working Height: Up to 16.5 Meters
- Guidance Interface: Wire Guidance or Steel Rails
Combines the direct accessibility of selective pallet systems with the high-density storage ratios of drive-in racks. Utilizes specialized man-up or man-down turret trucks operating within precision-guided narrow aisles.
Multi-Tier Mezzanine Floors
Cubic Volume Multiplier- Floor Area Gain: +100% to +300% Usable Space
- Uniform Distributed Load: 300 – 1,200 kg/m²
- Decking Mediums: Perforated Steel / B-Deck / Wood
- Vertical Integration: Staircases, Chutes, Lifts
- Structure Base: Rack-Supported or Column Structural
Engineered to eliminate costly warehouse expansions or relocations. Converts high clear vertical ceiling heights into multi-level manual picking floors, e-commerce packing hubs, or integrated administrative mezzanine suites.
Warehouse Procurement Trends & Buying Dynamics (2026–2030)
Global logistics heads and procurement managers are adapting their capital expenditure strategies to navigate rising warehouse real estate lease costs, stringent building decarbonization targets, and automated robotics integration.
AGV/AMR Cross-Compatibility
Standard procurement specifications now mandate beam designs and ground baseplate anchors capable of integrating Autonomous Mobile Robots (AMRs) and automated reach trucks, requiring ultra-precise aisle tolerances and lower-tier guide rails.
Total Cost of Ownership (TCO)
Buyers are shifting away from low-gauge bidding toward structural durability. High-tensile steel alloys, automated robotic weld joints, and chip-proof powder coatings drastically lower lifetime racking repair, inspection, and replacement expenditures.
Cold-Chain & Humidity Resilience
With global cold chain infrastructure expanding across Southeast Asia, Latin America, and the Middle East, procurement teams require hot-dip galvanizing and heavy zinc phosphating pre-treatments that survive rapid condensation cycling.
Turnkey Engineering Validation
Procurement teams increasingly eliminate intermediaries by contracting directly with OEM factories capable of producing certified PE-stamped structural calculations, 3D BIM-compatible files (Revit/IFC), and simulated stress test dossiers.
Future Developments in Storage Rack Engineering
The convergence of material science, digital twins, and industrial automation is revolutionizing warehouse racking from static structural steel frames into intelligent, connected infrastructure.
Digital Twin & BIM Integration
Modern racking installations are digitally mapped into Building Information Modeling (BIM) workflows. This provides operators with real-time digital twins for predictive capacity modeling, thermal mapping in cold stores, and structural deflection monitoring.
High-Yield Ultra-Thin Micro-Alloys
Advances in thermo-mechanically rolled high-strength low-alloy (HSLA) steels allow up to 15% reduction in dead weight while increasing ultimate tensile strength. This reduces embedded carbon footprints while preserving structural load performance.
Embedded IoT Telemetry & Impact Sensors
Next-generation upright column protectors are being developed with embedded three-axis accelerometers and wireless mesh nodes. Forklift impacts beyond safety threshold limits immediately trigger warehouse management system (WMS) safety inspection flags.
Circular Economy & Modular Repurposing
Universal boltless interlock designs enable companies to disassemble, reconfigure, and scale racking setups across different warehouse lease terms, reducing industrial demolition waste and supporting corporate carbon net-zero initiatives.
Frequently Asked Questions on Custom Racking Procurement
Comprehensive engineering insights, structural design considerations, and logistical details provided directly by our senior structural engineering team.
What structural information is required to generate a custom CAD layout and quotation?
To produce an engineered 2D CAD layout and 3D rendering within 24 to 48 hours, our structural team requires: (1) Warehouse architectural drawings detailing clear ceiling height, column grid layouts, fire sprinkler drops, and dock door locations; (2) Pallet dimensions (W × D × H) including product overhang and maximum gross unit weight; (3) Materials handling equipment (forklift model, lift height, turning radius, and minimum right-angle stack aisle width); and (4) Site seismic and wind parameters.
How do your rack designs comply with seismic engineering mandates?
For installations in earthquake-prone regions (such as Indonesia, the Philippines, Japan, New Zealand, or the US West Coast), our engineers execute seismic response calculations compliant with ASCE 7, RMI MH16.1, or Eurocode 8. We utilize oversized base plates, heavy anchor bolt patterns, reinforced diagonal bracing, and thickened upright steel gauges to resist dynamic lateral and torsional seismic forces.
What steel grades and mill certifications are provided with orders?
We fabricate exclusively with certified structural steel grades Q235B and high-yield Q355B (equivalent to ASTM A36 and ASTM A572 Grade 50) sourced directly from tier-1 domestic mills (Baosteel and Shougang Group). Every shipment includes complete Mill Test Certificates (MTC) detailing chemical composition, yield limits, ultimate tensile elongation, and Charpy impact values.
What is the standard beam deflection threshold under full rated load?
Our structural designs adhere strictly to the EN 15512 and RMI MH16.1 standard deflection criteria of L/200, where L represents the clear beam span between columns. Under maximum uniformly distributed working loads (UDL), a standard 2700mm pallet beam will not deflect more than 13.5mm, ensuring completely safe forklift entry, smooth pallet retrieval, and permanent elastic structural recovery.
How are components treated to prevent corrosion in humid or cold climates?
All fabricated components undergo an automated multi-stage pre-treatment wash including chemical degreasing, acid pickling, zinc phosphate conversion, and demineralized rinses. We then apply an electrostatic epoxy-polyester hybrid powder coating cured at 200°C (60–80 micron dry film thickness). For coastal sites, outdoor yards, or sub-zero food cold rooms, we provide ASTM A123 compliant hot-dip galvanizing.
Do you support OEM private labeling and customized punch patterns for distributors?
Yes. As a primary OEM/ODM manufacturer, over 40% of our capacity supplies regional racking distributors and system integrators under their own brand identities. We manufacture proprietary upright punch configurations (including American Teardrop, British Diamond, and European 50mm/75mm Omega slots), laser-etch client logos, and customize beam clip endplates.
How do you optimize container loading to prevent maritime transit damage?
Racking components are bundled with custom contoured steel nesting cradles, protective high-density polyethylene edge protectors, and heavy plastic strapping bands. Upright columns and beams are layered using specialized 3D container planning software to maximize container cubing while balancing axle weights, guaranteeing zero movement or scratches inside 40ft High Cube containers.
What installation documentation and on-site engineering support do you provide?
Every project shipment is accompanied by comprehensive engineering installation blueprints, component identification bills of material (BOM), step-by-step assembly sequence manuals, and anchoring torque guidelines. For major enterprise distributions and multi-tier mezzanine builds, we provide remote video installation supervision or deploy seasoned installation field engineers directly to the site.
Accelerate Your Warehouse Capacity with Direct Factory Engineering
Send your warehouse floor plan, ceiling clear height, and pallet load specifications. Our engineering team will supply a customized 2D layout, 3D structural model, and transparent factory-direct quotation within 24 to 48 hours.
