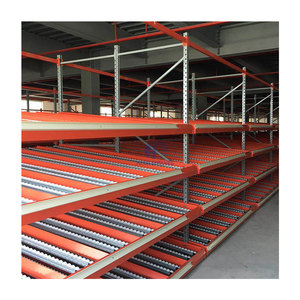

Precision-stamped roller beds, cold-formed Q235B upright frames, and modular ergonomic tilt shelves built to exact custom client dimensions and high-throughput distribution standards.
How precision incline geometry, roller inertia control, and dynamic bed deflection tolerances eliminate friction stalls, preserve corrugated packaging integrity, and double picking throughput.
In high-density dynamic storage, gravity serves as an unpowered, zero-emission propulsion system. However, uncontrolled gravitational acceleration causes packaging compression damage and conveyor logjams, while insufficient incline produces friction stall. Guangzhou Heda Shelves engineers calculate the incline angle ($\theta$) dynamically based on package weight ($W$), substrate kinetic coefficient of friction ($\mu$), and contact surface stiffness:
Our patented roller tracks utilize precision-machined, high-impact polycarbonate wheels or stamped galvanised steel rollers mounted on continuous zinc-plated axles. Wheel pitch (center-to-center distance) is determined by ensuring that a minimum of three roller axles continuously support the bottom profile of the smallest carton along the track. This prevents carton belly-sagging, eliminates dynamic drift, and guarantees absolute line-tracking straightness without skewing.
Key engineering variables validated through simulated cycle-testing across 50,000 continuous meters of travel:
Cold-formed omega-profile upright columns (55×47mm, 60×50mm, or 80×60mm) stamped with 50mm teardrop or butterfly pitches, yielding uncompromised vertical adjustability and exceptional torsional rigidity.
Rear loading aisles and dedicated front discharge pick-faces establish an unbreachable First-In-First-Out material flow, eliminating expired inventory batch bottlenecks in food, pharmaceuticals, and cosmetics.
Universal snap-in full-depth steel lane dividers and aluminum alloy guide channels enable warehouse managers to modify lane widths within minutes to match changing SKU dimensions without tools.
Front-facing presentation pick-trays tilt at an angle of 5° to 15°, exposing carton contents directly to the operator's eye line to slash order-picking travel steps and repetitive bending strain.
An empirical comparison of warehouse density, labor efficiency, travel distance, and inventory rotation between conventional multi-tier static shelving and dynamic carton live storage systems.
| Evaluation Parameter | Conventional Static Shelving | HEDA Dynamic Carton Flow Racking | Operational Gain / Advantage |
|---|---|---|---|
| Picking Walk Distance | 120 – 180 meters per 100 picks | 35 – 55 meters per 100 picks | 65% to 75% Reduction in Picker Travel |
| Floor Space Utilization | 35% – 45% (Aisle-heavy footprint) | 70% – 82% (Compact depth buffering) | Up to 2.2x SKU Capacity per m² |
| Stock Rotation Fidelity | Manual Last-In-First-Out (LIFO) risk | Strict Automatic Gravity FIFO | Eliminates batch obsolescence & spoilage |
| Replenishment Interference | Shared pick/restock aisle congestion | Segregated front pick & rear load aisles | Zero downtime during active order-picking shifts |
| Pick Cycle Velocity | 40 – 70 lines per picker/hour | 140 – 220 lines per picker/hour | Over 200% Productivity Surge |
| Digital Automation Readiness | Complex barcode search / manual paper | Ready for Pick-to-Light, Put-to-Light & AMRs | Plug-and-play mountings for IoT picking bars |
Our Guangzhou engineering department provides free 2D CAD floor plans, 3D renderings, and pallet/carton position throughput calculations within 24 to 48 hours.
Get a QuoteMacro developments shaping industrial warehouse design, intralogistics capital allocation, and supply chain procurement over the coming decade.
Autonomous Mobile Robots (AMRs) are increasingly deployed along carton flow pick-faces. Modern procurement contracts demand lower beam clearances, recessed baseplates, and automated roller-stop interfaces to accommodate robot vision sensors and automated loading claws.
Supply chain operators are transitioning from standalone racks to smart carton flow racks with pre-engineered raceways, power bus conduits, and snap-in clip brackets for Pick-to-Light LED modules, eliminating on-site drilling and hazardous loose cabling.
With the rapid growth of refrigerated e-grocery and temperature-controlled biologics, carton flow systems are increasingly installed in -25°C to -30°C blast freezer settings, demanding low-temperature impact polyolefins and corrosion-resistant galvanizing.
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. operates a vertically integrated 30,000 square meter industrial manufacturing plant, delivering international-standard logistics equipment to over 120 countries worldwide.
Strict spectral and tensile testing of certified Q235B high-grade hot and cold-rolled steel coils.
CNC slitting and micro-tolerance shearing lines ensuring straight edge squareness within ±0.2mm.
Multi-station automated hydraulic presses punch teardrop and butterfly pitch patterns at exact 50mm intervals.
Advanced multi-pass cold roll-forming lines bend uprights and beams without structural stress fractures.
High-precision automated robotic arms weld beam-end connectors with zero porosity and deep penetration.
Submersion degreasing tanks eliminate all residual machining oils and surface particulates.
Acid pickling and zinc phosphate bath pretreatment builds an anti-rust micro-crystalline adhesion substrate.
Automatic electrostatic powder coating spray booth coats steel with durable, impact-resistant epoxy-polyester resin.
Gas-fired curing at 180°C to 200°C ensures complete cross-linking, curing thickness of 60–80 microns.
Laser dimension checks, cross-hatch adhesion testing, and containerized wooden pallet sea-freight packing.
Our manufacturing processes adhere to European FEM, American RMI, and international ISO quality and structural safety parameters.
CE Cert: 2435-CPR-8605159
ISO 9001:2015 Management
RoHS Eco-Coating Certified
Structural Deflection Reports
Key technical, logistical, and structural questions addressed directly by our senior structural racking engineers.
Connect directly with our Guangzhou design engineering team. Provide your warehouse dimensions, carton dimensions, weight loads, and SKU counts to receive custom 2D/3D CAD layouts and competitive factory-direct pricing within 24 hours.
