Engineered Industrial Racking & Specialized Storage Arrays
Precision cold-formed racking modules manufactured to international FEM 10.2.02 and RMI standards. Designed for structural integrity, extreme load thresholds, and custom forklift-pallet interaction profiles.
Long Loads
Industrial Steel Cantilever Storage Rack System
Adjustable multi-tier cantilever shelving engineered for structural steel beams, pipes, lumber, and irregular raw materials with up to 3,000kg load capacity per arm level.
FIFO Picking
FIFO Dynamic Gravity Carton Flow Rack
Continuous dynamic flow array fitted with aluminum alloy roller tracks for strict First-In-First-Out material buffering along active assembly and fulfillment lines.
Multi-Layer
Multi-Layer Medium & Heavy-Duty Steel Shelving
Modular boltless interlocking shelf framework built with thickened cold-rolled steel panels, configurable beam intervals, and high resistance to structural buckling.
Specialty Roll

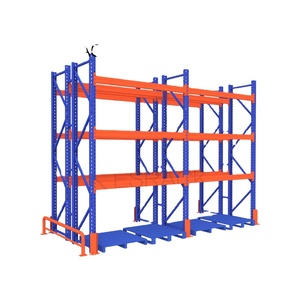

Custom Heavy Duty Industrial Carpet Roll & Coil Racks
Specialty hollow cradles and cantilevered beam modules for textile rolls, industrial carpets, coiled steel sheets, and cylinder loads preventing surface deformation.
Commercial OEM
Modular Architectural Slatwall Storage System
Reinforced steel-core aluminum slatwall fixtures and precision display frameworks built for high-wear wholesale trade counters, hardware outlets, and retail supply bays.
Space Maximizer
Multi-Level Heavy Duty Steel Mezzanine Platform
Rack-supported industrial mezzanine solutions creating 200% to 300% additional usable surface area. Integrated heavy-duty stairs, safety gates, and beam grid supports.
CE Certified
Selective Heavy-Duty Bolted Beam Pallet Racking
Industry-standard selective pallet storage framework providing 100% direct crane/forklift accessibility to every unit load. Precision-punched 75mm/50mm pitch columns.
Galvanized
400KG Long-Span Galvanized Sheet Metal Shelves
Corrosion-resistant galvanized surface treatment combined with high-tensile cold-rolled steel profiles for tropical humidity resilience, retail stockrooms, and industrial workshops.
Engineered In Guangzhou: 25+ Years of Structural Reliability
Guangzhou HEDA Shelves Co., Ltd. (established in 2001) is an authoritative tier-one manufacturer of industrial storage, automated racking interfaces, and heavy-duty structural steel platforms. All fabrication steps—from raw coil slit-rolling to multi-stage electrostatic finishing—are executed in-house.
Certified Quality & Compliance
Our structures carry legitimate third-party certifications including CE Factory Production Control Certificate No. 2435-CPR-8605159, certified ISO 9001:2015 Quality Management System No. 18624Q00169R0M, and non-toxic RoHS-compliant powder formulations.
Rapid 2D/3D CAD & FEA Design
Experienced warehouse layout engineers deliver complete 2D CAD operational workflows and photorealistic 3D structural renderings within 24 to 48 hours. Load deflection analysis (L/200 standard) ensures absolute forklift operator safety under full design capacity.
Precision 10-Stage Manufacturing
Every component undergoes uncoiling, automatic computerized continuous punch-pressing, precision roll-forming, robotic CO2 shielded welding, chemical pickling, surface phosphating, automated electrostatic powder spraying, and curing at 200°C for exceptional bond strength.
Technological & Structural Engineering Trends in Pallet Racking
Industrial warehousing is shifting from passive storage shelves to dynamic, semi-automated structural infrastructure. We analyze key engineering developments transforming high-bay pallet racking performance.
| Structural Dimension | Legacy Standard Racking (Pre-2020) | Modern HEDA High-Tensile OEM Specification | Engineering Impact on Warehouse ROI |
|---|---|---|---|
| Steel Chemistry & Yield Strength | Standard commercial grade Q235A steel (~235 MPa yield) | High-Yield Micro-Alloyed Q355B Hot-Rolled Coils | 51% higher tensile capacity; reduces frame dead-weight while mitigating seismic shear stresses. |
| Column Profile & Cold Bending | Simple 6 to 8-fold open C-profiles | Complex 11 to 13-Fold Omega (Ω) Continuous Profile | Substantially elevates torsional stiffness and eliminates catastrophic localized buckling during forklift impacts. |
| Corrosion & Pretreatment | Manual degreasing followed by single dip primer | Automated 9-Stage Acid Pickling, Phosphating & Electrostatic Cure | Exceeds 500-hour neutral salt-spray (ASTM B117); eliminates coating delamination in tropical coastal humidity. |
| Automation Interface Precision | Manual tolerances (±3.0mm to ±5.0mm) | CNC Punching & Laser Alignment (±0.5mm Beam Tolerance) | Seamless compatibility with Radio Shuttles, AGVs, Automated Storage and Retrieval Systems (AS/RS). |
Finite Element (FEA) Seismic Design
In seismic hotspots across Southeast Asia, South Asia, and the Pacific Rim (e.g., the Philippines, Indonesia, Japan), seismic accelerations induce massive moment forces at the column-to-baseplate junction. Modern OEM production designs incorporate oversized baseplates, thickened anchor sleeves, and cross-bay dynamic bracing patterns validated through seismic spectrum FEA to prevent progressive collapse under UBC and EN 15512 codes.
Sub-Zero Cold Chain Formulation
Refrigerated logistics hubs operating down to -30°C face extreme steel embrittlement where standard low-carbon steel loses its charpy V-notch impact toughness. Modern OEM racking leverages normalized, fully killed steels with tailored manganese-to-carbon ratios, combined with ductile thermo-setting epoxy polyester powder to prevent thermal stress cracking during pallet impact shock.
Structural Modular Mezzanine Hybrids
With industrial land premiums escalating by 15-28% annually across prime regional logistics hubs like Singapore, Hong Kong, and Dubai, warehouse operators reject single-tier footprints. High-yield rack-supported mezzanines allow vertical integration: bulk pallet reserve storage on lower tiers combined with high-density bin picking on suspended multi-level walkways.
Future Sourcing & Procurement Trends for Industrial Racking
Logistics EPCs, third-party logistics (3PL) conglomerates, and industrial procurement directors are adopting sophisticated sourcing strategies to hedge steel volatility, minimize freight cubic waste, and enforce supply chain compliance.
Total Cost of Ownership (TCO) vs Pure CapEx
Global procurement teams have moved beyond comparing FOB tonnage prices. Modern models evaluate life-cycle TCO: powder coat longevity in monsoon climates, beam deflection endurance under cyclic loading, and the availability of standardized replacement components without proprietary lock-ins.
High-Cube Container Nesting Engineering
Ocean freight fluctuations require advanced nesting design. Optimized upright tear-drop punching and demountable bolted frame construction allow our shipping logistics engineers to pack up to 26 metric tons into a single 40ft High Cube container, reducing per-pallet-position ocean transit freight by up to 34%.
OEM Private Labeling for Regional Integrators
System integrators and material handling distributors across Europe, North America, and ASEAN increasingly procure unbranded or custom-labeled racking components manufactured to their precise proprietary beam connector dies, allowing them to expand product margins without local capital expenditure.
Sustainability & Closed-Loop Traceability
Environmental declarations (EPD) and low volatile organic compound (VOC) dry-powder electrostatic coatings are mandatory procurement hurdles. Tier-1 manufacturers must supply traceable mill test certificates (MTC 3.1) showing raw steel chemical composition, yield, and certified scrap-recycled ratios.
Frequently Asked Questions by Industrial Sourcing Teams
Comprehensive technical clarifications on structural calculations, seismic compliances, customization tolerances, and international export logistics.
What structural engineering codes govern your OEM pallet racking systems?
Our structural design calculations align strictly with EN 15512:2020 (European Standard for Steel Static Storage Systems), RMI ANSI MH16.1-2012 (Rack Manufacturers Institute standard), and AS 4084-2012 (Australian Standard). Finite Element Analysis (FEA) reports are available for structural permitting across global jurisdictions.
How do you evaluate and prevent beam deflection failure under continuous load?
All load-bearing step and box beams are calculated based on an allowable vertical deflection limit of L/200 under Uniformly Distributed Load (UDL), factoring in a safety margin factor of 1.5 to 1.65. Every beam connector features an automatic self-locking safety pin rated to resist 5,000 N of upward dislodgement force from accidental forklift tip snags.
Can HEDA engineer custom racking profiles for seismic hazard zones?
Yes. For seismically volatile geographies across Indonesia, the Philippines, New Zealand, and Japan, our structural team configures oversized baseplates with heavy-duty chemical or expansion anchoring studs, stiffened Omega-profile uprights, and dynamic vertical and horizontal back-bracing systems to dissipate seismic energy.
What surface finishing protocols protect your racking in humid and cold environments?
Components undergo an automated 9-step immersion process including alkaline degreasing, acid rust descaling (pickling), zinc phosphate conversion coating, and electrostatic dry-powder polyester spraying, cured at 180°C to 200°C. For sub-zero cold rooms or exterior outdoor storage, hot-dip galvanized (HDG) coating per ISO 1461 is available.
What information is required to generate a complimentary 2D/3D warehouse layout?
We request: (1) Warehouse architectural drawings indicating clear ceiling height, pillar locations, and floor flatnsess; (2) Pallet dimensions (W × D × H) including product overhang; (3) Maximum gross weight per pallet; (4) Forklift model, turning radius, and max mast lift height; (5) Desired picking logic (FIFO vs. LIFO).
Do you provide custom OEM branding and private labeling for distributors?
Yes. We manufacture customized OEM uprights, beams, and pallet flow beds with your brand logos laser-cut or screen-printed onto frames and load plates. Custom RAL color matching, proprietary pitch hole patterns (50mm, 75mm, 76.2mm, teardrop), and specialized retail packaging are available for long-term contract partners.
Transform Your Warehouse Throughput & Storage Density
Consult with our lead storage design engineers today. Receive a zero-cost structural evaluation, tailored 2D CAD layout, 3D photorealistic renderings, and a factory-direct wholesale pricing matrix within 24 hours.
