Factory Inventory & Custom Fabrications
Engineered Small & Heavy-Duty Pallet Racking Portfolios
From modular light-duty carton flow shelving to ultra-dense 4-way automated pallet shuttles, our production facilities yield structural durability, high anti-corrosion resistance, and strict dimensional tolerances for global distributors and enterprise logistics contractors.
Industry Whitepaper Report
The Structural Evolution of Compact & Small Pallet Racking
As commercial urban land rents surge across key logistics crossroads in Southeast Asia, the Middle East, and North America, micro-fulfillment centers and high-throughput distribution hubs are reshaping industrial racking engineering requirements.
Micro-Fulfillment & VNA Optimization
Traditional wide-aisle pallet layouts consume up to 60% of warehouse floor area purely in transit corridors. Modern procurement strategies favor Narrow Aisle (NA) and Very Narrow Aisle (VNA) small pallet racking. Integrating tailored bottom-tier pick tunnels and high-rise structural uprights allows operations to multiply SKU counts by up to 180% within identical real estate constraints.
Seismic Resilience & Dynamic Load Factors
Seismic-prone territories (including Indonesia, the Philippines, Japan, and parts of the Americas) demand dynamic flexural capacity over pure rigidity. State-of-the-art cold-formed upright geometries feature precise omega-profile cross-sections and multi-point hooked beam connectors. These disperse kinetic shock waves, preventing sudden catastrophic frame bucklings during ground acceleration events.
Total Cost of Ownership (TCO) & Surface Metallurgy
Procuring low-cost untreated steel consistently results in high maintenance overheads due to premature oxidation in coastal and tropical climates. Global purchasing trends emphasize automated 10-stage phosphating lines combined with thick electrostatic polyester powder coatings (60-80 microns) or hot-dip galvanization, extending asset service lifespans past 15 years with minimal maintenance.
Procurement Guide Matrix
Racking System Configuration & Technical Benchmark
Selecting the optimal pallet racking structure demands strict alignment between handling machinery, load capacities, access ratios, and operational picking velocities.
| Racking Typology | Direct Accessibility | Floor Space Utilization | Stock Management | Target Load Capacity | Primary Application Profile |
|---|---|---|---|---|---|

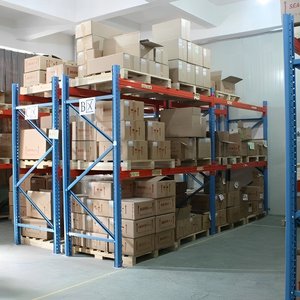

| Selective Pallet Racking | 100% Direct Access | 35% - 40% Floor Ratio | FIFO (First-In, First-Out) | 1,000 - 4,000 kg / Level | General 3PLs, High-SKU Distribution, Retail Hubs |

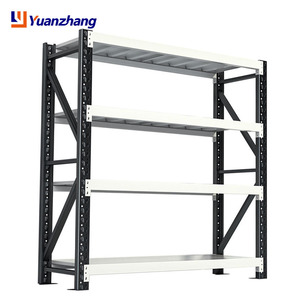

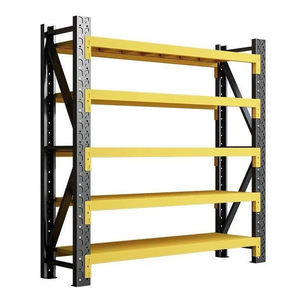

| Medium Duty Longspan Shelf | 100% Direct Hand-Pick | 45% - 55% Floor Ratio | Manual Batch Picking | 200 - 800 kg / Tier | Automotive Spare Parts, Hardware, E-Commerce Bins |
| Drive-In / Drive-Through | Low Direct Access | 65% - 75% Floor Ratio | LIFO or Strict FIFO | 1,000 - 2,500 kg / Pallet | Cold Storage, Seasonal Stockpiling, Beverage Bottling |
| Radio Shuttle Automation | Lane-Indexed Selective | 75% - 85% Floor Ratio | Flexible FIFO / LIFO | 500 - 1,500 kg / Pallet | Deep-Freeze Warehouses, Meat/Seafood, Fast-Turn FMCG |
| Rack-Supported Mezzanine | Multi-Tier Accessible | 180% - 250% Volumetric | Hybrid Bulk & Manual | 300 - 1,000 kg / m² | High-Rent Metro Warehouses, Apparel Packing Centers |
Factory Direct Authority
Engineered In Guangzhou: OEM Advantages Since 2001
Guangzhou Heda Shelves Co., Ltd. operates an integrated 30,000 m² advanced fabrication complex. By eliminating intermediaries, we grant direct technical access to structural engineers and automated production lines.
Complimentary 2D/3D CAD Design
Supply your facility architectural blueprint and receive comprehensive spatial plans, 3D renderings, and structural loading checks within 24 to 48 hours.
Certified Structural Safety
Production runs adhere rigidly to CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management standards, and RoHS compliant finishing.
Short Sea Routes & Container Plans
Positioned near major South China sea ports, we calculate optimized container stuffing diagrams to maximize freight cubic capacity and protect components from sea voyage damage.
End-to-End 10-Step QC Control
From raw steel coil ultrasonic inspection, robotic cold roll-forming, automated CNC punching, to acid pickling and phosphating, our QA records track every production batch.
Procurement Inquiries
Frequently Asked Questions by Industrial Buyers
Direct technical responses addressing engineering specifications, export logistics, custom OEM requirements, and on-site assembly compliance.
What essential architectural specifications are required to engineer a custom OEM small pallet racking layout?
To calculate structural upright profiles, beam lengths, and safety factors accurately, our engineering office requires:
- Facility CAD drawing or dimensioned sketch detailing column grids, ceiling clear heights, and emergency egress routes.
- Pallet specifications: width, depth, overall height (including cargo overhang), and maximum gross load per pallet unit.
- Material handling equipment (MHE) specifics: forklift minimum turning radius, mast lift height, and operator clearance requirements.
- Environmental parameters: seismic zone level, coastal exposure, floor slab concrete grade, or cold storage temperature levels.
How does your factory protect steel racking components from corrosion in tropical monsoon or maritime environments?
Untreated steel degrades rapidly in warm, moisture-laden environments typical of Southeast Asia and the Gulf region. HEDA Shelves integrates a thorough 10-step surface treatment. Components undergo immersion in automated acid pickling to eliminate scale, followed by iron-phosphate passivation which creates a chemical bond between raw steel and coating. An electrostatic layer of cured polyester thermoset powder is applied at 180°C–200°C. For deep-freeze environments or external storage, full hot-dip galvanization conforming to ISO 1461 standards is available.
Can small pallet racking systems be customized for private label distributors and OEM partners?
Yes. A significant portion of our Guangzhou manufacturing volume serves international racking distributors, system integrators, and brand distributors. We provide comprehensive OEM/ODM engineering, including custom pitch upright punching (e.g., 50mm, 75mm, or 76.2mm teardrop profiles), branded nameplate embossing, personalized RAL powder coating matches, tailored accessory fabrication, and custom bilingual installation instruction manuals.
What seismic load calculations and structural validations accompany export orders?
For clients operating in active tectonic zones (such as Japan, the Philippines, Indonesia, or the western Americas), our structural design department utilizes advanced finite element analysis (FEA) software. We calculate upright column load redistribution, determine heavy-duty floor base plate dimensions, specify wedge anchor depths, and integrate horizontal and vertical diagonal sway-bracing trusses. Full structural calculation packages can be submitted for local municipal building permit verifications.
What are the lead times for custom manufacturing and standard ocean shipping?
Typical production turnaround for standard configurations (1 to 3 forty-foot high cube containers) ranges between 15 to 25 business days following final CAD blueprint sign-off. Given our strategic proximity to major shipping terminals in Guangzhou, Shenzhen, and Hong Kong, ocean transit times average 4 to 8 days to Southeast Asian ports, 14 to 20 days to South Asia and the Middle East, and 20 to 28 days to Europe and North American ports.
Accelerate Your Warehouse Capacity With Direct Factory Engineering
Send our senior engineering team your warehouse dimensions and storage requirements today. We will supply a complete technical dossier including 2D floor plans, 3D realistic rendering, pallet volume calculations, and a transparent FOB/CIF pricing quote within 24 hours.
