High-Efficiency Warehouse Racking Systems
Engineered to exact load profiles, seismic standards, and operational geometries. Directly produced at our Guangzhou manufacturing facility.
25+
Years Engineering Heritage
30,000m²
Guangzhou Production Hub
30,000Tons
Monthly Cold-Form Output
120+
Export Destined Nations
Architectural Optimization of Lightweight Pallet Racking in Modern Logistics
In high-velocity distribution centers, supply chain leaders are frequently trapped between two extremes: over-engineered structural steel systems that excessively drive up dead loads and procurement budgets, and sub-standard light-duty shelving prone to structural fatigue. Custom OEM lightweight pallet racking represents an engineering milestone in industrial material handling, delivering an optimized strength-to-weight ratio by combining advanced high-tensile cold-rolled steel profiles (such as modified Q235B and Q355B coils) with precise geometric stiffeners.
Unlike legacy rolled-steel channels, custom cold-bent profiles utilize finite element analysis (FEA) to redistribute stress concentrations along the upright column flutes and horizontal box beams. This thin-wall, high-yield configuration reduces total steel weight by 15% to 28% per bay while fully retaining nominal pallet load capacities between 500 kg and 1,500 kg per level. Concurrently, lighter structural framing drastically cuts maritime shipping expenses—a pivotal advantage for overseas distributors procuring large volumes via sea freight from our South China production base.
Furthermore, custom OEM production provides distributors with interchangeable hole-pitch patterns (including European 50mm/75mm steps, American Teardrop punch configurations, and Japanese hex notches). This interoperability allows regional supply chain operators to seamlessly integrate new racking bays into existing brownfield facilities without replacing incumbent inventory hardware.
Procurement Intelligence
Emerging Procurement Trends Shaping Racking Investments
How global supply chain directors, fulfillment giants, and 3PL enterprises are redefining factory-direct sourcing strategies.
Seismic Resilience & Parametric FEA
Global procurement teams now require site-specific structural calculation packages rather than generic load tables. In seismic-active corridors (such as Japan, the Philippines, Indonesia, and coastal GCC states), racking must feature wider base plates, high-ductility anchor assemblies, and specialized portal bracing calculated against regional building codes.
Hybrid Automation Adaptability

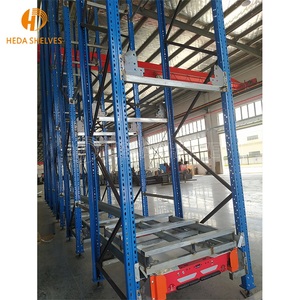

Procurement is moving decisively away from pure static racking toward automation-compatible frames. Facilities are specifying standard lightweight pallet frames engineered with tight deflection tolerances (L/200 or lower) to facilitate future retrofitting of Autonomous Mobile Robots (AMRs), Automated Guided Vehicles (AGVs), and 4-way radio shuttles.
Surface Chemistry & Cold-Chain Durability
With rapid expansion in pharmaceuticals and blast-chilled foods, demand for specialized multi-stage pre-treatments has surged. Standard wet sprays are being replaced by acid pickling, multi-stage zirconium phosphating, and thermo-cured electrostatic powder coatings certified non-toxic and peel-resistant down to -30°C.
Technological Evolution: The Trajectory of Lightweight Racking Engineering
The manufacturing of lightweight pallet racking is transitioning from manual, labor-intensive fabrication toward hyper-precise, continuous cold-roll forming lines. Historically, punching holes in upright sections after forming introduced residual stress cracks and micro-distortions in the steel profile. Contemporary OEM tier-one manufacturing utilizes synchronized inline multi-die CNC punching units prior to roll passes, ensuring hole-pitch concentricity within a tight ±0.1mm tolerance.
On the connector and beam interface, traditional manual MIG welding is rapidly being superseded by dual-torch multi-axis robotic welding cells. Automated welding establishes uninterrupted root penetration at the beam-to-end-plate joint, completely eliminating slag inclusions and localized stress risers that often cause brittle failure under cyclic seismic or dynamic pallet impacts.
In parallel, digital twin modeling is reshaping deployment workflows. Engineers now model entire structural grids inside parametric CAD and BIM (Building Information Modeling) environments before cutting steel coil. This enables logistics facility managers to simulate structural deflection profiles, collision vectors with reach trucks, and sprinkler clearances before bulk container dispatch.
Factory Verifiable Capabilities
Why Tier-1 Importers Partner With HEDA Shelves
Over two decades of vertically integrated manufacturing out of Guangzhou, South China. Fully auditable, ISO-certified, and globally validated.
Full In-House Industrial Footprint
Our 30,000 square meter plant houses end-to-end processing lines: steel coil slitting, cold roll-forming, CNC punching, automated welding, phosphating, and powder curing. Complete operational autonomy prevents subcontracting variances and guarantees rigid schedule compliance.
Free Rapid 3D & CAD Engineering (24-48h)
Every industrial inquiry is supported by experienced structural engineers. We provide complimentary 2D layout drawings, 3D spatial renderings, and bay capacity calculations within 24 to 48 hours, factoring in floor slab limits, forklift clear heights, and ingress aisles.
Strategic South China Maritime Hub
Located near major ocean cargo ports in Guangzhou and Shenzhen, we provide swift sea-route access to ASEAN, the Middle East, South Asia, and the Americas. Custom modular packing systems maximize container cube utilization, dramatically lowering freight expenditure per pallet position.
10-Step Systematic Quality Control Protocol
From mill-test validated steel coils to anti-friction modular shipping pallets:
Step 01
Spectrometry Check
Verification of raw coil carbon, manganese, and yield properties.
Step 02
Precision Slitting
High-speed coil uncoiling and laser edge trimming.
Step 03
Synchronized Punching
Continuous CNC multi-punching for pitch concentricity.
Step 04
Gradual Roll Forming
Multi-stand roller forming preventing micro-fissuring.
Step 05
Robotic Beam Welding
Automated joint fusion for high shear resistance.
Step 06
Acid Pickling
Complete scale, rust, and surface grease removal.
Step 07
Zirconium Phosphating
Chemical conversion coating for rust barrier durability.
Step 08
Electrostatic Powdering
Automated powder booth with 60–80 micron dry film build.
Step 09
Baking & Cross-Hatch Test
High-temp curing and ISO adhesion impact verification.
Step 10
Seaworthy Modular Pack
Bundle strapping and custom steel cradling for sea transit.
Procurement Knowledgebase
Frequently Asked Questions on Custom OEM Pallet Racking
Direct technical and commercial answers addressing international procurement, engineering clearances, and container logistics.
Q1: How does lightweight pallet racking maintain safety while using thinner steel?
Lightweight racking achieves certified structural integrity not through brute material thickness, but via advanced geometric cold-forming. By incorporating longitudinal stiffening ribs, multiple profile bends, and high-yield steel coils (such as Q355B with minimum 355 MPa yield strength), we optimize the section modulus. Every configuration is validated via finite element analysis and certified under EN 15512 safety deflection criteria.
Q2: Can your factory produce private-label OEM racks matching our regional punch style?
Yes. As an OEM/ODM specialist, we configure tooling for American Teardrop, European 50mm and 75mm patterns, Australian 76.2mm steps, and Asian diamond/hex notches. We also support customized beam profile dimensions, bespoke safety pin connectors, branded color palettes, and custom silkscreen carton packaging for regional distributor programs.
Q3: What exact operational inputs are required to generate an engineering quote?
To produce an optimized CAD proposal, our structural engineers require: (1) Warehouse building CAD drawings indicating clear eave heights and structural columns, (2) Floor slab load-bearing capacity (kN/m²), (3) Pallet specifications including overall dimensions (W×D×H) and maximum gross weight, (4) Forklift model, turning radius, and max lift height, and (5) Environmental conditions (ambient, cold store, or seismic rating zones).
Q4: How do your finishes resist corrosion in tropical and high-humidity climates?
Every cold-formed component undergoes a strict chemical bath pre-treatment (acid pickling to eliminate scale, followed by phosphating/passivation) prior to coating. We apply high-performance thermo-setting polyester electrostatic powder cured at 180°C–200°C. For coastal installations, marine transit conditions, or blast-freeze facilities, hot-dip galvanized (HDG) treatments compliant with ISO 1461 are available.
Q5: What is the typical factory production lead time and ocean container efficiency?
Standard production lead time ranges between 15 and 25 days depending on project tonnage. Our logistics engineering team drafts custom 3D container packing simulations for every order, nesting upright frames and packaging beams on dedicated shipping chocks to ensure a 40HQ container achieves 95%+ cube utilization without in-transit surface friction.
Q6: Do you provide installation guidance and third-party inspection documentation?
Every dispatched consignment includes piece-marked components matching detailed 2D/3D assembly blueprints. We provide complete installation manuals, torque setting specifications, and structural calculation reports. Third-party mill certificates and quality inspections (via SGS, TÜV, or BV) can be coordinated upon request prior to container sealing.
Accelerate Your Warehouse Capacity With Direct OEM Manufacturing
Consult with our engineering department today for free CAD spatial layout designs, structural load assessments, and competitive factory-direct quotations.
