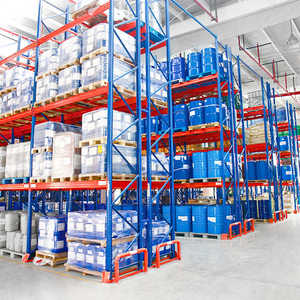

Custom Heavy-Duty 5-Layer Metal Stacking Shelf Rack 1000-2000KG Capacity 4-Layer Iron Shelving Adjustability for Warehouse
- 1,000–2,000kg Tier
- Q235B Carbon Steel
- Epoxy Coated
Customized Pallet Racking Accessories Support bar Row Spacer Beam Frame Horizontal Bracing Upright for Pallet Rack
- OEM Punch Patterns
- High-Yield Uprights
- Galvanized Spacers
5 Layer Storage Cloth Heavy Duty Pallet Rack Storage For Fabrics 1000KG 2000KG 3000KG Pounds Tons
- Roll & Fabric Cradle
- High Clear Spans
- Reinforced Beams
Warehouse Heavy Duty Industrial Shelves Steel EU Blue and Orange Selective Pallet Racking Shelving System CE Certified
- 100% SKU Selectivity
- EN 15512 Approved
- High-Bay Adaptable
Blue Orange Steel 5 Layer Sliding FIFO Increased Warehouse Density Space-saving Flow-through Racking For Warehouse Storage
- Automated Rotation
- Integrated Braking
- Up to 70% Space Save
Heavy Duty Metal Shelving Industrial Warehouse Storage Rack Shelf Steel Racking System for Stacking Racks Shelves
- Heavy Tooling Storage
- Interlocking Upright
- Custom Bay Spans
Pallet Flow Rack High Quality Fifo Warehouse Storage Racks Gravity Pallet Flow Racking First In First Out Rack System
- Gravity Incline Bed
- Magnetic Speed Control
- FMCG High Throughput
Structural Integrity, AS/RS Tolerances & High Bay Engineering
An authoritative technical analysis of high bay racking systems, cold-roll metallurgical tolerances, seismic anchoring, and OEM manufacturing parameters for automated logistics.
Defining High Bay Racking: The Engineering Physics of Heights from 12m to 40m+
In industrial logistics architecture, a High Bay Racking System is classified not merely by its physical verticality, but by the structural requirements demanded by dynamic crane automation, automated guided vehicles (AGVs), and stacker cranes (AS/RS). Operating at heights between 12 meters and upwards of 40 meters, these systems experience multi-axial load distributions, dynamic crane acceleration forces, floor slab settlements, and micro-deflections that would induce cataclysmic mechanical failure in standard low-profile selective racking.
As a premier custom OEM high bay racking system manufacturer, our engineering methodologies adhere strictly to European Standard EN 15512 (Cold-formed steel storage systems), EN 15620 (Tolerances, deformations, and clearances for automated systems), and the American RMI ANSI MH16.1. High bay installations mandate deflection tolerances as rigorous as L/200 to L/400 for horizontal load beams, and strict horizontal drift limits under seismic acceleration to safeguard automated optical positioning sensors mounted on storage and retrieval machines (SRMs).
| Design Parameter | Standard Selective Racking (< 10m) | VNA High-Density Rack (10m - 18m) | Automated High Bay AS/RS (18m - 40m+) |
|---|---|---|---|
| Governing Standard | EN 15512 / RMI MH16.1 | EN 15620 Class 300 / 400 | EN 15620 Class 100 / 200 (AS/RS) |
| Steel Substrate Grade | Q235B (Yield Strength: 235 MPa) | Q355B (Yield Strength: 355 MPa) | Q355B to High-Tensile S420MC Steel |
| Upright Gauge Range | 1.8mm – 2.5mm | 2.5mm – 3.2mm | 3.0mm – 4.5mm Precision Cold-Formed |
| Clearance / Tolerance Window | ±5.0mm / General Warehouse Standard | ±2.5mm / Mechanical Guidance | ±1.0mm to ±1.5mm / Laser & Optical Guidance |
| Dynamic Acceleration Forces | Negligible (Manual Forklift Loading) | Low (Turret Truck Speed Deceleration) | Severe Continuous (Cranes at 4m/s², Speeds to 240m/min) |
| Anchoring & Base Plate Tech | Single M12 / M16 Expansion Bolt | Double Anchor M16 High-Tensile | Pre-Engineered Embedment / Epoxy Chemical Resin Studs |
Achieving mechanical alignment within ±1.5 millimeters across an array that stands 35 meters in height requires precision cold-roll tooling. Continuous CNC-controlled punching machines punch upright column patterns with pitch variations under 0.05mm across 12-meter segments. Furthermore, cold roll-forming lines feature up to 26 forming roller stations to gradually cold-work structural strip coils without inducing micro-fractures or residual cross-sectional torque.
Custom Upright & Beam Cross-Sections
OEM customization encompasses tailored omega profiles, continuous teardrop or European diamond-hole punches (50mm, 75mm, 76.2mm pitch), and customized welded boxed step beams or closed-tube structural box beams with multi-claw connectors.
Rack-Clad Building (Clad-Rack) Architecture
For ultra-high warehousing, our manufacturing facility engineers full rack-supported buildings where the high bay racking forms the core load-bearing structure of the facility, supporting wall purlins, roof trusses, and dynamic environmental wind/snow loads.
Automated Shuttle & Sensor Brackets
Integration hardware customized for 2D/4D pallet shuttles, laser reflector brackets, emergency trip-wire runs, fire suppression sprinkler piping saddles, and optical barcode positioning targets integrated directly into the beam profiles during fabrication.
Global Procurement Trends in High Bay Systems (2025–2035)
Analyzing macro-economic shifts, automation CAPEX vs OPEX models, and the structural shift toward high-velocity fulfillment hubs.
1. Skyrocketing Land Costs & Vertical Maximization
With urban industrial real estate soaring across global supply chain corridors (Singapore, Dubai, Rotterdam, Los Angeles), procurement directors are pivoting from wide footprints to vertical optimization—demanding racking heights exceeding 25 meters to multiply cubic storage density without acquiring costly land.
2. Lights-Out Autonomous Operations
Human labor constraints are driving high bay procurement toward full 24/7 "lights-out" automated facilities. Procurement contracts now mandate direct mechanical synergy with autonomous automated guided vehicles (AGVs), pallet lifts, and robotic crane forks requiring micro-tolerances.
3. Total Cost of Ownership (TCO) Over CAPEX
Global Tier-1 logistics buyers and 3PL operators no longer evaluate bids on initial steel tonnage costs alone. Total Cost of Ownership calculations heavily weigh installation duration, container loading optimization, pre-galvanized vs painted corrosion cycles, and damage-mitigation upright reinforcements.
4. Decarbonized Steel Sourcing & ESG
Multi-national warehouse developments are bound by strict Scope 3 greenhouse gas disclosures. Procurement guidelines increasingly favor OEM manufacturers operating automated, high-efficiency roll forming lines with environmentally certified electrostatic powder-coating (RoHS compliant, non-VOC).
Strategic Sourcing Direct from Chinese OEM Foundries: Navigating the Supply Chain Arbitrage
Procurement executives frequently confront the decision: contract a local regional rack distributor or partner directly with a high-capacity Chinese original equipment manufacturer (OEM). Engaging a Tier-1 OEM like HEDA Shelves provides profound technical and financial dividends. Direct manufacturer collaboration eliminates multiple tier-layers of agent margins, granting system integrators direct access to structural engineering teams capable of modifying die designs, beam connection plates, and alloy specifications in real-time.
Crucially, large-scale high bay installations typically consume between 1,000 to 10,000 metric tons of steel per project. A domestic or regional reseller frequently faces production bottlenecks due to limited roll-forming line availability. With our 30,000 m² modern manufacturing footprint and an astounding 30,000-ton monthly capacity, custom high bay orders are fabricated in synchronized batches mapped directly to ocean freight schedules, guaranteeing uninterrupted jobsite erection workflows.
The Future of High Bay Engineering: Smart Systems & Seismic Deflection
Pioneering structural advancements safeguarding ultra-tall warehouse installations against catastrophic dynamic events and operational degradation.
IoT Structural Health Monitoring (SHM)
Future-ready high bay systems are evolving beyond passive steel frames. OEM manufacturing now integrates fiber-optic strain gauges and tri-axial wireless accelerometers inside hollow upright sections to measure deflection, live frame load oscillations, and structural impact from heavy equipment in real time.
Seismic Dissipation & Ductility Tuning
High bay structures in the Pacific Rim (Indonesia, Philippines, Japan, New Zealand, US West Coast) require dynamic finite element modeling (FEM). Incorporating seismic base isolation joints and slotted hysteretic dampers allows high bay frames to flex and dissipate peak seismic energy without unseating pallets or collapsing columns.
Cold-Chain Cryogenic Steel Metallurgies
Modern cold chain distribution operates at sub-zero temperatures (-25°C to -35°C), where ordinary carbon steel suffers dangerous ductile-to-brittle transition. Our custom OEM formulations utilize fine-grain aluminum-killed structural steel with Charpy V-notch impact toughness certified down to -40°C, preventing brittle fracture.
Factory-Direct Prowess: Behind Our Precision OEM Production
Guangzhou Heda Shelves Co., Ltd. controls the complete vertical lifecycle of structural racking fabrication—delivering unmatched tolerances, traceability, and certified durability.
25+ Years of Certified Heavy-Duty Manufacturing Engineering
Headquartered in Guangzhou with multi-acre production infrastructure, HEDA Shelves has maintained industrial leadership in heavy-duty warehousing since 2001. With an active engineering roster exceeding 300 experienced fabricators, CAD/BIM structural specialists, and QC technicians, our facility operates over 20 continuous automated roll-forming production lines, robotic dual-torch welding stations, and an environmentally compliant, fully enclosed automated electrostatic powder coating system.
Every custom OEM high bay order is verified against international regulatory benchmarks: holding accredited CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management System (No. 18624Q00169R0M), and rigorous RoHS non-toxic surface treatment compliance. We supply turnkey OEM production for multinational distribution brands, system integrators, automated logistics EPC contractors, and global rack resellers under private OEM/ODM contracts.
