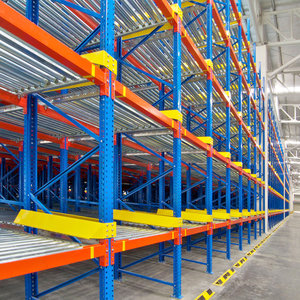

Heavy Duty Gravity Flow Pallet Roller Rack Q235B
Strict FIFO
Dynamic Roller Lane
SGS & CE
Custom OEM Pallet Racking Manufacturer & Supplier
Heavy-duty industrial storage engineering, automated logistics systems, and high-density warehouse solutions manufactured to ISO 9001:2015 and CE standards.
Q235B / Q355B Certified Steel
CE (2435-CPR-8605159)
Free 2D/3D Engineering Layout
Precision Manufacturing
Featured Industrial Warehouse Storage & Racking Systems
Factory-direct customized OEM/ODM storage arrays precision roll-formed in Guangzhou, optimized for structural integrity, cold chain endurance, and high volumetric efficiency.

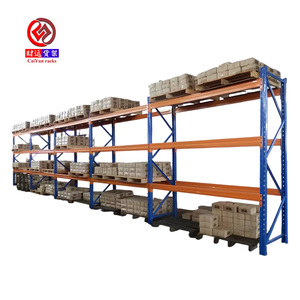

Selective Warehouse Storage Rack Shelving System
100% Direct Access
1000-4500kg/Beam
Custom Pitch
Heavy Duty Double Deep Steel Pallet Racking
Cold Room Ready
+30% Capacity
Double Reach

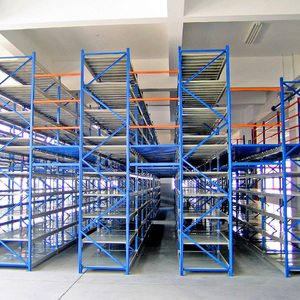

Customized Steel Mezzanine Attic Platform Picking Rack
Multi-Tier Decking
300-1000kg/sqm
Anti-Corrosive
Heavy Duty Warehouse Steel Pallet Racking Units
Modular Assembly
Galvanized/Coated
Direct Price

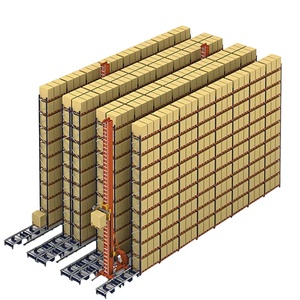

Automated Logistic Storage ASRS Pallet Racking System
High Bay 30m+
WMS/WCS Integration
Ultra Precision

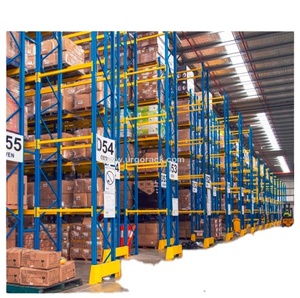

URGO High Utilization Vertical VNA Pallet Racking
1500-1800mm Aisle
95% Cube Utility
Wire Guidance
Adjustable Industrial Push Back Pallet Storage Racks
2-6 Pallets Deep
LIFO Flow
Nested Carts
25+
Years Engineering Expertise (Est. 2001)
30,000m²
Self-Owned Smart Manufacturing Base
30,000t
Monthly Cold-Formed Steel Capacity
120+
Export Nations Across ASEAN & Global
Market Intelligence & Whitepaper
Future Procurement Trends in High-Performance Pallet Racking
As warehouse real estate leases rise globally and supply chain predictability demands automated throughput, structural pallet racking procurement is moving from commodity hardware buying toward engineering-driven, automated interfaces.
Automation Readiness & ASRS Convergence
Traditional static storage is rapidly integrating with automated material handling equipment. Procuring organizations in 2026 and beyond prioritize racking profiles designed with tighter deflection tolerances (1/300 to 1/500), accommodating high-speed crane acceleration, optical pallet sensors, and automated shuttle interfaces without beam sag.
Our OEM engineering integrates top-guide crane ties, high-precision positioning plates, and continuous roll-formed columns that maintain true vertical alignment up to 30 meters high.
Sub-Zero Cold Chain High-Density Arrays
Energy expenditure in sub-zero refrigerated storage (-25°C to -40°C) demands extreme volumetric efficiency. Procurement heads are phasing out conventional wide-aisle selective systems in favor of Radio Shuttle, Gravity Flow, and Deep-Reach Push Back racking.
We apply high-grade micro-alloyed Q355B and Q235B structural steels treated with low-temperature impact testing to eliminate cold-induced steel embrittlement, combined with dual-layer powder or hot-dip galvanization.
Seismic Resilience & Parametric FEA Design
With massive supply chain expansions across seismically active zones in Southeast Asia, Japan, and the Middle East, structural approvals now necessitate strict finite element analysis (FEA) modeling complying with FEM 10.2.02, RMI, and AS4084 standards.
Our engineers simulate base dynamic loading, ductility factors, ground acceleration reactions, and column base-plate anchorage before steel coils enter roll-forming lines.
| Structural System | Standard Payload Range | Warehouse Aisle Width | Space Utilization Rate | Recommended Industry Fit |
|---|---|---|---|---|
| Selective Pallet Racking | 1,000 – 4,500 kg / beam level | 3.0 m – 3.8 m | 40% – 50% (100% SKU selectivity) | 3PL, FMCG, E-Commerce, Retail DCs |
| Double Deep Racking | 1,000 – 3,000 kg / level | 3.0 m – 3.5 m | 60% – 65% (LIFO stock profile) | Cold Storage, Food Distribution, Dry Goods |
| Very Narrow Aisle (VNA) | 1,000 – 3,500 kg / level | 1.5 m – 1.8 m | 80% – 85% (Max vertical cube) | High-rent metro hubs, Pharmaceuticals |
| Radio Shuttle & ASRS High-Bay | 500 – 2,000 kg / carrier pallet | Aisle-less / Automated rail | 85% – 95% (Dense automation) | Beverage bottlers, Cold chains, High-throughput |
Core Manufacturing Advantages
Why Engineering Procurement Teams Partner with HEDA
Rooted in Guangzhou since 2001, our integrated supply chain controls every stage of manufacturing—from certified prime raw coil handling to multi-stage surface treatment and worldwide container logistics.
In-House Vertical Manufacturing
Complete autonomy over continuous steel roll-forming, automatic computer-controlled punching, robotic GMAW welding, acid pickling, phosphating, and automatic electrostatic powder curing lines.
Rigorous Structural Compliance
All load-bearing calculations verify deflection ratios and structural shear stresses matching CE Certification No. 2435-CPR-8605159 and ISO 9001:2015 standards, backed by batch-specific metallurgical mill sheets.
Complimentary 3D & CAD Layouts
Submit your warehouse floor plans to receive precise 2D warehouse utilization CAD layouts, 3D interactive visualizations, and structural load charts within 24 to 48 hours without engineering fees.
Export Loading Optimization
Short-sea maritime connection from South China deep-water ports. Customized 3D container bundling schematics maximize shipping container volume, protecting coated uprights and minimizing sea freight rates.
Clear Procurement Answers
Frequently Asked Technical & Commercial Questions
Critical details addressing structural tolerances, tropical rust protection, load ratings, and cross-border installation management.
What specific warehouse data is needed for structural modeling?
To produce an engineered proposal, our engineering office requires your architectural warehouse layout (CAD DWG or dimensioned PDF) indicating ceiling clear heights, column grid intervals, slab thickness/rebar specifications, overhead fire sprinkler line clearance, pallet dimensions (W x D x H, including overhang), maximum gross pallet loads, and your planned forklift turning radius and mast reach.
How does HEDA prevent oxidation and rust in humid tropical climates?
Standard painted racks degrade quickly in humid environments. We execute a rigorous multi-stage chemical pre-treatment involving hot degreasing, acid pickling, neutral water rinsing, and zinc phosphating before coating. Racks receive an electrostatic thermosetting epoxy-polyester powder layer cured at 180°C–200°C. For coastal, outdoor, or wet storage, full hot-dip galvanizing complying with ISO 1461 is available.
Can you provide certified seismic calculations for municipal permits?
Yes. For regions prone to seismic events (such as the Philippines, Indonesia, Japan, New Zealand, and western South America), our structural team prepares seismic calculation packages evaluating horizontal spectral acceleration, soil profile classes, ductile frame response, base-plate shear anchors, and cross-aisle portal ties to satisfy municipal structural code compliance.
What are standard OEM production lead times and installation support?
Average factory production ranges from 15 to 25 days depending on project tonnage and custom hole punching requirements. Every export order ships with piece-marked shop drawings, 3D installation schematics, beam safety locking pins, expansion bolts, and shims. On major turnkey projects, we deploy field installation engineers or provide live remote technical supervision.
Design Your High-Efficiency Warehouse Storage System Today
Consult directly with our structural racking engineers. Receive an optimized 2D/3D CAD warehouse layout, maximum pallet-position calculation, and factory-direct OEM manufacturing pricing within 24 hours.
