Featured Industrial Pallet Racking & Warehouse Systems
Standardized cold-rolled Q235B/Q355B structural steel storage configurations engineered for high-density load profiles, multi-tier automated fulfillment, and maximum cubic space utilization.
Continuous dynamic incline roller tracks with integrated speed separators. Strict FIFO stock rotation engineered for high-throughput perishables and FMCG distribution.
Inquire Now

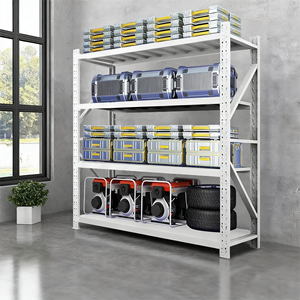

Configurable pitch pitch-punched uprights designed for manual carton picking mixed with light pallet buffering. Ideal for multi-SKU retail fulfillment centers.
Inquire Now
Modular post-nesting racking with quick dismount capabilities. Solves seasonal inventory surges without permanently anchoring into warehouse slab floors.
Inquire Now

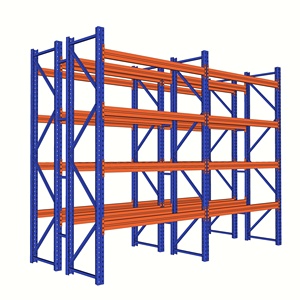

Global baseline workhorse with 100% immediate pallet selectivity. Engineered with interlocking 3-to-4 connector claw box beams and safety locking pins.
Inquire Now
Dedicated cradle beam geometries built for non-palletized cylindrical rolls, textile rolls, and industrial coils, eliminating deflection damage.
Inquire Now
Clear-span heavy structural steel mezzanine platforms transforming overhead volume into productive operational assembly zones or office facilities.
Inquire Now
Systematized vertical steel shelving integrated with barcode location indexing brackets, modular dividers, and safety mesh containment backstops.
Inquire Now
Rack-supported multi-tier mezzanine platform utilizing heavy cold-rolled upright columns as structural posts. Integrated staircases, pallet drop gates, and decking.
Inquire NowGlobal Exporter Benchmark: Guangzhou Heda Shelves Co., Ltd.
Established in 2001, HEDA Shelves operates a state-of-the-art 30,000 square meter integrated manufacturing facility in Guangzhou, China. Producing over 30,000 metric tons monthly, we combine metallurgical engineering, automated robotic welding, and stringent ISO 9001:2015 quality assurance.
Pallet Shelving Architectural Selection Matrix
Selecting the correct warehouse pallet shelving geometry requires balancing three critical operational factors: selectivity percentage, cubic storage density, and capital expenditure per pallet position.
| Racking Topology | Direct Selectivity | Storage Density | Stock Rotation | Optimal Industry Application | Relative Cost/Pallet |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Immediate | Baseline (40-50% Floor Util.) | FIFO / LIFO Flexible | 3PL, FMCG, Multi-SKU E-Commerce, Retail Hubs | Low - Baseline |
| Double Deep Racking | 50% Immediate | Medium-High (+30% vs Selective) | LIFO Priority | Dry Goods, Manufacturing Buffer, Paper Converters | Low-Medium |
| Gravity Flow Pallet Racking | Lane Facing (FIFO) | Very High (+60% vs Selective) | Strict Automatic FIFO | Cold Storage, Perishables, Dairy, Pharmaceuticals | High (Roller Beds) |
| Radio Shuttle Automation | Lane Facing | Ultra-High (+80% Density) | Configurable FIFO / LIFO | High-throughput Cold Rooms, Beverage, Seasonal Agro | Medium-High (Shuttle) |
| Rack-Supported Mezzanines | 100% Hand Pick + Pallet | Maximum Vertical Footprint | Custom Zone Pick | Auto Spare Parts, Fashion Distribution, Assembly Units | Moderate (Structural Value) |
High-Throughput Distribution: Selective & VNA
For operations with over 5,000 distinct SKUs requiring instantaneous accessibility, standard Selective Racking or Very Narrow Aisle (VNA) systems are non-negotiable. Engineered with upright profiles rolled from Baosteel certified Q235B steel, uprights feature Omega-profile cold bending with up to 13 folding points to prevent torsional buckling under dynamic seismic loading.
Cold Chain & Energy Optimization: Dynamic Flow
Refrigerated warehouse cubic meters carry 400% higher operational energy expenses than dry ambient warehouses. HEDA's Live Gravity Flow and Radio Shuttle configurations eliminate wasted forklift travel corridors. By consolidating pallets into continuous lanes up to 40 meters deep, cold loss is drastically minimized while ensuring strict FIFO stock rotation for temperature-sensitive dairy, meats, and biological pharmaceuticals.
Multi-Tier Pick Towers: Rack-Supported Platforms
In high-rent logistics nodes across Singapore, Tokyo, Dubai, and Rotterdam, horizontal footprint expansion is cost-prohibitive. HEDA rack-supported mezzanines turn vertical volume into operational square meters. By integrating heavy-duty cold-formed column sections with galvanized perforated floor decking, pick rates expand by 300% without acquiring additional real estate.
Future Warehouse Racking Procurement Trends (2025–2030)
International supply chain directors face volatile ocean freight, carbon taxation, and automated logistics transitions. Procurement is evolving from purchasing raw iron tonnage to acquiring precision-engineered, compliance-verified storage assets.
1. Modular Automation-Ready Racking
Procurement teams increasingly reject single-purpose fixed racking. Global facilities now specify pallet shelving capable of retrofitting Autonomous Mobile Robots (AMR), Automated Guided Vehicles (AGV), and Radio Shuttle carriers. HEDA roll-forms uprights with uniform punch spacing and standardized beam connectors, allowing standard selective racking to transform into shuttle or pick-tunnel lanes without replacing upright infrastructure.
2. Stringent Seismic & Dynamic Load Compliance
Seismic events in active tectonic zones across Southeast Asia (Indonesia, Philippines), Oceania (New Zealand), and the Americas have triggered stricter regional building inspections. Buyers now require supplier-verified FEM 10.2.02, EN 15512, and RMI (Rack Manufacturers Institute) calculations. HEDA's engineering department delivers site-specific Finite Element Analysis (FEA) reports verifying base plate anchoring and sway-bracing factors for permitted civil compliance.
3. Low-VOC Epoxy & Galvanized Sustainability
ESG policies and cross-border carbon border adjustment mechanisms (CBAM) make manufacturing emissions critical. Modern procurement demands heavy metal-free pre-treatment. HEDA has replaced traditional toxic chromate washes with a closed-loop 10-stage pickling, silane/phosphating, and zero-VOC electrostatic epoxy powder coating system, complemented by full hot-dip galvanizing options complying with RoHS environmental directives.
Technological & Material Evolution in Steel Storage
Racking production has transitioned from manual structural welding to high-tolerance precision roll-forming. Understanding these metallurgical advances allows procurement officers to eliminate catastrophic warehouse rack collapse risks.
High-Tensile Micro-Alloyed Steels
Traditional racking utilized heavy-gauge commercial grade steels that added freight weight without optimal yield strength. HEDA utilizes certified high-strength structural strip steels (Q235B and Q355B with verified mill test certificates). Micro-alloying ensures superior tensile yield under dynamic fork-truck impact, lowering gross freight weight per shipping container while preserving high safety factors (1.65 to 1.95).
Continuous CNC Cold Roll-Forming Lines
Structural integrity depends on section dimensional consistency. HEDA's automated continuous multi-station cold roll-forming lines punch and bend uprights in a continuous pass. This eliminates residual internal stresses and hole-pitch tolerances, ensuring that every beam connector claw engages securely without hammer-forcing during warehouse assembly.
10-Step Quality Assurance Architecture
Every structural upright and load beam manufactured in our Guangzhou factory passes through our rigorous 10-step quality control lifecycle: (1) Raw coil chemical testing, (2) Precision slitting, (3) Automated column punching, (4) CNC cold roll-forming, (5) Profile calibrating, (6) Mechanical polishing, (7) Robotic laser welding, (8) Acid pickling & phosphating, (9) Electrostatic powder coating, and (10) Ultrasonic weld inspection and ocean-grade bundle wrapping.
Global Exporter Capabilities: Engineering Trust Since 2001
Over 25 years of specialized storage manufacturing, supporting warehouse operators, government logistics hubs, regional distributor networks, and EPC contractors worldwide.
Free 2D CAD & 3D BIM Engineering Layouts
We do not sell racking out of static product brochures. Our in-house engineering team delivers full 2D AutoCAD equipment layouts, 3D photorealistic renderings, and aisle-clearance simulations within 24 to 48 hours. Every layout optimizes slab load distribution, sprinkler drop clearances, and forklift turning radiuses (AST).
Optimized South China Export Hub Shipping
Situated in Guangzhou adjacent to major ports (Nansha, Huangpu, Shenzhen Yantian), HEDA executes precision container loading plans (CLP) utilizing computerized 3D load software. We pack upright frames flat-bundled and nest beams to hit maximum container weight limits without wasting cubic volume, significantly lowering ocean freight costs per pallet position.
Full International Certification: CE & ISO
HEDA Shelves products hold verified CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management System Certification (No. 18624Q00169R0M), and comprehensive coating RoHS safety validations. Mill inspection test records and coating micrometer thickness reports accompany every commercial export consignment.
Pallet Shelving Global Sourcing FAQ
Engineering, compliance, and logistics questions answered by HEDA's technical export directorate.
Engineer Your Warehouse for Maximum Cubic Efficiency
Submit your warehouse layout, building clear height, and pallet load parameters to our certified engineering department. Receive a comprehensive 2D CAD layout, photorealistic 3D rendering, and factory-direct wholesale pricing within 24 hours.
