Modular Stacking
Mracking Stacking Racks & Shelves Industrial Rack Storage Shelf
Load: Up to 1500kg/tier
Heavy Duty Tubular Steel
Forklift Compatible
Engineered Inventory Solutions
Wholesale Longspan Racking & Industrial Storage Systems
Explore factory-direct longspan shelving assemblies, multi-tier platforms, and heavy-duty steel racks manufactured under strict ISO 9001:2015 and CE certification standards.
Modular Stacking
Heavy Duty

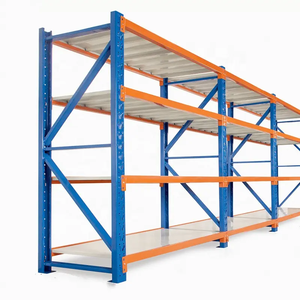

Stacking Long Span Shelving Storage Metal Shelf Rack Assembly Shelves
Span: 1200-2700mm
50mm Pitch Adjustment
Steel/Mesh Decking
Ready Stock

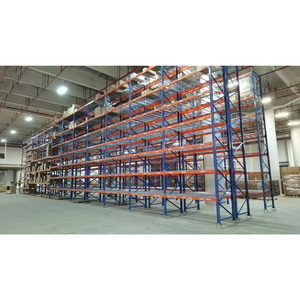

Robust Longspan Shelving Systems Warehouse Organization Heavy Duty
Capacity: 300-800kg/UDL
Anti-Corrosion Powder
Fast Assembly
Boltless Fast-Lock

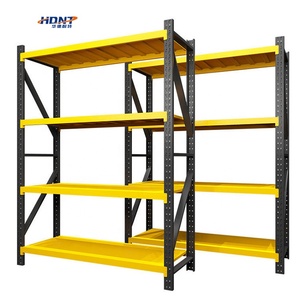

4 Tier Metal Storage Shelf Rack Boltless Assembly Medium Duty Shelving
No Nuts or Bolts
200-500kg/Shelf
MDF/Steel Infill
Medium Duty
Industrial Storage Shelves Garage 4 Layer Long Span Medium Duty Rack
Multi-Bay Add-On
Zinc/Epoxy Finish
Manual Picking Opt.
Stackable Metal
Heavy Duty Warehouse Shelving Long Span Stackable Storage Rack
Large Goods Volume
Interlocking Pins
Heavy Gauge Steel
Gravity Dynamic
Collapsible Mobile Gravity Pallet Roller Steel Dynamic Flow Rack
FIFO Material Flow
Smooth Roller Tracks
Brake Drum Integrated
High Bay Multi-Tier
High Bay Galvanized Steel Structure Multi Tier Pallet Racking 3PL
Up to 12m Heights
Mezzanine Integrated
Pre-Galvanized Finish
Technical White Paper
Engineering Architecture of Modern Longspan Racking
An in-depth analysis of cold-formed steel sections, structural physics, surface metallurgy, and seismic stability in medium-to-heavy manual picking environments.
Structural Load Calculations & Cold-Formed Steel Science
Longspan racking occupies a mission-critical middle ground between light boltless shelving and automated heavy-duty pallet racks. Engineered primarily for high-density hand-loaded items, SKUs with awkward geometric footprints, and cartons requiring immediate picker access, longspan systems depend on the yield strength of cold-formed structural steel profiles. At HEDA Shelves, we employ premium Q235B and Q355B cold-rolled structural carbon steel, featuring a certified minimum yield point of 235 MPa to 355 MPa. The cold-roll forming procedure ensures precise uniform gauge thickness across upright pillars, stiffening return ribs, and multi-hook connector step beams.
Key Engineering Standard: EN 15512 & RMI (Rack Manufacturers Institute) Compliance
Structural upright profiles must resist axial compression alongside perpendicular buckling moments. By engineering a proprietary omega-shaped or closed-tube column profile with automated CNC 50mm diamond/butterfly punch pitches, our frames yield an exceptional load-to-weight ratio that lowers freight volume by up to 28% while boosting upright safety factors beyond 1.65.
Uniformly Distributed Load (UDL) calculation represents the bedrock of warehouse safety. The engineering formula for maximum beam deflection under UDL is:
Deflection (δ) = (5 × w × L⁴) / (384 × E × I) ≤ L / 200 (or L / 250 for automated interface)
Where w equals load per unit length, L represents the clear span between uprights, E is the Modulus of Elasticity (2.05 × 10⁵ N/mm² for steel), and I designates the Area Moment of Inertia of the beam section. In every longspan installation, our engineering department performs FEA (Finite Element Analysis) to ensure beam deflection never exceeds L/200 under maximal working conditions, precluding plastic deformation or dislodgment of intermediate steel drop-in shelves.
Engineering Specification Matrix: Light vs. Medium vs. Heavy Longspan Configurations
| Racking Classification | Standard Beam Span (mm) | Standard Frame Depth (mm) | UDL Capacity per Level (kg) | Decking Options | Typical Industrial Applications |
|---|---|---|---|---|---|
| Light-Medium Longspan | 1000 – 1500 | 400 – 600 | 150 – 350 kg | 0.6mm Galvanized Steel / 12mm MDF | E-commerce apparel, auto sensor parts, pharmaceutical kits |
| Standard Medium Longspan | 1500 – 2100 | 600 – 800 | 350 – 600 kg | 0.8mm Powder-Coated Steel / Wire Mesh | Hardware distribution, FMCG buffer zones, electronics assembly |
| Heavy Duty Longspan (SuperSpan) | 1800 – 2700 | 800 – 1200 | 600 – 1200 kg | 1.0-1.2mm Rib-Reinforced Steel Shelves | Industrial valves, machinery gearboxes, chemical fluid totes |
| Multi-Tier Mezzanine Longspan | 1800 – 2400 | 600 – 1000 | 400 – 800 kg + Floor Load | Steel Perforated Grating / Chequered Plate | Regional central distribution hubs, aerospace spare part depots |
Strategic Foresight
Future Procurement Trends for Global Racking Buyers (2026–2032)
The intersection of volatile supply chains, automated fulfillment, high real estate costs, and decarbonization mandates is completely reshaping B2B industrial racking procurement.
Pre-Engineered Automation Interoperability
Global procurement heads no longer purchase longspan systems in isolation. The emerging demand focuses on racking profiles designed from day one to interface with Autonomous Mobile Robots (AMRs), Automated Guided Vehicles (AGVs), and vertical reciprocating lifts. Upright tolerances and shelf flushness are now calibrated to laser-sensor clearances, preventing snagging during automated bin extraction.
Total Cost of Ownership (TCO) Over Nominal FOB
Buyers are shifting from selecting the lowest upfront FOB quotes to evaluating Total Cost of Ownership. Factors include nested packaging efficiency (reducing ocean freight container counts by up to 25%), modular boltless interconnectivity that cuts on-site installation labor costs by 40%, and multi-generational reconfigurability as warehouse SKU profiles morph over operational lifecycles.
Circular Green Steel & Low-VOC Carbon Auditing
Driven by EU CBAM (Carbon Border Adjustment Mechanism) and ESG compliance criteria across North America and Australasia, global Tier-1 buyers require certified mills utilizing electric arc furnace (EAF) steel with documented recycled scrap fractions. Non-toxic, lead-free, heavy-metal-free thermosetting electrostatic powders are quickly transitioning from nice-to-have to contractual preconditions.
Hybrid Vertical Density Optimization
Urban micro-fulfillment hubs facing skyrocketing real estate lease costs are forcing warehouses upward. Procurement tenders increasingly specify 2-tier and 3-tier rack-supported mezzanine floors built right upon heavy-duty longspan upright frameworks, transforming wasted overhead vertical clearance into dense manual picking tiers without expanding concrete footings.
BIM & 3D Digital Twin Integration
Modern EPC logistics engineering firms mandate that racking manufacturers provide accurate Revit / IFC 3D Building Information Modeling (BIM) files prior to purchase order confirmation. This digital pipeline validates clash detection with fire sprinkler lines, HVAC overhead ductwork, and lighting conduits long before containerized components arrive at port.
Industry Evolution
Technology & Manufacturing Advancements in Longspan Systems
How robotic roll-forming, continuous phosphating chemistry, and high-precision CNC punch tooling are driving unprecedented load consistency and dimensional accuracy.
From Manual Batch Pressing to Continuous Automated Cold-Roll Lines
Historically, industrial shelving suffered from cumulative tolerance errors caused by discrete, manually handled punch-press dies. A deviation of just 0.5mm across consecutive pitch holes could magnify into structural twist over a 6-meter upright column, severely destabilizing multi-bay shelving rows. Today, leading Chinese manufacturers such as HEDA Shelves utilize continuous roll-forming production lines featuring integrated computer-controlled optical positioning. Uncoiled high-tensile steel passes through progressive precision roller passes that gradually shape the complex stiffening ribs without inducing internal residual stress or micro-fissures in the steel bend corners.
The 10-Step Precision Manufacturing & Quality Control Protocol
Raw Material Mill Testing
Laser & CNC Slitting
Synchronous CNC Punching
Cold-Bend Profile Forming
Section Calibration
Automated Surface Polishing
Robotic Beam Joint Welding
Chemical Pickling & Phosphating
Automated Powder Coating
Load Sampling & Palletizing
Surface Metallurgy: The Critical Anti-Corrosion Differential
In humid coastal distribution hubs across Southeast Asia, the Persian Gulf, and Latin America, standard paint coatings degrade quickly, causing surface oxidation and dangerous localized corrosion along load-bearing baseplates. Our production methodology eliminates this risk via a full multi-stage immersion treatment:
- Acid Pickling (Descaling): Cleans cold-rolled scale, drawing oils, and surface impurities to bare reactive steel.
- Zinc-Iron Phosphating: Imparts a dense micro-crystalline conversion layer that acts as an impermeable corrosion barrier and micro-anchors subsequent coatings.
- Electrostatic Powder Curing (180°C – 200°C): Thermosetting epoxy-polyester hybrid powder is applied with corona spray guns to achieve a uniform film thickness of 60 to 90 microns, resisting standard 500-hour neutral salt-spray testing (ASTM B117).
Manufacturer Pedigree
Why Global Importers Partner with HEDA Shelves
Headquartered in Guangzhou, China, Guangzhou Heda Shelves Co., Ltd. has delivered turnkey industrial warehousing, longspan shelving, and high-bay racking systems since 2001.
2001
Year Established
30,000m²
Modern Factory Footprint
30,000Tons
Monthly Output Capacity
120+
Export Nations Served
Direct Factory Control: No Middlemen, No Subcontracting
When purchasing wholesale racking from China, brokers and trading firms frequently disperse components across disparate workshops, creating mismatched upright hole pitches, inconsistent beam weld fillets, and discordant powder coating colors. At HEDA Shelves, all operations—slitting, punch stamping, cold bending, robotic welding, pre-treatment phosphating, and powder baking—take place inside our self-owned 30,000 m² Guangzhou production facility.
Our 300+ personnel, including 20+ dedicated structural and CAD drafting engineers, guarantee that every longspan beam connection clips securely into upright slots with pinpoint tolerances, drastically shortening your field installation schedule.
CE Certified (No. 2435-CPR-8605159)
ISO 9001:2015 (No. 18624Q00169R0M)
RoHS Heavy Metal Free Coatings
Complimentary Engineering: 2D Floorplans & 3D Structural Stress Analysis
Avoid costly architectural oversights and spatial clashes. Simply provide our engineering desk with your building dimensions, clear roof heights under trusses, pillar grid lines, and SKU characteristics. Within 24 to 48 hours, our technical engineering office produces complete 2D layout schematics and photorealistic 3D structural renderings, paired with a comprehensive calculation report for local permit filing.
Whether your project requires high-density narrow aisle layouts, heavy-load floor anchors for seismic zones across Japan, the Philippines, or Chile, or pre-configured multi-tier walkways, we tailor frame sizing and steel gauge thicknesses to match your exact structural parameters.
Procurement Knowledge Base
Frequently Asked Questions by Global Importers & Contractors
Essential technical, financial, and logistical insights addressing international longspan racking procurement directly from China.
What exact building and inventory metrics are required to engineer an accurate longspan layout?
To provide an optimal layout and structural load check, our engineering team requires: (1) Warehouse architectural drawings (AutoCAD DWG or dimensioned PDF) indicating column grid spacing, door clearances, and dock doors; (2) Clear internal height measured to the lowest overhead obstruction (sprinkler headers, lighting, or roof girders); (3) Concrete slab specifications, including compressive strength (e.g., C20/25, C30) and slab thickness to verify dynamic anchor holding capacities; (4) Dimensions (W × D × H) and gross weights of the largest cartons, totes, or loose items; and (5) Operational picking methodology (manual hand-stacking, rolling cart pickers, or cherry-picker order pickers).
How do you protect longspan uprights and beams against transit damage during ocean freight?
International maritime container transit exposes metal components to severe vibration, racking forces, and saltwater humidity. Uprights are bundled back-to-back with custom-profiled corrugated protective pads, wrapped in multi-layer stretch film, and strapped with heavy-gauge PET banding onto heavy wood blocks for straightforward forklift un-stuffing. Beams are stacked in interlocking nests separated by heavy foam spacers, protecting connector tabs from bending. Small hardware items (interlocking safety pins, shims, footplates, and chemical anchors) are packed in reinforced, palletized wooden crates with vapor-phase corrosion-inhibitor (VCI) bags.
Can HEDA Shelves engineer racking systems for high-seismic activity or coastal typhoon regions?
Yes. We frequently supply EPC projects in high-risk seismic regions such as Indonesia, the Philippines, New Zealand, Japan, and the American Pacific rim. Our engineering department reviews seismic acceleration factors (Ss and S1 values per IBC or Eurocode 8 standards) and configures oversized, thick baseplates with double or quad mechanical wedge anchors, heavy-gauge K-bracing or X-bracing truss networks, and heavy-wall column sections. Structural calculations and engineering load certificates are provided for local authority building approval.
What are the key technical differences between Steel Infill Decking and Wire Mesh Decking?
Solid galvanized or powder-coated steel shelf panels provide a smooth, continuous surface ideal for sliding flat cardboard cartons, small mechanical components, or bins by hand. However, international fire protection standards (such as NFPA 13) frequently require at least 50% open area across shelves above 3.6 meters high so fire sprinkler water can penetrate lower storage levels. Welded wire mesh decking satisfies this code requirement while maximizing warehouse overhead lighting dispersion, preventing dust accumulation, and allowing visibility of upper inventory levels from the aisle floor.
What are your standard manufacturing lead times, MOQs, and accepted B2B payment terms?
Standard production lead time for standard longspan inventory runs between 12 and 18 business days from engineering shop-drawing sign-off. High-volume 40HQ container orders (200+ bays) typically ship in 20 to 25 days. Minimum Order Quantity (MOQ) is generally flexible (starting from 10 to 20 bays for standard sizes), though ordering in full 20GP or 40HQ container volumes maximizes freight efficiency. Standard payment terms include T/T (30% deposit upon order confirmation, 70% against Bill of Lading copy) or Irrevocable Letters of Credit (L/C) at sight for recognized institutional buyers.
Do you offer OEM private-label manufacturing and customized corporate colors for distributors?
Yes. A significant percentage of our production output serves brand-name material handling distributors in Europe, the Americas, Australia, and the Middle East. We provide full OEM/ODM branding, including laser-cut or screen-printed corporate logos on beam endplates, customized carton labeling, barcode serialization, neutral assembly instruction manuals, and precision electrostatic powder color matching according to any standard RAL or Pantone code (e.g., standard Safety Orange RAL 2004, Ultramarine Blue RAL 5002, or custom corporate palettes).
Ready to Engineer Your Optimal Warehouse Storage Layout?
Connect directly with HEDA Shelves' Senior Structural Engineering Desk. Receive complete 2D CAD spatial plans, 3D structural renderings, and transparent factory-direct wholesale pricing within 24 hours.
