Featured Industrial Warehouse Storage & Racking Systems
Engineered from cold-rolled Q235B/Q355B structural steel, our heavy-duty wide pallet racking and mezzanine frameworks deliver optimal density, structural safety, and high-cube volumetric efficiency.

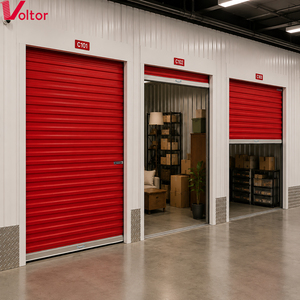

Portable Commercial Self Storage Units
Modular roll-up door steel lockers tailored for secure multi-tenant commercial warehousing, outdoor rental pods, and scalable inventory compartmentalization.
41x41 ASTM Back-to-Back HDG Strut Channel
High-zinc hot-dip galvanized C-channel infrastructure components offering anti-corrosive overhead seismic bracing and structural anchoring support.

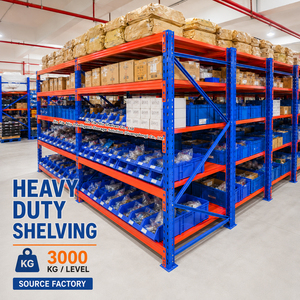

3000KG Custom Steel Deck Storage Rack
Reinforced wide-span decking system optimized for plastic parts bins, industrial sub-assemblies, and heavy manual pick-face operations.
Industrial Selective Heavy-Duty Pallet Rack
High-rigidity wide-entry selective pallet racks ensuring 100% SKU selectivity, adjustable beam step connectors, and high unit-load safety factors.
Systematic Numbered Warehouse Racking
Turnkey identification-ready pallet structures configured for seamless warehouse management system (WMS) tracking and barcoded path dispatching.
Stackable Pallet Nesting Frame Racks
Dynamic post-pallet staging frames providing temporary dense stacking arrays without requiring fixed civil ground-anchor penetrations.

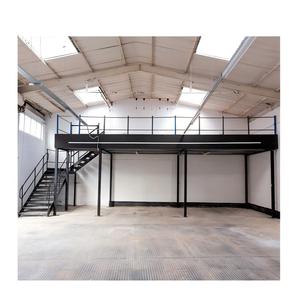

Structural Steel Heavy Mezzanine Platform
Wide column-grid overhead platforms capable of sustaining 300–1000 kg/m² for automated order-consolidation cells and upper-level workspaces.
Multi-Level Rack-Supported Storage Platform
Tiered racking infrastructure utilizing upright profiles to transfer multi-floor live loads directly to the slab, optimizing e-commerce picking paths.
Global Production Footprint & Quality Verifications
Backing international intralogistics contractors with validated structural steel output, standardized cold-forming accuracy, and certified metallurgical processes.
Future Procurement Trends in Wide Pallet Racking (2025–2030)
Macro analysis of modern warehousing transitions, total cost of ownership (TCO) assessments, and supply chain resilience for international distribution heads.
Transition to High-Strength Steels (HSS)
Global procurement teams are shifting away from traditional commercial-grade hot plates toward micro-alloyed, cold-formed Q355B and high-yield alloys. This shift optimizes the strength-to-weight ratio by 18-24%, reducing dead load on concrete slabs and trimming international freight container expenditures per pallet position.
Automation-Ready Static Profiles
Procuring static wide-entry racking systems without autonomous mobile robot (AMR) and automated guided vehicle (AGV) compatibility is becoming obsolete. Forward-thinking operators specify wider bay tolerances, reinforced base plates, and laser-guided reflective targets to accommodate hybrid manned-unmanned transit lanes.
Lifecycle-Corrosion Risk Mitigation
Volatile climates require strict anti-corrosion finishes. Buyers now mandate multi-stage automated pre-treatment baths (acid pickling and zinc phosphating) followed by 80–120μm thermosetting polyester electrostatic powder coatings to eliminate micro-blistering and chalking under high humidity.
Procurement Metric: Information Gain & Deflection Ratios
In wide-span racking systems exceeding 2700mm clear beam spans, buyers should avoid relying solely on catalog uniformly distributed load (UDL) values. Engineers recommend validating the elastic deflection limit (typically L/200 or L/250 according to RMI MH16.1 and EN 15512 specifications). Calculating actual elastic deflection under operational stresses prevents beam sagging, which causes forklift mast collisions and product drops.
| Racking Architecture | Typical Clear Bay Width | Standard Load Capacity | Ideal SKUs / Rotation Mode | Handling Machinery Compatibility |
|---|---|---|---|---|
| Wide-Span Selective Racking | 2300mm – 3900mm | 1,000 – 4,500 kg / level | High SKU variety / 100% Direct Selectivity (FIFO) | Counterbalance Forklifts, Reach Trucks |
| Double-Deep Pallet System | 2300mm – 3300mm | 1,000 – 3,200 kg / level | Medium SKU density / Multi-pallet batching | Pantograph Reach Trucks, Deep-Reach Mast |
| Drive-In / Drive-Through | Custom / Pallet + 150mm | 1,000 – 1,800 kg / pallet | Low SKU count / High volume batching (LIFO/FIFO) | Narrow-Chassis Counterbalance |
| Structural Rack Mezzanine | Wide Grid Up to 6000mm | 300 – 1,000 kg / m² | Small-parts e-commerce, bin shelving, manual packing | Pallet Jacks, Vertical Cargo Lifts, Chutes |
Technological Milestones in Modern Racking Fabrication
From manual cold-punching to CNC continuous multi-roll forming lines: how manufacturing innovations eliminate structural weak points in heavy industrial racking.
Continuous Automatic Roll-Forming
Modern production employs continuous 16-to-24-pass rolling cassettes. This gradual shaping method prevents residual bending stresses, work-hardening brittleness, and uneven edge thinning, ensuring precise upright straightness across heights up to 14 meters.
Interlocking Connector Geometry
Conventional welded bracket joints are being replaced by high-precision, four-to-five-prong stamped claw connectors. These connectors wedge into upright teardrop or diamond slot profiles under gravity loads, creating a self-locking effect that resists operational displacement without shear pin failure.
Seismic Base Isolators & Dissipative Baseplates
Modern seismic design integrates thick ductility-rated baseplates with oversized chemical anchors. In high-seismic zones (such as Indonesia, the Philippines, and Japan), base components are designed to yield controllably, dissipating ground motion energy while keeping the vertical structural frame intact.
Frequently Asked Questions for Pallet Racking Procurement
Clear answers to technical, commercial, and structural compliance questions from our engineering and export departments.
How do you calculate clear bay dimensions for wide pallet systems?
What documentation is provided for seismic and load safety approvals?
How does electrostatic powder coating protect against corrosion?
What are the sea freight loading limits and shipping logistics workflows?
What is the standard life cycle and maintenance protocol for wide racking?
Can custom colors, step profiles, and OEM private labeling be supplied?
Guangzhou HEDA Shelves: Enterprise Competence & Capabilities
Operating from our 30,000 square meter manufacturing base in Guangzhou, we provide complete, integrated steel fabrication under one roof.
Direct Factory Ownership
Founded in 2001, our 30,000 m² factory employs over 300 experienced technicians. We handle the entire production process internally, eliminating middleman markups and export trading delays.
Full In-House Fabrication
We maintain end-to-end quality control across coil uncoiling, automated punching, roll-forming, robotic beam welding, surface cleaning, and electrostatic coating.
Free 2D CAD & 3D Modeling
Our applications engineering team delivers detailed structural floor layouts, 3D renderings, and pallet-count analyses within 24 to 48 hours to streamline your planning phase.
Verified Global Compliance
Certified under CE (No. 2435-CPR-8605159) and ISO 9001:2015 management systems. We ensure full regulatory compliance for overseas safety audits and customs processing.
