Featured Heavy-Duty Racking & Multi-Tier Systems
Manufactured under ISO 9001:2015 and CE certification standards. Every system is cold-formed from high-tensile structural steel (Q235B/Q355B) and custom-engineered to match seismic requirements, pallet profiles, and specific material handling equipment.
Automatic Radio Shuttle Rack System Heavy Duty Industrial Warehouse Shelf CE Certified
- High-Density Deep Lane (FIFO/LIFO)
- Load: Up to 1500kg / Pallet
Pallet Flow Racking Gravity Roller Flow Through Rack FIFO Storage System Anti-Rust
- Strict First-In First-Out Dynamic Lane
- Magnetic Speed Separation Rollers
Heavy Duty Corrosion Protected Racking System Beam Structure Steel Panels 1000KG
- Steel Panel / Mesh Deck Support
- Capacity: 500kg - 1000kg per Layer
High-Efficiency Warehouse Smart Textile Roll Racking Storage System
- Tailored Cylindrical Cradle Geometry
- Zero Fabric Indentation Engineering
Heavy Duty Steel Teardrop Pallet Racking System for Logistics Center Storage
- Universal Teardrop Hole Punch Pattern
- Boltless Quick-Locking Beam Pins

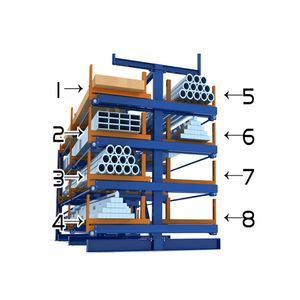

Customized Double-Sided Extendable Cantilever Racking System for Pipe Storage
- Crank-Out Extendable Arm System
- Overhead Crane Direct Access Loading
Racking Warehouse Storage Solutions Cantilever Stacking & Selective Pallet Rack
- 100% Direct SKU Selectivity Ratio
- 75mm / 50mm Pitch Adjustment

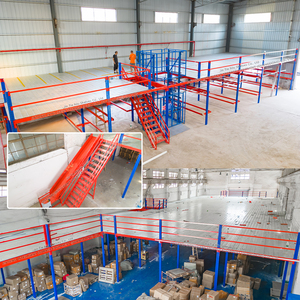

Second Floor Elevated Steel Mezzanine Platform Warehouse Organization 500kg/sqm
- Doubles Usable Floor Area Without Expansion
- Integrated Staircases, Gates & Railings
Engineering Blueprint: Selecting Heavy Industrial Storage Systems
In global supply chain infrastructure, warehouse real estate costs have escalated exponentially across both emerging industrial corridors and mature distribution hubs. Selecting the right China storage racks and shelving supplier is no longer merely a procurement exercise focused on price per metric ton of steel; it is an architectural engineering challenge directly dictating operational throughput, cubic space utilization, inventory velocity, and life-safety compliance.
1. Comparative System Architecture & Volumetric Utilization Matrix
To navigate capital expenditure (CapEx) against long-term operational efficiency (OpEx), supply chain directors must evaluate the mechanical constraints, volume utilization coefficients, and forklift interaction dynamics across core racking typologies.
| Racking Topology | Space Utilization | SKU Selectivity | Inventory Rotation | Capital Cost / Pallet | Primary Forklift Interface |
|---|---|---|---|---|---|
| Selective Pallet Racking | 40% - 50% | 100% Direct Access | FIFO / LIFO Flexible | Low - Baseline | Standard Counterbalance / Reach |
| Radio Shuttle Automation | 80% - 90% | Deep-Lane Aggregated | Configurable FIFO / LIFO | Medium - High | Standard Forklift (Shuttle Carrier internal) |
| Gravity Pallet Flow | 75% - 85% | Lane Dependent | Strict Automatic FIFO | Medium - High | Standard Counterbalance (Dedicated In/Out) |
| Drive-In / Drive-Through | 65% - 75% | Low (Batched SKUs) | Strict LIFO (FIFO in Drive-Thru) | Moderate | Narrow Counterbalance / High-Mast Reach |
| Multi-Tier Mezzanine | 180% - 280% (Volumetric) | High (Carton/Parts Level) | Dynamic Manual / AGV | Medium | Goods Hoists, Order Pickers, Conveyors |
2. Structural Metallurgical Standards: Q235B vs. Q355B Hot-Rolled Coils
Structural integrity begins with mill-certified prime raw materials. Top-tier Chinese manufacturers process cold-rolled and cold-formed continuous coils adhering to Chinese GB/T 700-2006 (Grade Q235B) for standard uprights, and GB/T 1591-2018 (Grade Q355B) for high-load columns, automated high-bay racks, and seismic upright frames. Q355B delivers a minimum yield strength of 355 MPa, providing exceptional load-to-weight structural ratios while preserving ductility under cyclical dynamic impacts.
Profiles are cold-roll-formed via precision multi-stage roller tooling stations ensuring cold-work hardening across profile corner radii. Upright columns feature engineered omega or multi-flange profiles, preventing premature torsional-flexural buckling under axial compressions certified under European FEM 10.2.02, EN 15512, and American RMI (Rack Manufacturers Institute) MH16.1 specifications.
Global Procurement & Technological Trends (2025–2030)
The intralogistics industry is transforming rapidly. Global buyers are moving beyond static storage toward modular, hybrid-automation platforms engineered for climate resilience and digital integration.
1. AMR & Hybrid Shuttles
Transitioning from manual forklifts to Autonomous Mobile Robots (AMRs) and 4-way multi-directional intelligent shuttles that navigate 3D high-bay racking systems with zero direct human intervention.
2. Seismic Site Engineering
Stringent compliance with regional seismic spectrums (Eurocode 8, UBC Zone 4, AS 4084). Finite Element Analysis (FEA) models stress distributions in beam-to-column semi-rigid connectors during seismic events.
3. Eco-Finishes & Cold Chain
Heavy shift toward lead-free, RoHS-compliant thermosetting TGIC-free polyester powder coatings, and hot-dip continuous galvanization for sub-zero (-30°C) cold chain food and pharmaceutical applications.
4. Data-Driven Pre-Fab
BIM (Building Information Modeling) interoperability: Exporting native Revit models during structural drafting to resolve column clashing, MEP conduit pathways, and ceiling sprinkler clearances in early design stages.
Industrial Manufacturing Prowess: Guangzhou HEDA Shelves
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has established itself as an authoritative benchmark for heavy-duty storage manufacturing. Operating across a sophisticated 30,000 square meter factory campus staffed by over 300 experienced structural engineers, certified weld masters, and intralogistics technicians, the enterprise delivers in-house production scale exceeding 30,000 metric tons monthly capacity.
Having engineered and completed more than 10,000 warehouse projects across 120+ countries and sovereign regions, HEDA Shelves bridges the gap between heavy structural metal fabrication and bespoke logistics automation. Certified under CE (Registration No. 2435-CPR-8605159) and ISO 9001:2015 Quality Management Systems (Certificate No. 18624Q00169R0M), our integrated supply chain eliminates intermediaries, offering factory-direct structural reliability for overseas EPC contractors and logistics operators.
Proprietary 10-Step Quality Assurance Production Pipeline
Every beam connector, upright frame, cross-bracing strut, and floor plate undergoes continuous, audited fabrication within our closed-loop quality matrix:
Raw Material Audit
Mill inspection certifications and spectral analysis of steel coils for chemical and tensile purity.
Laser Cutting
High-speed CNC fiber lasers ensure component cut dimensions within ±0.1mm tolerance.
CNC Column Punching
Continuous hydraulic indexing presses punch drop-hole or teardrop patterns with uniform pitch.
Precision Cold Bending
Multi-roller forming mills shape structural steel without micro-fracturing along profile radii.
Profile Roll Forming
Continuous seam roll-forming for interlock box beams with enclosed double-groove safety rigidity.
Automated Polishing
Mechanical de-burring and edge chamfering prevent snag hazards and ensure powder coat adhesion.
Robotic CO2 Welding
Robotic arms perform gas shielded arc welds at connector joints, ensuring uniform bead penetration.
Acid Wash & Phosphating
Full-immersion hot pickling, rust stripping, and zinc phosphating create superior anti-corrosive primer bonds.
Electrostatic Powder Coat
Automatic Swiss GEMA spray booths apply thermoset epoxy-polyester cured at 180°C-200°C oven heats.
QC Loading Verification
Dimensional sampling, salt-spray corrosion tests, and container pre-packing plans reduce transit damage.
Frequently Asked Engineering & Procurement Questions
Essential technical, structural, and regulatory criteria addressed by our chief project engineers for institutional buyers, structural consultants, and warehouse directors.
What parameters are required to calculate structural load capacity and CAD layout?
To deliver certified 2D CAD layouts and 3D FEA stress simulations, our engineering department requires: (1) Architectural warehouse drawings indicating clear ceiling heights, column grids, slab thickness, and expansion joints; (2) Pallet specifications (width, depth, overall height including cargo overhang, and gross weight); (3) Forklift parameters including minimum aisle turning radius (AST), mast lowered height, and maximum fork elevation; (4) Local seismic code requirements and target operating temperature (e.g., ambient or -25°C cold store).
How do Chinese manufacturing standards compare with European FEM and US RMI codes?
Reputable tier-one suppliers like Guangzhou HEDA Shelves engineer systems in direct conformity with European standards EN 15512 (Steel static storage systems), EN 15620 (Tolerances and clearances), FEM 10.2.02, and US RMI MH16.1 specifications. Material properties are validated through destructive compressive stub column tests, beam shear connection testing, and cycle fatigue tests, ensuring safety factors strictly comply with local building regulations across Europe, North America, Australia, and the Middle East.
What surface treatment technology prevents rust in humid or coastal environments?
Standard steel racks undergo a meticulous automated 9-stage pre-treatment regimen including warm alkaline degreasing, twin water flushes, hydrochloric acid pickling, surface conditioning, and zinc phosphating before automated electrostatic powder coating. This produces an 80–120 micron cured epoxy-polyester barrier withstanding 500+ hours in ASTM B117 salt-spray chambers. For high-humidity maritime logistics or sub-zero refrigeration environments, full structural hot-dip galvanizing (ISO 1461, minimum 65-85 micron zinc thickness) is applied for multi-decade anti-corrosion protection.
How are shipping containers optimized to prevent in-transit scratching and distortion?
Heavy racking profiles are vulnerable to container transit dynamics if packed improperly. Our dedicated logistics team calculates precise 3D software container loading diagrams (CLP). Upright frames and box beams are wrapped in air-cushion polyethylene foam, bundled with structural steel banding straps, and isolated using treated fumigation-free timber dunnage blocks. Small accessories (baseplates, locking pins, anchors) are packed in heavy-duty corrugated wooden crates with anti-moisture desiccant packs, maximizing 40ft High Cube container volumetric fills without risking transit shock.
Accelerate Your Storage Capacity with Engineering Precision
Connect directly with HEDA Shelves' structural design team. Receive complimentary 2D CAD architectural layouts, structural load calculation certifications, and container-optimized factory-direct pricing within 24 to 48 hours.
