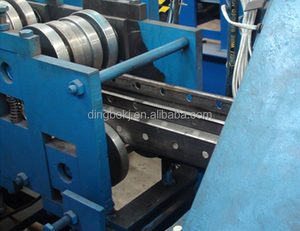

Storage Pallet Rack Production Machinery
State-of-the-art roll forming and punching production equipment delivering competitive manufacturing pricing and OEM accuracy.
Long Span Medium Duty Industrial Shelves
Modular, highly configurable medium-duty multi-tier racking engineered for rapid hand-loaded SKU retrieval and e-commerce picking.
Factory Direct Inverted Metal Pallet Stack Racks
Flexible, space-saving inverted post pallet frames supporting heavy bulk stacking without requiring permanent floor anchor bolting.
FIFO Warehouse Gravity Pallet Flow Roller Racks
Self-propelled dynamic gravity lane systems featuring integrated brake rollers and separator stops for strict inventory stock rotation.
Boltless Multi-Tier Steel Industrial Shelving
Toolless clip-lock steel shelving units engineered for fast warehouse assembly, reliable vertical loads, and total floor plan mobility.

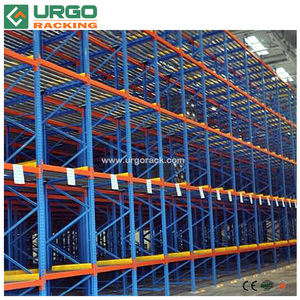

Industrial Rolling Case & Carton Flow Rack
Heavy-duty roller track case flow shelving equipped with adjustable guide rails for separate order picking and restocking aisles.

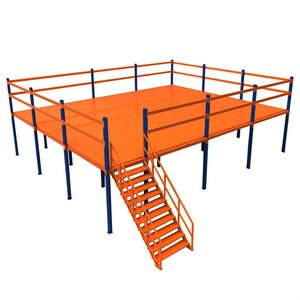

Custom Two-Level Mezzanine Racking Platforms
Rack-supported multi-tier steel platforms that multiply functional warehouse square footage by integrating dense picking modules.
Engineering Technical Whitepaper
Case Flow Rack Architecture & System Selection Criteria
A comprehensive design review on optimizing carton-flow inclination angles, roller metallurgy, and structural seismic load ratings.
Roller Track Mechanics & Physics
Case flow racks rely on calibrated gravity beds engineered at a 2.5% to 4.5% pitch angle depending on carton bottom rigidity. Premium skatewheel assemblies and full-width aluminium or steel rollers ensure zero lateral skewing across deep bed configurations.
Our beds incorporate zinc-plated carbon steel bearings with pre-lubricated dual raceways, resisting dust accumulation and maintaining consistent rolling friction under heavy 80 kg/m dynamic loads.
First-In First-Out (FIFO) Separation
By establishing independent replenishment and pick faces, case flow separates industrial warehouse forklift replenishment routes from fast-paced manual or robotic picking lines. This architecture eliminates aisle cross-traffic collisions.
Integrated brake dampers and slow-down exit clips protect lightweight corrugated packaging from terminal impact shock, preserving barcode orientation for direct scan-and-pack fulfillment.
Structural Modularity & Upright Profiles
Cold-formed high-tensile Q235B and Q355B structural steel uprights feature a 50mm or 75mm teardrop/diamond pitch pattern. This enables full compatibility with static pallet storage overhead on hybrid carton flow mezzanine platforms.
Epoxy-polyester hybrid powder coating baked at 200°C creates an impact-resistant, chemical-resistant barrier compliant with RoHS standards for cold storage food and pharma facilities.
Macro Supply Chain Outlook
Future Procurement Trends in Dynamic Intralogistics
How automation, micro-fulfillment centers, and nearshore logistics are transforming industrial carton and pallet flow system investments.
AMR & AGV Pick-Face Integration
Modern fulfillment operations are shifting away from manual trolley picking toward Autonomous Mobile Robot (AMR) interfacing. Future case flow tracks integrate optical stop sensors and automated carton presenters for robotic end-effector arms.
Cold Chain & Deep-Chill Resilience
Demand for high-density grocery cold stores requires roller polymers that resist embrittlement at -30°C. Hot-dip galvanized upright channels and self-draining stainless steel rollers are increasingly mandated to avoid thermal shock failure.
Total Cost of Ownership (TCO) Shift
Global procurement teams prioritize factory-direct modular drop-in beds over proprietary systems. Sourcing universal bracket profiles allows retrofitting existing pallet rack structures without costly teardowns or specialized millwright tooling.
Micro-Fulfillment In-Store Dark Hubs
Urban real estate costs are forcing rapid conversion of retail backrooms into high-density picking lanes. Low-profile case flow racks maximize pick-density per cubic meter, cutting retail replenishment travel times by up to 65%.
Factory Credibility & Scale
Why Tier-1 Importers Partner with HEDA Shelves
Combining 25+ years of production heritage in Guangzhou with international certifications, proprietary tooling, and rapid South China container dispatch.
Certified European Standard Quality
CE (No. 2435-CPR-8605159) & ISO 9001:2015
Massive Industrial Output
30,000 m² Facility | 30,000 Tons Monthly Output
Rapid Turnaround Engineering
Free 2D CAD & 3D Modeling Within 24–48 Hours
Full In-House 10-Step Quality Control
From prime hot-rolled raw coil tensile testing, CNC punching, high-precision roll forming, to robotic beam welding, acid pickling, phosphating, and electrostatic polymer coating—every phase is audited in our Guangzhou facility.
Global Project Footprint Across 120+ Countries
Delivered over 10,000 warehouse projects worldwide. Specialized structural analysis for seismic compliance across earthquake-prone regions such as Japan, the Philippines, Indonesia, and high-wind coastal hubs in the GCC.
Direct South China Port Logistics Advantages
Situated within minutes of Guangzhou and Shenzhen deep-sea terminals. We generate CAD container stuffing simulation diagrams to maximize cubic container volume, dramatically slashing sea freight costs per pallet position.
