5 Layer Fabric Heavy Duty Pallet Rack Storage (1,000–3,000 KG)
- High-yield Q235B box beams
- Tear-drop modular adjustability
- Electrostatic anti-snag finish
Direct From Manufacturing Plant
Engineered High-Capacity Warehouse Shelving & Racks
Custom structural profiles, automated robotic seam welding, and high-impact electro-phosphated powder coating tailored for multi-tier industrial loads.
HDPE Grid Nine-Foot Forklift Pallet (1200*1000*140mm)
- Moisture-proof structural virgin resin
- 4-way forklift and walkie entry
- Stackable sanitary deck matrix
Semi-Open Stacking Warehouse Bin for Parts Picking
- Impact-resistant polypropylene
- Hopper-front visual picking design
- Direct wall-mount / louver track fit
1,000 KG/Layer High-Density Cold Storage Rack System
- Low-temperature structural ductility
- Sub-zero impact powder adhesion
- Maximum volumetric cube density
Galvanized Steel Pipe Stacking Stillages & Post Pallets
- Hot-dip anti-corrosion galvanized
- Demountable posts for flat returns
- High-tonnage stack stability

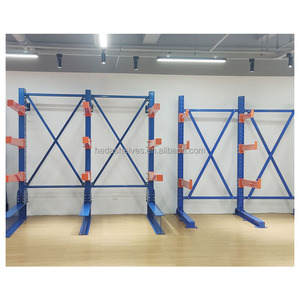

Adjustable Double-Sided Heavy-Duty Cantilever Racking
- Unobstructed linear arm front
- Integrated stop pins for timber/pipe
- Heavy structural column profiles

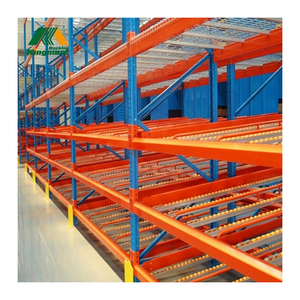

Gravity Carton Flow Storage Rack for First-In-First-Out
- High-precision roller track beds
- Split loading/picking aisles
- Zero energy dynamic gravity feed

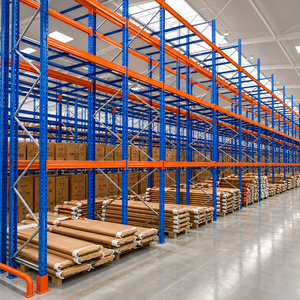

Adjustable Selective Pallet Rack (Prime Q235B Steel)
- 100% immediate pallet selectivity
- Multi-rivet locking safety clips
- Compatible with all forklift classes
Technical Industry Analysis
Engineering Evaluation: Structural Integrity in Wall-Mounted & Free-Standing Racking
In modern industrial facilities, vertical space utilization determines operational margins. Whether deploying wall-mounted rack shelving configurations anchored to reinforced concrete walls or integrating deep-reach selective frames, the engineering challenge centers on mitigating dynamic deflection, horizontal torsional drift, and localized punch loads. As a tier-one manufacturing exporter, Guangzhou Heda Shelves Co., Ltd. applies rigorous FEA (Finite Element Analysis) across cold-formed open-back and closed-box upright systems, guaranteeing compliance with global benchmarks including CE (No. 2435-CPR-8605159) and ISO 9001:2015 frameworks.
Wall-mounted rack systems must transfer vertical deadweight and dynamic seismic loads directly into structural building columns without introducing eccentric shear stresses to masonry surfaces. When anchoring to building envelopes, our structural engineers calculate tensile anchor pull-out limits, expansion bolt depth coefficients, and brace stiffness configurations. This engineering precision eliminates structural fatigue caused by vibrating machinery, reach truck dock impacts, or variable live-load sorting stresses.
Comparative Engineering Analysis: Storage Typologies
| Storage Typology | Primary Load Mechanism | Selectivity Profile | Ideal Structural Substrate | Inventory Turnover Model |
|---|---|---|---|---|
| Wall Mounted Industrial Shelving | Anchored cantilever tension + vertical shear | 100% SKU Direct Access | Cast-in-place concrete / I-Beam | Continuous hand-picking (Spare parts/MRO) |
| Selective Pallet Racking | Dual vertical column axial compression | 100% Immediate Selectivity | Standard laser-leveled slab-on-grade | High SKU variety / Variable logistics |
| Gravity Carton / Pallet Flow | Inclined roller track dynamic gravity | Front-lane picking accessibility | Reinforced industrial concrete slab | Strict FIFO (Food, Pharma, FMCG) |
| Cantilever Stacking Systems | Single/double column uninhibited moment load | Full horizontal span access | Heavy-duty reinforced footpads | Linear bulk (Pipes, Bar stock, Timber) |
The manufacturing process begins with structural carbon steel coils (Q235B grade) cold-roll-formed via progressive 16-station rolling cassettes. CNC-controlled automatic punching ensures connection-slot centers hold tolerances under 0.05mm across 12-meter continuous vertical spans. Prior to coating, components undergo an 8-stage automated chemical immersion consisting of hot degreasing, acid pickling, rinse cycles, and zinc-phosphating. This automated process ensures maximum electrostatic bonding for our 70–90 micron dry polyester epoxy powder layers, preventing micro-flaking and rust creep under high humidity.
Procurement Intelligence
Emerging Procurement Trends in Global Racking Systems
Key technological and regulatory shifts dictating supply chain infrastructure planning through 2026–2030.
Total Lifecycle Procurement Cost (TCO)
Procurement teams are shifting away from initial base-metal purchase price toward structural lifecycle cost. Pre-galvanized finishes, certified seismic load engineering, and standardized modular slot geometries eliminate costly field modifications, reduce dock-side rejections, and lower structural maintenance overhead.
Integration with Automated Guided Vehicles (AGV)
Wall-mounted tracks and free-standing uprights must maintain tight deflection tolerances to accommodate autonomous mobile robot (AMR) fleets and optical aisle navigation. Beams must support vision-guided picking reflectors and safety sensory arrays without field welding or drilling that compromises metallurgical guarantees.
Sub-Zero & Tropical Surface Resilience
Accelerating cold chain networks and tropical e-commerce logistics centers demand specialized anti-corrosion protection. Procurement specifications increasingly require hot-dip galvanizing over ASTM A123 standards or specialized low-cure powder formulations that maintain structural elasticity in environments below -30°C.
Technological Trajectory
Structural Evolution: Next-Generation Racking Systems
How metallurgical improvements and smart telemetry are modernizing industrial warehouse racking.
Embedded Structural Strain Telemetry
Future wall-mounted systems and high-density vertical frames are moving toward strain-gauge load monitoring. Embedded wireless micro-sensors report real-time beam bending and anchor stress to building management systems, notifying operators before overload conditions trigger micro-fractures or system failures.
High-Strength Micro-Alloy Steel (Q355 / High-Form)
By transitioning key structural components to advanced micro-alloy steels, manufacturers achieve identical safe working loads (SWL) with reduced profile gauges. This saves weight, cuts ocean freight transit fees per container, and significantly lowers the embodied carbon footprint per pallet position.
Seismic Energy Dissipation Anchor Bases
In earthquake zones across the Pacific Rim, rigid anchoring is giving way to dynamic energy dissipation. Yielding spring baseplates absorb horizontal seismic shock waves, isolating stored inventory from destructive ground accelerations and preventing structural racking collapse.
Manufacturing Advantage
Guangzhou HEDA Shelves: Tier-1 Manufacturing Facility
Since 2001, providing custom CAD engineering, in-house roll forming, and turnkey project delivery worldwide.
2001
Year Established
30,000m²
Manufacturing Base
30,000T
Monthly Output Capacity
120+
Countries Served
25+ Years Industrial Mastery
Decades of production and installation experience across logistics, multi-tier retail distribution, automotive parts, and pharmaceutical plants worldwide.
End-to-End In-House Control
From raw cold-rolled steel profiling and laser cutting to robotic welding and phosphating lines, every production step is performed within our Guangzhou facility.
Compliant Quality Certifications
Certified under ISO 9001:2015 (Cert No. 18624Q00169R0M), CE (Cert No. 2435-CPR-8605159), and RoHS-compliant electro-powder paint coatings.
Turnkey Export Engineering
Free custom 2D/3D CAD design within 24–48 hours, modular container load plans, container stowage optimization, and dedicated English-speaking engineers.
Procurement Support
Frequently Asked Questions: Global Sourcing & Engineering
Direct technical answers addressing structural calculation, anchoring substrates, minimum order quantities, and overseas logistics.
What building wall substrates can support heavy industrial wall-mounted shelving?
Industrial wall-mounted shelving requires solid load-bearing structural walls, such as cast-in-place reinforced concrete (C20/25 or higher) or direct tie-ins to structural steel building columns (H-beams/I-beams). Hollow cinder blocks, lightweight drywall partitions, and unreinforced single-skin brick walls are structurally insufficient for heavy shelf loads without supplemental vertical support posts that transfer deadweight directly to the floor slab.
What parameters are required to calculate structural load capacity and safe layouts?
Our engineering team requires: (1) Architectural floor plan (DWG CAD or dimensioned PDF) indicating ceiling clear heights and building column grid coordinates; (2) Load footprint dimensions (width × depth × height) and maximum weight per pallet or shelf level; (3) Forklift model, turning radius, and maximum reach height; and (4) Project location to check local seismic and environmental requirements.
How does your factory protect export racking from rust and shipping transit damage?
All steel components undergo a multi-step chemical pre-treatment (degreasing, pickling, and zinc phosphating) before receiving high-voltage electrostatic polyester powder coating cured at 180°C–200°C. For packaging, beams and upright frames are bundled with protective corrugated paper buffers, corner shields, and cross-tied with high-tensile PET banding on wooden blocking to eliminate transit rub and paint abrasion.
Can your engineering team certify structures for high-risk seismic zones?
Yes. We regularly supply racking to seismic zones across Southeast Asia, Japan, South America, and the Middle East. Based on your site's ground acceleration factors, our structural engineers calculate frame requirements, thicken column upright profiles, widen baseplates, add horizontal bracing, and specify heavy-duty chemical drop-in anchors to meet local municipal building codes.
What are your standard manufacturing lead times and port arrangements?
Standard production runs for 1 to 3 40ft High Cube containers typically take 15 to 22 working days following CAD design approval. Goods are trucked directly to major South China export terminals (Guangzhou Port / Shenzhen Port), providing direct shipping routes to ASEAN ports, the Middle East, Europe, and the Americas.
Free Turnkey CAD Proposal
Request an Engineered Layout & Factory Quote
Send your warehouse dimensions or storage specifications. Our engineering team will return a 2D floor plan, 3D structural model, and cost breakdown within 24–48 hours.
- Accurate Pallet Position Optimization
- Certified Safe Working Load Checks
- Direct Factory Pricing (FOB/CIF/DDU)
- Complete Installation Guidance Support
Direct line to Guangzhou HEDA Technical Engineering Office
Send an Inquiry
