Standard Industrial
Customized Heavy-Duty Steel Warehouse Pallet Racking System
Up to 4,000 kg/Tier
Q235B/Q355B Steel
100% SKU Selectivity
Factory Direct Inventory
Engineered Industrial Racking Systems for Small Footprints
Standard warehouse layouts fail when applied to spaces under 3,000 square meters. Our Guangzhou production facility manufactures heavy-duty, certified cold-formed racking configurations designed to maximize clear vertical heights, reduce transit aisle width, and enhance cubic meter storage efficiency.
High Density

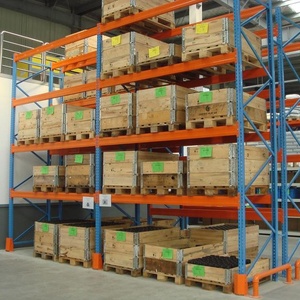

Double Deep Reach High Density Industrial Storage Rack
50% Aisle Reduction
Deep-Reach Forklifts
FMCG & Cold Store
Hygienic / Food

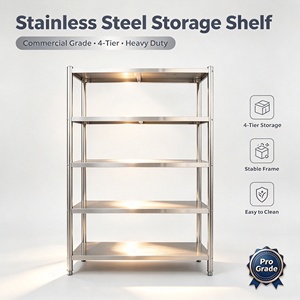

4-Tier Stainless Steel Commercial Warehouse & Cleanroom Shelf
SUS 304 Grade
Anti-Corrosion
Washdown Safe
Space Doubler
Modular Mezzanine Floor Platform Racking System
300-1000 kg/m² Floor
Multi-Tier Picking
Bolt-Together Fab
Semi-Automated
Automated Pallet Runner Radio Shuttle Racking System
Zero Forklift Collision
LIFO/FIFO Logic
Lithium Driven
Long Stock

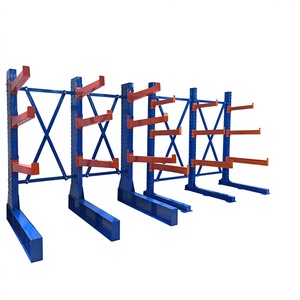

Heavy Duty Single/Double Sided Cantilever Racks
Timber & Steel Pipes
Adjustable Arms
Up to 1,500 kg/Arm
Dynamic Block
Customized Inverted Metal Pallet Post Stacking Rack
Stackable 4 High
Demountable Posts
Zero Floor Bolt-Down
High Bay DC
Heavy Duty High Bay Industrial Pallet Racking System
Up to 12m Heights
VNA Compatible
Heavy Cold-Rolled
Engineering Whitepaper
Small Warehouse Engineering: Maximizing Cubic Utilization & Aisle Physics
Procurement managers dealing with small industrial units, urban micro-fulfillment nodes, and localized distribution centers face a common paradox: escalating warehouse rent per square meter versus poor volumetric efficiency. Unengineered selective racking often consumes over 60% of floor space in forklift transit aisles alone.
Aisle-to-Storage Volumetric Ratio
Standard counterbalance lift trucks require 3.5m to 3.8m aisles. In an 800m² warehouse, this cuts storage to roughly 320m². By re-engineering the beam pitch and switching to Narrow Aisle (2.5m) or Very Narrow Aisle (1.6m) geometry with specialized articulation, usable pallet capacity surges by 45% to 80% without moving walls.
Space Multiplier: Up to +80% VolumeStructural Metallurgy & Cold Bending
Small warehouses often require high-load columns in slim cross-sections to preserve clearance. HEDA utilizes certified Q235B and high-yield Q355B hot-rolled strip steel, roll-formed through 16 precision passes. Continuous automated CNC punch profiles ensure exact 50mm/75mm pitch flexibility without structural yield compromises.
Steel Standard: EN 10025 / GB/T 700Point Load & Concrete Dynamic Tension
Compact buildings commonly have floor slabs with unknown or modest reinforcing (e.g., 2.5–3.5 tons/m² slab limits). Our engineering team performs full finite element baseplate sizing calculations to distribute concentrated upright loads across wider footprints, preventing slab cracking while passing municipal safety inspections.
Safety Factor: ≥ 1.5 Structural Ratio| Racking Architecture | Floor Space Utilization | Cubic Volume Storage Rate | SKU Selectivity Ratio | Recommended Small Facility Use Case |
|---|---|---|---|---|
| Standard Selective Rack | 35% – 42% | Moderate (3.2x Floor) | 100% Direct Access | High-mix, low-volume picking, 3PL parts, tool rooms |
| Double-Deep Pallet System | 50% – 58% | High (4.8x Floor) | 50% Semi-Selective | Fast-moving food, FMCG, standardized 2-pallet batch lots |
| Rack-Supported Mezzanine | 85% – 95% | Maximum (Multi-Tier) | 100% Manual Picking | E-commerce fulfillment, apparel, auto spare parts hubs |
| Automated Radio Shuttle | 70% – 82% | Extreme Density | Batch / FIFO / LIFO | Compact cold storage chambers, seasonal agricultural goods |
| Inverted Metal Stacking Racks | Flexible Dynamic | Variable (Stack 4 High) | Block Storage | Temporary rented warehouses, overflow seasonal surges |
Enterprise Strength
Guangzhou HEDA Shelves: 25 Years of Factory Direct Authority
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has evolved from a specialist cold-forming steel workshop into a globally recognized warehousing equipment manufacturer. With complete control over roll-forming, punching, welding, and automated powder coating lines, we deliver factory-direct engineering accountability to international buyers.
Compliant Engineering
Fully verified with CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 management credentials, and RoHS-compliant non-toxic electrostatic surface finishes suitable for food processing.
24-48h 3D CAD Design
Provide your building layout sketch and our engineering desk delivers a structural 2D DWG layout, 3D photorealistic rendering, and exact pallet position calculation report free of charge within 48 hours.
Seismic & Tropical Defense
Extensive engineering deployment across seismic zones (Philippines, Indonesia, Japan) and humid tropical climates through hot-dip galvanizing and multi-stage pickling-phosphating rust defense.
Export Container Loading
Optimized container bundle packaging directly out of South China sea hubs (Guangzhou / Nansha / Shenzhen), saving 20–30% in ocean freight deadhead space with step-by-step assembly diagrams included.
HEDA Shelves by the Numbers: Scale, Speed & Integrity
Over two decades of dedication to structural steel storage, shelving, and warehouse space optimization.
2001
Year Established in Guangzhou
30,000 m²
Heavy Manufacturing Campus
30,000 t
Monthly Steel Output Capacity
120+
Countries & Regions Exported
Strategic Forecasting
Future Procurement Trends: Where Small Warehouse Logistics Is Heading
Global supply chain disruptions, nearshoring in Southeast Asia and North America, and skyrocketing urban real estate costs are reshaping how enterprise logistics directors source warehouse racking systems over the 2025–2030 horizon.
Micro-Fulfillment Conversion
Retail brands are shifting from massive suburban depots toward decentralised 500m²–2,000m² dark stores. These compact spaces mandate ultra-dense, multi-tier mezzanine picking stations that can accommodate hundreds of bin locations per vertical column.
Hybrid Manual-AGV Racks
Full AS/RS automation is rarely viable in small warehouses due to high capital expenditure. The future lies in hybrid racks: low tiers designed for autonomous mobile robots (AMRs) or pallet shuttles, paired with upper tiers for manual overflow storage.
Boltless Modular Reconfigurability
Tenant lease cycles in industrial zones are shortening (typically 2 to 5 years). Buyers favor fully demountable, modular bolt-together structural platforms that can be disassembled, flat-packed, and reinstalled in new facilities without cutting or re-welding.
Low-Carbon & ESG Powder Coated Steel
Western and multinational Asian buyers increasingly require ESG documentation. Racking suppliers must provide verified recycled-content steel certifications along with zero-VOC, heavy-metal-free thermosetting powder coatings with traceable lifespan metrics.
Zero Defect Manufacturing
From Raw Billet to Finished Beam: 10-Phase Quality Control
Every upright frame, support crossbar, and locking bracket leaving our factory passes through a traceable ten-step manufacturing sequence, ensuring millimeters-level alignment and load compliance.
Phase 01–03
Forming & Cold Punching
Automated ultrasonic inspection of incoming coil steel, high-precision laser strip slitting, and continuous servo-driven CNC upright punching for exact beam clip registration.
Phase 04–06
Profile Roll & Robotic Welding
16-roller progressive cold bending forming tubes and box beams, followed by Panasonic multi-axis robotic welding cells for structural connector brackets.
Phase 07–08
Pre-Treatment & Coating
Full 8-tank acid pickling, rust removal, and zinc phosphating pre-wash, followed by automated electrostatic powder coating cured at 200°C for high impact durability.
Phase 09–10
Load Testing & Packing
Batch hydraulic destructive load testing according to EN 15512 protocols, followed by shock-cushioned bundle strapping and steel container packing for international ocean transit.
Engineering Consultation FAQ
Frequently Asked Technical & Procurement Questions
Direct answers from our structural export engineers covering floor loads, lead times, seismic design, and customs paperwork.
How do you verify whether my small warehouse floor slab can support heavy racking?
Our engineers review your facility's slab thickness (typically 150mm–200mm) and rated uniform distributed load (UDL). We then compute the concentrated point load exerted by each baseplate. If required, we enlarge the baseplate dimensions (e.g., from 150x150mm up to 250x250mm) and install heavy spreader plates with chemical anchor studs to keep slab shear pressure well within safe municipal limits.
What is the standard production turnaround and ocean delivery time from China?
Custom engineered small-to-medium project production runs are completed at our Guangzhou factory in 12 to 18 business days. Transit time from South China ports (Guangzhou, Shenzhen, Hong Kong) is 3 to 7 days for Southeast Asia (Vietnam, Thailand, Singapore, Malaysia), 14 to 20 days for the Middle East, and 24 to 32 days for Europe and the Americas.
Can you provide seismic structural calculations for local council or insurance approval?
Yes. We regularly supply comprehensive finite element analysis (FEA) reports calculated under international standards (such as FEM 10.2.02, RMI MH16.1, and AS 4084). For earthquake-prone markets such as the Philippines, Indonesia, New Zealand, or the US West Coast, we incorporate portal bracing, heavier gauge steel, and dual anchor footplates.
Selective racking vs. Double Deep: which is better for a warehouse under 1,000 m²?
If you manage more than 200 distinct SKUs with daily high-turnover picking, Selective Racking is recommended because it provides 100% immediate access to every pallet. However, if you store fewer SKUs with multiple pallets per item (such as food, raw ingredients, or packaging materials), Double Deep will immediately increase your pallet count by 30% to 40% using the same square footage.
How are damaged components repaired or replaced after years of forklift impact?
Because our upright columns and step beams use standard, precision-stamped hole pitches, any single beam or frame can be swapped out without replacing the whole bay. We also engineer heavy-gauge steel column guards and wrap-around corner protectors that absorb forklift bumps, keeping the main uprights undamaged over decades of daily operations.
What documentation accompanies custom export shipments?
Every shipment includes an itemized container packing list with numbered bundle markers, mill test certificates for steel raw material validation, CE & ISO compliance documents, a Certificate of Origin (Form E, Form R, or COO for tariff reductions), and 3D step-by-step installation guidance schematics.
Request Your Custom Warehouse Layout & Pallet Capacity Audit
Send our Guangzhou engineering department your warehouse dimensions, obstacle drawings (columns, doors, dock plates), and pallet profiles. You'll receive a full 2D CAD layout, 3D visual preview, and itemized factory-direct quotation within 24 to 48 hours.
