Do you supply pallet racking to Southeast Asia and the Middle East?

Yes. We regularly ship racking, shelving and mezzanine systems to Malaysia, Singapore, Thailand, Vietnam, Indonesia, the Philippines, South Asia and the Gulf region. Goods are loaded FCL or LCL from Guangzhou-area ports, and sea transit to major Southeast Asian ports is typically around one to two weeks depending on the route.

How is racking protected against heat and humidity in tropical warehouses?

All steel components go through pickling and phosphating pre-treatment followed by electrostatic powder coating. For cold rooms, coastal sites or very humid facilities, pre-galvanized or hot-dip galvanized options can be specified.

Can your racking be designed for earthquake-prone regions?

Yes. When you share the project location and the local design code, our engineers can include seismic load cases in the structural calculation and adjust upright profiles, bracing, base plates and anchor specifications accordingly.

What information do you need for a free warehouse layout design?

Please provide the floor plan (CAD or PDF), clear building height, pallet or carton dimensions and weight, forklift type and maximum lift height, number of SKUs, daily throughput and whether you need FIFO or LIFO rotation.

What is the typical production lead time?

Lead time depends on tonnage, finish and system type. Standard selective racking orders usually ship within about 15 to 25 working days after drawing confirmation; the exact date is confirmed in the contract.

Do you provide installation support in Asia?

Every project ships with installation drawings, a component list and assembly guidance. Remote video support is available, and on-site installation supervision can be arranged on request.

China Best Single Deep Selective Pallet Rack Suppliers & Exporter

Direct Factory Engineering, CE & ISO 9001 Certified Manufacturing, and Complete Intralogistics Whitepaper for High-Density Global Distribution.

Engineered Storage Solutions

Factory-Engineered Heavy Duty Selective Racking Systems

Precision cold-rolled Q235B/Q355B structural steel storage configurations tailored to international pallet profiles, regional seismic parameters, and demanding throughput cycles.

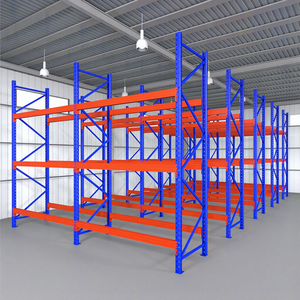

Warehouse Heavy Duty Stackable Pallet Rack Shelf Shelves

Engineering Whitepaper

Single Deep Selective Pallet Racking: Kinematics, Yield Ratios & Structural Economics

An in-depth structural appraisal comparing single deep selective configurations against deep-lane arrays in contemporary supply chain operations.

100% Pure Selectivity Dynamics

Single deep selective pallet racking remains the uncontested benchmark for variable inventory nodes. By configuring storage exactly one pallet deep per aisle interface, operators eliminate the time penalty of multi-pallet shunting associated with drive-in or push-back racking. Every pallet location is immediately addressable by standard counterbalance, reach, or articulated forklifts, optimizing high-mix picking throughput.

Structural Moment Redistribution

Fabricated through progressive multi-station roll-forming lines, the upright omega profile utilizes cold-rolled structural steel configured to distribute eccentric vertical loads, torsional moments, and horizontal impact stresses. Certified connectivities employ heavy-duty tear-drop or wedge-lock connector pins, delivering continuous moment resistance across beam-to-column connections under FEM 10.2.02 and RMI standards.

Floor Area Utilization vs Capex

While dynamic systems boast higher volumetric cubic utilization, single deep arrays deliver the lowest capital expenditure per pallet slot. Upright pitch configurations (standard 50mm or 75mm adjustability) adapt instantly to changing seasonal goods. For third-party logistics (3PL) operations managing unpredictable SKU churn, single deep selective setups deliver the highest overall Return on Invested Capital (ROIC).

Structural System	Direct Selectivity	Aisle Requirement	Storage Density	Handling Equipment Compatibility	Capex / Pallet Index
Single Deep Selective Racking	100% Immediate	3.0m - 3.5m (Standard Reach)	Moderate (40%-45% Floor)	All (Counterbalance, Reach, VNA)	Baseline (1.0x - Lowest)
Double Deep Selective	50% Immediate (LIFO Pair)	3.0m - 3.4m	Moderate-High (+25% vs Single)	Pantograph / Deep-Reach Mast	1.35x - Moderate
Drive-In / Drive-Through	Low (<15% Batch LIFO)	Integrated into lanes	Very High (Up to 75% Floor)	Specialized Narrow Counterbalance	1.60x - High
Push-Back System (Carts)	Low-Medium (LIFO by lane)	2.8m - 3.2m	High (2-6 Deep)	Standard Reach / Counterbalance	2.10x - High
Automated Radio Shuttle	Lane Indexed (FIFO/LIFO)	Only Transfer Aisles	Maximum Volumetric Density	Standard Forklift + Core Shuttle Bot	3.20x - Premium

Strategic Forecasting

Procurement & Technological Trends in Global Warehouse Racking

How automation compatibility, structural steel decarbonization, and regional seismic compliance are shaping modern single deep racking procurement.

Raw Steel Index Hedging

Global procurement teams increasingly specify forward contracts pegged directly to steel billet exchange values. Locking manufacturing schedules with top-tier Chinese mills ensures stable pricing against global inflation while maintaining high structural tensile consistency (Q355B yield strengths ≥ 355 MPa).

Digital Twin Layout CAD/BIM

Procurement now demands millimeter-accurate 3D BIM models natively compatible with Revit and Navisworks. Racking layouts are digitally stress-tested alongside fire sprinkler envelopes, column drop-panels, and autonomous mobile robot (AMR) floor pathing prior to cold-roll fabrication.

Automation & AMR Symbiosis

Single deep selective is evolving from purely manual reach-truck access to hybrid automation. Bottom beam levels are routinely elevated to clear floor-running AMR chassis, while upper levels integrate high-speed Vision-Guided Forklifts (VGF) requiring tight deflection limits (< L/200).

Seismic Micro-Zoning Demands

Pacific Rim and Middle Eastern project specifications enforce regional earthquake criteria (Eurocode 8, AS 4084, ANSI MH16.1). Upright base-plate engineering now incorporates reinforced moment-resistant shoes, extended embedment chemical anchoring, and cross-bay portal bracing.

2001

Established in Guangzhou

30,000m²

Manufacturing Facility

30,000t

Monthly Processing Scale

120+

Countries Exported

Full In-House Industrial Chain

Guangzhou Heda Shelves Co., Ltd. oversees every process in-house: steel slitting, high-speed automated column punching, continuous roll cold-bending, robotic beam end-connector welding, automatic acid pickling, phosphating, and 240-meter horizontal electrostatic powder coating lines. No outsourced links ensures exact structural tolerances and uniform coating adhesion across millions of linear meters.

International Compliance Assured

Holding official CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Management System Certification (No. 18624Q00169R0M), and full RoHS ecological coating compliance, our products withstand rigorous site inspections by third-party testing agencies including SGS, TÜV Rheinland, and local building authorities throughout Europe, ASEAN, and the GCC.

Turnkey Engineering & Logistics

Our 300+ engineering and operational specialists deliver turnkey capability: from initial warehouse CAD design and 3D architectural renderings delivered in 24-48 hours to finite element analysis (FEA) load calculations, export wooden-crate strapping, container volume-optimization loading plans, and on-site engineering installation oversight worldwide.

Procurement Clarity

Frequently Asked Questions for Single Deep Pallet Rack Procurement

Essential technical, logistical, and structural answers required by warehouse directors, procurement executives, and EPC contractors.

What core parameters are needed to generate an exact single deep racking layout?

We require your architectural warehouse CAD drawing (including clear height to low point of haunches, column pitch, overhead obstacles, sprinkler clearances), pallet dimensions (Width × Depth × Height including load overhang), gross weight per pallet, forklift model and turn radius (AST), and concrete slab thickness/compressive rating (MPa).

How does HEDA ensure corrosion resistance in tropical or maritime environments?

Components undergo an automated chemical surface-treatment line: degreasing, ultrasonic water rinse, acid pickling to eliminate scale, and zirconium-phosphate chemical bonding. Following this, an electrostatic thermoset epoxy-polyester powder coat is cured at 190°C–210°C. For coastal zones or cold storage, hot-dip galvanizing per ISO 1461 is available.

What beam deflection safety factor is incorporated into structural load tables?

All HEDA beam sections adhere to stringent international standards (FEM 10.2.02 / RMI MH16.1), limiting maximum beam vertical deflection to ≤ L/200 under uniformly distributed live loads (UDL). Safety factors against ultimate tensile rupture typically range between 1.65 and 1.95, verified via computerized destructive bench testing.

How do you optimize 40ft High Cube (40HC) container packing to reduce import logistics costs?

Uprights are manufactured to optimized shipping bundle lengths with nested diagonal bracings. Beams are palletized in matched-pair bundles separated by high-density polyethylene protectors to eliminate transit scuffing. Our automated packing simulations routinely achieve 95%+ volumetric utilization in 40HQ containers, minimizing ocean freight costs per pallet position.

Can single deep pallet racks be engineered for seismic zones like Indonesia, Japan, or the Philippines?

Yes. Our civil and structural engineering desk calculates seismic dynamic response factors per IBC 2021 / ASCE 7 and local annexes. We adjust the upright profile cross-sections, increase plate thickness on floor footplates, deploy chemical capsule anchor studs, and incorporate structural top-tie bracing across row spaces to ensure life-safety integrity during seismic events.

What installation support, documentation, and certifications accompany the shipment?

Every export delivery includes structural verification certificates (CE, ISO 9001, mill material test certificates), detailed 2D/3D part-indexed assembly blueprints, torque wrench specification sheets, component manifests, and high-definition video walkthroughs. On large-scale EPC projects, HEDA installation supervisors can be dispatched on site.

Ready to Optimize Your Storage Density and Operating Throughput?

Connect with our senior intralogistics engineering specialists. Receive an initial AutoCAD floor layout, structural load analysis, and competitive factory-direct pricing within 24 to 48 hours.
