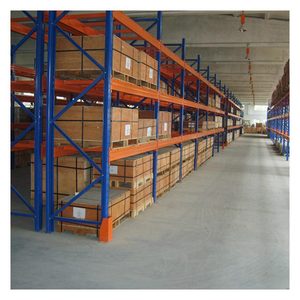

Engineering Architecture of Industrial Selective Pallet Racking

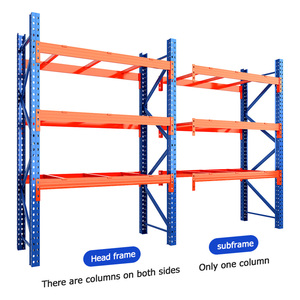

Selective pallet racking remains the definitive backbone of worldwide intralogistics infrastructure. Delivering direct, uninterrupted 100% individual pallet selectivity, it enables forklift operators to access any inventory unit load without shifting adjacent cargo. Fabricated predominantly from certified structural steel grades (such as Q235B and Q355B), selective racking combines vertical cold-rolled column frames connected through horizontal and diagonal bracing with rigid boxed load beams locked securely by steel safety pins.
In modern supply chain architecture, structural stability is non-negotiable. Leading Chinese manufacturers design selective racking according to the European Federation of Materials Handling (FEM 10.2.02), European Standards (EN 15512), and the American Rack Manufacturers Institute (RMI MH16.1) codes. By computing elastic modulus values, section properties, column perforation reduction factors, and permissible deflection limits (typically L/200 for standard operations or L/300 for specialized automation), certified Chinese exporters deliver storage systems that endure high dynamic stresses, forklift impacts, and localized seismic actions.
| Structural Parameter | Standard Selective Rack | Double-Deep Racking | Very Narrow Aisle (VNA) | Radio Shuttle Racking |
|---|---|---|---|---|
| Pallet Access Rate | 100% Immediate | 50% Immediate (Last-in First-out) | 100% Immediate | Batch / Lane Access (FIFO or LIFO) |
| Aisle Width Requirements | 3,000 mm – 3,800 mm | 3,200 mm – 3,800 mm | 1,600 mm – 1,900 mm | Variable (Aisle-free storage lanes) |
| Floor Area Utilization | 35% – 45% Space Yield | 50% – 60% Space Yield | 55% – 65% Space Yield | 70% – 85% Ultra-Dense Yield |
| Handling Equipment Required | Standard Counterbalance / Reach | Deep-Reach Pantograph Forklift | Guided Turret Truck / Man-Up Stacker | Standard Forklift + Automated Shuttle |
| Optimum Application Sector | FMCG, 3PL, High SKU Distribution | Bulk Raw Materials, Buffer Staging | High Real-Estate Cost Logistics Hubs | Cold Storage, Food & Beverage Processing |
Global Sourcing Trends in Pallet Racking & Warehouse Infrastructure
How international logistics operators, retail conglomerates, and cold-chain distribution centers are restructuring procurement criteria when partnering with Chinese manufacturers.
1. Near-Tolerance Modular Steel Sourcing
Global procurement directors increasingly demand strict cold-rolling micro-tolerances. Automated robotic welding cells and continuous 32-station profile forming lines guarantee beam straightness and hole perforation accuracy within ±0.5mm, ensuring frictionless assembly across overseas projects.
2. Digital Twin Layouts & Structural FEA Pre-Validations
The standard for tender submissions has transitioned from flat CAD drafts to dynamic 3D BIM (Building Information Modeling) and Finite Element Analysis (FEA). Buyers require advance simulations of seismic buckling loads, floor slab point pressures, and thermal fatigue behaviors.
3. Total Carbon Footprint & Eco-Coatings
Export compliance to Europe, the Americas, and APAC now prioritizes environmental certifications. Powder coating chemistries free of volatile organic compounds (VOCs) and heavy metals, validated by RoHS and REACH protocols, represent an essential requirement for corporate ESG audits.
Emerging Technology Trends in Selective Racking Architecture
Smart Sensorization
Integrated RFID, deflection load cells, and IoT stress strain gauges fitted on upright columns detect structural overloads and mast impacts in real time, alerting warehouse management before material fatigue occurs.
High-Strength Micro-Alloys
Deployment of specialized high-yield strength hot-rolled steel strip variants (such as Q355B and automotive structural steel) allows manufacturers to reduce overall dead-weight steel consumption while boosting load ratings per level.

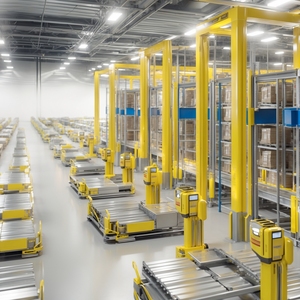

Hybrid AGV / AMR Synergy
Selective racking uprights are evolving with specialized low-profile bottom portal ties, laser target reflectors, and floor guide rails tailored for autonomous mobile robots and unmanned narrow-aisle stacker fleets.
Duplex Corrosion Barriers
Combining automated zinc-rich silane pre-treatments with electrostatic polyester topcoats or hot-dip galvanizing to deliver 20+ year protection in harsh blast freezers (-30°C) and tropical high-humidity environments.
30,000 m² Intelligent Production Base in Guangzhou
Operating since 2001, Guangzhou Heda Shelves Co., Ltd. has established an integrated supply chain model covering every phase of industrial storage production. With over 300 technical engineers and specialized logistics specialists, our factory maintains strict control over raw coil metallurgical analysis, roll-forming profile consistency, and automated powder finishing.
- CE Marking: EN 1090 Structural Execution
- ISO 9001:2015: Audited Quality Standard
- Free Layout: 24-Hour 2D/3D CAD Renderings
- Global Shipping: Direct South China Port Loading
Rigorous Export Engineering Safeguards
Every overseas shipment is matched with a custom container pack plan (optimizing space inside 40ft High Cube containers), labeled component bundles, comprehensive installation drawings, and physical material test reports.
Standardized 10-Phase Quality Verification Cycle
Steel Verification
Mill certificate validation & yield tensile testing.
CNC Slitting
High-precision coil uncoiling and edge trimming.
Auto Punching
Multi-station automated hole pitch stamping.
Roll Forming
Multi-roller continuous cold section bending.
Laser Trimming
Automated cutting to length within ±1mm.
Robotic Welding
Shielded gas-welded beam end connectors.
Shot Blasting
Surface rust removal and mechanical profiling.
Phosphating
Chemical bath pickling for corrosion resistance.
Powder Coating
Electrostatic curing at 180°C–200°C.
Pack & Loading
Protective strapping and container seaworthy pack.
Frequently Asked Questions by Global Racking Buyers
Clear, engineering-backed answers addressing structural design, seismic verifications, freight packaging, and international standards compliance.
What core data points are mandatory to calculate beam and upright capacities?
To accurately design an engineered selective rack system, our structural engineers require: (1) Total pallet dimensions including overhang (Width × Depth × Height); (2) Maximum gross weight per loaded pallet; (3) Clear internal warehouse height to the lowest sprinkler line or roof truss; (4) Forklift specifications including aisle turning radius, mast collapsed height, and maximum lifting height; (5) Floor concrete slab thickness, compressive strength (e.g., 25–30 MPa), and rebar specifications.
How does Chinese Q235B and Q355B steel compare with European S235/S355 or ASTM A36?
Q235B is an industry-standard structural carbon manganese steel with a minimum yield strength of 235 MPa, closely matching European standard EN 10025 S235JR and American standard ASTM A36. Q355B delivers a yield strength of 355 MPa, identical to European S355JR and equivalent to ASTM A572 Grade 50. All steel raw material utilized in our production is accompanied by official metallurgical mill inspection certificates indicating exact chemical composition and tensile mechanical performance.
Can selective pallet racking systems be customized for high-risk seismic zones?
Yes. In seismic zones (such as Indonesia, the Philippines, Japan, New Zealand, or western South America), standard gravity calculations are insufficient. We integrate local seismic response spectrum analyses (e.g., IBC, Eurocode 8, NZS 1170.5). Structural modifications include widening column base plates, utilizing dual anchor bolts per upright foot, thickening upright steel profiles, reinforcing back vertical bracing towers, and adding top cross-tie portals across working aisles.
What anti-corrosion surface treatments are recommended for cold storage or maritime shipping?
For standard temperature-controlled warehouses, our 8-stage pickling, phosphating, and electrostatic powder coating (60–80 microns film thickness) provides superior durability. For industrial blast freezers (-25°C to -30°C) or coastal ambient humidity, hot-dip galvanization conforming to ISO 1461 (minimum 55–85 microns zinc layer) is strongly recommended to prevent steel oxidation caused by persistent condensation cycles.
What is the typical manufacturing lead time and ocean container load factor?
Standard fabrication runs for 1 to 5 shipping containers typically take 15 to 25 working days from CAD engineering approval. Our logistics engineers calculate computerized container nesting simulations using 3D palletizing software, bundling long beams and upright frames with custom timber dunnage and protective corrugated wrapping to maximize payload weight while safeguarding powder finishes.
Do you provide on-site assembly supervision or third-party engineering stamped reports?
Every project is delivered with step-by-step CAD isometric assembly schematics, component tagging schedules, and safety warning plaque guidelines. On request, we provide structural calculation verification reports for local municipal council building permits, and can deploy senior installation supervisors to guide local contracting teams on-site.
