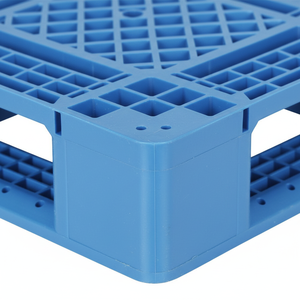

1400x1100mm Heavy Duty Plastic Pallet Grid Warehouse Rack Use
Engineered grid base pallet optimized for smooth travel across gravity roller tracks without deflection.
Get Catalog
Engineered Deployments
Specialized Pallet Flow & Heavy-Duty Storage Configurations
Custom-engineered gravity systems, reinforced pallet carriers, and high-density deep-lane designs verified to international structural standards.
Industrial Heavy Duty Pallet Storage Refrigerator Rack
Cold-chain rated steel profile structure offering corrosion resistance in temperature-controlled deep freeze facilities.
Get Catalog
FIFO High Density Pallet Flow Gravity Roller Storage System
Heavy-duty steel flow beds equipped with magnetic speed controllers and entry guides for continuous FIFO buffering.
Get Catalog
Live Pallet Flow Gravity-Fed Quick Installation Racking
Modular roll-formed framing with adjustable incline slope profiles designed for swift deployment in logistics hubs.
Get Catalog
Industrial Gravity Flow Warehouse Goods Storage Rack
Multi-tier dynamic shelving incorporating inline separation mechanisms to reduce extraction pressure at discharge faces.
Get Catalog
Professional Metallic Heavy-Duty Gravity Pallet System
Structural Q235B steel construction customized for high-frequency distribution centers and high-turnover hubs.
Get Catalog
Automated Racking Pallet 3 Skids Steel Reinforced
Internal tubular steel reinforcement ensuring zero deck-sag in automated live storage and gravity feed environments.
Get Catalog

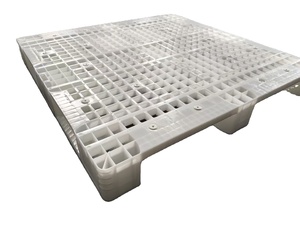

HDPE Steel-Reinforced 4-Way Entry Dynamic System Pallet
Engineered for abrasive warehouse handling with long-cycle service life across industrial roller lines.
Get Catalog25+
Years Engineering Experience
30,000
Sq.m Manufacturing Base
30,000t
Monthly Cold-Forming Capacity
120+
Export Destination Nations
The Kinematics and Structural Engineering of Pallet Flow Storage
Pallet flow racks—frequently designated as gravity flow racking, dynamic live storage, or gravity-fed push-through systems—represent the apex of passive, energy-free high-density material handling. Operating on an inclined plane ranging precisely between 2.5% and 4.0% gradient, these systems exploit gravity to roll palletized payloads from an entry loading face to a separate picking face along unified, multi-deep lanes.
For operations facing high unit-load throughput, inventory expiration sensitivity, and soaring warehouse square-meter lease costs, dynamic pallet flow eliminates wasted interior operating aisles. Unlike traditional drive-in racking that subjects structural columns to continuous lift-truck impact hazards, pallet flow operates entirely via dedicated charging and extraction points. The fundamental engineering challenges solved by our Guangzhou manufacturing plant include:
- Dynamic Braking Equilibrium: Centrifugal and magnetic braking rollers calibrated directly to unit weights from 300 kg to 1,500 kg, preventing runaway velocities and shock impact against end stops.
- Payload Line Pressure Relievers: Mechanical pallet separators positioned at the discharge front isolate the leading pallet from accumulating rearward lane forces, permitting standard forklifts to extract loads without back-pressure resistance.
- Torsional Roll-Form Integrity: Upright profiles rolled from certified Q235B/Q355 structural steel with multi-bend return lips that resist dynamic torsional twist induced by uneven pallet descent.
| Structural Parameter | Standard Duty Configuration | Heavy-Duty Industrial Specification | Cold-Chain / Hazardous Spec |
|---|---|---|---|
| Lane Gradient Profile | 2.8% - 3.2% (Configurable) | 3.0% - 3.5% (Heavy Unit Mass) | 3.5% - 4.0% (Viscosity Offset) |
| Roller Pitch & Diameter | 50mm Dia. @ 75mm Pitch | 60mm / 76mm Dia. @ 100mm Pitch | Stainless Galvanized Precision Bearings |
| Brake Roller Integration | Centrifugal every 3rd pallet length | Heavy magnetic eddy-current rollers | Low-temp lubricant sealed rollers (-30°C) |
| Steel Coating Protection | Pickling + Phosphating + Powder (60-80μm) | High-impact electro-deposition polymer | Hot-Dip Galvanized (ISO 1461 compliant) |
Emerging Sourcing Dynamics & Future Technological Trends
International procurement authorities in 3PL, FMCG distribution, and pharmaceuticals are re-engineering supply networks toward autonomous throughput and higher ESG compliance. The procurement of dynamic gravity pallet racking has shifted from simple commoditized steel sourcing to integrated dynamic material science.
Integration with Autonomous AMRs
Modern flow racks now integrate precision inductive sensors and mechanical interlocks at discharge faces to interface directly with Autonomous Mobile Robots (AMRs) and automatic counterbalanced AGVs without manual lift intervention.
Eco-Passive Cold Chain Storage
With industrial refrigeration consuming substantial electrical loads, dynamic gravity flow racks condense up to 60% more inventory into cold-room cubes compared to selective racks, reducing operational kilowatt-hour metrics per pallet slot.
Smart Sensor Speed Deceleration
Next-generation dynamic installations are moving toward maintenance-free self-generating eddy-current brake drums that automatically adjust dynamic resistance according to individual pallet weight, avoiding mechanical friction pad wear.
Verified Manufacturing Strength: Guangzhou HEDA Shelves Co., Ltd.
Founded in 2001 and headquartered in Guangzhou, China, HEDA Shelves operates a state-of-the-art 30,000 square-meter production facility, driving intralogistics infrastructure across more than 120 countries. Sourcing direct from the manufacturer guarantees complete supply chain visibility and custom structural engineering flexibility.
Full In-House Fabrication
From initial uncoiling, automated profile rolling, and CNC punching through to robotic welding and chemical phosphating, all processes are executed strictly within our Guangzhou facility.
Seismic Structural Compliance
Our engineers formulate custom finite element analyses (FEA) accommodating distinct seismic activity across zones like Indonesia, the Philippines, Japan, and earthquake-sensitive GCC territories.
Certified Global Export Quality
We maintain full compliance with European CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management (No. 18624Q00169R0M), and environmental RoHS standards for all powder surface coatings.
Engineering Turnkey Support
Complimentary complete 2D warehouse CAD layout planning, realistic 3D volumetric renders, and detailed structural weight calculation documents delivered within 24 to 48 hours from initial inquiry.
Frequently Asked Technical Questions on Pallet Flow Racking
What specific pallet specifications are required for reliable gravity flow systems?
Pallet flow efficiency relies heavily on the underside contact surface. Solid runner GMA wood pallets, three-runner perimeter plastic pallets, or steel pallets with uniform bottom skids are ideal. Deflected, damaged, or cracked boards can catch between rollers. In cases where clients handle mixed, flexible, or poor-quality pallets, our engineering team supplies full-width steel dynamic rollers or custom pallet slave trays to maintain smooth descent.
How does the pallet flow system avoid dynamic acceleration across deep lanes (10 to 20 pallets deep)?
Speed control is achieved using centrifugal speed controller rollers installed flush with the track bed at calculated intervals (typically every pallet length after the second pallet position). As a pallet rolls over the controller, an internal planetary gear turns centrifugal flyweights outward, creating kinetic braking resistance that restricts load velocity safely between 0.2 m/s and 0.3 m/s regardless of lane depth.
What is the exact function of the end pallet separator mechanism?
In deep gravity flow lanes, the cumulative hydrostatic line pressure exerted by trailing pallets against the front load can reach multiple metric tons, clamping the front pallet against the extraction stop and causing severe lift-truck mast strain. An automatic mechanical separation lock holds back the second and succeeding pallets about 150mm away until the front unit is lifted completely clear, ensuring smooth, low-effort extraction.
Can HEDA pallet flow rack systems operate inside deep-freeze (-25°C) environments?
Yes. Low-temperature operations require tailored dynamic engineering. We deploy cold-tolerant synthetic low-viscosity greases inside all roller precision bearings, hot-dip galvanized structural frames or multi-coat epoxy primers, and adjust lane gradients upward by roughly 0.5% to counteract ice friction and increased oil resistance inside the speed controllers.
What documents and design files are necessary for receiving an exact quotation?
To generate an accurate system design and price proposal, we require: (1) Warehouse clear height and CAD architectural drawings indicating building columns and access doors; (2) Detailed pallet dimensions (Length x Width x Height including cargo overhang); (3) Minimum and maximum unit weights; (4) Operating environmental temperatures; and (5) Material handling forklift specifications including maximum mast lift heights.
Request Complete Technical Whitepaper & CAD Layout
