Featured Industrial Warehouse Storage & Medium-to-Heavy Racking Systems
Each modular configuration is precision cold-rolled in our Guangzhou manufacturing complex utilizing certified Q235B structural steel, tailored to precise load distributions from 200 kg to 3,000 kg per tier.
2001EST.
Over 25 Years Structural Manufacturing Authority
30,000m²
Guangzhou Modern Smart Manufacturing Plant
30,000t/mo
Rolling & Phosphating Steel Output Capacity
120+
Nations & Regional Distribution Hubs Supplied
Direct Mill Advantages
Guangzhou HEDA Shelves: Engineering Benchmarks & Reliability
Eliminating third-party intermediaries to guarantee cold-roll precision, acoustic automated punching, and complete structural traceabilities for international EPC contractors.
Certified Q235B Cold Steel
Direct sourcing from tier-one domestic mills with full chemical and yield certifications. Precision rolling ensures high-tensile resistance under static and kinetic working loads.
Pre-Treatment Coating
Continuous 10-step surface treatment featuring acid pickling, zinc phosphating, and thermo-polymer electrostatic powder coating complying with strict EU RoHS directives.
Free 2D/3D & Seismic FEA
In-house structural engineers furnish spatial layout calculations within 24 to 48 hours, customized for local UBC and Eurocode seismic load criteria across the Pacific Rim.
Rapid South China Shipping
Located near major ports (Nansha, Huangpu, Shenzhen) ensures rapid containerization, modular container-cubing optimization, and reliable delivery to Asian, Middle Eastern, and Western hubs.
Engineering Whitepaper Analysis
Structural Architecture of Industrial Medium Duty Racking: Engineering, Deflection, and Load Dynamics
In modern industrial intra-logistics, Medium Duty Racking Systems (often designated as Longspan Shelving or Type-B racking) serve as the indispensable bridge between ultra-light slotted-angle shelving and concentrated heavy-duty pallet bays. Typically engineered for unit distributed loads ranging from 200 kg to 800 kg per level, these systems accommodate carton picking, manual parcel buffering, plastic bin archiving, and intermediate production sub-assemblies where forklift accessibility is neither required nor geometrically feasible.
1. Cold-Formed Steel Sectionals and Moment-Resistant Uprights
The structural rigidity of a top-tier Chinese medium duty racking system depends strictly on profile geometry rather than mere steel gauge thickness. Uprights are cold-rolled via CNC-monitored 14-to-18 station rolling lines into omega (Ω) or multi-flanged diamond formations. The multi-bend upright geometry induces work hardening along the corners, drastically increasing the section modulus ($Z_x, Z_y$) and resisting both torsional-flexural buckling and catastrophic lateral shear. Our Guangzhou facility leverages structural high-grade Q235B cold steel coils, punched with 50mm or 75mm pitch precision butterfly holes or teardrop slots, offering seamless snap-in vertical beam adjustments with zero threaded fastener play.
2. Deflection Limitations and Eurocode Compliance
A crucial differentiator separating certified exporters from cut-rate suppliers is compliance with the FEM 10.2.02 and EN 15512 standards. Under full serviceability limit states (SLS), beam deflection ($\delta$) must strictly satisfy: $$\delta \le \frac{L}{200}$$ where $L$ is the unsupported clear span between upright columns. Cheap fabricators frequently mask sub-gauge material by utilizing standard rectangular tubing without stepped rebates. HEDA Shelves integrates step beams and P-beams cold-drawn to nest flush with steel wire mesh decking, solid zinc-galvanized drop-in steel panels, or fire-retardant structural chipboard, eliminating lateral slip while distributing torsional moment evenly across connecting safety pins.
| System Classification | Standard Load (per Tier) | Standard Decking Material | Primary Application Profile | Handling Mechanism |
|---|---|---|---|---|
| Light-Duty Angle Racks | 50 – 150 kg | Cold-rolled 0.4-0.6mm sheet | Offices, retail backrooms, light archives | 100% Manual Hand Picking |
| HEDA Medium Duty (Type-B) | 200 – 800 kg | Reinforced steel panels / Wire mesh | E-commerce DCs, automotive parts, pharma buffer | Manual, Mezzanine carts, AGV bin pick |

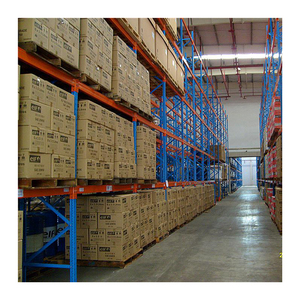

| Heavy Duty Pallet Racking | 1,000 – 4,000 kg | Cross-support bars, pallet runners | Bulk manufacturing, cold stores, 3PL logistics | Counterbalance, Reach trucks, VNA |

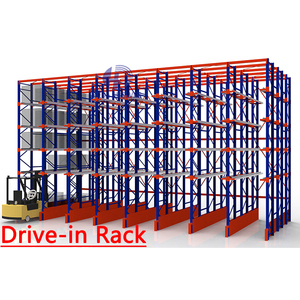

| Drive-In / Radio Shuttle | 1,000 – 1,500 kg/pallet | Continuous galvanized guide rails | Low-SKU deep lane consolidation, raw dairy/drinks | Automated Shuttle / In-aisle Forklifts |
3. Tropical Climate Surface Treatment & Salt-Spray Resistance
Standard liquid coatings deteriorate quickly in Southeast Asian, Middle Eastern, and coastal environments where relative humidity frequently exceeds 85% and airborne salinity causes sub-film oxidation. HEDA Shelves counters atmospheric degradation through a multi-stage closed-circuit pre-treatment tunnel. Structural sections undergo hot degreasing, rinse cycles, micro-etching acid pickling, and a fine crystalline zinc-phosphate chemical bond before receiving thermosetting polyester-epoxy powder. Cured at 180°C to 200°C, this finish achieves a non-porous 60–90 micron barrier that resists 500+ hours of continuous neutral salt-spray exposure (ASTM B117), guaranteeing decades of structural safety without flaking or rust-jacking.
Strategic Procurement Horizons
Future Procurement Trends in Medium-to-Heavy Warehouse Racking (2025–2030)
Shifting trade tariffs, automated micro-fulfillment centers, and green building certifications are reshaping how international buyers specify and purchase industrial racking.
Automation Synergy
1. AMR and Autonomous Tugger Interoperability
Traditional static manual shelves are rapidly adapting to autonomous mobile robots (AMRs). Modern medium duty structures now require widened base-plates, recessed lower bracing, and magnetic guide-strip recesses so floor-level bots can access bottom bins without structural collisions.
Tolerance limit: ±1.0mm per bay
Spatial Optimization
2. Multi-Tier Rack-Supported Mezzanines
Skyrocketing industrial rents across Singapore, Hong Kong, Dubai, and Jakarta have triggered massive demand for multi-tier shelving floors. Importers now purchase medium-duty columns pre-engineered with floor-beam saddle brackets, allowing vertical expansion without building alterations.
Up to 300% floor footprint multiplication
ESG & Carbon Border
3. Decarbonized EPD Steel Traceability
Global procurement teams (particularly in the EU, UK, and Americas) require verified Environmental Product Declarations (EPD). Chinese mills investing in electric-arc furnaces (EAF) and zero-VOC powder formulations are outpacing conventional, carbon-intensive manufacturers.
Full RoHS & Eco-certified powder adherenceProcurement Knowledge Base
Frequently Asked Questions: Global Sourcing of Medium Duty Racking Systems
Real-world engineering, logistical, and commercial inquiries answered by HEDA's technical export division.
What is the exact engineering boundary between Light, Medium, and Heavy Duty Racking?
In industrial logistics design, Light Duty refers to boltless or angle shelving supporting below 150 kg per shelf, typically utilized for light components and stationery. Medium Duty (commonly classified as Longspan or Type-B racking) is designed for uniformly distributed loads (UDL) between 200 kg and 800 kg per shelf tier, using uprights rolled from 0.9mm to 1.5mm high-tensile steel and stepped P-beams. Systems exceeding 1,000 kg per level require standard heavy-duty box beams or C-channel profiles built to handle forklift-placed pallet loads, with safety locks engineered to withstand vertical lift dislodgement forces exceeding 5,000 N.
How does HEDA ensure dimensional accuracy and beam hole alignment across large production runs?
Our Guangzhou facility utilizes continuous automated CNC punching heads synchronized with our cold roll-forming lines. The steel strip is punched prior to profile forming, ensuring that every hole pitch (standard 50mm or 75mm) maintains a center-to-center tolerance within ±0.1mm along a 12-meter upright length. This prevents cumulative pitch error, enabling frictionless field assembly and immediate drop-pin engagement without on-site reaming or forceful adjustment.
What information is required to receive a comprehensive CAD layout and structural quotation?
To provide an accurate engineering quote, our design team requires: (1) Warehouse architectural drawings (DWG or dimensioned PDF) indicating column grids, clear ceiling height, emergency exits, and overhead utility lines; (2) Unit load parameters including carton/tote dimensions (W x D x H) and maximum gross weight; (3) Operational picking workflows (manual trolleys, order pickers, or automated mobile robots); and (4) Site seismic and environmental conditions (e.g., floor slab thickness, compressive strength, and indoor ambient humidity).
How are medium duty racking components packaged to prevent damage during multi-modal ocean transit?
All upright frames are bundled in modular packs separated by heavy non-abrasive corrugated spacers and strapped with PET plastic banding to prevent metal-on-metal rubbing. Step beams are palletized with protective polyethylene bubble wrap and corrugated end caps. Steel decking panels are cross-stacked on fumigated solid timber skids or steel pallets, wrapped in multi-layer stretch film with industrial desiccant bags placed inside each container to neutralize container-rain moisture during marine voyages.
Can HEDA Shelves manufacture customized colors and private-label components for regional distributors?
Yes. Over 40% of our production volume operates under OEM/ODM partnerships with distributors across Southeast Asia, Europe, and the Middle East. We provide custom electrostatic powder finishes matched to any RAL classic code (common enterprise selections include RAL 5015 Blue, RAL 2004 Orange, and RAL 7035 Light Grey). In addition, we offer customized steel-stamped brand badging, localized installation instruction booklets, and custom container packing sequences aligned with your warehouse staging requirements.
