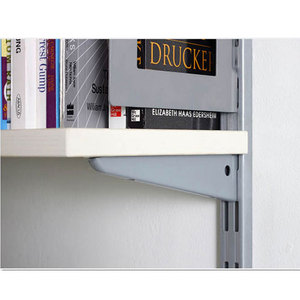

Wall Fixing Display Shelves for Wall Amount and Wall Panel of Home Use and Storage
Easy to Assemble Multilayer Stainless Steel Floating Shelves Wall Mounted Clothing Display Rack

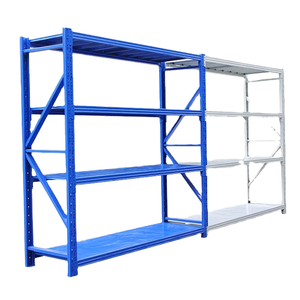

Shelves Shelving Garage Metal Rack for Warehouse Wholesale Warehouse Storage Rack Storage Shelves Units

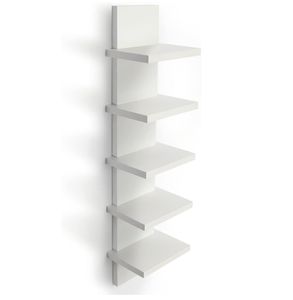

5 Layer Detachable Customizable Wooden Wall Shelf Unit White Vertical Floating Shelf Large Capacity Narrow Bathroom Kitchen

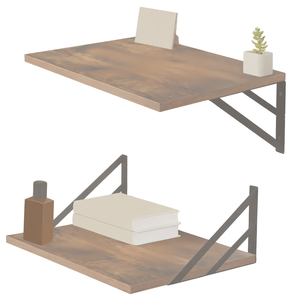

Rustic Wood Wall Mount Floating Shelves with Black Triangle Metal Brackets, Industrial Display Storage Wall Shelf for Home Decor

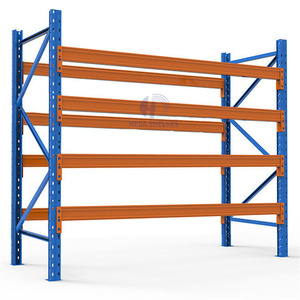

High Quality Heavy Duty 5 Layer Steel Industrial Warehouse Racking Storage Shelf Boltless

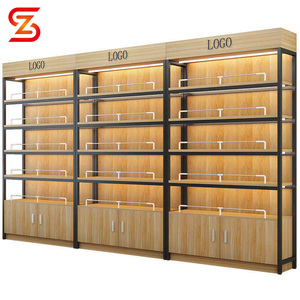

Wall Mount Freestanding Slatwall Display Cabinet With Retail Display Custom Shelves Hanging Rail Store Interior Decoration

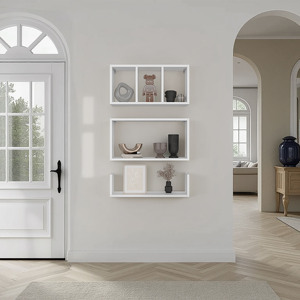

Wall Mounted Floating Shelves Set Of 3 Rectangular Display Racks Modern Home Organizer
Engineering CE-Certified Wall Mounted Storage Architecture
Wall-mounted racking systems differ critically from floor-standing pallet racking because they impose combined tensile, shear, and cantilever moments directly onto vertical masonry or reinforced steel framing. Under European Union Regulation (EU) No 305/2011 (Construction Products Regulation or CPR) and standards such as EN 1090-1 (Execution of Steel Structures) and EN 15635, wall racking components must undergo exhaustive finite element analysis (FEA) to confirm yield strength under eccentric loading conditions.
At Guangzhou Heda Shelves Co., Ltd., our engineering protocol demands an anchor pull-out safety coefficient no less than γ_M = 2.0 for static live loads, and γ_M = 2.5 where cyclic handling vibrations occur. The bracket overturning moment ($M_o = F \times d_c$, where $F$ is uniform load and $d_c$ represents centroid offset) is transferred through cold-rolled upright profiles featuring continuous cold-formed spine channels. This prevents wall pull-out failures commonly observed in lightweight consumer shelving units.
Mechanical Load & Anchor Tension Calculations
Theoretical pull-out shear stress on top-tier expansion anchors per 1,000 mm upright bay with varying arm extensions (Calculated at 250 kg uniformly distributed level):
| Arm Depth (mm) | Moment Arm (d) | Top Anchor Pull-out ($N_t$) | Safety Factor |
|---|---|---|---|
| 300 mm | 150 mm | 1.47 kN / anchor | 3.12 (Pass) |
| 400 mm | 200 mm | 1.96 kN / anchor | 2.68 (Pass) |
| 500 mm | 250 mm | 2.45 kN / anchor | 2.25 (Pass) |
| 600 mm (Heavy) | 300 mm | 2.94 kN / anchor | 2.04 (Pass) |
*Calculations based on dual anchor head fixings into C20/25 concrete with M8 wedge anchor bolts embedded at 65 mm effective depth.
Wall Mounted Storage Typology & Structural Ratings
Compare standard configurations across industrial, commercial retail, and cleanroom applications to align mechanical specifications with local municipal building regulations.
| System Classification | Core Materials | Load Rating (UDL) | Anchor Substrate Compatibility | Corrosion Resistance Class | Ideal Procurement Scope |
|---|---|---|---|---|---|
| Industrial Boltless Wall Rack Heavy Industrial |
Cold-rolled steel Q235B uprights, 1.8mm folded steel decks | Up to 400 kg / level | Cast concrete, reinforced solid brickwork, structural H-beams | ISO 12944 C2/C3 (Electrostatic epoxy-polyester) | Maintenance workshops, hardware supply staging, regional distribution facilities |
| Slotted Slatwall Metal Unit Retail Merchandising |
Extruded aluminum alloy 6063-T5 or cold-punched Q195 steel | 40–90 kg / bracket arm | Timber framing studs, light concrete masonry units (CMU), steel uprights | Anodized 15μm or architectural micro-texture powder | Omnichannel boutique stores, consumer electronics, athletic showrooms |
| Sanitary Stainless Steel Shelves Cleanroom & Food |
Austenitic SS304 or SS316 with electropolished finish | 80–180 kg / tier | Tiled concrete, insulated cleanroom sandwich panels with backer plates | ISO 12944 C4/C5-M (Marine & Chemical immersion proof) | Commercial cold storage, pharmaceutical cleanrooms, hospital utility hubs |
| Architectural Floating Cantilever Modular Interior |
Solid FSC ash/pine combined with structural steel bracket inserts | 25–65 kg / tier | Drywall with continuous horizontal timber blocking, masonry | Interior dry C1, low-VOC waterborne sealer with RoHS compliance | Corporate hospitality, residential multi-family projects, executive suites |
Emerging Global Trends in Wall Mounted Racking Procurement
Supply chain leaders, architects, and engineering procurement teams are facing shifting regulatory frameworks, rising urban warehousing real estate costs, and decarbonization mandates.
Vertical Real Estate Optimization
With prime industrial floor rents climbing in gateway logistics hubs such as Singapore, Tokyo, Rotterdam, and Dubai, facility planners are shifting inactive floor footprints into wall-elevated racking channels. Utilizing dead air space above perimeter picking aisles increases floor space utilization by 18% to 27% without triggering fire code sprinkler reassessments.
Stringent CE CPR & Seismic Traceability
General contractors across Europe, Australasia, and seismically active zones across ASEAN (Philippines, Indonesia) increasingly enforce EN 1090 structural welding compliance for wall cantilever brackets. Mill test certificates (MTC 3.1) showing verified raw coil elongation and yield properties are now non-negotiable procurement prerequisites.
Universal Slotted Standards & Modularity
Proprietary bracket slot geometries are declining in favor of standardized multi-pitch slots (such as 25 mm and 50 mm universal Euro-pitches). B2B volume buyers prefer modular tooling systems where the same upright channels can swap effortlessly between heavy steel mesh shelves, garment hanging tubes, and industrial plastic bin dividers.
Zero-VOC Powder Coatings & Eco-Pretreatment
Export legislation mandates the elimination of hazardous heavy metals in pre-treatment wash lines. Modern procurement contracts require zirconium-based or silane nanotechnology wash protocols replacing traditional iron phosphate treatments, delivering 1,000-hour salt spray endurance while maintaining full RoHS and REACH chemical compliance.
End-to-End In-House Fabrication & Quality Governance
From initial hot-rolled coil slitting to automated robot welding and final container palletizing, every step is executed within our 30,000 m² Guangzhou production facility under ISO 9001:2015 supervision.
