Heavy Duty
Engineered Warehouse Racking Systems
Factory-direct industrial shelving, teardrop storage configurations, and high-density racking custom designed by structural engineers for superior load integrity and high seismic tolerance.

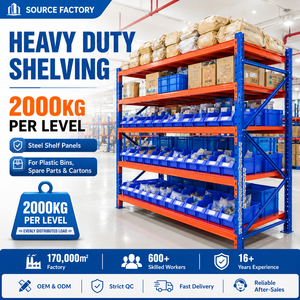

Adjustable
2000KG Rated

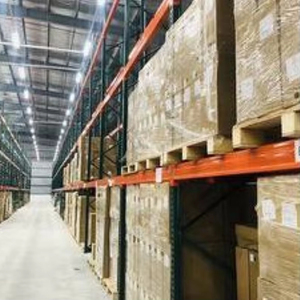

Powder Coated

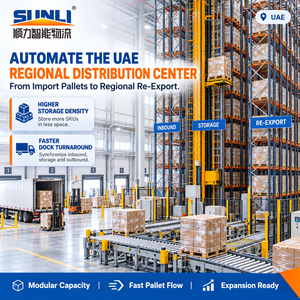

Automation

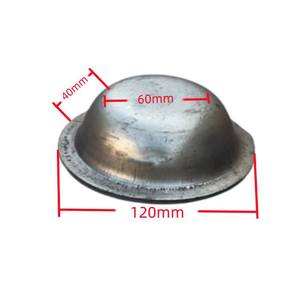

Heavy Component
High Density
Modular Unit
Engineering Specification: The Teardrop Standard in Modern Logistics
A technical review of mechanical interlock mechanisms, yield strength metrics, and why teardrop geometry dominates international material handling.
Technical Benchmark: Teardrop racking remains the preeminent standard across North America and global logistics chains due to its slide-in punch hole geometry, allowing pin-free rapid assembly combined with spring-loaded automatic safety locks. Our manufacturing implements Q235B and Q355B cold-formed steel yielding up to 355 MPa, tested under strict EN 15512 and RMI MH16.1 compliance frameworks.
Boltless Interlocking Connection
The teardrop hole punch geometry features a tapered profile that utilizes gravity to draw the beam pin down into an ultra-rigid wedged fit. This design reduces torsional play and increases frame rigidity by up to 22% over traditional slotted channel designs without requiring specialized installation tools.
Integral mechanical safety pins provide immediate visual verification that each connector bracket is positively locked, effectively eliminating accidental beam dislodgement caused by forklift mast contact.
Cold-Formed Continuous Uprights
Uprights are manufactured on precision CNC roll-forming lines from single steel coils, eliminating weak welded joints along the structural column length. Optimized multi-rib cross-sections ensure maximum axial load distribution across single-tier and multi-tier mezzanine frameworks.
By engineering standard pitch vertical adjustability on 2-inch (50.8 mm) increments, warehouse planners can reconfigure beam clearances precisely around changing SKU profiles, eliminating vertical space waste.
CE & ISO 9001 Structural Verification
Each production run complies with CE Certification (No. 2435-CPR-8605159) and ISO 9001:2015 QA workflows. Structural load modeling utilizes finite element analysis (FEA) to confirm localized buckling thresholds and ensure safety margins exceeding 1.5 under full nominal loading.
Finished profiles undergo a multi-stage pre-treatment featuring pickling, phosphating, and electrostatically sprayed thermosetting epoxy-polyester powder coating for robust salt spray and chemical resistance.
Enterprise Capacity & Engineering Metrics
Operational data and verified structural credentials backing our turnkey storage system supply chain.
2001
Manufacturing Inception
30,000+
Tons Monthly Throughput
10,000+
Global Warehouses Delivered
120+
Export Destination Countries
Future Procurement Trends in Industrial Storage
Key market vectors shaping modern intralogistics procurement strategies over the next five to ten years.
Convergence with Robotics (AMRs & AS/RS)
Global warehouse operators are rapidly pivoting away from low-density manual picking toward autonomous high-bay infrastructure. Teardrop frameworks are increasingly ordered with tightened fabrication tolerances (±0.5 mm) to support automated shuttle tracks, rail-guided AS/RS cranes, and top-running automated guided vehicles without rail derailment risks.
Interchangeability & Brownfield Retrofits
Supply chain uncertainty has heightened demand for universal teardrop compatibility. Procurement specialists prioritize rack profiles that match universal American teardrop dimensions, allowing third-party logistics (3PL) providers to expand existing bays, mix manufacturers, and quickly relocate warehouse facilities without writing off legacy equipment.
Resilience Engineering & Seismic Codes
Regional distribution centers across the Pacific Rim, Middle East, and seismic belts now mandate third-party site-specific calculation packages. Buyers demand heavier base plates, expanded structural anchors, and reinforced upright profiles designed to retain elastic deformation thresholds during dynamic seismic oscillations.
Manufacturing Evolution: Smart Production & Material Science
Continuous innovation in high-tensile steel processing, automated robotic manufacturing, and surface treatments.
High-Strength Micro-Alloy Steel
Migration toward high-yield micro-alloyed steel formulations enables thinner wall cross-sections while preserving high ultimate tensile strength, lowering shipping weights and total container freight expenditure per pallet position.
Continuous Robotic Welding
Automated multi-axis robotic stations weld beam connectors and base assemblies with unified penetration depth, eliminating human welding inconsistencies and structural failure hot-spots under cyclic pallet loading.
Eco-Friendly Surface Coatings
Advanced non-toxic, RoHS-compliant thermoset powder lines ensure zero-VOC emission footprints, providing superior chip, scratch, and corrosion resistance for demanding cold-storage humidity conditions down to -30°C.
Integrated IoT Digital Twin Design
Full CAD/BIM integration links racking layouts directly to warehouse digital twin platforms, providing engineering verification data for automated load balancing and predictive warehouse lifecycle maintenance.
Why International Buyers Trust Our Manufacturing
Combining 25+ years of engineering heritage with a 30,000 m² state-of-the-art Guangzhou manufacturing facility.
In-House End-to-End Control
From raw coil slitting, multi-stage cold bending, and automatic column punching to robotic welding and powder coating, every stage is executed within our 30,000 m² production facility, ensuring rigid quality oversight.
Complimentary 3D & CAD Design
Our dedicated structural engineering team provides 2D floor plans, 3D structural visual models, and load calculation checks within 24–48 hours, empowering buyers to optimize facility density prior to capital expenditure.
Export-Optimized Logistics
Strategically located near major South China maritime ports (Guangzhou, Shenzhen), we provide precision container stuffing plans to maximize cube volume, minimizing freight expenses and ensuring transit stability across global sea routes.
Procurement & Engineering FAQ
In-depth responses covering teardrop system compatibility, testing standards, load tolerances, and international export procedures.
What defines teardrop pallet racking compatibility across manufacturers?
Teardrop racking utilizes an industry-standard punching pattern centered on 2-inch increments. In our manufacturing lines, teardrop punch hole profiles are maintained within micro-millimeter tolerances to ensure compatibility with standard American teardrop designs. Beams feature standard end connectors that seat securely into legacy upright frames, allowing cost-effective brownfield warehouse expansions.
Which seismic and structural calculation standards govern your racking?
Our systems comply with European Standard EN 15512 (Steel static storage systems), RMI MH16.1 specifications, and hold verified CE Certification (No. 2435-CPR-8605159). For earthquake-prone regions such as the Philippines, Indonesia, and Japan, we engineer heavier floor base plates, localized column stiffeners, and anchor bolt configurations that satisfy localized seismic risk requirements.
How do you guarantee load capacity across extended beam spans?
Each beam profile is manufactured using high-yield roll-formed step or box sections. Load ratings are calculated based on uniformly distributed loads (UDL) with maximum deflection limits of L/200 or L/180 as mandated by industrial storage codes. Full physical destructive and non-destructive load tests are performed periodically on our calibrated factory test beds.
What surface treatment protections are applied for cold chain and tropical logistics?
Prior to coating, steel members undergo immersion pickling, degreasing, and zinc phosphating to eliminate mill scale and establish surface adhesion. We then apply electrostatic powder coating cured at 180°C–200°C. For high-humidity maritime regions or harsh sub-zero cold storage facilities, hot-dip galvanizing (HDG) options are available to prevent rust propagation.
What primary data is needed to receive a complimentary warehouse layout?
To prepare an accurate 2D CAD and 3D layout, our team requires: warehouse clear ceiling height, building column layouts, entry/egress points, pallet dimensions (W x D x H including overhang), pallet gross weight, forklift make/model (turning radius and maximum lift height), and desired inventory rotation method (FIFO or LIFO).
What are standard production lead times and container shipment protocols?
Standard factory production lead times range between 15 to 25 days depending on total project tonnage. All materials are packaged using protective corner protectors, corrugated wrapping, and heavy-duty steel strapping. We furnish container load mapping plans with each shipment, simplifying container de-stuffing and job-site staging.
Accelerate Your Warehouse Efficiency Today
Consult with our senior logistics engineers for an immediate engineering evaluation, complimentary CAD layout, or custom OEM manufacturing quote.
